A hybrid proportional navigation based two-stage impact time control guidance law

doi:10.23919/JSEE.2022.000046

Journal of Systems Engineering and Electronics ›› 2022, Vol. 33 ›› Issue (2): 461-473.doi: 10.23919/JSEE.2022.000046

收稿日期:2020-10-26 出版日期:2022-05-06 发布日期:2022-05-06

A hybrid proportional navigation based two-stage impact time control guidance law

Jia HUANG¹(), Sijiang CHANG^1,*(), Shengfu CHEN²()

¹ School of Energy and Power Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
² The 20th Research Institute of China Electronics Technology Group Corporation, Xi’an 710068, China

Received:2020-10-26 Online:2022-05-06 Published:2022-05-06
Contact: Sijiang CHANG E-mail:1497067602@qq.com;ballistics@126.com;864166306@qq.com
About author:|HUANG Jia was born in 1997. He received his bachelor’s degree in aerospace engineering. He is currently studying for his master’s degree in the School of Energy and Power Engineering at Nanjing University of Science and Technology. His current research interests mainly focus on missile flight dynamics and guidance and control. E-mail: 1497067602@qq.com||CHANG Sijiang was born in 1983. He graduated from Nanjing University of Science and Technology in 2011. He is an associate professor at Nanjing University of Science and Technology. His research interests include guidance, control, and dynamics, exterior ballistics, and flight vehicle aerodynamics. E-mail: ballistics@126.com||CHEN Shengfu was born in 1993. He received his master’s degree from Nanjing University of Science and Technology in 2019. He is currently an engineer at the 20th Research Institute of China Electronics Technology Group Corporation. His research interests are missile flight dynamics and guidance and control. E-mail: 864166306@qq.com
Supported by:
This work was supported by the Fundamental Research Fund for the Central Universities (30919011401)

摘要/Abstract

Abstract:

To improve applicability and adaptability of the impact time control guidance (ITCG) in practical engineering, a two-stage ITCG law with simple but effective structure is proposed based on the hybrid proportional navigation, namely, the pure-proportional-navigation and the retro-proportional-navigation. For the case with the impact time error less than zero, the first stage of the guided trajectory is driven by the retro-proportional-navigation and the second one is driven by the pure-proportional-navigation. When the impact time error is greater than zero, both of the stages are generated by the pure-proportional-navigation but using different navigation gains. It is demonstrated by two- and three-dimensional numerical simulations that the proposed guidance law at least has comparable results to existing proportional-navigation-based ITCG laws and is shown to be advantageous in certain circumstances in that the proposed guidance law alleviates its dependence on the time-to-go estimation, consumes less control energy, and adapts itself to more boundary conditions and constraints. The results of this research are expected to be supplementary to the current research literature.

Key words: missile guidance law, impact time control, pure-proportional-navigation, retro-proportional-navigation, time-to-go estimation

. [J]. Journal of Systems Engineering and Electronics, 2022, 33(2): 461-473.

Jia HUANG, Sijiang CHANG, Shengfu CHEN. A hybrid proportional navigation based two-stage impact time control guidance law[J]. Journal of Systems Engineering and Electronics, 2022, 33(2): 461-473.

图/表 13

参考文献 37

1	JEON I S, LEE J I, TAHK M J Impact-time-control guidance law for anti-ship missiles. IEEE Trans. on Control Systems Technology, 2006, 14 (2): 260- 266. doi: 10.1109/TCST.2005.863655
2	JEON I S, LEE J I, TAHK M J Impact-time-control guidance with generalized proportional navigation based on nonlinear formulation. Journal of Guidance, Control, and Dynamics, 2016, 39 (8): 1887- 1892.
3	ZHANG Y A, WANG X L, WU H L Impact time control guidance law with field of view constraint. Aerospace Science and Technology, 2014, 39, 361- 369. doi: 10.1016/j.ast.2014.10.002
4	ZHANG Y A, WANG X L, WU H L Impact time control guidance with field-of-view constraint accounting for uncertain system lag. Proceedings of the Institution of Mechanical Engineer, Part G: Journal of Aerospace Engineering, 2016, 230 (3): 515- 529. doi: 10.1177/0954410015594401
5	ZHANG Y A, MA G X, LIU A L Guidance law with impact time and impact angle constraints. Chinese Journal of Aeronautics, 2013, 26 (4): 960- 966. doi: 10.1016/j.cja.2013.04.037
6	ZHANG Y A, WANG X L, MA G X Impact time control guidance law with large impact angle constraint. Proceedings of the Institution of Mechanical Engineer, Part G: Journal of Aerospace Engineering, 2015, 229 (11): 2119- 2131. doi: 10.1177/0954410014568466
7	CHO N, KIM Y Modified pure proportional navigation guidance law for impact time control. Journal of Guidance, Control, and Dynamics, 2016, 39 (4): 852- 872. doi: 10.2514/1.G001618
8	TAHK M J, SANG D K Guidance law switching logic considering the seeker’s field-of-view limits. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2009, 223 (8): 1049- 1058. doi: 10.1243/09544100JAERO614
9	GHOSH S, GHOSE D, RAHA S. Three dimensional retro-PN based impact time control for higher speed nonmaneuvering targets. Proc. of the 52nd IEEE Conference on Decision and Control, 2013: 4865−4870.
10	JEON I S, LEE J I Impact-time-control guidance law with constraints on seeker look angle. IEEE Trans. on Aerospace and Electronic Systems, 2017, 53 (5): 2621- 2627. doi: 10.1109/TAES.2017.2698837
11	JEON I S, LEE J I Homing guidance law for cooperative impact of multiple missiles. Journal of Guidance, Control, and Dynamics, 2010, 33 (1): 275- 280. doi: 10.2514/1.40136
12	WANG J W, ZHANG R Terminal guidance for a hypersonic vehicle with impact time control. Journal of Guidance, Control, and Dynamics, 2018, 41 (8): 1789- 1797.
13	NARL N, BALAKRISHNAN S N Impact time and angle guidance with sliding mode control. IEEE Trans. on Control Systems Technology, 2012, 20 (6): 1436- 1449. doi: 10.1109/TCST.2011.2169795
14	KUMAR S R, GHOSE D Impact time guidance for large heading errors using sliding-mode control. IEEE Trans. on Aerospace and Electronic Systems, 2015, 51 (4): 3123- 3138. doi: 10.1109/TAES.2015.140137
15	CHO D, KIM H J, TAHK M J Nonsingular sliding mode guidance for impact time control. Journal of Guidance, Control, and Dynamics, 2016, 39 (1): 61- 68. doi: 10.2514/1.G001167
16	ZHANG X J, LIU M Y, LI Y Sliding mode control and Lyapunov based guidance law with impact time constraints. Journal of Systems Engineering and Electronics, 2017, 28 (6): 1186- 1192. doi: 10.21629/JSEE.2017.06.16
17	CHEN X T, WANG J Z Nonsingular sliding-mode control for field-of-view constrained impact time guidance. Journal of Guidance, Control, and Dynamics, 2018, 41 (5): 1214- 1222. doi: 10.2514/1.G003146
18	KUMAR S R, GHOSE D. Impact time and angle control guidance. Proc. of the AIAA Guidance, Navigation, and Control Conference, 2015: 2015-0616.
19	ZHOU J, WANG Y, ZHAO B Impact-time-control guidance law for missile with time-varying velocity. Mathematical Problems in Engineering, 2016, 2016 (1): 1- 14.
20	CHEN X T, WANG J Z Sliding-mode guidance for simultaneous control of impact time and angle. Journal of Guidance, Control, and Dynamics, 2019, 42 (2): 394- 401. doi: 10.2514/1.G003893
21	HU Q L, HAN T, XIN M Sliding-mode impact time guidance law design for various target motions. Journal of Guidance, Control, and Dynamics, 2019, 42 (1): 136- 148. doi: 10.2514/1.G003620
22	KIM M, JUNG B, HAN B, et al Lyapunov-based impact time control guidance laws against stationary targets. IEEE Trans. on Aerospace and Electronic Systems, 2015, 51 (2): 1111- 1122. doi: 10.1109/TAES.2014.130717
23	SALEEM A, RATNOO A Lyapunov-based guidance law for impact time control and simultaneous arrival. Journal of Guidance, Control, and Dynamics, 2016, 39 (1): 164- 173. doi: 10.2514/1.G001349
24	LEE J I, JEON I S, TAHK M J Guidance law to control impact time and angle. IEEE Trans. on Aerospace and Electronic Systems, 2007, 43 (1): 301- 310. doi: 10.1109/TAES.2007.357135
25	ERER K S, TEKIN R Impact time and angle control based on constrained optimal solutions. Journal of Guidance, Control, and Dynamics, 2016, 39 (10): 2448- 2454. doi: 10.2514/1.G000414
26	ARITA S, UENO S. Optimal feedback guidance for nonlinear missile model with impact time and angle constraints. Proc. of the AIAA Guidance, Navigation, and Control Conference, 2013: 2013-4785.
27	TEKIN R, ERER K S, HOLZAPFEL F Polynomial shaping of the look angle for impact-time control. Journal of Guidance, Control, and Dynamics, 2017, 40 (10): 2666- 2671.
28	TEKIN R, ERER K S, HOLZAPFEL F Adaptive impact time control via look-angle shaping under varying velocity. Journal of Guidance, Control, and Dynamics, 2017, 40 (12): 3247- 3255. doi: 10.2514/1.G002981
29	TEKIN R, ERER K S, HOLZAPFEL F Control of impact time with increased robustness via feedback linearization. Journal of Guidance, Control, and Dynamics, 2016, 39 (7): 1682- 1689. doi: 10.2514/1.G001719
30	TEKIN R, ERER K S, HOLZAPFEL F Impact time control with generalized-polynomial range formulation. Journal of Guidance, Control, and Dynamics, 2018, 41 (5): 1190- 1195. doi: 10.2514/1.G003279
31	KANG S, TEKIN R, HOLZAPFEL F Generalized impact time and angle control via look-angle shaping. Journal of Guidance, Control, and Dynamics, 2019, 42 (3): 695- 702. doi: 10.2514/1.G003765
32	ZHAO Y, SHENG Y Z, LIU X D Trajectory reshaping based guidance with impact time and angle constraints. Chinese Journal of Aeronautics, 2016, 29 (4): 984- 994. doi: 10.1016/j.cja.2016.06.012
33	SNYDER M, QU Z, HULL R, et al Quad-segment polynomial trajectory guidance for impact-time control of precision-munition strike. IEEE Trans. on Aerospace and Electronic Systems, 2016, 52 (6): 3008- 3023. doi: 10.1109/TAES.2016.140420
34	KIM T H, LEE C H, JEON I S, et al Augmented polynomial guidance with impact time and angle constraints. IEEE Trans. on Aerospace and Electronic Systems, 2013, 49 (4): 2806- 2817. doi: 10.1109/TAES.2013.6621856
35	PRASANNA H M, GHOSE D Retro-proportional-navigation: a new guidance law for interception of high-speed targets. Journal of Guidance, Control, and Dynamics, 2012, 35 (2): 377- 386. doi: 10.2514/1.54892
36	ABRAMOWITZ M, STEGUN I A. Handbook of mathematical functions with formulas, graphs, and mathematical tables. New York: Dover Publications, 1965.
37	SONE S, HA I A Lyapunov-like approach to performance analysis of 3-dimensional pure PNG laws. IEEE Trans. on Aerospace and Electronic Systems, 1994, 30 (1): 238- 248. doi: 10.1109/7.250424

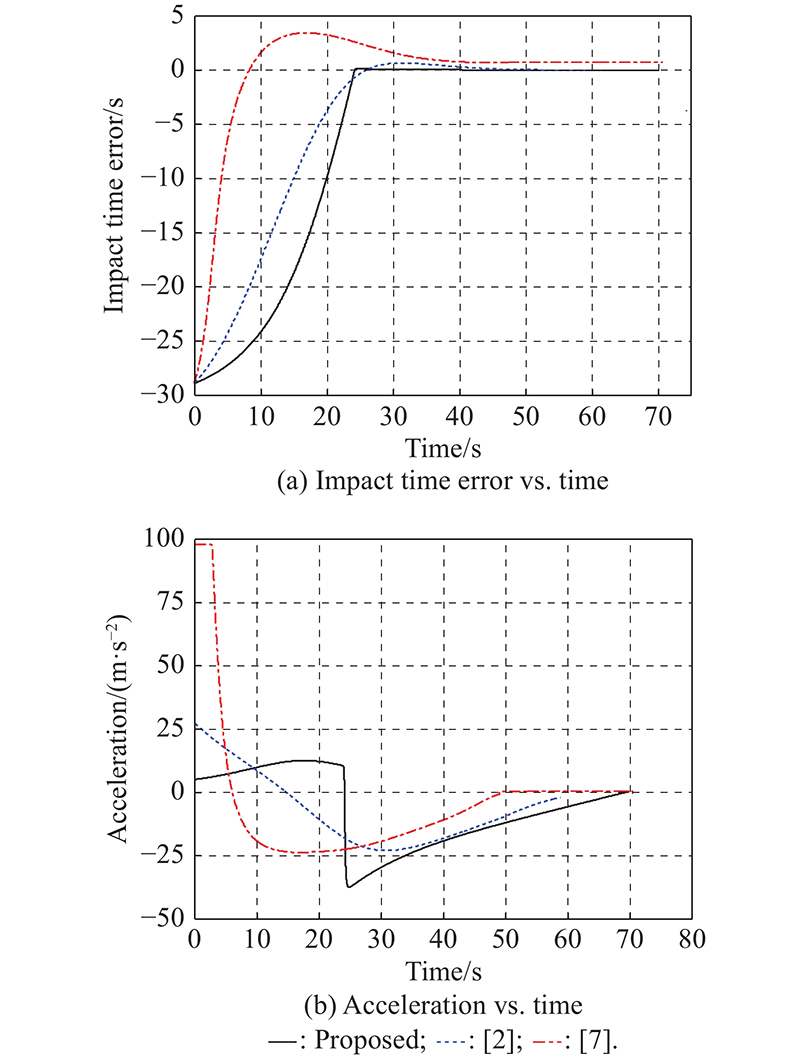

ITCG law	Time-to-go estimation formula	Desired impact time $ {t_d} $ /s	Extreme acceleration $ {a_M} $ /(m $ \cdot $ s^?2)	Extreme heading error $ \phi $ /(°)	Total control energy consumption $\int_0^{{t_f}} {\left( {{{a_M^2} \mathord{\left/ {\vphantom {{a_M^2} 2}} \right. } 2}} \right){\text{d}}t} $ /(m² $ \cdot $ s^?3)	Final impact time error $ \xi $ /s
[7]	(8)	50	39.7	69.6	5.5 $ \times $ 10³	?2.0 $ \times $ 10^?4
[7]	(49)	50	40.3	72.5	6.0 $ \times $ 10³	3.1 $ \times $ 10^?3
Proposed	(8)	50	?22.0	69.8	4.1 $ \times $ 10³	?2.0 $ \times $ 10^?4
Proposed	(49)	50	?27.7	72.7	4.6 $ \times $ 10³	6.1 $ \times $ 10^?4
[2]	(8)	50	22.8	51.9	3.3 $ \times $ 10³	?2.0 $ \times $ 10^?4
[2]	(49)	50	?16.5	52.3	3.3 $ \times $ 10³	?8.5 $ \times $ 10^?4
[7]	(8)	70	98.1	112.9	1.9 $ \times $ 10⁴	?2.0 $ \times $ 10^?4
[7]	(49)	70	98.1	127.7	2.4 $ \times $ 10⁴	6.7 $ \times $ 10^?1
Proposed	(8)	70	?23.0	109.6	7.7 $ \times $ 10³	?2.0 $ \times $ 10^?4
Proposed	(49)	70	?37.9	118.6	9.3 $ \times $ 10³	5.5 $ \times $ 10^?4
[2]	(8)	70	27.3	93.8	6.7 $ \times $ 10³	?2.0 $ \times $ 10^?4
[2]	(49)	70	N/A^a	N/A	N/A	N/A
