Generalized multiple-mode prolate spheroidal wave functions multi-carrier waveform with index modulation

doi:10.23919/JSEE.2024.000044

Journal of Systems Engineering and Electronics ›› 2025, Vol. 36 ›› Issue (2): 311-322.doi: 10.23919/JSEE.2024.000044

• ELECTRONICS TECHNOLOGY •

Generalized multiple-mode prolate spheroidal wave functions multi-carrier waveform with index modulation

Zhichao XU¹^,²(), Faping LU²^,*(), Lifan ZHANG³(), Dongkai YANG¹(), Chuanhui LIU²(), Jiafang KANG²(), Qi AN²(), Zhilin ZHANG²()

¹ School of Electronical and Information Engineering, Beihang University, Beijing 100191, China
² Naval Aviation University, Yantai 264001, China
³ Unit 92664 of the PLA, Qingdao 266100, China

Received:2024-01-24 Online:2025-04-18 Published:2025-05-20
Contact: Faping LU E-mail:xzc8166@163.com;lufaping@163.com;2758767464@qq.com;edkyang@buaa.edu.cn;lchgfy@163.com;13791201919@163.com;18153567186@163.com;zzl19970811@163.com
About author:
XU Zhichao was born in 1981. He received his M.S. degree from PLA University of Science and Technology in 2006. He is a lecturer in Naval Aviation University. His research interests are digital signal processing and waveform design for beyound 5G/6G. E-mail: xzc8166@163.com

LU Faping was born in 1991. He received his Ph.D. degree from Naval Aviation University in 2021. He is a lecturer in Naval Aviation University. His research interests are digital signal processing, modern communication system and waveform design for beyound 5G/6G. E-mail: lufaping@163.com

ZHANG Lifan was born in 1996. She received her M.S. degree from Naval Aviation University in 2021. She is an assistant engineer in Unit 92664 of the PLA. Her research interests are modern communication system and waveform design for beyound 5G/6G. E-mail: 2758767464@qq.com

YANG Dongkai was born in 1972. He received his B.S. degree in electronic engineering from North University of China, Taiyuan, China, in 1994, and M.S. and Ph.D degrees in communication and information systems from Beihang University, Beijing, China, in 1997 and 2000, respectively. He is a professor in Beihang University. His research interests are global navigation satellite system and its applications. E-mail: edkyang@buaa.edu.cn

LIU Chuanhui was born in 1987. He received his Ph.D. degree from Naval Aeronautical and Astronautical Engineering University. He is a lecturer in Naval Aviation University. His research interests are digital signal processing, statistical signal processing for wireless applications, waveform design for 5G and ultra wide band communication. E-mail: lchgfy@163.com

KANG Jiafang was born in 1987. He received his Ph.D. degree from Naval Aeronautical and Astronautical Engineering University in 2014. He is an associate professor in Naval Aviation University in 2014. His research interests are modern multicarrier communications over fading channels, statistical signal processing for wireless applications, and signal design for the global navigation satellite system. E-mail: 13791201919@163.com

AN Qi was born in 1994. She received her M.S. degree from Naval Aviation University in 2018. She is a teaching assistant in Naval Aviation University. Her research interests are modern communication system and waveform design for beyound 5G/6G. E-mail: 18153567186@163.com

ZHANG Zhilin was born in 1997. He received his M.S. degree from Naval Aviation University in 2021. He is currently pursuing his Ph.D. degree with the Department of Aeronautical Communication, Naval Aviation University. His research interests are modern communication systems and network resource allocation. E-mail: zzl19970811@163.com
Supported by:
This work was supported by the China National Postdoctoral Program for Innovative Talents (BX20200039) and the Special Fund Project of “Mount Taishan Scholars” Construction Project in Shandong Province (ts20081130).

Abstract

Abstract:

A generalized multiple-mode prolate spherical wave functions (PSWFs) multi-carrier with index modulation approach is proposed with the purpose of improving the spectral efficiency of PSWFs multi-carrier systems. The proposed method, based on the optimized multi-index modulation, does not limit the number of signals in the first and second constellations and abandons the concept of limiting the number of signals in different constellations. It successfully increases the spectrum efficiency of the system while expanding the number of modulation symbol combinations and the index dimension of PSWFs signals. The proposed method outperforms the PSWFs multi-carrier index modulation method based on optimized multiple indexes in terms of spectrum efficiency, but at the expense of system computational complexity and bit error performance. For example, with $n $=10 subcarriers and a bit error rate of 1×10^?5, spectral efficiency can be raised by roughly 12.4%.

Key words: prolate spherical wave function (PSWF), generalized multiple-mode, index modulation, spectral efficiency

Zhichao XU, Faping LU, Lifan ZHANG, Dongkai YANG, Chuanhui LIU, Jiafang KANG, Qi AN, Zhilin ZHANG. Generalized multiple-mode prolate spheroidal wave functions multi-carrier waveform with index modulation[J]. Journal of Systems Engineering and Electronics, 2025, 36(2): 311-322.

Figures/Tables 9

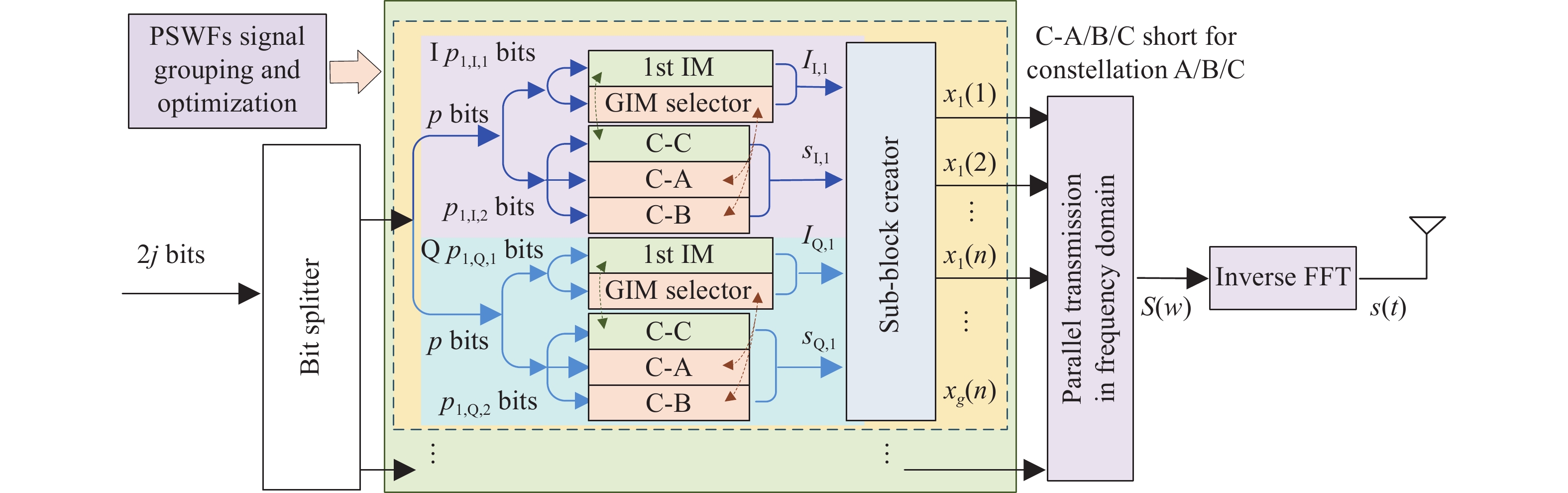

Fig 1

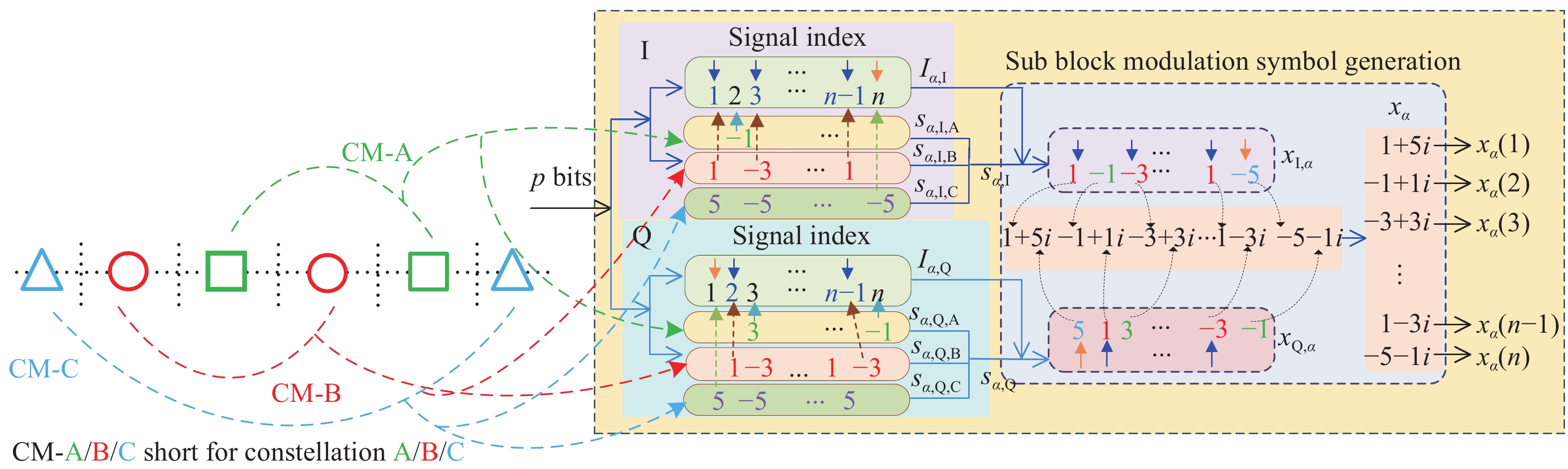

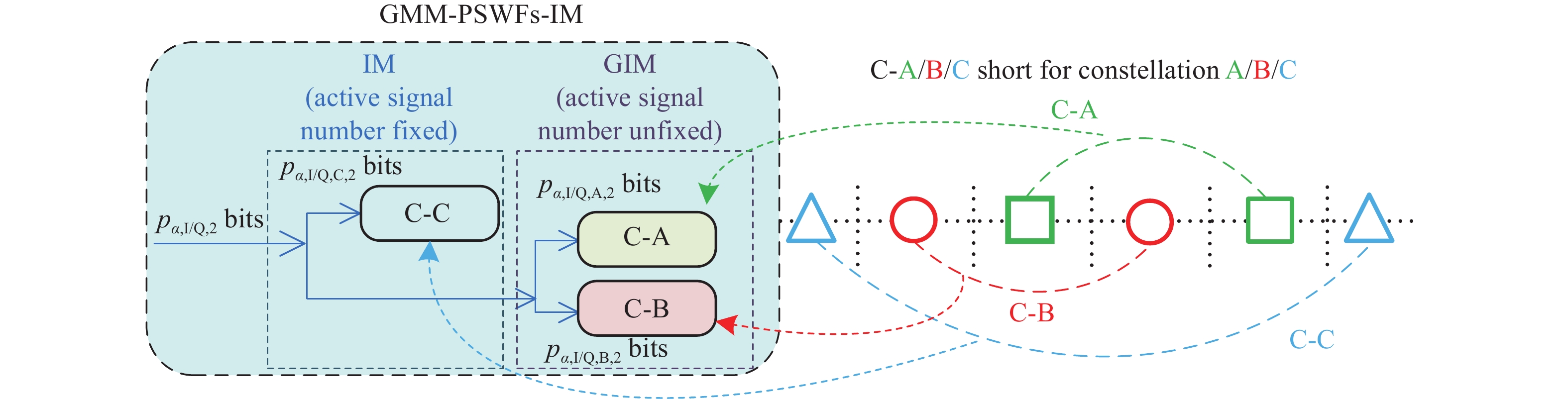

Fig 2

Table 1

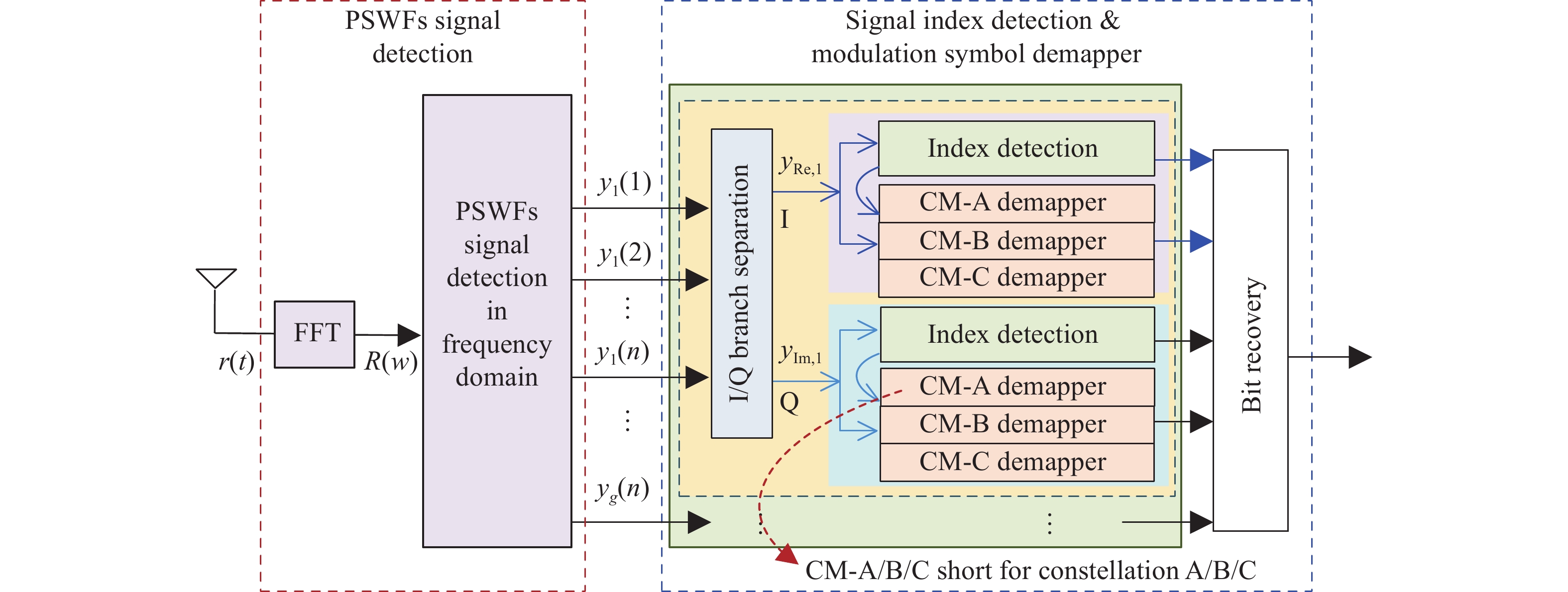

Fig 3

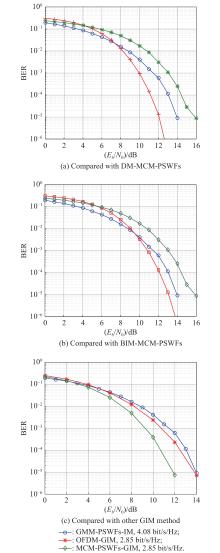

Fig 4

Table 2

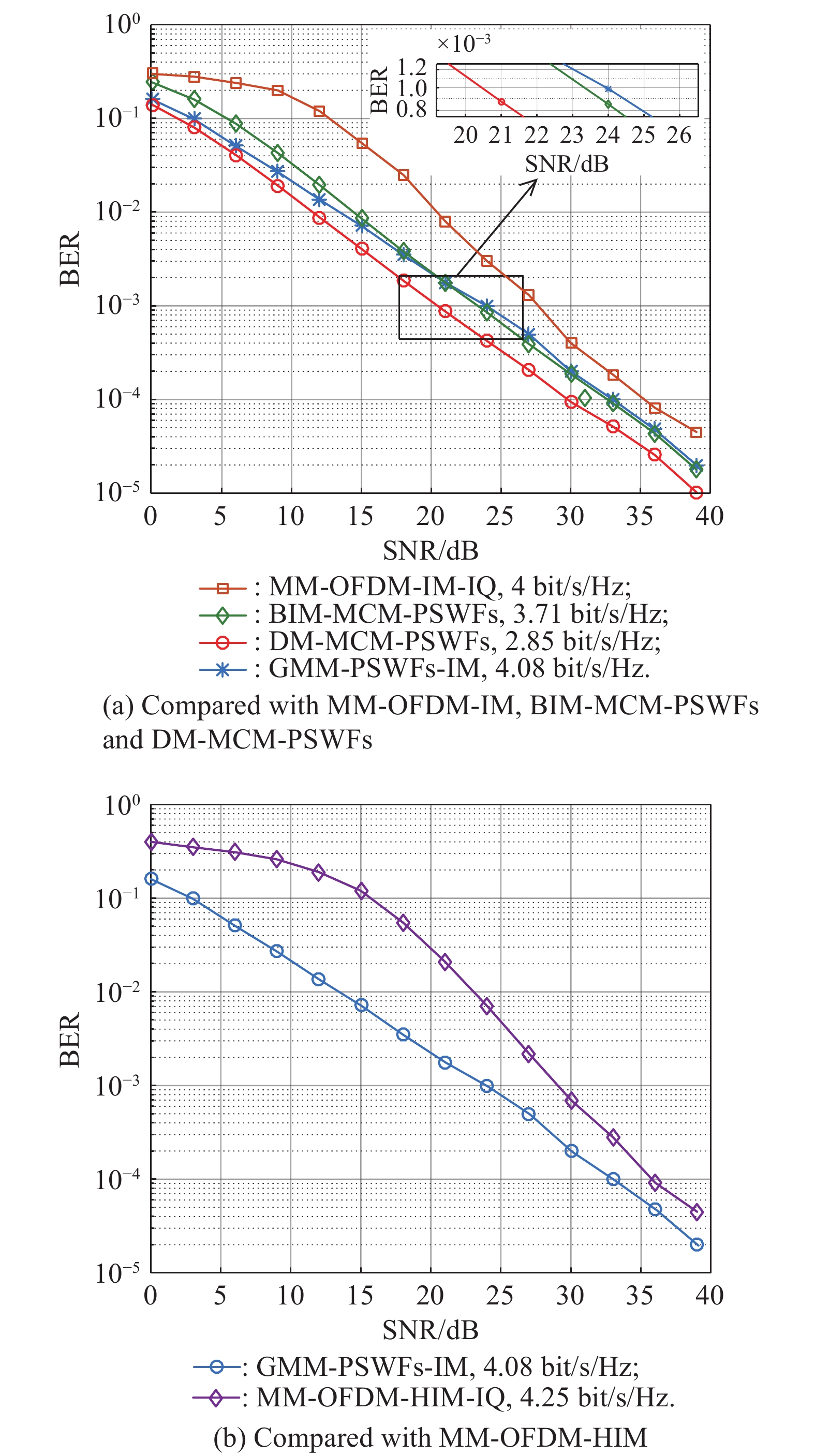

Fig 5

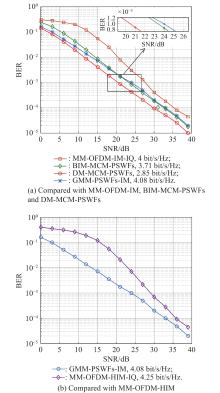

Fig 6

Table 3

References 27

1	AMAKAWA S, ASLAM Z, BUCKWATER J, et al. White paper on RF enabling 6G-opportunities and challenges from technology to spectrum. https://biblio.ugent.be/publication/8704523.
2	ZHANG Z Q, XIAO Y, MA Z, et al 6G wireless networks: vision, requirements, architecture, and key technologies. IEEE Vehicular Technology Magazine, 2019, 14 (3): 28- 41. doi: 10.1109/MVT.2019.2921208
3	PREKSHA J, AKHIL G, NEERAJ K A vision towards integrated 6G communication networks: promising technologies, architecture, and use-cases. Physical Communication, 2022, 12 (55): 101917.
4	WANG C X, YOU X H, GAO X Q, et al On the road to 6G: visions, requirements, key technologies, and testbeds. IEEE Communications Surveys & Tutorials, 2023, 25 (2): 905- 974.
5	PANG J Y, WANG S, TANG Z, et al A new 5G radio evolution towards 5G-advanced. Science China Information Sciences, 2022, 9 (65): 191301.
6	BASAR E, AYGOLU U, PANAYIRCI E, et al Orthogonal frequency division multiplexing with index modulation. IEEE Trans. on Signal Processing, 2013, 61 (22): 5536- 5549. doi: 10.1109/TSP.2013.2279771
7	ASMORO K, SHIN S Y RIS grouping based index modulation for 6G telecommunications. IEEE Wireless Communications Letters, 2022, 11 (11): 2410- 2414.
8	LI S, XIAO L X, ZHANG X F, et al Spatial multiplexing aided OTFS with index modulation. IEEE Trans. on Vehicular Technology, 2023, 72 (6): 8192- 8197.
9	JAIN M, MAKKAR R, RAWAL D, et al Dual-mode index modulation based OFDM system over NOMA networks. Physical Communication, 2021, 8 (47): 101395.
10	BUZZI S, ANDREA C D, LI D J, et al MIMO-UFMC transceiver schemes for millimeter-wave wireless communications. IEEE Trans. on Communications, 2019, 67, 3323- 3336. doi: 10.1109/TCOMM.2019.2896122
11	MICHAILOW N, MATTHE M, GASPAR I S, et al Generalized frequency division multiplexing for 5th generation cellular network. IEEE Trans. on Communications, 2014, 62, 1205- 1218.
12	WANG Y, GUO Q, XIANG J H, et al Doubly selective channel estimation and equalization based on ICI/ISI mitigation for OQAM-FBMC systems. Physical Communication, 2023, 8 (59): 102120.
13	WANG H X, LU F P, LIU C H, et al Frequency domain multi-carrier modulation based on prolate spheroidal wave functions. IEEE Access, 2020, 8, 99665- 99680. doi: 10.1109/ACCESS.2020.2997679
14	LU F P, WANG H X, LIU C H, et al PSWFs frequency domain modulation and demodulation method. Journal of Electronics & Information Technology, 2020, 42, 1888- 1895.
15	KEDAR K, NICHOLAS G. Sampling theory approach to prolate spheroidal wavefunctions. Journal of Physics, 2003, 36: 10011−10021.
16	ZHEN J Q, WANG Z F DOA estimation method for wideband signals by block sparse reconstruction. Journal of Systems Engineering and Electronics, 2016, 27 (1): 20- 27.
17	TONG W, ZHU P Y. 6G: the next horizon: from connected people and things to connected intelligence. Cambridge: Cambridge University Press, 2021.
18	MURUGESAN P P K, SIVABALIN V P G, NANJAN S M, et al. Orthogonal modes using prolate spheroidal wave function in holographic communication systems. Proc. of the International Conference on Signal Processing, Computation, Electronics, Power and Telecommunication, 2023. DOI: 10.1109/IConSCEPT57958.2023.10170733.
19	WANG H X, LU F P, LIU C H, et al Multi-carrier modulation scheme based on prolate spheroidal wave functions with signal grouping optimization. Scientia Sinica Informationis, 2020, 51 (7): 1168- 1182.
20	WANG H X, ZHANG L F, LU F P, et al. Multi-carrier index modulation based on prolate spheroidal wave functions with dual-mode. Journal of Electronics and Information Technology, 2022, 44(2): 694−701. (in Chinese)
21	WANG H X, ZHANG L F, LU F P, et al Multi-carrier index modulation based on prolate spheroidal wave functions with better multiple-mode. Journal of Electronics & Information Technology, 2022, 44 (12): 4185- 4193.
22	WANG H X, LU F P, LIU C H, et al Multi-carrier modulation scheme based on prolate spheroidal wave functions with generalization index modulation. Scientia Sinica Informationis, 2021, 51 (9): 1524- 1539.
23	SLEPIAN D, POLLAK H O Prolate spheroidal wave functions, fourier analysis, and uncertainty-I. The Bell System Technical Journal, 1961, 40 (1): 43- 46. doi: 10.1002/j.1538-7305.1961.tb03976.x
24	WEN M W, LI Q, BASAR E, et al Generalized multiple-mode OFDM with index modulation. IEEE Trans. on Wireless Communications, 2018, 17 (10): 6531- 6543.
25	IRFAN M, AISSA S Generalization of index-modulation: breaking the conventional limits on spectral and energy efficiencies. IEEE Trans. on Wireless Communications, 2021, 20 (6): 3911- 3924. doi: 10.1109/TWC.2021.3054391
26	WEN M W, BASAR E, LI Q, et al Multiple-mode orthogonal frequency division multiplexing with index modulation. IEEE Trans. on Communications, 2017, 65 (9): 3892- 3906.
27	ZHUANG L, DAI L, LIU S L, et al Optimized scheme for spectrum and energy efficiency of multiple-mode OFDM with index modulation. Systems Engineering and Electronics, 2020, 42 (3): 719- 726.

Bit information	Signal index	Subcarrier mapping
[0,0,0]	{3,1,2}	{$ s_{{\mathrm{I}}} ^{{\mathrm{C}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{A}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{B}}} (1) $}
[0,0,1]	{3,2,1}	{$ s_{{\mathrm{I}}} ^{{\mathrm{C}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{B}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{A}}} (1) $}
[0,1,0]	{1,3,2}	{$ s_{{\mathrm{I}}} ^{{\mathrm{A}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{C}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{B}}} (1) $}
[0,1,1]	{2,3,1}	{$ s_{{\mathrm{I}}} ^{{\mathrm{B}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{C}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{A}}} (1) $}
[1,0,0]	{1,2,3}	{$ s_{{\mathrm{I}}} ^{{\mathrm{A}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{B}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{C}}} (1) $}
[1,0,1]	{2,1,3}	{$ s_{{\mathrm{I}}} ^{{\mathrm{B}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{A}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{C}}} (1) $}
[1,1,0]	{1,1,3}	{$ s_{{\mathrm{I}}} ^{{\mathrm{A}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{A}}} (2) $,$ s_{{\mathrm{I}}} ^{{\mathrm{C}}} (1) $}
[1,1,1]	{2,2,3}	{$ s_{{\mathrm{I}}} ^{{\mathrm{B}}} (1) $,$ s_{{\mathrm{I}}} ^{{\mathrm{B}}} (2) $,$ s_{{\mathrm{I}}} ^{{\mathrm{C}}} (1) $}

Modulation method	g	n	k	m	SE/(bit/s/Hz)	(E_b/N₀)/dB	Improvement/%
BIM-MCM-PSWFs [21]	11	8	7	4	3.63	13.14	12.4
DM-MCM-PSWFs [20]	10	9	5	/	3.09	12.23	32.0
MCM-PSWFs-SGO-2PAM [19]	9	10	7	/	2.41	11.05	69.3
MCM-PSWFs-SGO-4PAM [19]	10	9	5	/	2.89	14.69	41.2
GMM-PSWFs-IM (the proposed method)	9	10	/	/	4.08	13.92	/

Modulation method	Computational complexity	n	k	m	Operation amount
DM-MCM-PSWFs-ML [20]	$O(ng{2^{\left\lfloor {{{\log }_{\text{2}}}C_n^k} \right\rfloor }})$	4	2	/	368
DM-MCM-PSWFs-ML [20]		9	4	/	5760
BIM-MCM-PSWFs-ML [21]	$ O(ng({2}^{\lfloor {\mathrm{log}}_{\text{2}}{C}_{n}^{k}\rfloor }\text{+}{2}^{\lfloor {\mathrm{log}}_{\text{2}}{C}_{k}^{m}\rfloor })) $	4	3	2	552
BIM-MCM-PSWFs-ML [21]		9	8	4	6480
BIM-MCM-PSWFs-ML [21]	$ O(ng({2}^{\lfloor {\mathrm{log}}_{\text{2}}{C}_{n}^{k}\rfloor }\text{+}{2}^{\lfloor {\mathrm{log}}_{\text{2}}{C}_{k}^{m}\rfloor })) $	8	7	4	3784
GMM-PSWFs-IM-ML (the proposed method)	$ O(ng({2}^{\lfloor {\mathrm{log}}_{2}\left({C}_{n}^{k}{M}^{k}\right)\rfloor +\lfloor \left(n-k\right){\mathrm{log}}_{2}\left(1+M\right)\rfloor })) $	10	/	/	46800
