High-precision calibration of binocular camera with super-resolution technology

doi:10.23919/JSEE.2026.000105

Abstract

Abstract:

The calibration of parameters for onboard stereo cameras is crucial for achieving efficient visual-assisted driving. However, in practical scenarios, low-resolution images often result in inaccuracies in feature point extraction, thereby affecting the accuracy of camera parameter calibration. To address this issue, this paper proposes a self-calibration method for stereo cameras based on joint de-noising, de-mosaic, de-ringing, and super-resolution network (JDDDSN) super-resolution reconstruction. By reconstructing images into higher-resolution images with richer details, feature points are extracted for extrinsic calibration of stereo cameras. For real-world driving scenarios, the reconstructed images achieve noise and ringing artifact reduction while obtaining clearer high-resolution images. This study further investigates the impact of the super-resolution reconstruction network on target area calibration at various distances. Additionally, it highlights the significant role of super-resolution in enhancing stereo camera calibration accuracy by removing dynamic points and focusing on static regions. Through a series of experiments, this paper validates the effectiveness and practicality of the JDDDSN super-resolution reconstruction network in improving stereo camera calibration accuracy, demonstrating its application value in the field of stereoscopic vision.

Key words: super-resolution reconstruction, camera calibration, self-calibration, binocular camera

Ting SUN, Chao MA, Tian SUN, Shanshan PEI, Qian LONG. High-precision calibration of binocular camera with super-resolution technology[J]. Journal of Systems Engineering and Electronics, 2026, 37(3): 844-860.

Figures/Tables 23

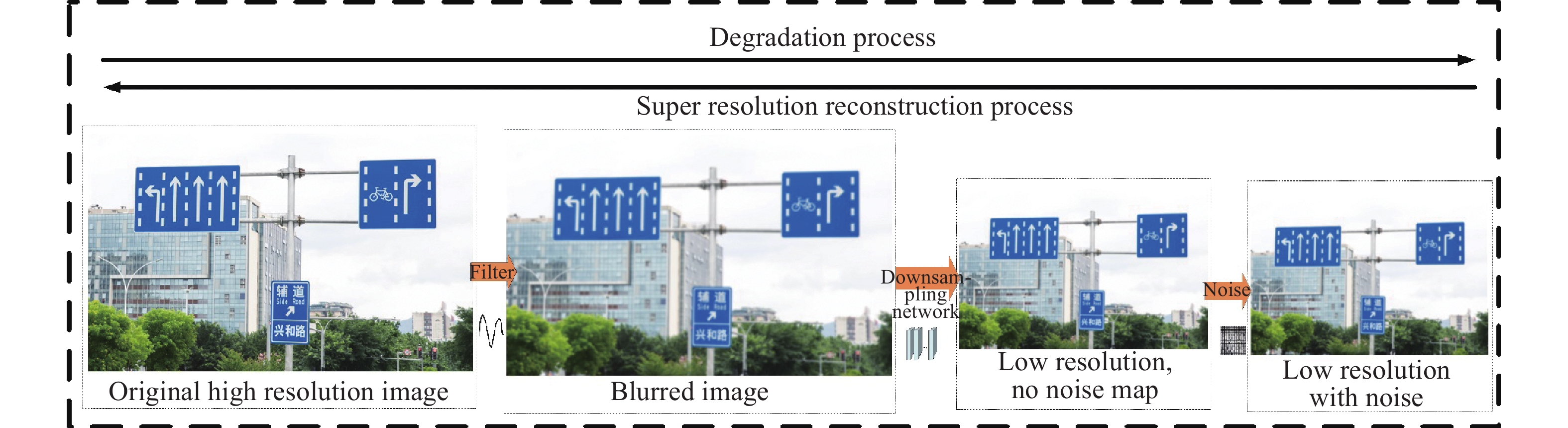

Fig 1

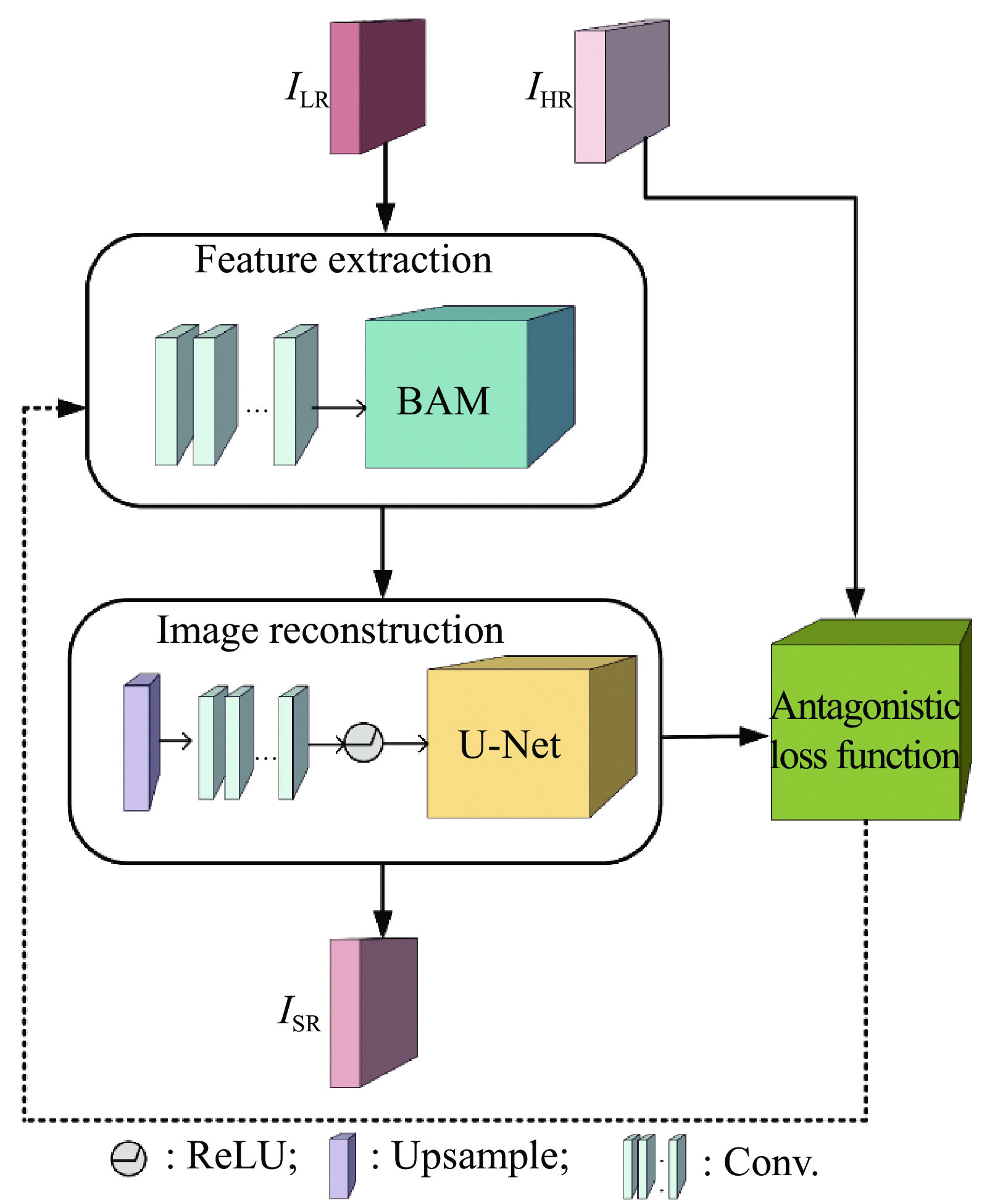

Fig 2

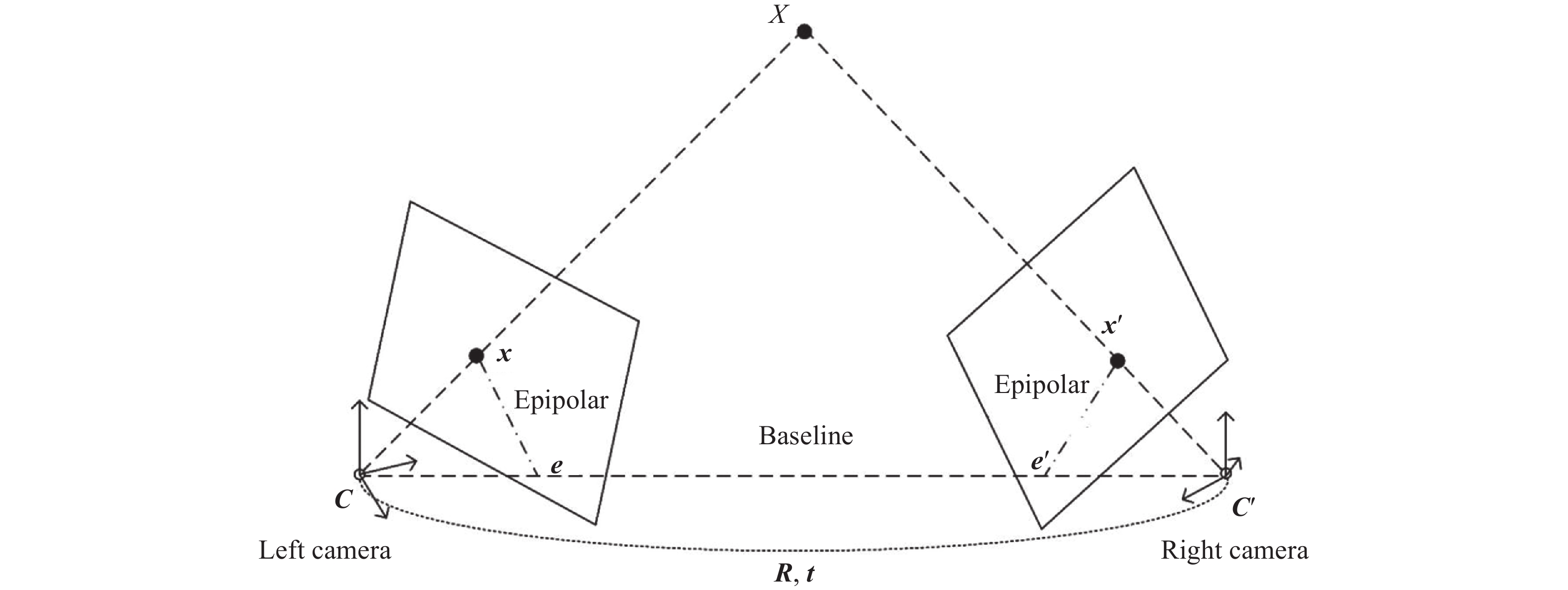

Fig 3

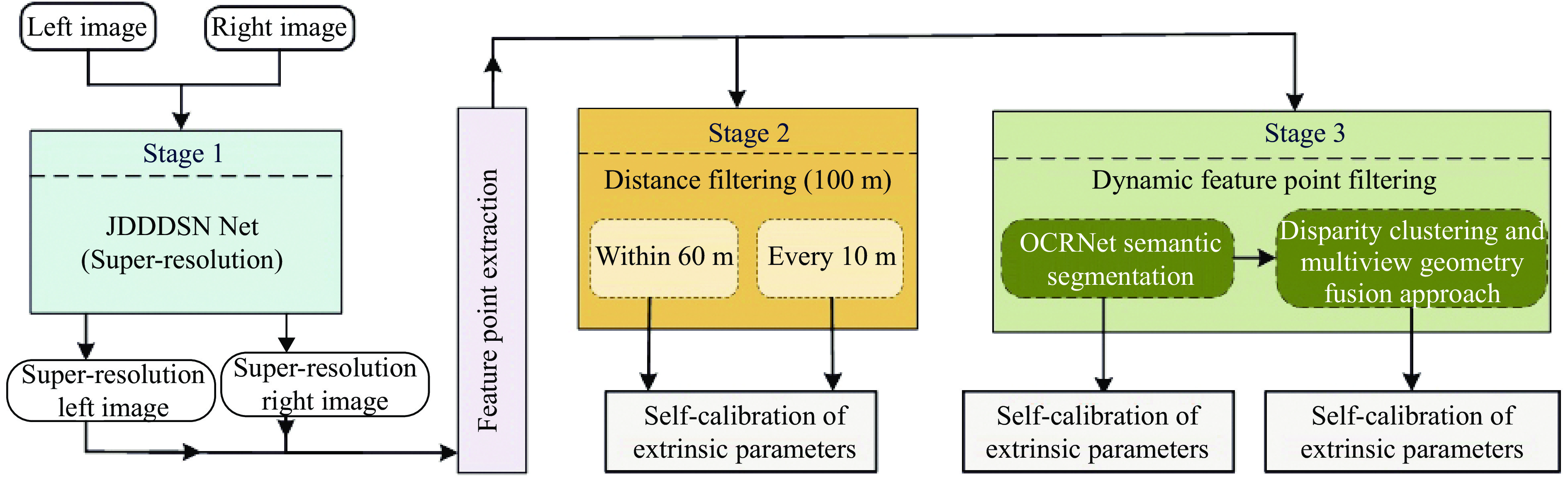

Fig 4

Table 1

Fig 5

Table 2

Fig 6

Fig 7

Fig 8

Fig 9

Table 3

Fig 10

Table 4

Fig 11

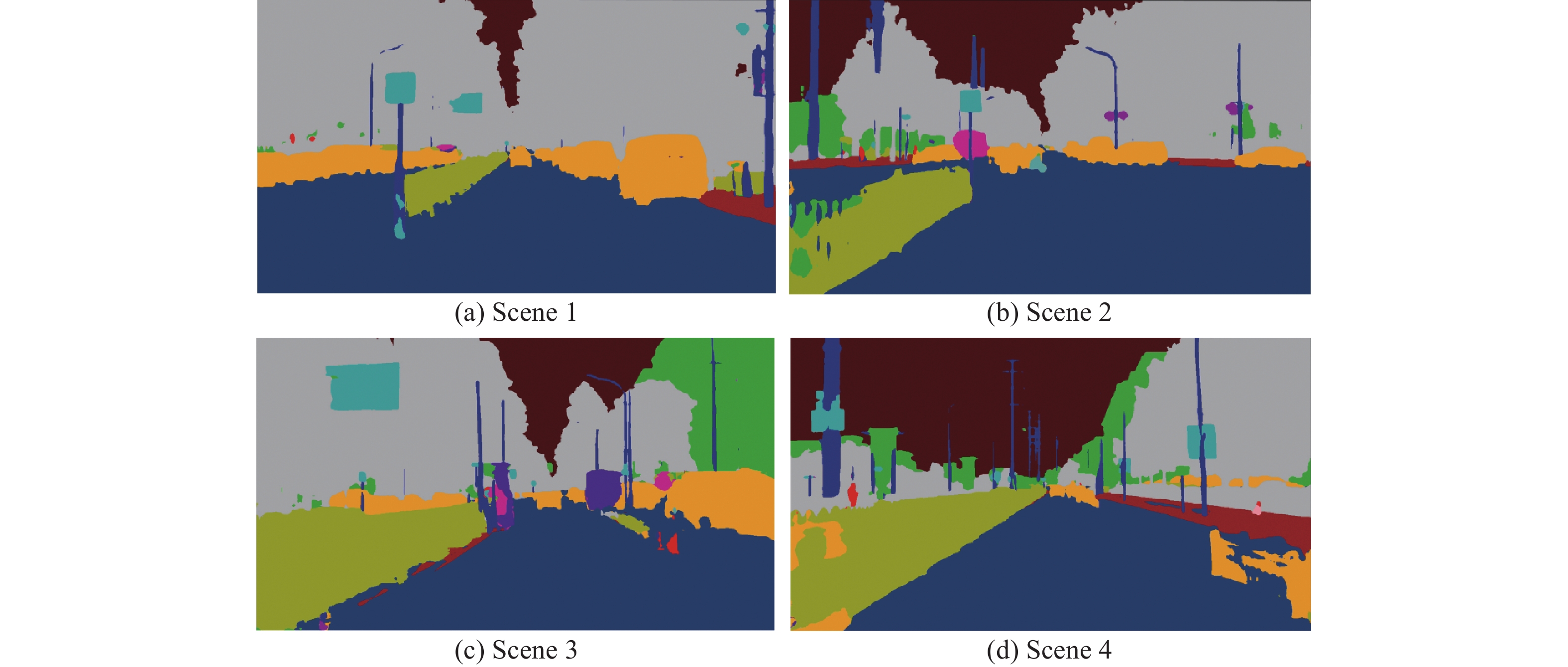

Fig 12

Table 5

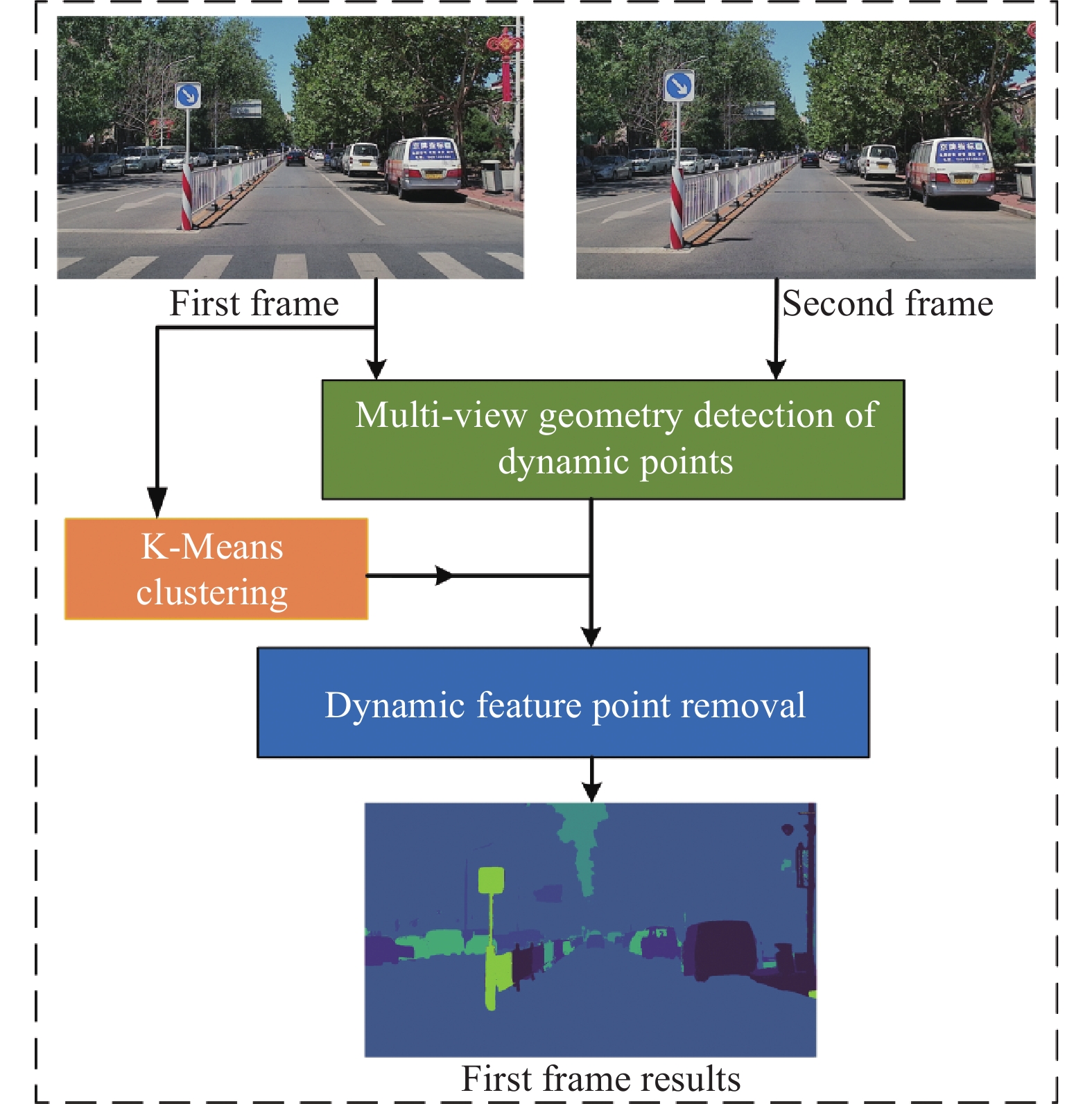

Fig 13

Table 6

Table 7

Table 8

Table 9

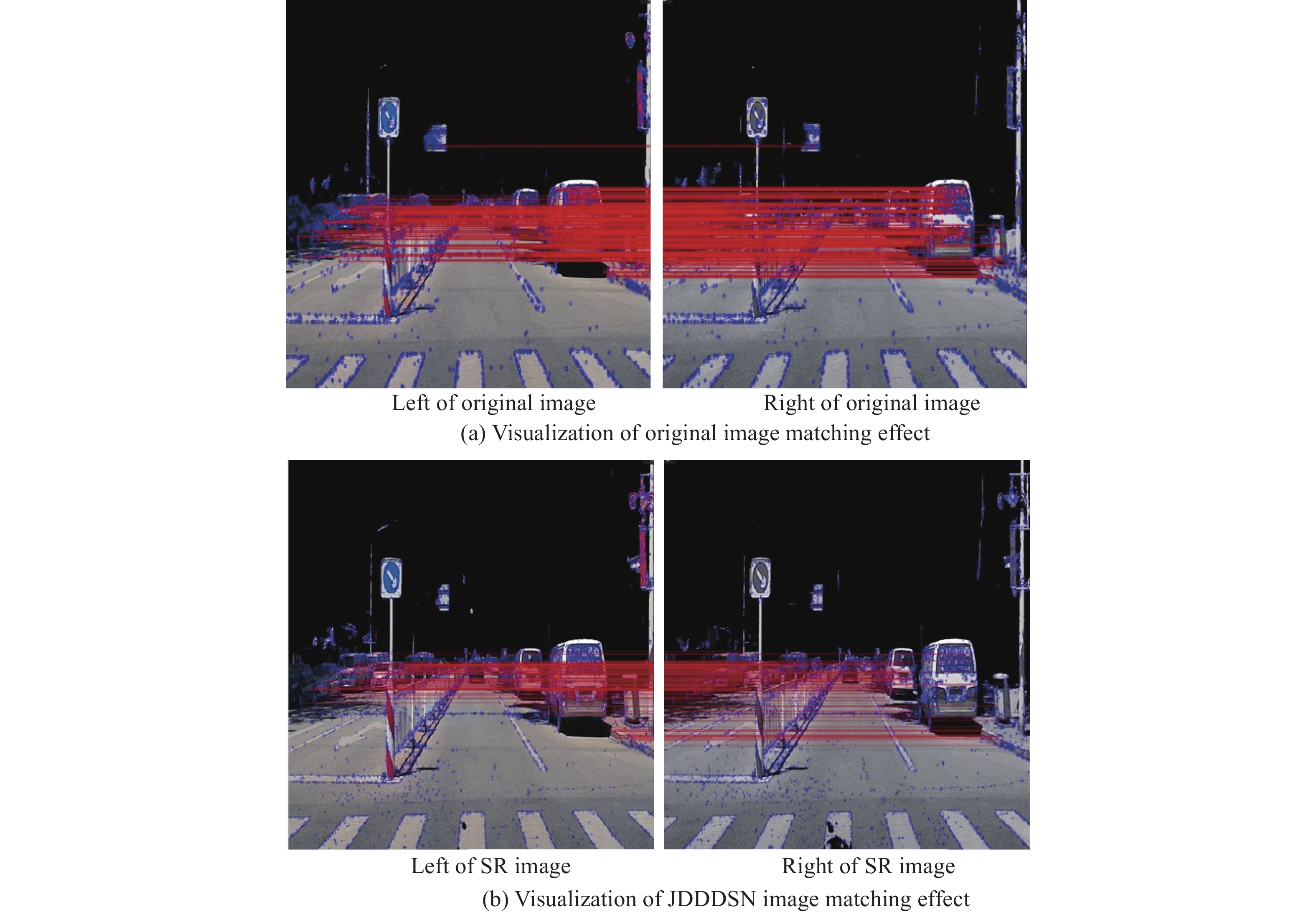

Fig 14

References 52

1	XIE Q W, LONG Q, MITA S Integration of optical flow and Multi-Path-Viterbi algorithm for stereo vision. International Journal of Wavelets, Multiresolution and Information Processing, 2017, 15, 1750022. doi: 10.1142/S0219691317500229
2	MARKUS H, THOMAS W, MICHAEL B, et al Online extrinsic calibration based on per-sensor ego-motion using dual quaternions. IEEE Robotics and Automation Letters, 2021, 6 (2): 982- 989. doi: 10.1109/LRA.2021.3056352
3	LI G, LIAO X, HUANG H L, et al. Robust stereo visual SLAM for dynamic environments with moving object. IEEE Access, 2021: 32310−32320.
4	RAHMAT M A, INDRABAYU A, ANDANI A, et al. Stereo camera calibration for autonomous car applications. Proc. of the 2nd International Seminar on Machine Learning, Optimization, and Data Science, 2022: 567−572.
5	KANG B, MIAO Y, LIU F, et al A second-order sliding mode controller of quad-rotor UAV based on PID sliding mode surface with unbalanced load. Journal of Systems Science and Complexity, 2021, 34 (2): 520- 536. doi: 10.1007/s11424-020-9306-6
6	WEI X H, TANG C Y, WANG B, et al Three-dimensional cooperative target structure design and location algorithm for vision landing. Systems Engineering-Theory & Practice, 2019, 39 (11): 2975- 2983.
7	LI X Q, DENG C X, LI S S, et al An improved model for wavelet coefficients estimation and its application to image denoising. International Journal of Wavelets, Multiresolution and Information Processing, 2024, 22 (4): 2450006. doi: 10.1142/S0219691324500061
8	CAL T Y, DAN B, HUANG W B Super-resolution parameter estimation of monopulse radar by wide-narrowband joint processing. Journal of Systems Engineering and Electronics, 2023, 34 (5): 1158- 1170. doi: 10.23919/JSEE.2023.000132
9	WANG X C, SUN X D, SONG R X Single image dehazing with V-transform and dark channel prior. Journal of Systems Science and Information, 2020, 8 (2): 185- 194. doi: 10.21078/JSSI-2020-185-10
10	SU H, LI Y, XU Y F, et al A review of deep-learning-based super-resolution: from methods to applications. Pattern Recognition, 2025, 157, 110935. doi: 10.1016/j.patcog.2024.110935
11	QIU Z, ZHUANG C, LIU L, et al Image super-resolution method based on dual learning. Journal of Circuits, Systems and Computers, 2022, 31 (16): 2250283. doi: 10.1142/S0218126622502838
12	KAMBLE T U, MAHAJAN S P 3D image reconstruction using C-dual attention network from multi-view images. International Journal of Wavelets, Multiresolution and Information Processing, 2023, 21 (2): 2250044. doi: 10.1142/S0219691322500448
13	YU H F, HE S W, ZHANG M, et al DIUN: deeper inception U-network for recovering partial pixelated images. Journal of Systems Science and Information, 2022, 10 (2): 193- 202. doi: 10.21078/jssi-2022-193-10
14	XU X, YE Y F, LI X Joint demosaicing and super-resolution (JDSR): network design and perceptual optimization. IEEE Trans. on Computational Imaging, 2019, 6, 968- 980. doi: 10.1109/tci.2020.2999819
15	WEN L X, EGIAZARIAN K O. End-to-end learning for joint image demosaicing, denoising and super-resolution. Proc. of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2021: 3506−3515.
16	WU R Y, YANG T, SUN L C, et al. SeeSR: towards semantics-aware real-world image super-resolution. Proc. of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2024: 25456−25467.
17	QIAN G C, WANG Y H, GU J J, et al. Rethinking learning-based demosaicing, denoising, and super-resolution pipeline. Proc. of the IEEE International Conference on Computational Photography, 2022: 1−12.
18	ARULKUMAR V, ARUNA M, ANANTHA M, et al. Super resolution and demosaicing based self learning adaptive dictionary image denoising framework. Proc. of the 5th International Conference on Intelligent Computing and Control Systems, 2021: 1891−1897.
19	TAO X, GAO H Y, WANG Y, et al. Scale-recurrent network for deep image deblurring. Proc. of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2018: 8174−8182.
20	WANG X T, XIE L B, DONG C, et al. Real-ESRGAN: training real-world blind super-resolution with pure synthetic data. Proc. of the IEEE/CVF International Conference on Computer Vision Workshops, 2021: 1905−1914.
21	HUI Z, LI J, WANG X M, et al. Learning the Non-differentiable optimization for blind super-resolution. Proc. of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2021: 2093−2102.
22	SUN T, ZOU B, LONG Q, et al Deep learning algorithm for image clarification based on end-to-end processing. Mathematics in Practice and Theory, 2024, 54 (8): 154- 167.
23	ZHANG Z Y Camera calibration with one-dimensional objects. IEEE Trans. on Pattern Analysis and Machine Intelligence, 2002, 26, 892- 899.
24	ZHANG B, ZHU D L Improved camera calibration method and accuracy analysis for binocular vision. International Journal of Pattern Recognition and Artificial Intelligence, 2021, 35 (9): 2155010. doi: 10.1142/S0218001421550107
25	XIE Q W, LONG Q, LI J P, et al Application of intelligence binocular vision sensor: mobility solutions for automotive perception system. IEEE Sensors Journal, 2024, 24, 5578- 5592.
26	WEI L, ZHANG G Y, HUO J, et al Novel camera calibration method based on invariance of collinear points and pole-polar constraint. Journal of Systems Engineering and Electronics, 2023, 34 (3): 744- 753. doi: 10.23919/JSEE.2023.000074
27	MONRROY C A, LAMBERT J, EDAHIRO M, et al Single-shot intrinsic calibration for autonomous driving applications. Sensors, 2022, 22 (5): 2067. doi: 10.3390/s22052067
28	XIE Q W, HU X Y, REN L, et al A binocular vision application in IoT: realtime trustworthy road condition detection system in passable area. IEEE Trans. on Industrial Informatics, 2023, 19, 973- 983. doi: 10.1109/TII.2022.3145858
29	HAGEMANN A, KNORR M, STILLE C. Deep geometry-aware camera self-calibration from video. Proc. of the IEEE/CVF International Conference on Computer Vision, 2023: 3415−3425.
30	GRUEN A, BEYER H A. System calibration through self-calibration. Calibration and Orientation of Cameras in Computer Vision, Berlin: Springer Berlin Heidelberg, 2001: 163−193.
31	ZHANG Z Y, TANG Q. Camera self-calibration based on multiple view images. Proc. of Nicograph International, 2016: 88−91.
32	XIE Q W, LIU R R, SUN Z, et al A flexible free-space detection system based on stereo vision. Neurocomputing, 2021, 485, 252- 262. doi: 10.1016/j.neucom.2021.05.115
33	MICHITAKA A, SAYAKA M, SATORU K. Accuracy improvement of antenna-gain self-calibration method with electronic calibration module. Proc. of the International Symposium on Antennas and Propagation, 2018: 1−2.
34	DENG Y F, GUO J J, LI H T, et al. A new self-calibration method of time-sharing measurement based on laser tracker. Proc. of the 7th International Conference on Mechanical and Aerospace Engineering, 2016: 228–233.
35	YU C Q, WANG J B, GAO C X, et al. Context prior for scene segmentation. Proc. of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2020: 12413−12422.
36	HAO F, WU J Z, ZHANG L, et al Unsupervised change detection of man-made objects using coherent and incoherent features of multi-temporal SAR images. Journal of Systems Engineering and Electronics, 2022, 33 (4): 896- 906. doi: 10.23919/JSEE.2022.000087
37	CHOI S, JUNG S, YUN H, et al. RobustNet: improving domain generalization in urban-scene segmentation via instance selective whitening. Proc. of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2021: 11575−11585.
38	CHEN L C, ZHU T K, PAPANDREOU G, et al. Encoder-decoder with atrous separable convolution for semantic image segmentation. Proc. of the European Conference on Computer Vision, 2018: 833–851.
39	KU T, YANG Q R, ZHANG H Multilevel feature fusion dilated convolutional network for semantic segmentation. International Journal of Advanced Robotic Systems, 2021, 18 (2): 665. doi: 10.1177/17298814211007665
40	DONG J Y, WANG W W, ZHU L. Object-contextual representations for PointNet. Proc. of the 34th Chinese Control and Decision Conference, 2022: 6179−6182.
41	XIE W F, LIU X P, ZHENG M H Moving object segmentation and detection for robust RGBD-SLAM in dynamic environments. IEEE Trans. on Instrumentation and Measurement, 2021, 70, 5001008. doi: 10.1109/tim.2020.3026803
42	EIRIKUR A, RADU T. NTIRE 2017 challenge on single image super-resolution: dataset and study. Proc. of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, 2017: 1122−1131.
43	FANG J, LIU S Q, XIAO Y, et al SAR image de-noising based on texture strength and weighted nuclear norm minimization. Journal of Systems Engineering and Electronics, 2016, 27 (4): 807- 814.
44	HAO B B, ZHU J G Wavelet inverse scale space for image restoration. Journal of Systems Engineering and Electronics, 2012, 23 (6): 929- 935. doi: 10.1109/jsee.2012.00114
45	HUO J, LI Y H, YANG M Multi-camera calibration method based on minimizing the difference of reprojection error vectors. Journal of Systems Engineering and Electronics, 2018, 29 (4): 844- 853. doi: 10.21629/jsee.2018.04.19
46	WANG G L, WU L S, HU Y, et al Point cloud simplification algorithm based on the feature of adaptive curvature entropy. Measurement Science and Technology, 2021, 32 (6): 065004. doi: 10.1088/1361-6501/abd497
47	JUNG B, SUKHATME G S Real-time motion tracking from a mobile robot. International Journal of Social Robotics, 2010, 2, 63- 78.
48	RATHI K, GOMATHI V, RAJA S P A novel approach of visual image reconstruction from fMRI using Kohonen network information maximizing generative adversarial network. International Journal of Wavelets, Multiresolution and Information Processing, 2024, 22 (6): 2450032. doi: 10.1142/S0219691324500322
49	ZHANG X D, ZENG H Y, GUO S, et al. Efficient long-range attention network for image Super-resolution. Proc. of the European Conference on Computer Vision, 2022: 649−667.
50	BARTSCH J, SPERLING Y, BERGMANN R Efficient vision ray calibration of multi-camera systems. Optics Express, 2021, 29 (11): 17125- 17139. doi: 10.1364/OE.424337
51	SUN X Y, JIANG Y Z, JI Y F, et al Distance measurement system based on binocular stereo vision. IOP Conference Series: Earth and Environmental Science, 2015, 252 (2): 052051. doi: 10.1109/jcai.2009.77
52	ZHANG Y Y, WANG X Y, JIANG H S, et al. Binocular camera calibration based on BP neural network optimized by improved particle swarm optimization. Proc. of the 5th International Conference on Pattern Recognition and Artificial Intelligence, 2022: 450−454.

Name	Specific parameter
Resolution	1 280×720 pixels
Baseline/mm	120
(c_x, c_y)	(649.5382, 340.9208) pixels
Focal length of lens/mm	8
Dynamic range/dB	120
Processor	FPGA, Dual-Core ARM
Support interface	CAN, RS485, network port
Dimensions/cm³	25×15×8

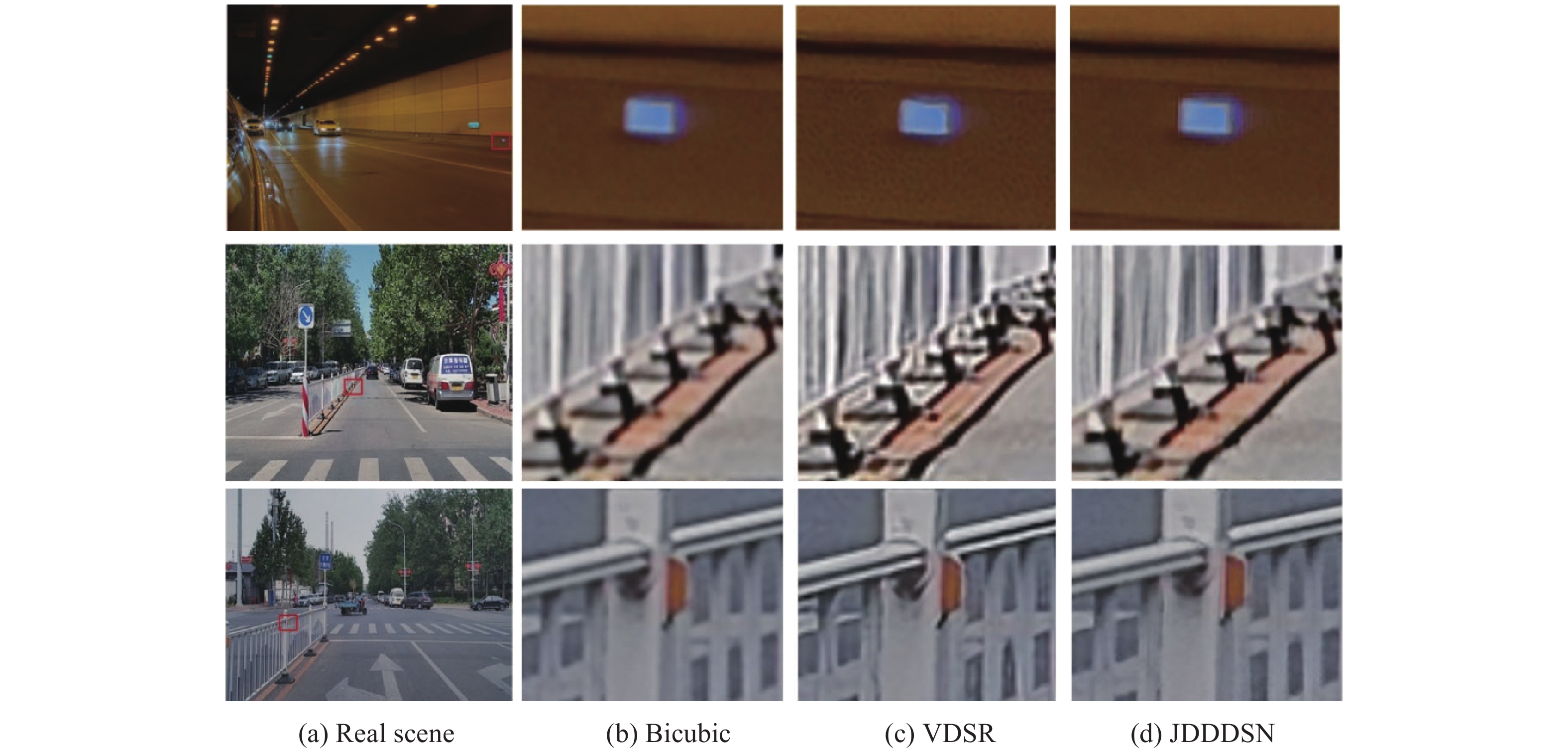

Sampling rate	Method	Set5(PSNR/dB)/(SSIM)	Set14(PSNR/dB)/(SSIM)	BSD100(PSNR/dB)/(SSIM)	Urban100(PSNR/dB)/(SSIM)
2×	Bicubic	33.66/0.929	30.24/0.869	29.56/0.843	26.88/0.840
	SRCNN	36.66/0.954	33.45/0.907	31.36/0.888	29.50/0.895
	SRGAN	−	−	30.48/0.863	29.40/0.847
	VDSR	37.53/0.959	33.03/0.912	31.90/0.896	30.76/0.914
	JDDDSN	37.88/0.960	33.65/0.923	32.01/0.902	31.12/0.931
3×	Bicubic	30.39/0.868	27.55/0.774	27.21/0.739	24.46/0.735
	SRCNN	32.75/0.909	29.30/0.822	28.41/0.786	26.24/0.799
	SRGAN	30.87/0.896	28.03/0.781	26.90/0.710	25.23/0.759
	VDSR	33.66/0.921	29.77/0.831	28.83/0.797	27.14/0.827
	JDDDSN	33.64/0.916	29.81/0.827	28.79/0.791	27.56/0.843
4×	Bicubic	28.42/0.810	26.00/0.703	25.96/0.668	23.14/0.658
	SRCNN	30.48/0.863	27.50/0.751	26.90/0.710	24.52/0.722
	SRGAN	29.40/0.847	26.02/0.739	25.16/0.668	24.38/0.737
	VDSR	31.35/0.883	28.01/0.768	27.29/0.725	25.18/0.752
	JDDDSN	30.99/0.871	28.11/0.771	27.70/0.741	25.89/0.786

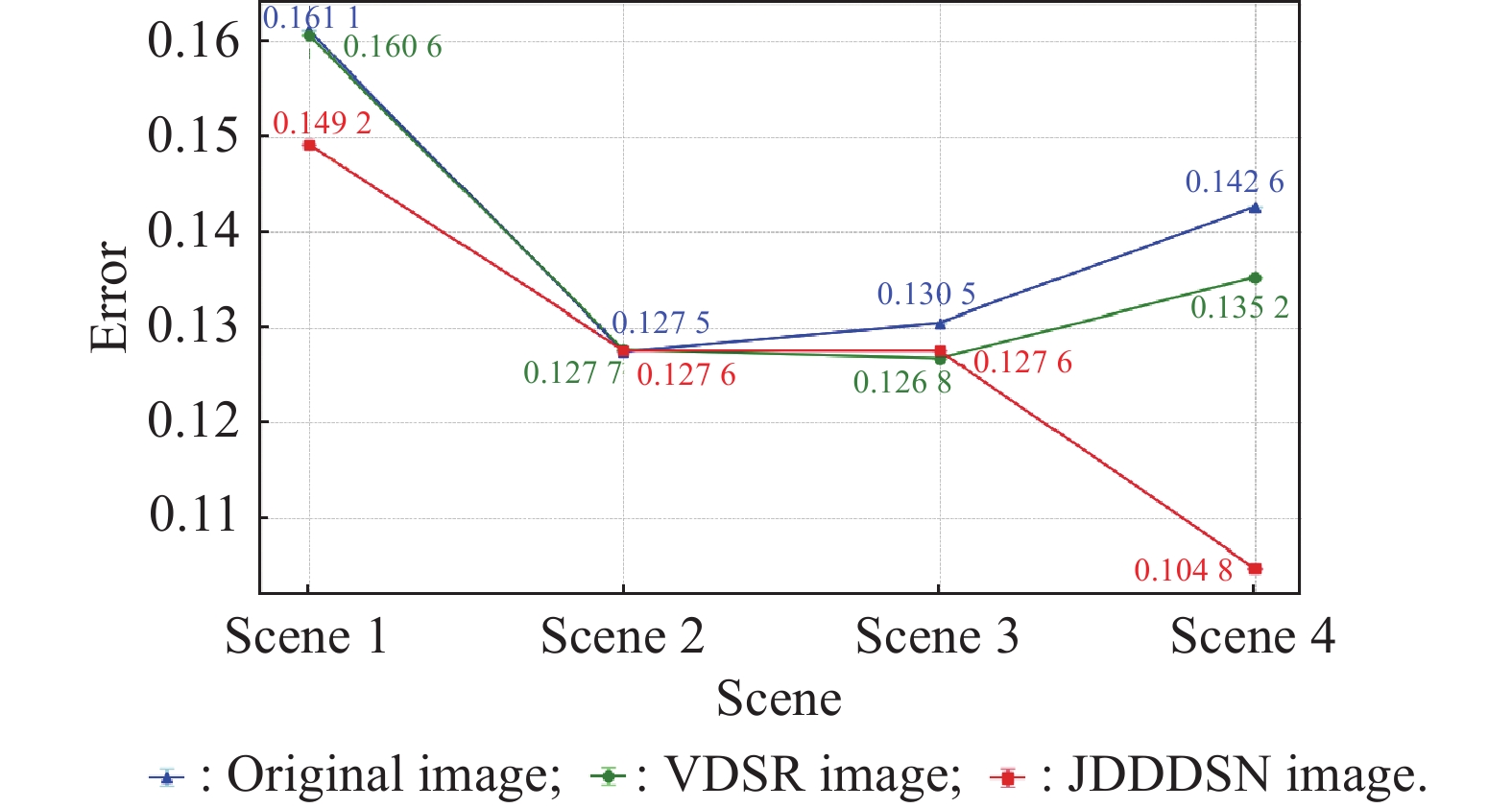

Image	Scene 1	Scene 2	Scene 3	Scene 4	Mean
Original image	0.1611	0.1275	0.1305	0.1426	0.1404
VDSR image	0.1606	0.1277	0.1268	0.1352	0.1375
JDDDSN image	0.1492	0.1276	0.1276	0.1048	0.1273

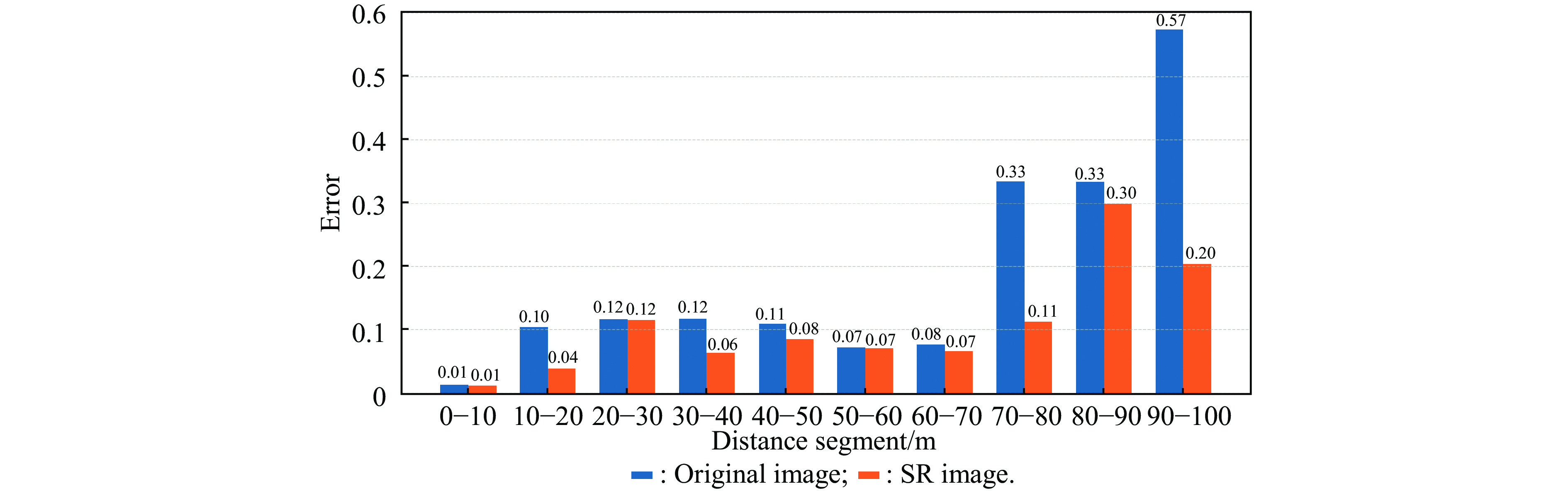

Image	Distance/m
Image	0−10	10−20	20−30	30−40	40−50	50−60	60−70	70−80	80−90	90−100
Original image	0.0124	0.1033	0.1170	0.1174	0.1086	0.0719	0.0759	0.3347	0.3333	0.5738
SR image	0.0113	0.0382	0.1154	0.0630	0.0845	0.0701	0.0650	0.1127	0.2988	0.2038

Image	Scene 1	Scene 2	Scene 3	Scene 4	Mean
Original image	0.1367	0.1206	0.1138	0.1108	0.1237
VDSR image	0.1273	0.1183	0.1130	0.0492	0.1019
JDDDSN image	0.1238	0.1194	0.1110	0.0427	0.0992
