Investigations and prospects of Fabry-Perot antennas: a review

doi:10.23919/JSEE.2021.000063

Journal of Systems Engineering and Electronics ›› 2021, Vol. 32 ›› Issue (4): 731-747.doi: 10.23919/JSEE.2021.000063

• SENSOR ARRAY SIGNAL PROCESSING AND ITS APPLICATIONS IN 5G/6G • Next Articles

Investigations and prospects of Fabry-Perot antennas: a review

Zhiming LIU^1,²(), Jens BORNEMANN^1,*(), Shaobin LIU²(), Xiangkun KONG²()

¹ Department of Electrical and Computer Engineering, University of Victoria, Victoria V8W 2Y2, Canada
² College of Electronic and Information Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China

Received:2020-12-31 Online:2021-08-18 Published:2021-09-30
Contact: Jens BORNEMANN E-mail:lzmedu@foxmail.com;j.bornemann@ieee.org;lsb@nuaa.edu.cn;xkkong@nuaa.edu.cn
About author:|LIU Zhiming was born in 1989. He received his B.S. degree and M.S. degree from East China Institute of Technology, Fuzhou, China, in 2012 and Nanchang University, Nanchang, China, in 2015, respectively. He received his Ph.D. degree from the College of Electronic and Information Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing, China, in 2019. He is a postdoctoral research fellow with the Department of Electrical and Computer Engineering, University of Victoria, Victoria, B.C., Canada. His current research interests include antennas, metamaterials and metasurface application. E-mail: lzmedu@foxmail.com||BORNEMANN Jens was born in 1952. He received his M.S. and Ph.D. degrees, both in electrical engineering, from University of Bremen, Germany, in 1980 and 1984, respectively. From 1984 to 1985, he worked as an engineering consultant. In 1985, he joined University of Bremen, Germany, as an assistant professor. Since April 1988, he has been with the Department of Electrical and Computer Engineering, University of Victoria, Victoria, B.C., Canada, where he became a professor in 1992. From 1992 to 1995, he was a fellow of the British Columbia Advanced Systems Institute. In 1996, he was a visiting scientist at Spar Aerospace Limited (now MDA Space), Ste-Anne-de-Bellevue, Quebec, Canada, and a visiting professor at the Microwave Department, University of Ulm, Germany. From 1997 to 2002, he was a co-director of the Center for Advanced Materials and Related Technology, University of Victoria. In 2003, he was a visiting professor at the Laboratory for Electromagnetic Fields and Microwave Electronics, ETH Zurich, Switzerland. His research interests include radio frequency/wireless/microwave/millimeter-wave components and systems design, field-theory-based modeling of integrated circuits, feed networks and antennas. E-mail: j.bornemann@ieee.org||LIU Shaobin was born in 1965. He received his Ph.D. degree in electronics science and technology from National University of Defense Technology in 2004. In 2003, he was already promoted as a professor. He is currently a professor of electromagnetic and microwave technology at Nanjing University of Aeronautics and Astronautics. His research interests include plasma stealthy antennas, microwave, radio frequency, and electromagnetic compatibility. E-mail: lsb@nuaa.edu.cn||KONG Xiangkun was born in 1980. He received his Ph.D. degree in communication and information systems from Nanjing University of Aeronautics and Astronautics (NUAA) in 2015. He has been an associate professor in NUAA since his promotion in July 2015. He used to work at University of St. Andrews in the UK as an academic visitor supported by China Scholarship Council. His main research interests include electromagnetic properties of metamaterials, metamaterials and metasurface application, plasma photonic crystal, and computational electromagnetics. E-mail: xkkong@nuaa.edu.cn
Supported by:
This work was supported by the National Natural Science Foundation of China (61671238; 61471368), the Fundamental Research Funds for the Central Universities (NJ20160008; 56XAA19052), the Jiangsu Planned Projects for Postdoctoral Research Funds (1601009B), the Equipment Advanced Research Foundation of China (61402090103), and the Natural Sciences and Engineering Research Council (NSERC) of Canada

Abstract

Abstract:

Fabry-Perot (FP) antennas have characteristics of planar structures combined with high gain, and they have been widely used in wireless communications. With the progress of ongoing research, FP antennas have achieved various capabilities, but many of them are still under development, such as low-profile, wideband, circular polarization, multi-band, low-radar cross section (RCS) and reconfigurable features. This paper discusses the theoretical analysis methods and research progress of FP antennas, and explains the realization methods of different features of FP antennas. In order to indicate different technologies for realizing various capabilities, the key technologies and features of some of the latest designs are described. Finally, the research situation and prospects of FP antennas are summarized to guide their research directions in the future.

Key words: Fabry-Perot (FP) antenna, partially reflective surface, research situation, research direction

Zhiming LIU, Jens BORNEMANN, Shaobin LIU, Xiangkun KONG. Investigations and prospects of Fabry-Perot antennas: a review[J]. Journal of Systems Engineering and Electronics, 2021, 32(4): 731-747.

Figures/Tables 19

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

Fig 11

Fig 12

Fig 13

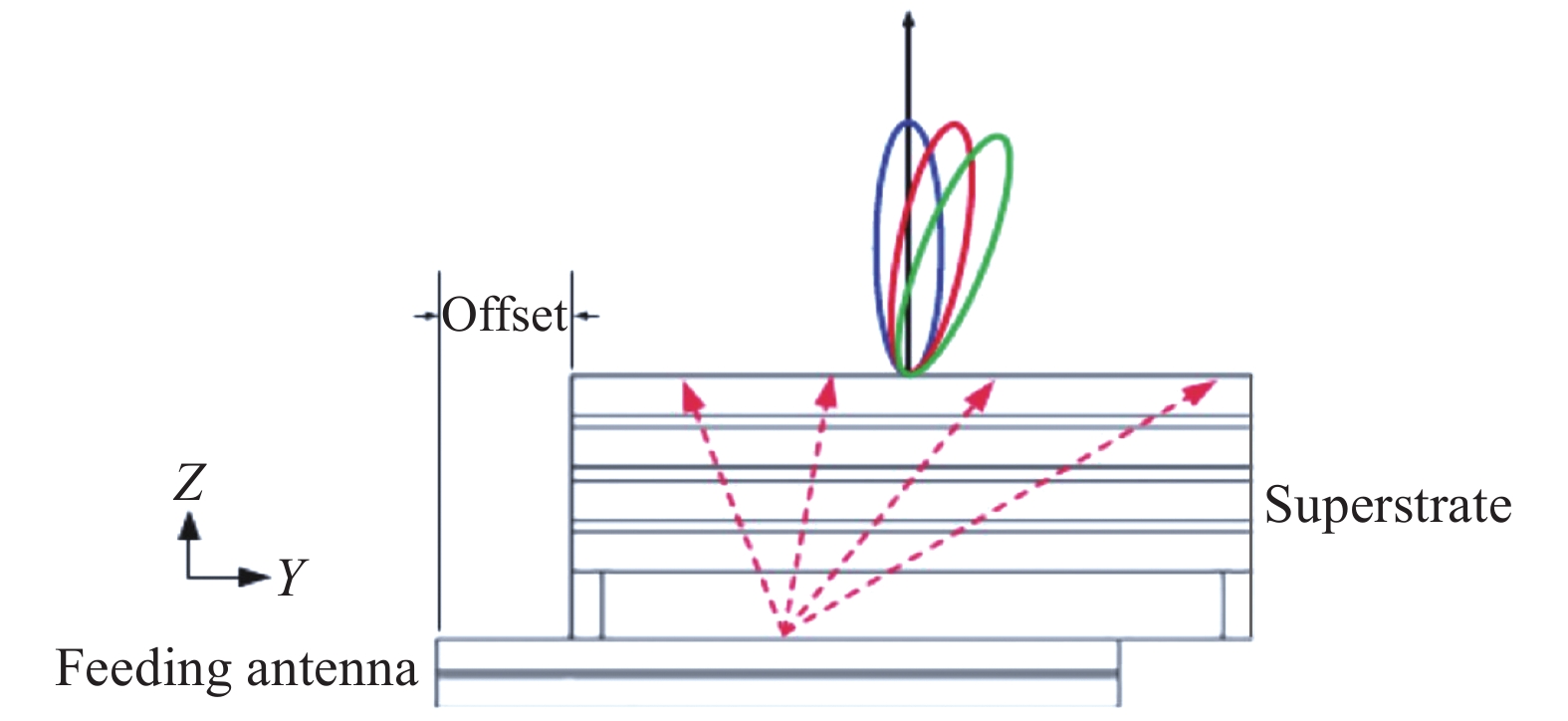

Fig 14

Fig 15

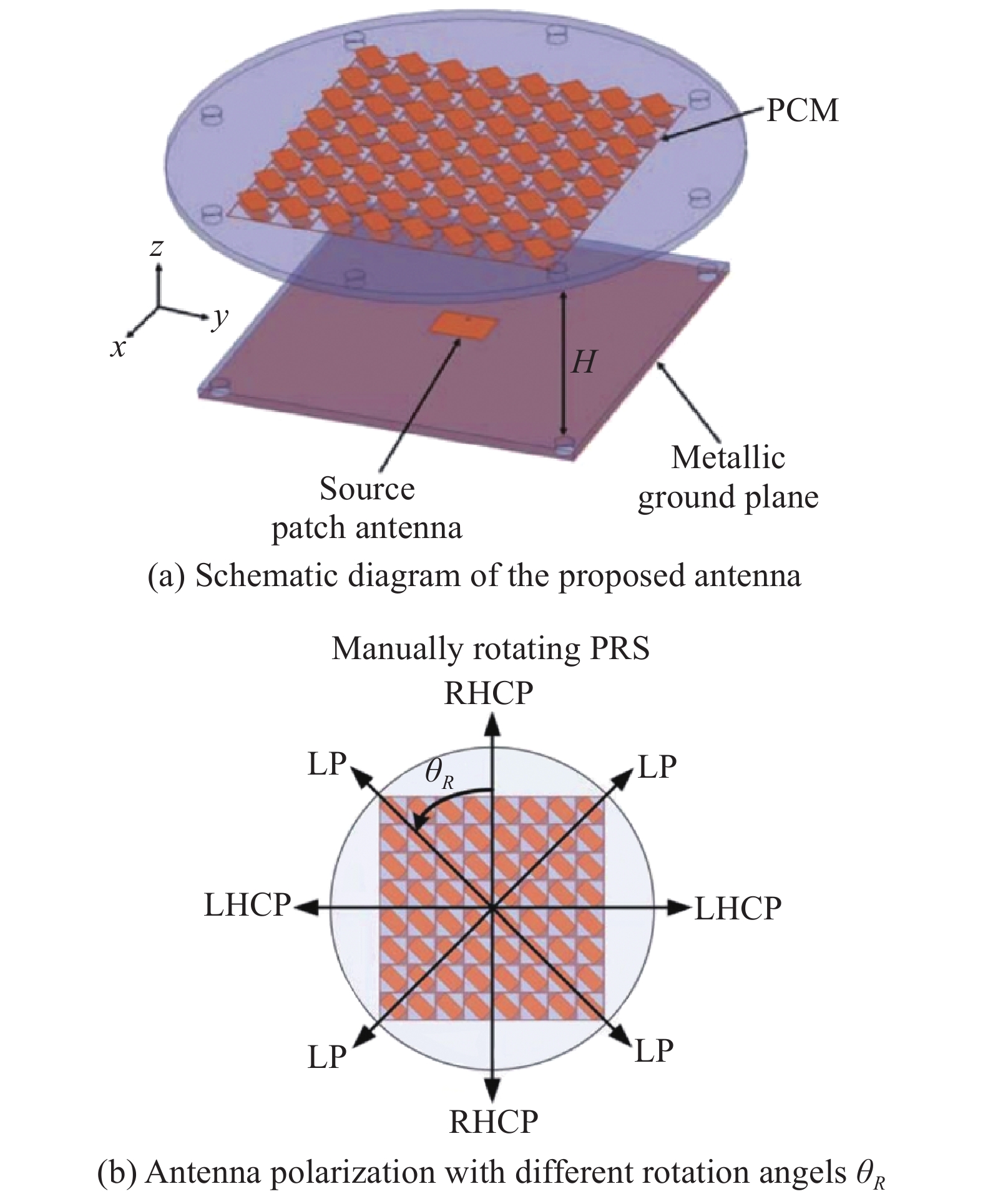

Fig 16

Fig 17

Fig 18

Table 1

Comparison of the existing works"

Reference	Feature	10 dB impedance bandwidth	Relative 3 dB gain bandwidth/%	Max. Gain (dBi/dBic)	GBP	Height	PRS technology
[11]	Low-profile	3.7 GHz	?	14.81	?	0.05λ	One-layer PRS
[15]	Low-profile	9.35 GHz	?	13.5	?	0.10λ	Substrate-integrated
[39]	Low-profile	10.5 GHz	?	15.0	?	0.30λ	Substrate-integrated
[40]	Low-profile	9.95 GHz	?	12.5	?	0.11λ	Substrate- integrated+AMC
[42]	Low-profile	9.8 GHz	?	13.5	?	0.12λ	PRS-AMC
[8]	Wideband	Around 5%	15.1	19.5	1346	1.41λ	Three-layer FSS
[9]	Wideband	8.6?11.2 (26.2%)	28	13.8	672	0.51λ	One-layer FSS
[16]	Wideband	Around 7.1%	6	17.44	333	0.95λ	Two-layer FSS
[49]	Wideband	Around 25%	15.7	16.2	654	0.54λ	One-layer FSS
[13]	Wideband	?	54.2	16.4	2366	1.01λ	TPG all-dielectric
[54]	Wideband	10?18.4 (59.2%)	57	20.2	5969	0.9λ	TPG all-dielectric
[56]	Wideband	5.8?16 (93.6%)	86.3	14.2	2270	1.31λ	Truncated three- layer dielectric
[59]	Dual-band	2.42?2.6 (7.2%) 5.2?5.8 (10.9%)	7 11	14.9 14.2	216 289	0.45λ 1.0λ	Two-layer FSS
[60]	Tri-band	5.1?5.5 (7.5%) 9.6?10.2 (6.1%) 14.4?16.0 (10.5%)	? ? ?	13.4 18.9 20	? ? ?	0.36λ 0.68λ 1.04λ	Two-layer FSS
[74]	Circular polarization	6.8?11.2 (48.9%)	50.3	14	1263	0.53λ	One-layer FSS
[80]	Frequency reconfigurable	4.55?4.7 (3.3%) 5.37?5.63 (4.7%)	11.9 8.2	13.1 17.1	243 421	0.42λ 0.50λ	One-layer reconfigurable PRS
[85]	Radiation pattern reconfigurable	5.5 GHz	?	10.4	?	0.46λ	One-layer FSS with PIN diodes
[20]	Wideband+polarization reconfigurable	2.2?2.72 (21%)	14.6	15.1	472	0.5λ	One-layer FSS
[96]	Polarization reconfigurable	10.3?11.22 (8.6%)	7.1	12.5	126	0.53λ	PCM
[78]	Circular polarization+ Low-RCS	10.5?10.78 (2.6%)	?	10.2	?	0.43λ	One-layer PRS +AS
[104]	Wideband+Low-RCS	8.64?12.07 (33.1%)	25.4	17.08	1297	0.68λ	One-layer FSS
[108]	Wideband + Low-RCS	8.48?12.21 (36.1%)	25.5	17.2	1338	0.73λ	One-layer embedded CPCM

Table 1

References 110

1	HOFSTETTER D, THORNTON R L Measurement of optical cavity properties in semiconductor lasers by Fourier analysis of the emission spectrum. IEEE Journal of Quantum Electronics, 1998, 34 (10): 1914- 1923. doi: 10.1109/3.720227
2	WU B L, WANG M G, DONG Y, et al Magnetic field sensor based on a dual-frequency optoelectronic oscillator using cascaded magnetostrictive alloy-fiber Bragg grating-Fabry Perot and fiber Bragg grating-Fabry Perot filters. Optics express, 2018, 26 (21): 27628- 27638. doi: 10.1364/OE.26.027628
3	LI Y, ZHANG Y J, CHEN H W Tunable self-injected Fabry-Perot laser diode coupled to an external high-Q Si3N4/SiO2 microring resonator. Journal of Lightwave Technology, 2018, 36 (16): 3269- 3274. doi: 10.1109/JLT.2018.2838325
4	BRAGINSKY V B, VYATCHANIN S P Low quantum noise tranquilizer for Fabry-Perot interferometer. Physics Letters A, 2002, 293 (5/6): 228- 234.
5	LI Z G, TIAN J J, JIAO Y Z, et al Simultaneous measurement of air pressure and temperature using fiber-optic cascaded Fabry-Perot interferometer. IEEE Photonics Journal, 2018, 11 (1): 1- 10.
6	VON TRENTINI G Partially reflecting sheet arrays. IRE Trans. on Antennas and Propagation, 1956, 4 (4): 666- 671. doi: 10.1109/TAP.1956.1144455
7	MUHAMMAD S A, SAULEAU R, VALERIO G, et al Self-polarizing Fabry-Perot antennas based on polarization twisting element. IEEE Trans. on Antennas and Propagation, 2012, 61 (3): 1032- 1040.
8	KONSTANTINIDIS K, FERESIDIS A P, HALL P S Multilayer partially reflective surfaces for broadband Fabry-Perot cavity antennas. IEEE Trans. on Antennas and Propagation, 2014, 62 (7): 3474- 3481. doi: 10.1109/TAP.2014.2320755
9	WANG N Z, LIU Q, WU C Y, et al Wideband Fabry-Perot resonator antenna with two complementary FSS layers. IEEE Trans. on Antennas and Propagation, 2014, 62 (5): 2463- 2471. doi: 10.1109/TAP.2014.2308533
10	ZEB B A, GE Y, ESSELLE K P, et al A simple dual-band electromagnetic band gap resonator antenna based on inverted reflection phase gradient. IEEE Trans. on Antennas and Propagation, 2012, 60 (10): 4522- 4529. doi: 10.1109/TAP.2012.2207331
11	KELLY J R, KOKKINOS T, FERESIDIS A P Analysis and design of sub-wavelength resonant cavity type 2-D leaky-wave antennas. IEEE Trans. on Antennas and Propagation, 2008, 56 (9): 2817- 2825. doi: 10.1109/TAP.2008.928791
12	JI L Y, GUO Y J, QIN P Y, et al A reconfigurable partially reflective surface (PRS) antenna for beam steering. IEEE Trans. on Antennas and Propagation, 2015, 63 (6): 2387- 2395. doi: 10.1109/TAP.2015.2412143
13	HASHMI R M, ESSELLE K P A class of extremely wideband resonant cavity antennas with large directivity-bandwidth products. IEEE Trans. on Antennas and Propagation, 2015, 64 (2): 830- 835.
14	GARDELLI R, ALBANI M, CAPOLINO F Array thinning by using antennas in a Fabry-Perot cavity for gain enhancement. IEEE Trans. on Antennas and Propagation, 2006, 54 (7): 1979- 1990. doi: 10.1109/TAP.2006.877172
15	LIU Z M, LIU S B, BIAN B R, et al Metasurface-based low-profile high-gain substrate-integrated Fabry-Perot cavity antenna. International Journal of RF and Microwave Computer-Aided Engineering, 2019, 29 (4): e21583. doi: 10.1002/mmce.21583
16	MATEOSEGURA C, FERESIDIS A P, GOUSSETIS G Bandwidth enhancement of 2-D leaky-wave antennas with double-layer periodic surfaces. IEEE Trans. on Antennas and Propagation, 2014, 62 (2): 586- 593. doi: 10.1109/TAP.2013.2292076
17	LEE Y J, YEO J, KO K D, et al A novel design technique for control of defect frequencies of an electromagnetic bandgap (EBG) superstrate for dual-band directivity enhancement. Microwave and Optical Technology Letters, 2004, 42 (1): 25- 31. doi: 10.1002/mop.20196
18	QIN F, GAO S, WEI G, et al Wideband circularly polarized Fabry-Perot antenna. IEEE Antennas and Propagation Magazine, 2015, 57 (5): 127- 135. doi: 10.1109/MAP.2015.2470678
19	LIU Z M, LIU S B, BORNEMANN J, et al. A wideband fabry-perot antenna with enhanced gain in the high frequency operating band by adopting a truncated field correcting structure. IEEE Trans. on Antennas and Propagation, 2021. DOI: 10.1109/TAP.2021.3090841.
20	LIAN R N, TANG Z Y, YIN Y Z Design of a broadband polarization reconfigurable Fabry-Perot resonator antenna. IEEE Antennas and Wireless Propagation Letters, 2018, 17 (1): 122- 125. doi: 10.1109/LAWP.2017.2777502
21	GUZMAN-QUIROS R, WEILY A R, GOMEZ-TORNERO J L, et al A Fabry-Perot antenna with two-dimensional electronic beam scanning. IEEE Trans. on Antennas and Propagation, 2016, 64 (4): 1536- 1541. doi: 10.1109/TAP.2016.2525832
22	XIE P, WANG G M, LI H P, et al A dual-polarized two-dimensional beam steering Fabry-Perot cavity antenna with a reconfigurable partially reflecting surface. IEEE Antennas and Wireless Propagation Letters, 2017, 16, 2370- 2374. doi: 10.1109/LAWP.2017.2718567
23	HUANG C, PAN W B, MA X L, et al A frequency reconfigurable directive antenna with wideband low-RCS property. IEEE Trans. on Antennas and Propagation, 2016, 64 (3): 1173- 1178. doi: 10.1109/TAP.2016.2518199
24	AKALIN T, DANGLOT J, VANBESIEN O, et al A highly directive dipole antenna embedded in a Fabry-Perot type cavity. IEEE Microwave and Wireless Components Letters, 2002, 12 (2): 48- 50. doi: 10.1109/7260.982873
25	GE Y H, SUN Z, CHEN Z G, et al A high-gain wideband low-profile Fabry-Perot resonator antenna with a conical short horn. IEEE Antennas and Wireless Propagation Letters, 2016, 15, 1889- 1892. doi: 10.1109/LAWP.2016.2542277
26	MENG F, SHARMA S K A wideband resonant cavity antenna with compact partially reflective surface. IEEE Trans. on Antennas and Propagation, 2019, 68 (2): 1155- 1160.
27	OLINER A A, JACKSON D R, VOLAKIS J L. Antenna engineering handbook. New York: McGrawHill, 2007.
28	SENGUPTA S, JACKSON D R, LONG S A Modal analysis and propagation characteristics of leaky waves on a 2-D periodic leaky-wave antenna. IEEE Trans. on Microwave Theory and Techniques, 2018, 66 (3): 1181- 1191. doi: 10.1109/TMTT.2017.2783373
29	ALMUTAWA A T, HOSSEINI A, JACKSON D R, et al Leaky-wave analysis of wideband planar Fabry-Perot cavity antennas formed by a thick PRS. IEEE Trans. on Antennas and Propagation, 2019, 67 (8): 5163- 5175. doi: 10.1109/TAP.2019.2911349
30	ZHOU L, DUAN X, LUO Z J, et al High directivity Fabry-Perot antenna with a nonuniform partially reflective surface and a phase correcting structure. IEEE Trans. on Antennas and Propagation, 2020, 68 (11): 7601- 7606. doi: 10.1109/TAP.2020.2982514
31	JACKSON D, ALEXOPOULOS N Gain enhancement methods for printed circuit antennas. IEEE Trans. on Antennas and Propagation, 1985, 33 (9): 976987.
32	YANG H Y, ALEXOPOULOS N G Gain enhancement methods for printed circuit antennas through multiple superstrates. IEEE Trans. on Antennas and Propagation, 1987, 35 (7): 860- 863. doi: 10.1109/TAP.1987.1144186
33	ZHAO T, JACKSON D R, WILLIAMS J T, et al General formulas for 2-D leaky-wave antennas. IEEE Trans. on Antennas and Propagation, 2005, 53 (11): 3525- 3533. doi: 10.1109/TAP.2005.856315
34	BOUTAYEB H, DENIDNI T A Internally excited Fabry-Perot type cavity: power normalization and directivity evaluation. IEEE Antennas and Wireless Propagation Letters, 2006, 5, 159- 162. doi: 10.1109/LAWP.2006.873944
35	GOUDARZI A, HONARI M M, MIRZAVAND R Resonant cavity antennas for 5G communication systems: a review. Electronics, 2020, 9 (7): 1080. doi: 10.3390/electronics9071080
36	ZHOU L, LI H Q, QIN Y Q, et al. Directive emissions from subwavelength metamaterial-based cavities. Proc. of the IEEE International Workshop on Antenna Technology: Small Antennas and Novel Metamaterials, 2005. DOI: 10.1109/IWAT.2005.1461045.
37	WANG S, FERESIDIS A P, GOUSSETIS G, et al High-gain subwavelength resonant cavity antenna based on metamaterial ground planes. IEE Proceedings—Microwaves, Antennas and Propagation, 2006, 153 (1): 1- 6. doi: 10.1049/ip-map:20050090
38	COSTA F, MONORCHIO A, MANARA G. Low-profile tunable and steerable Fabry-Perot antenna for software defined radio application. Proc. of the IEEE Antennas and Propagation Society International Symposium, 2010: 1–4.
39	ZHU B, CHEN Z N, FENG Y J. Fully substrate-integrated high-gain thin Fabry-Perot cavity antennas. Proc. of the Asia-Pacific Microwave Conference, 2011: 602–605.
40	SUN Y, CHEN Z N, ZHANG Y, et al Subwavelength substrate-integrated Fabry-Perot cavity antennas using artificial magnetic conductor. IEEE Trans. on Antennas and Propagation, 2012, 60 (1): 30- 35. doi: 10.1109/TAP.2011.2167902
41	JI L, WANG J D, CHEN W D, et al. Substrate-integrated Fabry-Perot cavity antenna fed by slot-coupled patch array for directivity enhancement. Proc. of the Asia-Pacific Microwave Conference, 2013: 1067–1069.
42	LIU W, CHEN Z N, SEE T S P, et al SIW-slot-fed thin beam-squint-free Fabry-Perot cavity antenna with low backlobe levels. IEEE Antennas and Wireless Propagation Letters, 2014, 13, 552- 554. doi: 10.1109/LAWP.2014.2311813
43	NGUYEN T K, PARK I Design of a substrate-integrated Fabry-Perot cavity antenna for K-band applications. International Journal of Antennas and Propagation, 2015, 2015, 373801.
44	GAO Z D, SU M, TANG B H, et al. Low-profile circularly polarized Fabry-Perot resonator antenna array with substrate integrated waveguide feed network. Proc. of the IEEE International Symposium on Electromagnetic Compatibility, 2017: 1–4.
45	GE Z C, ZHANG W X, LIU Z G, et al Broadband and high-gain printed antennas constructed from Fabry-Perot resonator structure using EBG or FSS cover. Microwave and Optical Technology Letters, 2006, 48 (7): 1272- 1274. doi: 10.1002/mop.21674
46	FERESIDIS A P, VARDAXOGLOU J C. A broadband high-gain resonant cavity antenna with single feed. Proc. of the First European Conference on Antennas and Propagation, 2006: 1–5.
47	LIU Z G, ZHAN W X, FU D L, et al Broadband Fabry-Perot resonator printed antennas using FSS superstrate with dissimilar size. Microwave and Optical Technology Letters, 2008, 50 (6): 1623- 1627. doi: 10.1002/mop.23456
48	WU Z H, ZHANG W X Broadband printed compound air-fed array antennas. IEEE Antennas and Wireless Propagation Letters, 2010, 9, 187- 190. doi: 10.1109/LAWP.2010.2045470
49	GE Y, ESSELLE K P, BIRD T S The use of simple thin partially reflective surfaces with positive reflection phase gradients to design wideband, low-profile EBG resonator antennas. IEEE Trans. on Antennas and Propagation, 2012, 60 (2): 743- 750. doi: 10.1109/TAP.2011.2173113
50	PIRHADI A, BAHRAMI H, NASRI J Wideband high directive aperture coupled microstrip antenna design by using a FSS superstrate layer. IEEE Trans. on Antennas and Propagation, 2012, 60 (4): 2101- 2106. doi: 10.1109/TAP.2012.2186230
51	LEGER L, MONEDIERE T, JECKO B Enhancement of gain and radiation bandwidth for a planar 1-D EBG antenna. IEEE Microwave and Wireless Components Letters, 2005, 15 (9): 573- 575. doi: 10.1109/LMWC.2005.855373
52	HASHMI R M, ZEB B A, ESSELLE K P Wideband high-gain EBG resonator antennas with small footprints and all-dielectric superstructures. IEEE Trans. on Antennas and Propagation, 2014, 62 (6): 2970- 2977. doi: 10.1109/TAP.2014.2314534
53	WU K L, YIN W Y, ZHANG L, et al A wideband EBG resonator antenna with an extremely small footprint area. Microwave and Optical Technology Letters, 2015, 57 (7): 1531- 1535. doi: 10.1002/mop.29134
54	BABA A A, HASHMI R M, ESSELLE K P Achieving a large gain-bandwidth product from a compact antenna. IEEE Trans. on Antennas and Propagation, 2017, 65 (7): 3437- 3446. doi: 10.1109/TAP.2017.2700016
55	BABA A A, HASHMI R M, ESSELLE K P, et al Compact high-gain antenna with simple all-dielectric partially reflecting surface. IEEE Trans. on Antennas and Propagation, 2018, 66 (8): 4343- 4348. doi: 10.1109/TAP.2018.2842247
56	NGUYEN-TRONG N, TRAN H H, NGUYEN T K, et al Wideband Fabry-Perot antennas employing multilayer of closely spaced thin dielectric slabs. IEEE Antennas and Wireless Propagation Letters, 2018, 17 (7): 1354- 1358. doi: 10.1109/LAWP.2018.2846240
57	LEE D H, LEE Y J, YEO J, et al Design of novel thin frequency selective surface superstrates for dual-band directivity enhancement. IET Microwaves, Antennas and Propagation, 2007, 1 (1): 248- 254. doi: 10.1049/iet-map:20050318
58	ZEB B A, GE Y, ESSELLE K P. A single-layer thin partially reflecting surface for tri-band directivity enhancement. Proc. of the Asia-Pacific Microwave Conference, 2012: 559–561.
59	ABDELGHANI M L, ATTIA H, DENIDNI T A Dual- and wideband Fabry-Perot resonator antenna for WLAN applications. IEEE Antennas and Wireless Propagation Letters, 2017, 16, 473- 476. doi: 10.1109/LAWP.2016.2585087
60	QIN F, GAO S, LUO Q, et al A triband low-profile high-gain planar antenna using Fabry-Perot cavity. IEEE Trans. on Antennas and Propagation, 2017, 65 (5): 2683- 2688. doi: 10.1109/TAP.2017.2670564
61	CHEN J Q, ZHAO Y J, GE Y, et al Dual-band high-gain Fabry-Perot cavity antenna with a shared-aperture FSS layer. IET Microwaves, Antennas and Propagation, 2018, 12 (13): 2007- 2011. doi: 10.1049/iet-map.2018.5183
62	QIN F, GAO S S, LUO Q, et al, et al A simple low-cost shared-aperture dual-band dual-polarized high-gain antenna for synthetic aperture radars. IEEE Trans. on Antennas and Propagation, 2016, 64 (7): 2914- 2922. doi: 10.1109/TAP.2016.2559526
63	XIE P, WANG G M, KONG X X, et al Design of a novel metasurface for dual-band Fabry-Perot cavity antenna. International Journal of RF and Microwave Computer-Aided Engineering, 2017, 28 (2): 1- 7.
64	CHEN C, LIU Z G, WANG H, et al. Metamaterial-inspired self-polarizing dual-band dual-orthogonal circularly polarized Fabry-Perot resonator antennas IEEE Trans. on Antennas and Propagation, 2018, 67 (2): 1329- 1334.
65	DENG C J, LI Y, ZHANG Z J, et al A circularly polarized pattern diversity antenna for hemispherical coverage. IEEE Trans. on Antennas and Propagation, 2014, 62 (10): 5365- 5369. doi: 10.1109/TAP.2014.2342763
66	WANG A K, YANG L, ZHANG Y, et al A novel planar dual circularly polarized endfire antenna. IEEE Access, 2019, 7, 64297- 64302. doi: 10.1109/ACCESS.2019.2915996
67	TRAN H H, TA S X, PARK I Single-feed, wideband, circularly polarized, crossed bowtie dipole antenna for global navigation satellite systems. Journal of Electromagnetic Engineering and Science, 2014, 14 (3): 299- 305. doi: 10.5515/JKIEES.2014.14.3.299
68	CHOI E C, LEE J W, LEE T K, et al Circularly polarized S-band satellite antenna with parasitic elements and its arrays. IEEE Antennas and Wireless Propagation Letters, 2014, 13, 1689- 1692. doi: 10.1109/LAWP.2014.2347998
69	SHI J, WU X, QING X M, et al An omnidirectional circularly polarized antenna array. IEEE Trans. on Antennas and Propagation, 2015, 64 (2): 574- 581.
70	WEILY A R, ESSELLE K P, BIRD T S, et al High gain circularly polarised 1-D EBG resonator antenna. IET Electronics Letters, 2006, 42 (18): 1012- 1013. doi: 10.1049/el:20061552
71	LIU Z G, LU W B Broadband design of circularly polarized high-gain Fabry-Perot resonator antenna with simple array thinning technique. Microwave and Optical Technology Letters, 2017, 59 (12): 3171- 3176. doi: 10.1002/mop.30900
72	TRAN H H, LE T T, BUI C D, et al Broadband circularly polarized Fabry-Perot antenna utilizing Archimedean spiral radiator and multi-layer partially reflecting surface. International Journal of RF and Microwave Computer-Aided Engineering, 2018, 29 (3): 1- 7.
73	CAO W Q, LV X M, WANG Q Q, et al Wideband circularly polarized Fabry-Perot resonator antenna in Ku-band. IEEE Antennas and Wireless Propagation Letters, 2019, 18 (4): 586- 590. doi: 10.1109/LAWP.2019.2896940
74	TRAN H H, NGUYEN-TRONG N, NGUYEN T K Low-profile wideband Fabry-Perot resonator antenna using artificial magnetic conductor surface. Microwave and Optical Technology Letters, 2018, 61 (2): 316- 322.
75	DIBLANC M, RODES E, ARNAUD E, et al Circularly polarized metallic EBG antenna. IEEE Microwave and Wireless Components Letters, 2005, 15 (10): 638- 640. doi: 10.1109/LMWC.2005.856689
76	ORR R, GOUSSETIS G, FUSCO V Design method for circularly polarized Fabry-Perot cavity antennas. IEEE Trans. on Antennas and Propagation, 2014, 62 (1): 19- 26. doi: 10.1109/TAP.2013.2286839
77	LIU Z G, LU W B Low-profile design of broadband high gain circularly polarized Fabry-Perot resonator antenna and its array with linearly polarized feed. IEEE Access, 2017, 5 (1): 7164- 7172.
78	REN J Y, JIANG W, ZHANG K Z, et al A high-gain circularly polarized Fabry-Perot antenna with wideband low-RCS property. IEEE Antennas and Wireless Propagation Letters, 2018, 17 (5): 853- 856. doi: 10.1109/LAWP.2018.2820015
79	WEILY A R, BIRD T S, GUO Y J A reconfigurable high-gain partially reflecting surface antenna. IEEE Trans. on Antennas and Propagation, 2008, 56 (11): 3382- 3390. doi: 10.1109/TAP.2008.2005538
80	XIE P, WANG G M Design of a frequency reconfigurable Fabry-Perot cavity antenna with single layer partially reflecting surface. Progress in Electromagnetics Research Letters, 2017, 70, 115- 121. doi: 10.2528/PIERL17072505
81	HAO Y, ALOMAINY A H, PARINI C G Antenna-beam shaping from offset defects in UC-EBG cavities. Microwave and Optical Technology Letters, 2004, 43 (2): 108- 112. doi: 10.1002/mop.20391
82	DEBOGOVIC T, PERRUISSEAU-CARRIER J Array-fed partially reflective surface antenna with independent scanning and beamwidth dynamic control. IEEE Trans. on Antennas and Propagation, 2014, 62 (1): 446- 449. doi: 10.1109/TAP.2013.2287018
83	DEBOGOVIC T, PERRUISSEAU-CARRIER J, BARTOLIC J, et al Partially reflective surface antenna with dynamic beamwidth control. IEEE Antennas and Wireless Propagation Letters, 2010, 9 (3): 1157- 1160.
84	DEBOGOVIC T, PERRUISSEAU-CARRIER J Dual-polarized beamwidth-reconfigurable Fabry-Perot antenna in monolithic MEMS technology. Proc. of the IEEE Antennas and Propagation Society International Symposium, 2013, 754- 755.
85	JI L Y, ZHANG Z Y, LIU N W A two-dimensional beam-steering partially reflective surface (PRS) antenna using a reconfigurable FSS structure. IEEE Antennas and Wireless Propagation Letters, 2019, 18 (6): 1076- 1080. doi: 10.1109/LAWP.2019.2907641
86	SULTAN F, MITU S S I Superstrate-based beam scanning of a Fabry-Perot cavity antenna. IEEE Antennas and Wireless Propagation Letters, 2016, 15, 1187- 1190. doi: 10.1109/LAWP.2015.2499261
87	LAN J H, SUN B H, YAN W B, et al A beam scanning Fabry-Perot cavity antenna for millimeter-wave applications. International Journal of RF and Microwave Computer-Aided Engineering, 2019, 29 (5): 1- 5.
88	GUO C L, LIU F F, CHEN S, et al Advances on exploiting polarization in wireless communications: channels, technologies, and applications. IEEE Communications Surveys & Tutorials, 2016, 19 (1): 125- 166.
89	LV X L, WU B, ZHAO Y T, et al Dual-band dual-polarization reconfigurable THz antenna based on graphene. Applied Physics Express, 2020, 13 (7): 075007. doi: 10.35848/1882-0786/ab9e4b
90	JI L Y, QIN P Y, GUO Y J, et al. A wideband polarization reconfigurable antenna for WLAN applications. Proc. of the 10th European Conference on Antennas and Propagation, 2016: 1−3.
91	HAN W W, OUYANG J, GUO Z, et al. A single-feed high-gain Fabry-Perot antenna with reconfigurable polarization capability. Proc. of the Cross Strait Quad-Regional Radio Science and Wireless Technology Conference, 2013: 279–281.
92	VAIDYA A R, GUPTA R K, MISHRA S K, et al Right-hand/left-hand circularly polarized high-gain antennas using partially reflective surfaces. IEEE Antennas and Wireless Propagation Letters, 2014, 13, 431- 434. doi: 10.1109/LAWP.2014.2308926
93	TRAN H H, PARK H C A simple design of polarization reconfigurable Fabry-Perot resonator antenna. IEEE Access, 2020, 8, 91837- 91842. doi: 10.1109/ACCESS.2020.2995182
94	LI W T, GAO S, CAI Y M, et al Polarization-reconfigurable circularly polarized planar antenna using switchable polarizer. IEEE Trans. on Antennas and Propagation, 2017, 65 (9): 4470- 4477. doi: 10.1109/TAP.2017.2730240
95	NI C, LIU C Q, ZHANG Z X, et al Design of broadband high gain polarization reconfigurable Fabry-Perot cavity antenna using metasurface. Frontiers in Physics, 2020, 8, 316. doi: 10.3389/fphy.2020.00316
96	ZHANG X, CHEN C, JIANG S, et al A high-gain polarization reconfigurable antenna using polarization conversion metasurface. Progress in Electromagnetics Research, 2020, 105, 1- 10. doi: 10.2528/PIERC20052001
97	PAN W B, HUANG C, CHEN P, et al A low-RCS and high-gain partially reflecting surface antenna. IEEE Trans. on Antennas and Propagation, 2014, 62 (2): 945- 949. doi: 10.1109/TAP.2013.2291008
98	LI W Q, CAO X Y, GAO J, et al Broadband RCS reduction and gain enhancement microstrip antenna using shared aperture artificial composite material based on quasi-fractal tree. IET Microwaves, Antennas and Propagation, 2016, 10 (4): 370- 377. doi: 10.1049/iet-map.2015.0311
99	JIANG H, XUE Z H, LI W M, et al Low-RCS high-gain partially reflecting surface antenna with metamaterial ground plane. IEEE Trans. on Antennas and Propagation, 2016, 64 (9): 4127- 4132. doi: 10.1109/TAP.2016.2589964
100	MU J, WANG H, WANG H, et al Low-RCS and gain enhancement design of a novel partially reflecting and absorbing surface antenna. IEEE Antennas and Wireless Propagation Letters, 2017, 16, 1903- 1906. doi: 10.1109/LAWP.2017.2685623
101	HAKIM L M V A, AANANDAN C K Radar cross section reduction of low profile Fabry-Perot resonator antenna using checkerboard artificial magnetic conductor. Advanced Electromagnetics, 2018, 7 (2): 76- 82. doi: 10.7716/aem.v7i2.686
102	ZHENG Y J, GAO J, ZHOU Y L, et al Wideband gain enhancement and RCS reduction of Fabry-Perot resonator antenna with chessboard arranged metamaterial superstrate. IEEE Trans. on Antennas and Propagation, 2018, 66 (2): 590- 599. doi: 10.1109/TAP.2017.2780896
103	ZARBAKHSH S, AKBARI M, SAMADI F, et al Broadband and high-gain circularly-polarized antenna with low RCS. IEEE Trans. on Antennas and Propagation, 2019, 67 (1): 16- 23. doi: 10.1109/TAP.2018.2876234
104	LIU Z M, LIU S B, ZHAO X, et al Wideband gain enhancement and RCS reduction of Fabry-Perot antenna using hybrid reflection method. IEEE Trans. on Antennas and Propagation, 2020, 68 (9): 6497- 6505. doi: 10.1109/TAP.2020.2988949
105	LI K, LIU Y, JIA Y T, et al A circularly polarized high-gain antenna with low RCS over a wideband using chessboard polarization conversion metasurfaces. IEEE Trans. on Antennas and Propagation, 2017, 65 (8): 4288- 4292. doi: 10.1109/TAP.2017.2710231
106	LONG M, JIANG W, GONG S X Wideband RCS reduction using polarization conversion metasurface and partially reflecting surface. IEEE Antennas and Wireless Propagation Letters, 2017, 16, 2534- 2537. doi: 10.1109/LAWP.2017.2731862
107	ZHENG Q, GUO C J, DING J Wideband and low RCS planar circularly polarized array based on polarization conversion of metasurface. Microwave and Optical Technology Letters, 2018, 60 (3): 784- 789. doi: 10.1002/mop.31050
108	LIU Z, LIU S, BORNEMANN J, et al A low-RCS, high-GBP Fabry-Perot antenna with embedded chessboard polarization conversion metasurface. IEEE Access, 2020, 8, 80183- 80194. doi: 10.1109/ACCESS.2020.2990602
109	ZHANG L, WAN X, LIU S, et al Realization of low scattering for a high-gain Fabry-Perot antenna using coding metasurface. IEEE Trans. on Antennas and Propagation, 2017, 65 (7): 3374- 3383. doi: 10.1109/TAP.2017.2700874
110	JIA Y T, LIU Y, ZHANG W B, et al High-gain Fabry-Perot antennas with wideband low monostatic RCS using phase gradient metasurface. IEEE Access, 2019, 7, 4816- 4824. doi: 10.1109/ACCESS.2018.2886832
