Research on FMC analytic algorithm of PBN track transition coding

doi:10.23919/JSEE.2023.000090

Abstract

Abstract:

Airborne navigation database (NavDB) coding directly affects the result of analysis on the instrument flight procedure by the modern aircraft flight management computer (FMC). A reasonable flight track transition mode can improve the track tracking accuracy and flight quality of the aircraft. According to the path terminator (PT) and track transition characteristics of the performance based navigation (PBN) instrument flight procedure and by use of the world geodetic system (WGS)-84 ellipsoidal coordinate system, the algorithms for “fly by” and “fly over” track transition connections are developed, together with the algorithms for coordinates of fix-to-altitude (FA) altitude termination point and heading-to-an-intercept (VI) track entry point and for track transition display of the navigation display (ND). According to the simulation carried out based on the PBN instrument approach procedure coding of a certain airport and the PBN route data at a high altitude, the algorithm results are consistent with the FMC-calculated results and the actual ND results.

Key words: flight management computer (FMC), performance based navigation (PBN), path terminator (PT), navigation database (NavDB) coding, track transition

Guangming ZHANG, Siqian REN, Weiwei ZHAO, Xiuyi LI. Research on FMC analytic algorithm of PBN track transition coding[J]. Journal of Systems Engineering and Electronics, 2023, 34(4): 1042-1052.

Figures/Tables 36

Table 1

Table 2

Table 3

Table 4

Table 5

Table 6

Fig 1

Table 7

Fig 2

Table 8

Table 9

Fig 3

Fig 4

Table 10

Fig 5

Table 11

Fig 6

Table 12

Fig 7

Fig 8

Fig 9

Fig 10

Table 13

Table 14

Fig 11

Fig 12

Table 15

Table 16

Table 17

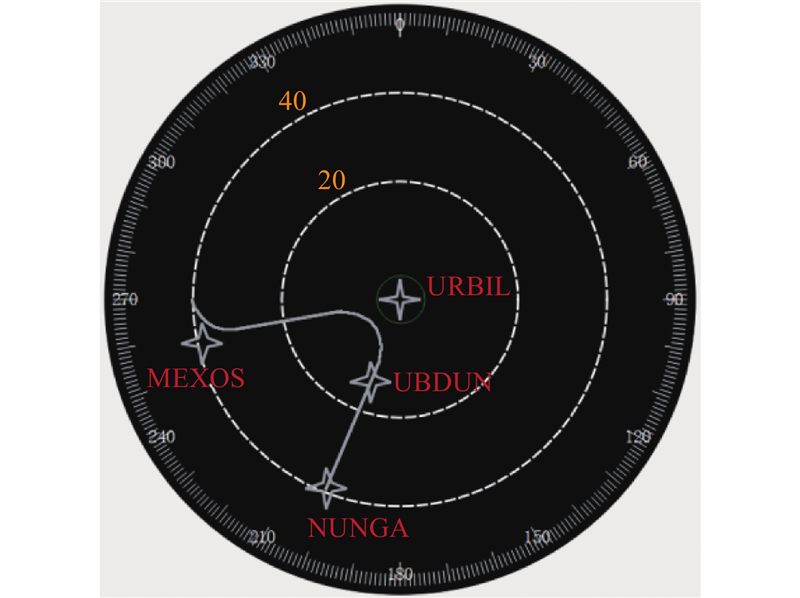

Fig 13

Fig 14

Table 18

Table 19

Fig 15

Fig 16

Table 20

References 27

1	International Civil Aviation Organization. The civil aviation industry development statistical bulletin in 2018. Beijing: Civil Aviation Administration of China, 2018.
2	The Boeing Company. Patent issued for communication of flight management computer data via a wireless interface of a data capture device. USA: US10032382B2, 2018.
3	AC-91-FS-2014-21. Air operator navigation database management. Beijing: Civil Aviation Administration of China, 2014.
4	SONG K ARINC 424 coding analysis and track generating of terminal procedures. Air Traffic Management, 2010, (8): 50- 53.
5	PANG Y, ZHANG W G, LI G W, et al Construction algorithm of horizontal guiding transition path for flight management system. Journal of Civil Aviation University of China, 2014, 32 (3): 6- 10.
6	DING Y H. Flight program design aid based on navigation database. Tianjin: Civil Aviation University of China, 2015. (in Chinese)
7	YANG S Approach on simplified method of navigation database coding for Pudong airport. Journal of Civil Aviation, 2018, 2 (6): 60- 62.
8	DE NOVELLIS V, REALE D, ADINOLFI G M, et al Geodetic model of the March 2021 Thessaly seismic sequence inferred from seismological and InSAR data. Remote Sensing, 2021, 13 (17): 78- 80.
9	KUCHERENKO P A, SOKOLOV S V Analytical solution for a problem on approximation of functional dependences for parameters of a geodesic line. Mechanics of Solids, 2019, 54 (1): 40- 47.
10	Deere & Company. Patent issued for navigation system and method using RTK with data received from a mobile base station. USA : USPTO 9846241-B2, 2018.
11	Doc 8168. Aircraft operations, Volume I − flight procedures , sixth edition. Montreal, Canada: International Civil Aviation Organization, 2018.
12	702A-5. Flight management computer system. USA: Aeronautical Radio, 2018.
13	Doc 9906-AN472. Flight program design quality assurance manual. Montreal: International Civil Aviation Organization, 2009.
14	MAXIM K, LUIS R Flight management system for hydrogen-powered aircraft in cruise. Aerospace Systems, 2021, 4, 201- 208. doi: 10.1007/s42401-021-00097-8
15	GUO H, QI J T, LIU H L, et al Modeling method of double angle quantitative adjustment mechanism based on coordinate transformation. Experimental Technology And Management, 2021, 38 (6): 107- 111.
16	YANG Y C, SUN R M Research on the solving method of nonlinear equations based on Python. Electronic Measurement Technique, 2020, 43 (14): 55- 59.
17	YU Z, WANG Y Y Geodesy ecological perspective of architectural tectonics in green building design. Arabian Journal of Geosciences, 2021, 14 (17): 1685. doi: 10.1007/s12517-021-08142-8
18	CHEN H, WU D, LI H P, et al The formula and improvement for calculating the track of equiangular route. Marine Surveying and Mapping, 2018, 38 (1): 67- 70.
19	YAN F X, NIU Z J, DU S W, et al Development and practice of C/C++ for android application based on Qt. Computer Systems and Applications, 2018, 27 (7): 96- 102.
20	WANG X H, NIE X H, CHANG L, et al Design and development of GUI module for special finite element software based on Qt. Computer Applications and Software, 2020, 37 (1): 21- 26,65.
21	ERDOR T B, SARUL M H, CENGELCI E, et al Integrated process control-power management system design and flight performance tests for fuel cell powered mini-unmanned aerial vehicle. Energy Technology, 2021, 9 (3): 2000879.
22	NGUYEN D D, ROHACS J, ROHACS D et al. Autonomous flight trajectory control system for drones in smart city traffic management. ISPRS International Journal of Geo-Information, 2021, 10 (5): 338.
23	HIRAGUCHI H Novel study on the electron density distribution projection maps calculated via the discrete cosine transform. Journal of Applied Crystallography, 2021, 54, 1198- 1206. doi: 10.1107/S1600576721006580
24	LIU W C, BIAN H W Polar grid isometric route based on polar spherical projection. Journal of Aeronautics, 2019, 48 (1): 18- 23.
25	ZHONG H N, MAO T Y A comprehensive thalamocortical projection map at the mesoscopic level. Nature Neuroscience, 2021, 24 (5): 754. doi: 10.1038/s41593-021-00838-0
26	CHRISTEN O M, MOSCHING Y, MULLER P, et al Dashboard visualization of information for emergency medical services. Studies in Health Technology and Informatics, 2020, 275, 27- 31.
27	The Boeing Company. B787-800 flight crew operation manual. USA: D6-27370-86N-HNA, 2011.

Path type	Path termination way
I = Initial	A = Altitude
T = Track to	C = Distance
C = Course to	D = DME distance
D = Direct to	F = Fix
F = Fix to	I = Intercept
H = Holding	M = Manual
P = Procedure turn	R = Radial
A = Arc	A = Altitude
R = Constant radius arc	C = Distance
V = Heading to	D = DME distance

Type	Termination method	Typical leg	Characteristics
Point	Point termination	IF	IF represents the initial point of the procedure

Type	Termination method	Typical leg	Characteristics
Arc	Point termination	CF	CF represents a non-stop flight along the rhumb line to the waypoint ahead with the course and the waypoint ahead given by the NavDB
		DF	For DF, the track is determined according to the turning direction, the position of the waypoint ahead and the aircraft model data in the NavDB
		RF	For RF, the track is determined according to the three-dimensional positions of the starting fix and the termination fix and the aircraft model data in the NavDB

Type	Termination method	Typical leg	Characteristics
Arc	Intercept termination	VI	VI has no definite termination point and interception of the next leg is realized in a certain heading

Type	Termination method	Typical leg	Characteristics
Segment	Point termination	TF/CF/DF	The termination point location is given by the NavDB
Segment	Altitude termination	CA/FA/VA	The altitude of the termination point is determined but the location is not
