Modular flexible “Tetris” microsatellite platform based on sandwich assembly mode

doi:10.23919/JSEE.2023.000094

Journal of Systems Engineering and Electronics ›› 2023, Vol. 34 ›› Issue (4): 924-938.doi: 10.23919/JSEE.2023.000094

• SYSTEMS ENGINEERING • Previous Articles

Modular flexible “Tetris” microsatellite platform based on sandwich assembly mode

Jun ZHOU¹^,²^,³(), Hao ZHANG¹(), Guanghui LIU¹^,²^,³^,*(), Cheng CHENG¹^,²^,³(), Jiaolong ZHANG¹^,²^,³()

¹ School of Astronautics, Northwestern Polytechnical University, Xi’an 710072, China
² National United Engineering Laboratory of Microsatellite Technology and Application, Xi’an 710072, China
³ Shaanxi Engineering Laboratory for Microsatellites, Northwestern Polytechnical University, Xi’an 710072, China

Received:2021-12-04 Online:2023-08-18 Published:2023-08-28
Contact: Guanghui LIU E-mail:zhoujun@nwpu.edu.cn;aiwuzh2016@163.com;liuguanghui@nwpu.edu.cn;cheng.cheng@nwpu.edu.cn;zhangjiaolong@nwpu.edu.cn
About author:
ZHOU Jun was born in 1966. He received his B.S., M.S., and Ph.D. degrees from Northwestern Polytechnical University in 1988, 1990 and 1993, respectively. Currently, he is a professor at the School of Astronautics, Northwestern Polytechnical University. His research interests include satellite, system engineering, guidance, navigation and control. E-mail: zhoujun@nwpu.edu.cn

ZHANG Hao was born in 1992. He received his B.S. and M.S. degrees from Xi ’an Polytechnic University in 2014 and 2017, respectively. He is currently working toward his Ph.D. degree at the School of Astronautics, Northwestern Polytechnical University. His research interests are satellite engineering, system design and optimization. E-mail: aiwuzh2016@163.com

LIU Guanghui was born in 1983. He received his B.S., M.S., and Ph.D. degrees from Northwestern Polytechnical University in 2006, 2009 and 2012, respectively. Currently, he is an associate researcher at the School of Astronautics, Northwestern Polytechnical University. His research interests include satellite system engineering and experimental design and evaluation. E-mail: liuguanghui@nwpu.edu.cn

CHENG Cheng was born in 1986. He received his B.S. and M.S. degrees from Northwestern Polytechnical University, Xi ’an, China, in 2008 and 2011, and Ph.D. degree from University of Toulouse, France, in 2015. He is currently an assistant professor with the School of Astronautics, Northwestern Polytechnical University. His research interests are statistical signal processing, estimation and detection theory, Bayesian inference and filtering with applications to positioning, tracking and navigation. E-mail: cheng.cheng@nwpu.edu.cn

ZHANG Jiaolong was born in 1988. He received his Ph.D. degree in weapon launch theory and technology from Northwestern Polytechnical University. Currently he is an associate researcher at the School of Astronautics, Northwestern Polytechnical University. His research interests include overall structure of aircraft, electric servo system, and micro-satellites. E-mail: zhangjiaolong@nwpu.edu.cn
Supported by:
This work was supported by the National Natural Science Foundation of China (62103339; 62073261); Shaanxi Natural Science Basic Research Program (2023-JC-YB-569), and the Fundamental Research Funds for the Central Universities

Abstract

Abstract:

In this paper, a flexible modular “Tetris” microsatellite platform is studied to implement the rapid integration and assembly of microsatellites. The proposed microsatellite platform is fulfilled based on a sandwich assembly mode which consists of the isomorphic module structure and the standard mechanical-electric-data-thermal interfaces. The advantages of the sandwich assembly mode include flexible reconfiguration and efficient assembly. The prototype of the sandwich assembly mode is built for verifying the performance and the feasibility of the proposed mechanical-electric-data-thermal interfaces. Finally, an assembly case is accomplished to demonstrate the validity and advantages of the proposed “Tetris” microsatellite platform.

Key words: modular microsatellite design, flexible platform, sandwich assembly mode, isomorphic module structure, standard mechanical-electric-data-thermal interface

Jun ZHOU, Hao ZHANG, Guanghui LIU, Cheng CHENG, Jiaolong ZHANG. Modular flexible “Tetris” microsatellite platform based on sandwich assembly mode[J]. Journal of Systems Engineering and Electronics, 2023, 34(4): 924-938.

Figures/Tables 31

Fig 1

Fig 2

Table 1

Fig 3

Fig 4

Fig 5

Table 2

Fig 6

Fig 7

Fig 8

Fig 9

Table 3

Fig 10

Table 4

Fig 11

Table 5

Fig 12

Table 6

Fig 13

Fig 14

Fig 15

Fig 16

Table 7

Fig 17

Fig 18

Fig 19

Fig 20

Fig 21

Fig 22

Fig 23

Table 8

References 29

1	MARIA A V, NICOLE V, SABRINA C, et al Interplanetary CubeSats system for space weather evaluations and technology demonstration. Acta Astronautica, 2014, 104 (2): 516- 525. doi: 10.1016/j.actaastro.2014.06.005
2	ADDAIM A, KHERRAS A, ZANTOU E B DSP implementation of integrated store-and-forward APRS payload and OBDH subsystems for low-cost small satellite. Aerospace Science and Technology, 2008, 12 (4): 308- 317. doi: 10.1016/j.ast.2007.08.002
3	GAUDENZI P, ATEK S, CARDINI V, et al Revisiting the configuration of small satellites structures in the framework of 3D additive manufacturing. Acta Astronautica, 2018, 146, 249- 258. doi: 10.1016/j.actaastro.2018.01.036
4	KOPACZ J R, HERSCHITZ R, RONEY J Small satellites an overview and assessment. Acta Astronautica, 2020, 170, 93- 105. doi: 10.1016/j.actaastro.2020.01.034
5	WU S F, ZHAO T C, GAO Y, et al Design and implementation of a cube satellite mission for antarctic glacier and sea ice observation. Acta Astronautica, 2017, 139, 313- 320. doi: 10.1016/j.actaastro.2017.07.023
6	YU X Z, ZHOU J, ZHU P J, et al Star of AOXiang: an innovative 12U CubeSat to demonstrate polarized light navigation and microgravity measurement. Acta Astronautica, 2018, 147, 97- 106. doi: 10.1016/j.actaastro.2018.03.014
7	PALLICHADATH V, TURMAINE L, MELAIKA A, et al In-orbit micro-propulsion demonstrator for pico-satellite applications. Acta Astronautica, 2019, 165, 414- 423. doi: 10.1016/j.actaastro.2019.09.004
8	HUANG P F, WANG M, MENG Z J, et al Attitude takeover control for post-capture of target spacecraft using space robot. Aerospace Science and Technology, 2016, 51, 171- 180. doi: 10.1016/j.ast.2016.02.006
9	NIETO P C, EMAMI M R CubeSat mission: from design to operation. Applied Science, 2019, 9 (15): 3110. doi: 10.3390/app9153110
10	ESHAQ M, IBRAHIM A M, EISAAL S, et al. Information processing and digital communications in a modular satellite. Proc. of the 4th International Conference on Signal Processing and Information Security, 2021: 72−75.
11	CAO X B Flexible platform based micro-satellite design method. Aerospace Science and Technology, 2016, 53, 162- 168. doi: 10.1016/j.ast.2016.03.012
12	SYED M A, MUHAMMAD S B. Modular & COTS based power system for small LEO satellite. Proc. of the International Conference on Aerospace Science & Engineering, 2013: 1−3.
13	SONG Q L, YE D, SUN Z W, et al Autonomous reconfiguration of homogeneous pivoting cube modular satellite by deep reinforcement learning. Proc. of the Institution of Mechanical Engineers. Part I: Journal of Systems and Control Engineering, 2021, 235 (10): 1777- 1786.
14	OSTERLOH T, DAHMEN U, ROBMANN J. Full lifecycle support for modular satellite systems provided by comprehensive virtual testbeds. Proc. of the International Symposium on Artificial Intelligence, Robotics and Automation in Space, 2018: 1−8.
15	RIZWAN M M, ANWAR A, LEONARDO M R Plug-and-play design approach to smart harness for modular small satellites. Acta Astronautica, 2014, 94 (2): 754- 764. doi: 10.1016/j.actaastro.2013.09.015
16	OSTERLOH T, ROSSMANN J. A rigid body dynamics simulation framework for the analysis of attitude control systems of modular satellite systems. Proc. of the IEEE International Systems Conference, 2019: 1−8.
17	HUANG P F, CHANG H T, LU Z Y, et al Key techniques of on-orbit service-oriented reconfigurable cellularized satellite and its prospects. Journal of Astronautics, 2016, 36 (1): 1- 10.
18	MCDERMOTT S. Aeroastro ’s smart-bus: a low-cost modular approach enabling responsive space missions. Proc. of the AIAA 3rd Responsive Space Conference, 2005: 20–26.
19	NAKASUKA S, SAHARA H, SUGAWARA Y, et al. A novel satellite concept “Panel Extension Satellite (PETSAT)” consisting of plug-in, modular, functional panels. Proc. of the 21st Annual AIAA/USU Conference on Small Satellites, 2007. https://digitalcommons.usu.edu/smallsat/2007/all2007/37/.
20	YOSHIKI S, HIRONORI S, SHINICHI N, et al A satellite for demonstration of panel extension satellite (PETSAT). Acta Astronautica, 2008, 63 (1/4): 228- 237.
21	SHINICHI N, YOSHIKI S, HIRONORI S, et al. System design and control aspect of a novel satellite concept “panel extension satellite (PETSAT). Proc. of the 17th IFAC World Congress, 2008: 6−11.
22	YOSHIKI S, SHINICHI N, KENJI H, et al Structure and thermal control of panel extension satellite (PETSAT). Acta Astronautica, 2009, 65 (7/8): 958- 966.
23	JAMES L, KYLE Z, EVA B, et al. SPARC-1: a joint US/Sweden multi-mission modular nanosatellite platform. Proc. of the IEEE Aerospace Conference, 2016: 1−16.
24	KORTMANN M, SCHERVAN T, SCHMIDT H, et al. Building block–based “iBOSS” approach: fully modular systems with standard interface to enhance future satellites. Proc. of the 66th International Astronautical Congress, 2015: 1−11.
25	JANSEN F, BRANDT T, DAFNIS A, et al. INPPS flagship with iBOSS building blocks. Proc. of the International Astronautical Congress, 2019. https://elib.dlr.de/134395/.
26	KORTMANN M, MEINERT T, SCHRODER K, et al. Design and qualification of a multifunctional interface for modular satellite systems. Proc. of the 69th International Astronautical Congress, 2018: 1−5.
27	SCHERVANA T A, KREISELB J, SCHROEDERC D, et al. New horizons for exploration via flexible concepts based on building blocks using the standardized ISSI (intelligent space system interface) modular coupling kit by iBOSS. Proc. of the Global Space Exploration Conference, 2021: 14−18.
28	BARNHART D, SULLIVAN B, HUNTER R, et al. Phoenix program status - 2013. Proc. of the AIAA SPACE Conference and Exposition, 2013: 5341.
29	SULLIVAN B, BARNHART D, HILL L, et al. DARPA Phoenix payload orbital delivery system (PODs): “FedEx to GEO”. Proc. of the AIAA SPACE Conference and Exposition, 2013: 5484.

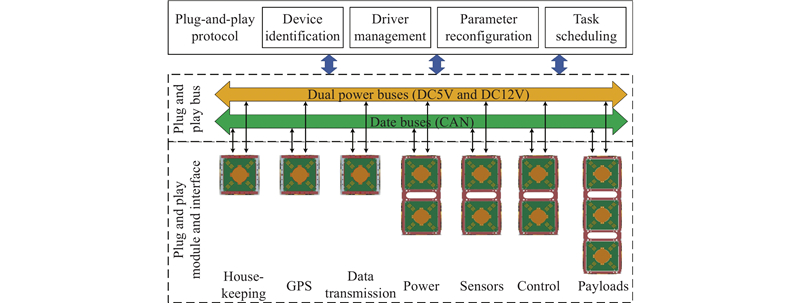

Type	Dimension	Function	Display
General module	1U module (100 mm×100 mm×113.5 mm)	House-keeping
		GPS
		Data transmission
	2U module (100 mm×100 mm×227 mm)	Power
		Sensor
		Control
	3U module (100 mm×100 mm×340.5 mm)	Payload
Transfer module	Sandwich structure (100 mm×100 mm×15.1 mm)	Connection
Special module	Solar panel (89 mm×98 mm×1.5 mm)	Power supply

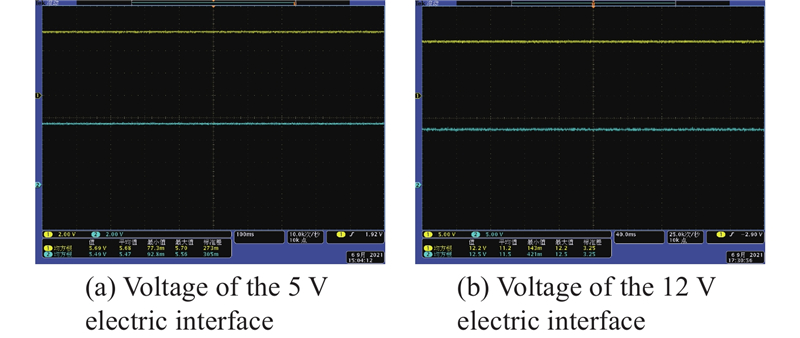

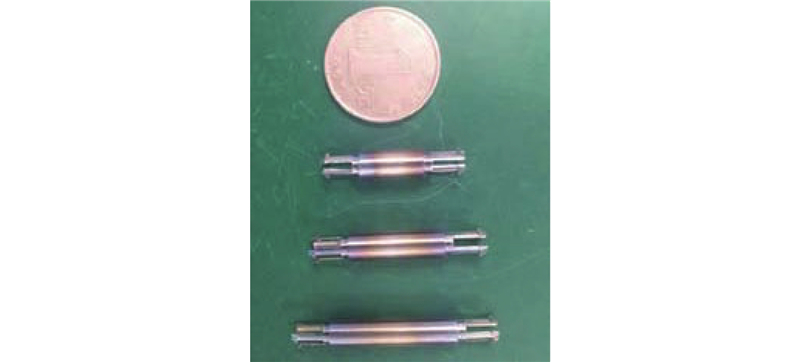

Interface	Quantity	Current of each group interface/A	Power of each group interface/W	Maximum power/W
5 V	4	3	15	60
12 V	4	3	36	144

Type	Material	Shape	Diameter/mm	Thickness/mm	Thermal conductivity/ (W/(m·K))	Specific heat capacity/ (J/(kg·K))
Female contact sheet	Copper	Round sheet with flange	40	1.4	401	385
Male contact block	Brass	Hollowed-out cylinder	45	13	110	380

Interface to be tested	Experimental basis	Experimental device
Mechanical interface	Tensile strength	Tension tester with a range of 0−500 ${\text{kg}}$ and an accuracy of 1%
Mechanical interface	Tensile strength	A testing computer
Electric interface	Ohm’s law and power principle	An ohmmeter with a measurement range of 0−200 ${\text{m\Omega }}$ and an accuracy of ±0.05% of the reading
		Dual-channel digital power with 0−30 ${\text{V}}$ DC voltage and 0−3.5 ${\text{A}}$ current
		A 4-channel oscilloscope with a sampling rate of 1 GS/s
		A 10 ${\text{\Omega }}$ (150 ${\text{W}}$ ) sliding resistor
Data interface	Signal attenuation and distortion	A signal generator
Data interface	Signal attenuation and distortion	A 4-channel oscilloscope with a sampling rate of 1 GS/s
Thermal interface	Fourier’s law and Joule’s law	A film heater
		A dual-channel digital power that can provide two 12 ${\text{V}}$ voltages
		The temperature sensor (PT100)
		A 4-channel temperature transmitter
		A thermostat
		A testing computer

Mechanical interface	Tension force/N
1	999.89
2	1000.35
3	1000.06
4	1000.13
5	999.86
Average value	1000.06

Modular flexible “Tetris” microsatellite platform based on sandwich assembly mode

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

Share this article

Figures/Tables 31

References 29

Related Articles 0

Recommended Articles

Metrics

Comments

Interface	Cable resistance	Total resistance	Interface resistance
1	6.99	16.74	9.75
2	7.61	18.16	10.55
3	6.93	17.40	10.47
4	6.61	17.30	10.69
5	6.65	16.86	10.21
6	6.99	17.25	10.26
7	7.08	18.30	11.22
8	7.11	17.34	10.23

Frequency	Signal of the signal generator		Signal of data interface		Comparison
Frequency	Amplitude/V	Duty ratio/%	Amplitude/V	Duty ratio/%	Amplitude attenuation/V	Phase delay
200 kHz	10.8	50	9.6	50	1.2	0
500 kHz	11.0	50	9.8	50	1.2	0
1 MHz	10.8	50	9.8	50	1.0	0
2 MHz	10.4	50	9.2	50	1.2	0

Modular satellite	Module structure	Dimension that supports assemble	Specification and shape of the microsatellite
PETSAT [21-23]	Panel	1	−
SPARC-X [24]	Cube	2	Limited
iBOSS [25,26]	Cube	3	Any specifications and shapes
Tetris	Cube	3	Any specifications and shapes
