Fast measurement and prediction method for electromagnetic susceptibility of receiver

doi:10.23919/JSEE.2023.000127

Journal of Systems Engineering and Electronics ›› 2024, Vol. 35 ›› Issue (2): 275-285.doi: 10.23919/JSEE.2023.000127

• ELECTRONICS TECHNOLOGY • Previous Articles

Fast measurement and prediction method for electromagnetic susceptibility of receiver

Yan CHEN¹^,²(), Zhonghao LU¹^,*(), Yunxia LIU²()

¹ State Key Laboratory of Complex Electromagnetic Environment Effects on Electronics and Information System, College of Electronic Science and Technology, National University of Defense Technology, Changsha 410073, China
² State Key Laboratory of Astronautic Dynamics, Xi’an 710043, China

Received:2021-07-30 Accepted:2023-08-01 Online:2024-04-18 Published:2024-04-18
Contact: Zhonghao LU E-mail:chenyancy@nudt.edu.cn;luzhonghao@nudt.edu.cn;lyxhello1209@126.com
About author:
CHEN Yan was born in 1991. She received her B.S. degree in electronic information science and technology from the University of Electronic Science and Technology of China in 2015 and M.S. degree in electronic science and technology from the National University of Defense Technology (NUDT) in 2017. After that, she has been working as an aerospace engineer in the State Key Laboratory of Astronautic Dynamics, Xi’an, China. She is pursuing her Ph.D. degree in the State Key Laboratory of Complex Electromagnetic Environment Effects on Electronics and Information System, NUDT, Changsha, China. Her research interests include complex detection equipment management, assessment, and resource scheduling. E-mail: chenyancy@nudt.edu.cn

LU Zhonghao was born in 1983. He received his M.S. and Ph.D. degrees in electronic science and technology from National University of Defense Technology (NUDT), Changsha, China, in 2008 and 2013, respectively. He is an associate professor with NUDT. His current research interests include microwave devices design, antenna design, and electromagnetic compatibility testing. E-mail: luzhonghao@nudt.edu.cn

LIU Yunxia was born in 1978. She received her B.S. and M.S. degrees in control theory and control engineering from Harbin Engineering University in 2003 and 2006, respectively. She worked as a design engineer in Jinan Worldwide Auto-Accessory Limited from 2006 to 2011. After that, she worked as an electrical design senior engineer in China National Petroleum Corporation Jichai Power Company Limited from 2011 to 2019. She is currently an aerospace engineer in State Key Laboratory of Astronautic Dynamics, Xi’an, China. Her research interests include radar performance evaluation and resource scheduling. E-mail: lyxhello1209@126.com
Supported by:
This work was supported by the National Natural Science Foundation of China (62071473).

Abstract

Abstract:

Aiming at evaluating and predicting rapidly and accurately a high sensitivity receiver’s adaptability in complex electromagnetic environments, a novel testing and prediction method based on dual-channel multi-frequency is proposed to improve the traditional two-tone test. Firstly, two signal generators are used to generate signals at the radio frequency (RF) by frequency scanning, and then a rapid measurement at the intermediate frequency (IF) output port is carried out to obtain a huge amount of sample data for the subsequent analysis. Secondly, the IF output response data are modeled and analyzed to construct the linear and nonlinear response constraint equations in the frequency domain and prediction models in the power domain, which provide the theoretical criteria for interpreting and predicting electromagnetic susceptibility (EMS) of the receiver. An experiment performed on a radar receiver confirms the reliability of the method proposed in this paper. It shows that the interference of each harmonic frequency and each order to the receiver can be identified and predicted with the sensitivity model. Based on this, fast and comprehensive evaluation and prediction of the receiver’s EMS in complex environment can be efficiently realized.

Key words: electromagnetic susceptibility (EMS), receiver, dual-channel multi-frequency, nonlinear response, frequency domain, power domain

Yan CHEN, Zhonghao LU, Yunxia LIU. Fast measurement and prediction method for electromagnetic susceptibility of receiver[J]. Journal of Systems Engineering and Electronics, 2024, 35(2): 275-285.

Figures/Tables 15

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Table 1

Fig 6

Fig 7

Table 2

Fig 8

Fig 9

Fig 10

Table 3

Fig 11

Fig 12

References 31

1	MORDACHEV V, SINKEVICH E, TSYANENKA D, et al. EMC diagnostics of complex ship radioelectronic systems by the use of analytical and numerical worst-case models for spurious EM couplings. Proc. of the International Symposium on Electromagnetic Compatibility, 2019: 214−219.
2	ZHANG Q L, WANG Y M, CHENG E W, et al Investigation on in-band interference effect and out-of-band interference mechanism of B1I navigation receiver. Radioengineering, 2021, 30 (3): 584- 592. doi: 10.13164/re.2021.0584
3	HU Q, CAO J Y, GAO G M Y, et al Study of an evaluation model for AIS receiver sensitivity measurements. IEEE Trans. on Instrumentation & Measurement, 2020, 69 (4): 1118- 1126.
4	CHEN Z. Nonlinearity study of receiver in complex electromagnetic environment. Chengdu: University of Electronic Science and Technology of China, 2011. (in Chinese)
5	YIN W J, WEN T Study on EMI analysis and inhibitory techniques for switching converter devices. Progress in Electromagnetics Research Letters, 2019, 85, 59- 64.
6	PECCARELLI N, PECK Z, GARRY J L. Analysis and mitigation of receiver induced nonlinearities on Pulse-Doppler radars. Proc. of the IEEE International Radar Conference, 2020: 333−338.
7	SINKEVICH E. Worst case model for fast analysis of intermodulation interference in radio receiver. Proc. of the International Symposium on Electromagnetic Compatibility, 2020. DOI: 10.1109/EMCEUROPE48519.2020.9245732.
8	MARDIGUIAN M. Combined effects of several simultaneous EMI couplings. Proc. of the IEEE International Symposium on Electromagnetic Compatibility, 2000: 21–25.
9	DUFFY A, ORLANDI A, ARMSTRONG K. Preliminary study of a reverberation chamber method for multiple-source testing using intermodulation. IET Science, Measurement & Technology. 2010, 4(1): 21–27.
10	ZANG H. Research on in-band EMC test method of RF receiver. Proc. of the IEEE 6th International Symposium on Electromagnetic Compatibility, 2019. DOI: 10.1109/ISEMC48616.2019.8986144.
11	LAND OP'T, SJOERD T, RAMDANI M, et al Simple, Taylor-based worst-case model for field-to-line coupling. Progress in Electromagnetics Research, 2013, 140, 297- 311.
12	DUFF W G. Electromagnetic compatibility in telecommunications. Gainesville: Interference Control Technokogies, Inc., 1988.
13	HUNTER J, XIA S, HARMON A, et al. Modeling and statistical characterization of electromagnetic coupling to electronic devices. Proc. of the United States National Committee of URSI National Radio Science Meeting, 2021: 14−15.
14	CAI S X, LI Y Y, ZHU H, et al A novel electromagnetic compatibility evaluation method for receivers working under pulsed signal interference environment. Applied Sciences, 2021, 11, 9454. doi: 10.3390/app11209454
15	SINKEVICH E, MORDACHEV V, GALENKA A, et al. Fast EMC diagnostics of complex on-board radio systems with use of experimentally refined worst-case and conditionally worst-case models of “transmitter-to-receiver” interactions. Proc. of the IEEE International Joint EMC/SI/PI and EMC Europe Symposium, 2021: 208−213.
16	SVISTUNOU A, MORDACHEV V, SINKEVICH E, et al. Analysis of EMC between medical short-range devices and equipment of wireless systems. Proc. of the IEEE International Joint EMC/SI/PI and EMC Europe Symposium, 2021: 214−219.
17	HEITER G L Characterization of nonlinearities in microwave devices and systems. IEEE Trans. on Microwave Theory and Techniques, 1973, 21 (12): 797- 805. doi: 10.1109/TMTT.1973.1128134
18	XU J, WU J H Automatic measurement of mixer intermodulation characteristics. Chinese Journal of Electron Devices, 2008, 31 (2): 698- 701.
19	ZHANG L H, YIN Y D Fast automatic intermodulation measurement system for radio-frequency circuits. Instrument Technique and Sensor, 2014, (4): 56- 59.
20	WEI J Y The non-linear distortion in radar receiver. Modern Radar, 1998, 20 (1): 94- 104.
21	HANDEL P, ZETTERBERG P Receiver I/Q imbalance: tone test, sensitivity analysis, and the universal software radio peripheral. IEEE Trans. on Instrumentation and Measurement, 2010, 59 (3): 704- 714. doi: 10.1109/TIM.2009.2025989
22	SINKEVICH E. Extraction of frequency response of receiver input filter from characteristic of receiver susceptibility to third-order intermodulation. Proc. of the International Symposium on Electromagnetic Compatibility, 2017. DOI: 10.1109/EMCEUROPE.2017.8094692.
23	TAN H, HUANG M L. Numerical simulation of the nonlinear response of receiver mixer. Proc. of the International Applied Computational Electromagnetics Society Symposium, 2017: 1−3.
24	WU W, TAN H. Behavioral modeling and simulation of electromagnetic interference response for radio frequency receiver. Proc. of the IEEE 6th International Symposium on Microwave, Antenna, Propagation, and EMC Technologies, 2015: 405−408.
25	XING K, XUE M L, WANG Y W, et al Application of wireless receiver’s EMC fast testing technique in complicated electromagnetic environment. Journal of Astronautic Metrology and Measurement, 2015, 35 (5): 21- 26.
26	MORDACHEV V I. Automated double frequency test system. Proc. of the International Conference on Electromagnetic Interference and Compatibility '99, 1997: 99−104.
27	MORDACHEV V, SINKEVICH E, PETRACHKOV D. Representation and analysis of radio receivers’ susceptibility and nonlinearity by the use of 3D double-frequency characteristics. Proc. of the International Symposium on Electromagnetic Compatibility, 2014: 689−692.
28	MORDACHEV V I Automated double-frequency testing technique for mapping receive interference responses. IEEE Trans. on Electromagnetic Compatibility, 2000, 42 (2): 213- 225. doi: 10.1109/15.852415
29	MA Y L, YAMAO Y. Blind nonlinear compensation technique for RF receiver front-end. Proc. of the European Microwave Integrated Circuit Conference, 2013: 556−559.
30	MA C. Research on double-multiple frequency testing technology and application. Changsha: National University of Defense Technology, 2013. (in Chinese)
31	MAOULOUD A, KLINGLER MBESNIER P. A test bench for measuring the sensitivity threshold of FM receivers in the presence of interference through direct injection of the radio signal. Proc. of the International Symposium on Electromagnetic Compatibility, 2020. DOI: 10.1109/EMCEUROPE48519.2020.9245696.

Parameter	Value
Input frequency/MHz	2300−2400
Input power/dBm	[−90, −60]
IF output frequency/MHz	45±15
The first IF/MHz	2180
The second IF/MHz	175
Output power/dBm	[−30, −0]
Spur rejection for IF output/dB	> 60
Local suppression/dB	> 60

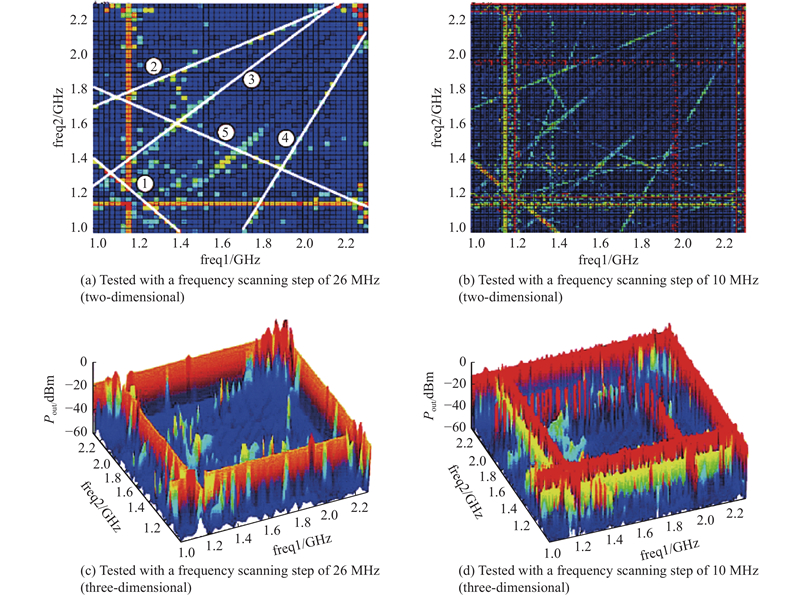

Line	k₁	k₂	L	k_g1	k_g2	f_int/MHz	Constraint equation
①	1	1	2	1	3	49	freq2=−1×freq1+2416
②	2	−1	3	0	3	59	freq2=0.5×freq1+1215
③	−1	1	2	0	1	33	freq2=1×freq1+208
④	1	1	2	3	1	49	freq2=2×freq1−2430
⑤	−2	3	5	0	3	59	freq2=−0. 5×freq1+2332

Line	k₁	k₂	L	k_g1	k_g2	f_int/MHz	Constraint equation
①	−3	3	6	0	1	55	freq2=2×freq1−2350
②	−2	3	5	1	1	45	freq2=freq1
③	0	1	1	1	3	47	freq2=0.5×freq1+1285
④	−3	3	6	0	1	35	freq2=−freq1+4720
