Low-complexity signal detection for massive MIMO systems via trace iterative method

doi:10.23919/JSEE.2024.000061

Journal of Systems Engineering and Electronics ›› 2024, Vol. 35 ›› Issue (3): 549-557.doi: 10.23919/JSEE.2024.000061

• HIGH-DIMENSIONAL SIGNAL PROCESSING • Previous Articles

Low-complexity signal detection for massive MIMO systems via trace iterative method

A. Khoso IMRAN¹^,²(), Xiaofei ZHANG¹^,*(), Hayee Shaikh ABDUL¹(), A. Khoso IHSAN³(), Ahmed Dayo ZAHEER⁴()

¹ College of Electronic and Information Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
² School of Electrical Engineering, Korea University, Seoul 02841, Korea
³ School of Mathematics, South China University of Technology, Guangzhou 510641, China
⁴ Department of Computer Science, Huanggang Normal University, Huanggang 438000, China

Received:2022-09-15 Online:2024-06-18 Published:2024-06-19
Contact: Xiaofei ZHANG E-mail:imrankhoso2@gmail.com;zhangxiaofei@nuaa.edu.cn;shaikhhayee@yahoo.com;ihsankhoso@gmail.com;hjxnd88@126.com
About author:
IMRAN A. Khoso was born in 1991. He received his M.S. degree in information and communication engineering from the University of Science and Technology Beijing, China, and Ph.D. degree in communication and information systems from Nanjing University of Aeronautics and Astronautics, Nanjing, China in 2019. He is currently with the School of Electrical Engineering, Korea University, Seoul, Korea. His research interests include random matrix theory, signal processing, and wireless communications. E-mail: imrankhoso2@gmail.com

ZHANG Xiaofei was born in 1977. He received his M.S degree from Wuhan University, Wuhan, China, in 2001, and Ph.D. degree in communication and information systems from Nanjing University of Aeronautics and Astronautics in 2005. He is a full professor with the Electronic Engineering Department, Nanjing University of Aeronautics and Astronautics, Nanjing, China. His research interest include array signal processing and communication signal processing. E-mail: zhangxiaofei@nuaa.edu.cn

ABDUL Hayee Shaikh was born in 1989. He received his M.E. degree in computer and information Engineering from Mehran University in 2016. He is currently working toward his Ph.D. degree in communication and information systems at Nanjing University of Aeronautics and Astronautics. His research interests include array signal processing and wireless communications technology. E-mail: shaikhhayee@yahoo.com

IHSAN A. Khoso was born in 1990. He received his B.S. degree in mathematics, the Institute of Mathematics and Computer Science, the University of Sindh, Sindh, Pakistan, in 2012, and M.S. degree in mathematics with the South China University of Technology, Guangzhou, China in 2016. His research interests include nonlinear partial differential equations and random matrix theory. E-mail: ihsankhoso@gmail.com

ZAHEER Ahmed Dayo was born in 1989. He received his M.E. degree in telecommunication engineering and management from the Mehran University of Engineering and Technology, Jamshoro, Pakistan, in 2014, and Ph.D. degree in communication and information systems from Nanjing University of Aeronautics and Astronautics, Nanjing, China, in 2021. He is currently an associate professor with the Department of Computer Science, Huanggang Normal University, Hubei, China. His research interests include multiple-input multiple-output techniques, designing and manufacturing of compact, broadband, high-gain antennas, array topology and optimization schemes, active and passive frequency selective surfaces, multi-band and slot antennas, and reconfigurable and meta-material inspired antennas. E-mail: hjxnd88@126.com
Supported by:
This work was supported by National Natural Science Foundation of China (62371225;62371227).

Abstract

Abstract:

Linear minimum mean square error (MMSE) detection has been shown to achieve near-optimal performance for massive multiple-input multiple-output (MIMO) systems but inevitably involves complicated matrix inversion, which entails high complexity. To avoid the exact matrix inversion, a considerable number of implicit and explicit approximate matrix inversion based detection methods is proposed. By combining the advantages of both the explicit and the implicit matrix inversion, this paper introduces a new low-complexity signal detection algorithm. Firstly, the relationship between implicit and explicit techniques is analyzed. Then, an enhanced Newton iteration method is introduced to realize an approximate MMSE detection for massive MIMO uplink systems. The proposed improved Newton iteration significantly reduces the complexity of conventional Newton iteration. However, its complexity is still high for higher iterations. Thus, it is applied only for first two iterations. For subsequent iterations, we propose a novel trace iterative method (TIM) based low-complexity algorithm, which has significantly lower complexity than higher Newton iterations. Convergence guarantees of the proposed detector are also provided. Numerical simulations verify that the proposed detector exhibits significant performance enhancement over recently reported iterative detectors and achieves close-to-MMSE performance while retaining the low-complexity advantage for systems with hundreds of antennas.

Key words: signal detection, low-complexity, linear minimum mean square error (MMSE), massive multiple-input multiple-output (MIMO), trace iterative method (TIM)

A. Khoso IMRAN, Xiaofei ZHANG, Hayee Shaikh ABDUL, A. Khoso IHSAN, Ahmed Dayo ZAHEER. Low-complexity signal detection for massive MIMO systems via trace iterative method[J]. Journal of Systems Engineering and Electronics, 2024, 35(3): 549-557.

Figures/Tables 7

Table 1

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

References 24

1	NGO H Q, LARSSON E G, MARZETTA T L Energy and spectral efficiency of very large multiuser MIMO systems. IEEE Trans. on Communications, 2013, 61 (4): 1436- 1449.
2	SONG W, WANG W Z Compressive sensing based multiuser detector for massive MBM MIMO uplink. Journal of Systems Engineering and Electronics, 2020, 31 (1): 19- 27.
3	LI Y M, DU L P, CHEN Y Y A pilot allocation method for multi-cell multi-user massive MIMO system. Journal of Systems Engineering and Electronics, 2021, 32 (2): 399- 407. doi: 10.23919/JSEE.2021.000033
4	ZHANG X F, XU L Y, XU L, et al Direction of departure (DOD) and direction of arrival (DOA) estimation in MIMO radar with reduced-dimension MUSIC. IEEE Communications Letters, 2010, 14 (12): 1161- 1163. doi: 10.1109/LCOMM.2010.102610.101581
5	ZHANG X F, XU D Angle estimation in bi static MIMO radar using improved reduced dimension Capon algorithm. Journal of Systems Engineering and Electronics, 2013, 24 (1): 84- 89. doi: 10.1109/JSEE.2013.00011
6	RUSEK F, PERSSON D, LAU B K, et al Scaling up MIMO: opportunities and challenges with very large arrays. IEEE Signal Processing Magazine, 2013, 30 (1): 40- 60. doi: 10.1109/MSP.2011.2178495
7	WU M, YIN B, WANG G H, et al Large-scale MIMO detection for 3GPP LTE: algorithms and FPGA implementations. IEEE Journal of Selected Topics in Signal Processing, 2014, 8 (5): 916- 929. doi: 10.1109/JSTSP.2014.2313021
8	TANG C, LIU C, YUAN L C, et al High precision low complexity matrix inversion based on Newton iteration for data detection in the massive MIMO. IEEE Communications Letters, 2016, 20 (3): 490- 493. doi: 10.1109/LCOMM.2015.2514281
9	JIN F L, LIU Q F, LIU H, et al A low complexity signal detection scheme based on improved Newton iteration for massive MIMO Systems. IEEE Communications Letters, 2019, 23 (4): 748- 751. doi: 10.1109/LCOMM.2019.2897798
10	KHOSO I A, ZHANG X, DAI X, et al. Joint steepest descent and non-stationary Richardson method for low-complexity detection in massive MIMO systems. Transactions on Emerging Telecommunications Technologies, 2022, 56(9): 467−469.
11	KHOSO I A, ZHANG X F, SHAIKH A H Low-complexity signal detection for large-scale MIMO systems with second-order Richardson method. Electronics Letters, 2020, 56 (9): 467- 469. doi: 10.1049/el.2020.0208
12	PENG G Q, LIU L B, ZHANG P, et al Low-computing-load, high-parallelism detection method based on Chebyshev iteration for massive MIMO systems with VLSI architecture. IEEE Trans. on Signal Processing, 2017, 65 (14): 3775- 3788. doi: 10.1109/TSP.2017.2698410
13	LIU L B, PENG G Q, WANG P, et al Energy- and area-efficient recursive-conjugate-gradient based MMSE detector for massive MIMO systems. IEEE Trans. on Signal Processing, 2020, 68, 573- 588. doi: 10.1109/TSP.2020.2964234
14	MANDLOI M, BHATIA V Low-complexity near-optimal iterative sequential detection for uplink massive MIMO systems. IEEE Communications Letters, 2017, 21 (3): 568- 571. doi: 10.1109/LCOMM.2016.2637366
15	DAI L L, GAO X Y, SU X, et al Low-complexity soft-output signal detection based on Gauss-Seidel method for uplink multiuser large-scale MIMO systems. IEEE Trans. on Vehicular Technology, 2015, 64 (10): 4839- 4845. doi: 10.1109/TVT.2014.2370106
16	DAI X M, YAN T T, DONG Y Y, et al Low-complexity joint weighted neumann series and Gauss–Seidel soft-output detection for massive MIMO systems. Wireless Personal Communications, 2021, 120, 2801- 2811. doi: 10.1007/s11277-021-08557-2
17	YU A L, JING S S, TAN X S, et al Efficient successive over relaxation detectors for massive MIMO. IEEE Trans. on Circuits and Systems I: Regular Papers, 2020, 67 (6): 2128- 2139. doi: 10.1109/TCSI.2020.2966318
18	GESBERT D, SHAFI M, SHIU D, et al From theory to practice: an overview of MIMO space-time coded wireless systems. IEEE Journal of Selected Areas in Communications, 2003, 21 (3): 281- 302. doi: 10.1109/JSAC.2003.809458
19	ZHANG M X, KIM S Evaluation of MMSE-based iterative soft detection schemes for coded massive MIMO system. IEEE Access, 2018, 7, 10166- 10175.
20	CHARLES H. Numerical computation of internal and external flows: the fundamentals of computational fluid dynamics. Oxford: Elsevier, 2007.
21	KHOSO I A, JAVED T B, TU S S, et al. A fast-convergent detector based on joint Jacobi and Richardson method for uplink massive MIMO systems. Proc. of the 28th wireless and Optical Communications Conference, 2019: 1-5.
22	SAAD Y. Iterative methods for sparse linear systems. Siam: Society for Industrial and Applied Mathematics, 2003.
23	ALBREEM M A, ALSHARIF M H, KIM S, et al A low complexity near-optimal iterative linear detector for massive MIMO in realistic radio channels of 5G communication systems. Entropy, 2020, 22 (4): 388. doi: 10.3390/e22040388
24	SHARIFFAR F SHEIKHANI A H R, NAJAFI H S An efficient Shebyshev semi-iterative method for the solution of large systems. University Politehnica of Bucharest Scientific Bulletion-Series A, 2018, 80 (4): 239- 252.

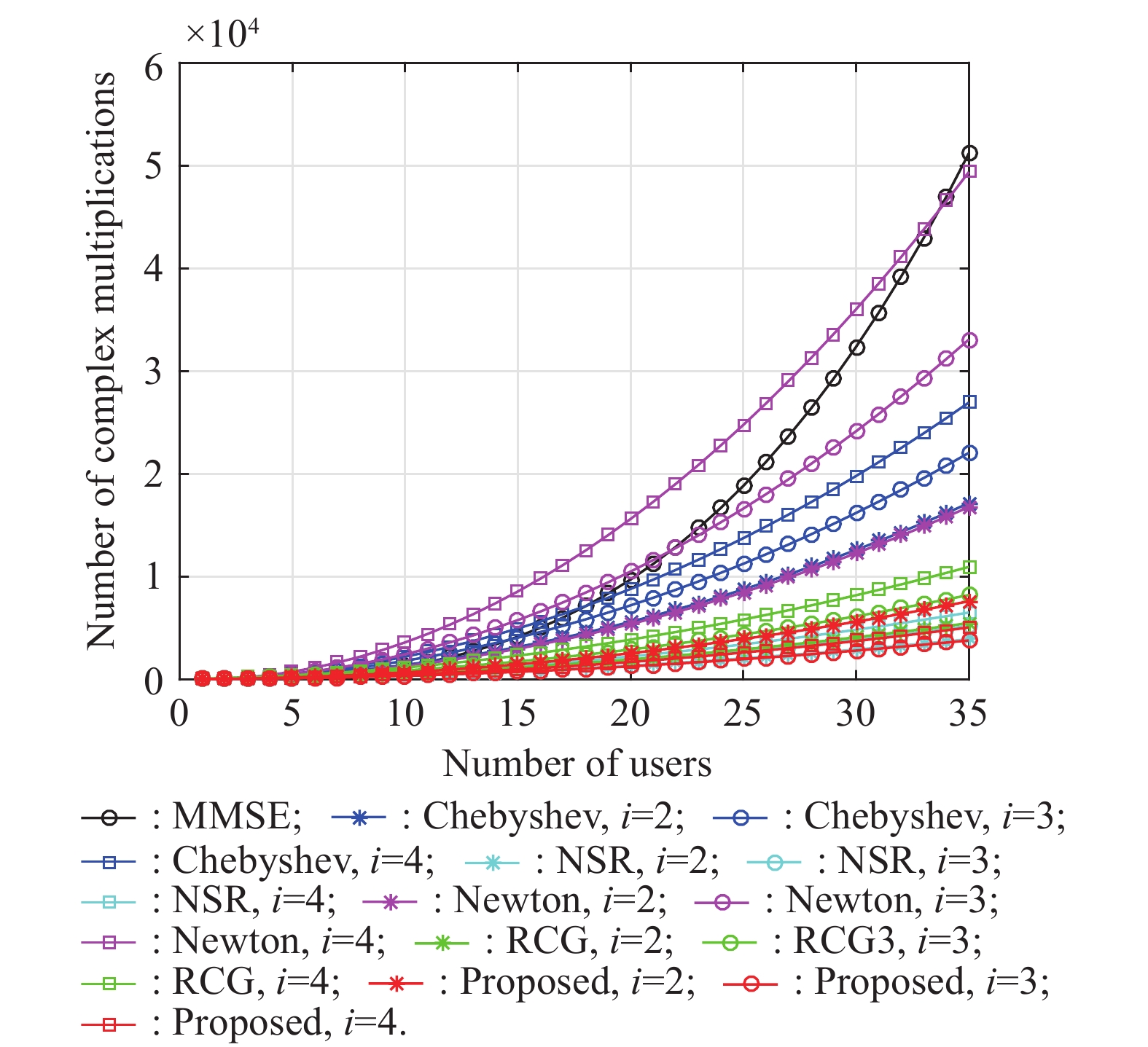

Step	Complexity
Initialization matrix	$ U+7 $
Improved Newton ($ i=2 $)	$ {2U}^{2}+2U $
Improved Newton ($ i=3 $)	$ {6U}^{2}+7U $
TIM iteration	$ {U}^{2}+U+1 $
