Vision-aided inertial navigation for low altitude aircraft with a downward-viewing camera

doi:10.23919/JSEE.2025.000067

Abstract

Abstract:

Visual inertial odometry (VIO) problems have been extensively investigated in recent years. Existing VIO methods usually consider the localization or navigation issues of robots or autonomous vehicles in relatively small areas. This paper considers the problem of vision-aided inertial navigation (VIN) for aircrafts equipped with a strapdown inertial navigation system (SINS) and a downward-viewing camera. This is different from the traditional VIO problems in a larger working area with more precise inertial sensors. The goal is to utilize visual information to aid SINS to improve the navigation performance. In the multi-state constraint Kalman filter (MSCKF) framework, we introduce an anchor frame to construct necessary models and derive corresponding Jacobians to implement a VIN filter to directly update the position in the Earth-centered Earth-fixed (ECEF) frame and the velocity and attitude in the local level frame by feature measurements. Due to its filtering-based property, the proposed method is naturally low computational demanding and is suitable for applications with high real-time requirements. Simulation and real-world data experiments demonstrate that the proposed method can considerably improve the navigation performance relative to the SINS.

Key words: visual inertial odometry (VIO), strapdown inertial navigation system (SINS), multi-state constraint Kalman filter (MSCKF)

Ruihu ZHOU, Mengqi TONG, Yongxin GAO. Vision-aided inertial navigation for low altitude aircraft with a downward-viewing camera[J]. Journal of Systems Engineering and Electronics, 2025, 36(3): 825-834.

Figures/Tables 11

Table 1

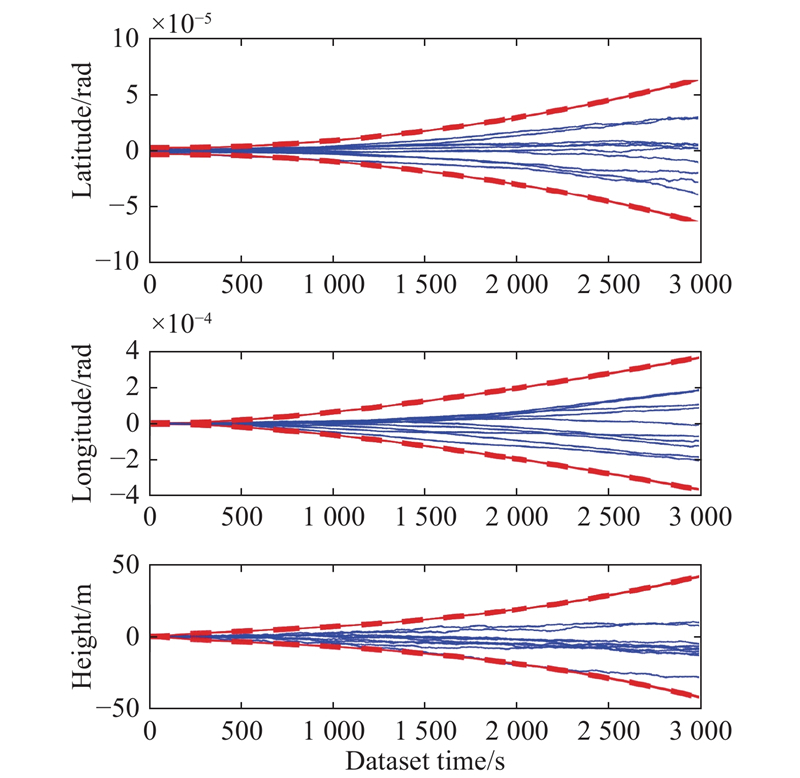

Fig 1

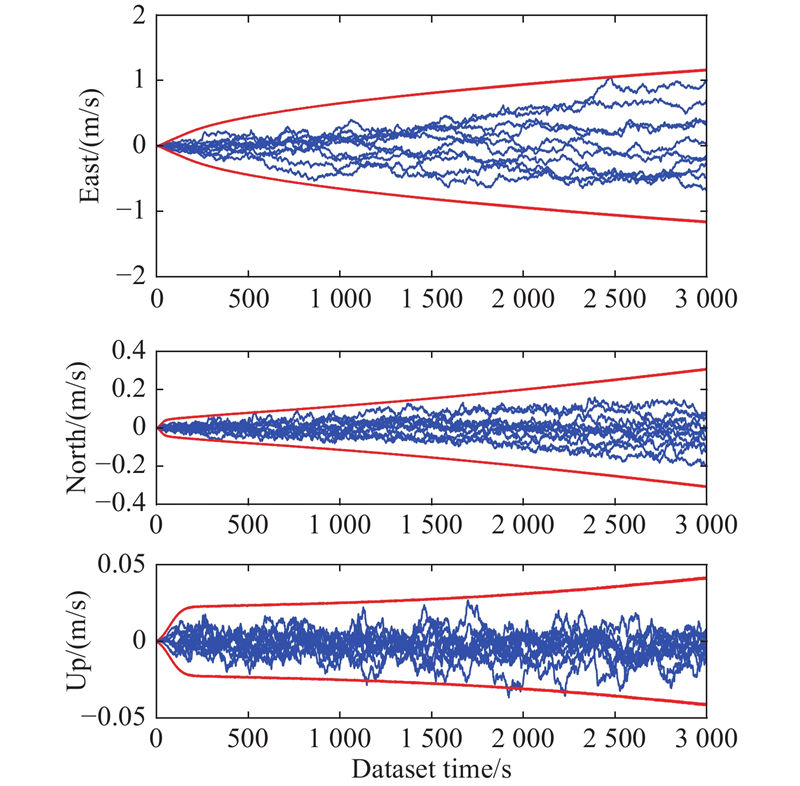

Fig 2

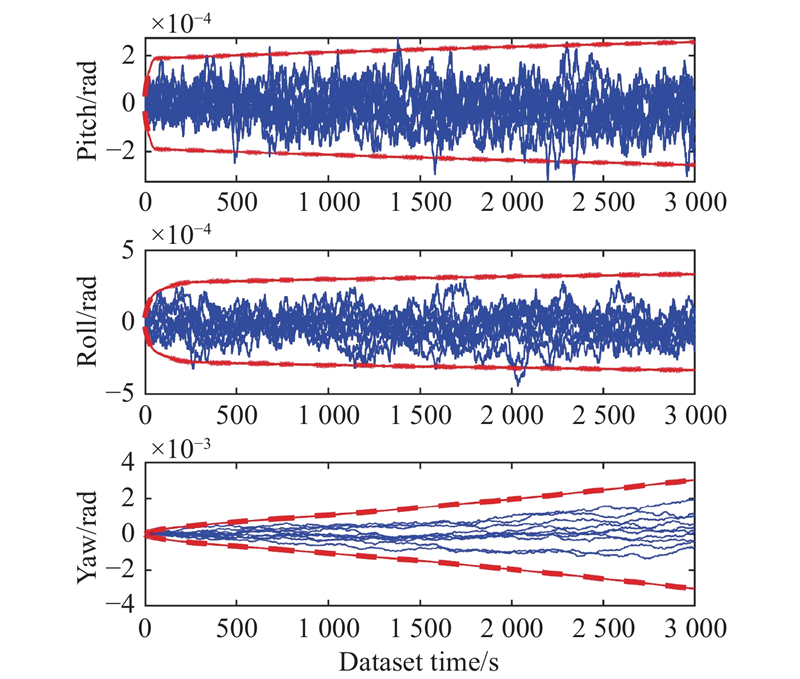

Fig 3

Table 2

Table 3

Fig 4

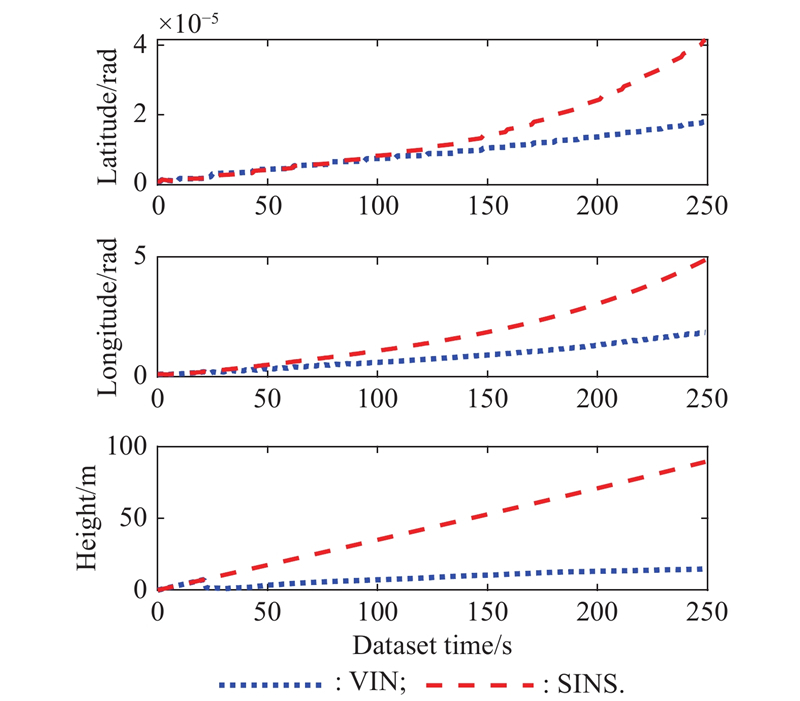

Fig 5

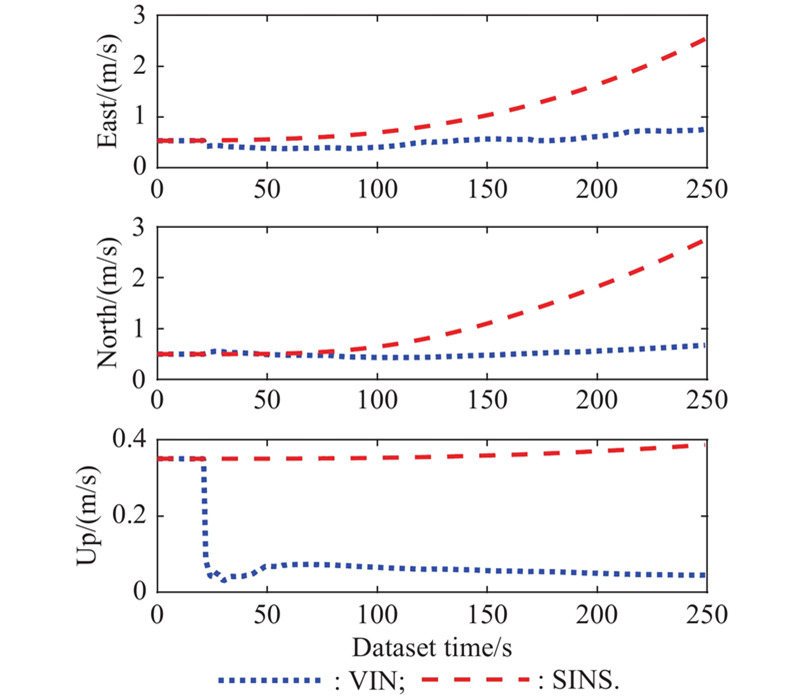

Fig 6

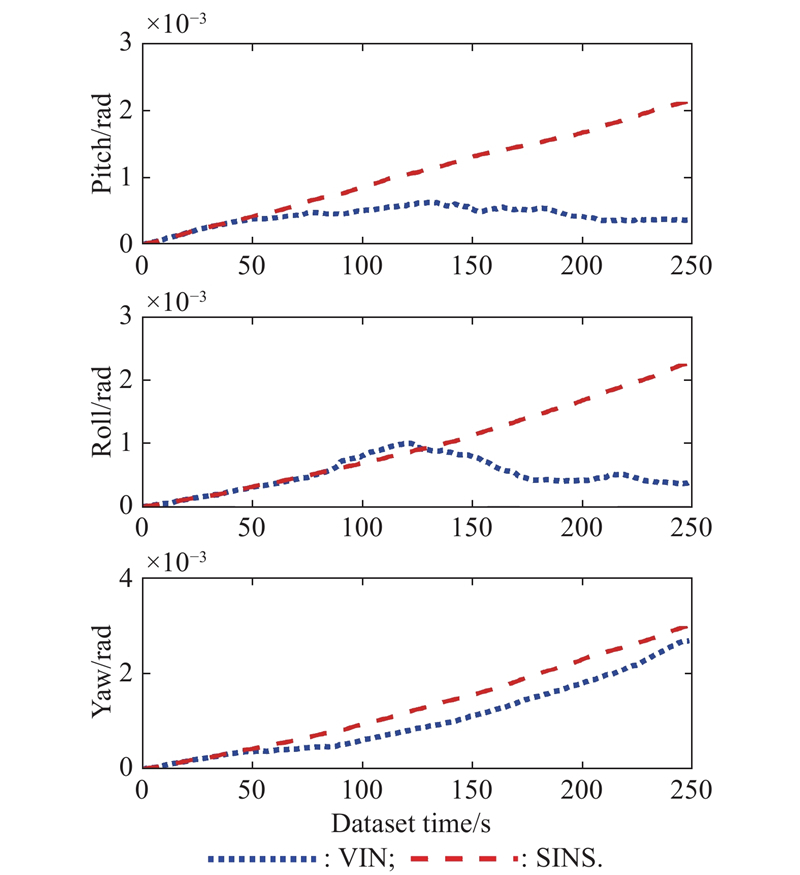

Fig 7

Table 4

References 32

1	HUANG G Q. Visual-inertial navigation: a concise review. Proc. of the IEEE International Conference on Robotics and Automation, 2019: 9572−9582.
2	LYU X, HU B Q, DAI Y B, et al Gaussian process regression-based quaternion unscented Kalman robust filter for integrated SINS/GNSS. Journal of Systems Engineering and Electronics, 2022, 33 (5): 1079- 1088. doi: 10.23919/JSEE.2022.000105
3	BAR-SHALOM Y, LI X R, KIRUBARAJAN T. Estimation with applications to tracking and navigation: theory, algorithms and software. New York: Wiley, 2001.
4	MOURIKIS A I, ROUMELIOTIS S I. A multi-state constraint Kalman filter for vision-aided inertial navigation. Proc. of the IEEE International Conference on Robotics and Automation, 2007: 3565−3572.
5	LYNEN S, ACHTELIK M W, WEISS S, et al. A robust and modular multi-sensor fusion approach applied to MAV navigation. Proc. of the IEEE/RSJ International Conference on Intelligent Robots and Systems, 2013: 3923−3929.
6	QI W, XU X Y, CHEN X, et al 360-VIO: a robust visual-inertial odometry using a 360° camera. IEEE Trans. on Industrial Electronics, 2024, 71 (9): 11136- 11145. doi: 10.1109/TIE.2023.3337541
7	ZHANG M, GUO R N, ZHANG X. Fusion VIO: an extendable sensor fusion framework for unmaned vehicles. Proc. of the Chinese Control and Decision Conference, 2022: 2780−2784.
8	ZHANG T, XU J Y, SHEN H, et al RMSC-VIO: robust multi-stereoscopic visual-inertial odometry for local visually challenging scenarios. IEEE Robotics and Automation Letters, 2024, 9 (5): 4130- 4137. doi: 10.1109/LRA.2024.3377008
9	WANG Z, YANG K L, SHI H, et al. LF-VIO: a visual-inertial-odometry framework for large field-of-view cameras with negative plane. Proc. of the IEEE/RSJ International Conference on Intelligent Robots and Systems, 2022: 4423−4430.
10	QIN T, LI P L, SHEN S VINS-Mono: a robust and versatile monocular visual-inertial state estimator. IEEE Trans. on Robotics, 2018, 34 (4): 1004- 1020. doi: 10.1109/TRO.2018.2853729
11	CHIU H P, DAS A, MILLER P, et al. Precise vision-aided aerial navigation. Proc. of the International Conference on Intelligent Robots and Systems, 2014: 688−695.
12	LI M Y, MOURIKIS A I. Optimization-based estimator design for vision-aided inertial navigation. Proc. of the Conference on Robotics: Science and Systems, 2013: 241−248.
13	KHEDEKAR N, KULKARNI M, ALEXIS K. MIMOSA: a multi-modal SLAM framework for resilient autonomy against sensor degradation. Proc. of the IEEE/RSJ International Conference on Intelligent Robots and Systems, 2022: 7153−7159.
14	ZHENG F, TSAI G, ZHANG Z, et al. Trifo-VIO: robust and efficient stereo visual inertial odometry using points and lines. Proc. of the IEEE/RSJ International Conference on Intelligent Robots and Systems, 2018: 3686−3693.
15	MOURIKIS A I, ROUMELIOTIS S I, BURDICK J W SC-KF mobile robot localization: a stochastic cloning Kalman filter for processing relative-state measurements. IEEE Trans. on Robotics, 2007, 23 (4): 717- 730. doi: 10.1109/TRO.2007.900610
16	LI M Y, MOURIKIS A I High-precision, consistent EKF-based visual-inertial odometry. International Journal of Robotics Research, 2013, 32 (6): 690- 711. doi: 10.1177/0278364913481251
17	GENEVA P, ECKENHOFF K, LEE W, et al. OpenVINS: a research platform for visual-inertial estimation. Proc. of the International Conference on Robotics and Automation, 2020: 4666−4672.
18	LI M Y, MOURIKIS A I. Improving the accuracy of EKF-based visual-inertial odometry. Proc. of the IEEE International Conference on Robotics and Automation, 2012: 828−835.
19	LI M Y, YU H S , ZHENG X, et al. High-fidelity sensor modeling and self-calibration in vision-aided inertial navigation. Proc. of the International Conference on Robotics and Automation, 2014: 409−416.
20	SUN K, MOHTA K, PFROMMER B, et al Robust stereo visual inertial odometry for fast autonomous flight. IEEE Robotics and Automation Letters, 2018, 3 (2): 965- 972. doi: 10.1109/LRA.2018.2793349
21	WU K Z, ZHANG T, SU D, et al. An invariant-EKF VINS algorithm for improving consistency. Proc. of the International Conference on Intelligent Robots and Systems, 2017: 1578−1585.
22	HEO S, PARK C G Consistent EKF-based visual-inertial odometry on matrix Lie group. IEEE Sensors Journal, 2018, 18 (19): 3780- 3788.
23	HESCH J A, KOTTAS D G, BOWMAN S L, et al Consistency analysis and improvement of vision-aided inertial navigation. IEEE Trans. on Robotics, 2014, 30 (1): 158- 176. doi: 10.1109/TRO.2013.2277549
24	HUAI Z, HUANG G Q. Robocentric visual-inertial odometry. Proc. of the International Conference on Intelligent Robots and Systems, 2018: 6319−6326.
25	ZUO X X, GENEVA P, LEE W, et al. LIC-fusion: LiDAR-inertial-camera odometry. Proc. of the International Conference on Intelligent Robots and Systems, 2019: 5848−5854.
26	PACHTER M, MONTGOMERY T J Visual-INS using a human operator and converted measurements. IEEE Trans. on Aerospace and Electronic Systems, 2017, 53 (5): 2359- 2371. doi: 10.1109/TAES.2017.2696235
27	XUE C, HUANG Y L, ZHAO C, et al A Gaussian-generalized-inverse-Gaussian joint-distribution-based adaptive MSCKF for visual-inertial odometry navigation. IEEE Trans. on Aerospace and Electronic Systems, 2023, 59 (3): 2307- 2328. doi: 10.1109/TAES.2022.3213787
28	SUN W, LI Y D, DING W, et al A novel visual inertial odometry based on interactive multiple model and multistate constrained Kalman filter. IEEE Trans. on Instrumentation and Measurement, 2024, 73, 1- 10.
29	TRAWNY N, ROUMELIOTIS S I. Indirect Kalman filter for 3D attitude estimation. Minnesota: Multiple Autonomous Robotic Systems Laboratory, 2005.
30	NOURELDIN A, KARAMAT T B, GEORGY J. Fundamentals of inertial navigation, satellite-based positioning and their integration. Berlin: Springer Science & Business Media, 2013.
31	SOLA J. Quaternion kinematics for the error-state Kalman filter. https://arxiv.org/abs/1711.02508.
32	OpenCV Developers Team. Open source computer vision (OpenCV) library. http://opencv.org.

Parameter	Value
IMU angle random walk coefficient/(${\text{rad/s/}}\sqrt {{\text{Hz}}} $)	1e-6
IMU angular rate random walk coefficient/(${\text{rad/}}{{\text{s}}^2}{\text{/}}\sqrt {{\text{Hz}}} $)	1e-8
IMU velocity random walk coefficient/(${\text{m/s}}{{}^2}{\text{/}}\sqrt {{\text{Hz}}} $)	1e-4
IMU acceleration random walk coefficient/(${\text{m/}}{{\text{s}}^3}{\text{/}}\sqrt {{\text{Hz}}} $)	1e-5
IMU sample rate/${\text{Hz}}$	100
Image processing rate/${\text{Hz}}$	1
Feature error standard deviation/pixel	1
Number of camera poses in state	23
Average depth of feature/m	2 000
Minimum number of tracking frames	18
Maximum number of tracking frames	23
Maximum number of features	40

State	SINS-RMSE	VIN-RMSE	${I_r}/\text{%}$
Latitude	1.005e-03	1.451e-05	98.56
Longitude	1.010e-03	1.559e-04	84.57
Height	2.040e+03	2.926e+00	99.86
${v_{\text{E}}}$	5.336e+00	4.493e-01	91.58
${v_{\text{N}}}$	5.711e+00	8.244e-02	98.56
${v_{\text{U}}}$	2.346e+00	9.303e-03	99.60
Pitch	2.223e-04	4.676e-05	78.97
Roll	3.361e-04	5.032e-05	85.03
Yaw	1.222e-03	8.192e-04	32.98

Parameter	Value
IMU angle random walk coefficient/(${\text{rad/s/}}\sqrt {{\text{Hz}}} $)	1e-5
IMU angular rate random walk coefficient/(${\text{rad/s}}{^2}{\text{/}}\sqrt {{\text{Hz}}} $)	1e-6
IMU velocity random walk coefficient/(${\text{m/s}}{^2}{\text{/}}\sqrt {{\text{Hz}}} $)	1e-4
IMU acceleration random walk coefficient/(${\text{m/s}}{{}^3}{\text{/}}\sqrt {{\text{Hz}}} $)	1e-5
IMU sample rate/${\text{Hz}}$	100
Image processing rate/${\text{Hz}}$	1
Number of camera poses in state	25
Minimum number of tracking frames	22
Maximum number of tracking frames	25
Maximum number of features	40

State	${P_c}$	${P_r}$	${I_r}/\text{%}$
Latitude	2.682e-10	4.16e-10	56.08
Longitude	3.21e-10	1.08e-09	61.89
Height	76.8446	232.3795	83.28
${v_{\text{E}}}$	0.2917	1.8000	69.92
${v_{\text{N}}}$	0.3287	0.3251	75.44
${v_{\text{U}}}$	0.0017	0.0024	88.27
Pitch	1.88e-07	1.04e-07	82.59
Roll	2.18e-07	3.94e-07	82.48
Yaw	4.00e-06	1.089e-05	10.15
