Outdoor navigation of millimeter-wave radar quadrotors based on optimal virtual tube

doi:10.23919/JSEE.2025.000099

Journal of Systems Engineering and Electronics ›› 2025, Vol. 36 ›› Issue (4): 1057-1067.doi: 10.23919/JSEE.2025.000099

• CONTROL THEORY AND APPLICATION • Previous Articles

Outdoor navigation of millimeter-wave radar quadrotors based on optimal virtual tube

Delong WU(), Hao FANG(), Yiren HAO(), Aobo WANG()

School of Automation, Beijing Institute of Technology, Beijing 100081, China

Received:2024-04-01 Online:2025-08-18 Published:2025-09-04
Contact: Hao FANG E-mail:hydrogen2000@163.com;fangh@bit.edu.cn;haoyiren2021@163.com;wabisme@163.com
About author:
WU Delong was born in 2000. He received his B.S. degree in automation engineering from Beijing Institute of Technology, Beijing, China, in 2022. He is currently pursuing his Ph.D. degree in control science and engineering at the School of Automation, Beijing Institute of Technology. His research interests include autonomous aerial robots, trajectory planning, and control. E-mail: hydrogen2000@163.com

FANG Hao was born in 1973. He received his B.S. degree from Xi’an University of Technology in 1995 and Ph.D. degree from Xi’an Jiaotong University in 2002. Since 2011, he has been a professor with Beijing Institute of Technology, Beijing, China. His research interests are multi-agent system, autonomous robot, and distributed simultaneous localization and mapping (SLAM). E-mail: fangh@bit.edu.cn

HAO Yiren was born in 2000. He received his B.S. degree in automation from the Northwestern Polytechnical University, in 2022. He is currently pursuing his master’s degree at the School of Automation, Beijing Institute of Technology. His research interests include depth estimation and visual relocalization. E-mail: haoyiren2021@163.com

WANG Aobo was born in 1999. He received his B.S. degree in automation from Beijing Institute of Technology, Beijing, China, in 2021. He is currently pursuing his master’s degree in the School of Automation, Beijing Institute of Technology. His research interests are visual simultaneous localization and mapping, object-oriented simultaneous localization and mapping, and semantic scene understanding. E-mail: wabisme@163.com
Supported by:
This work was supported by the National Key Research and Development Program of China (2022YFA1004703) and the National Natural Science Foundation of China (62088101).

Abstract

Abstract:

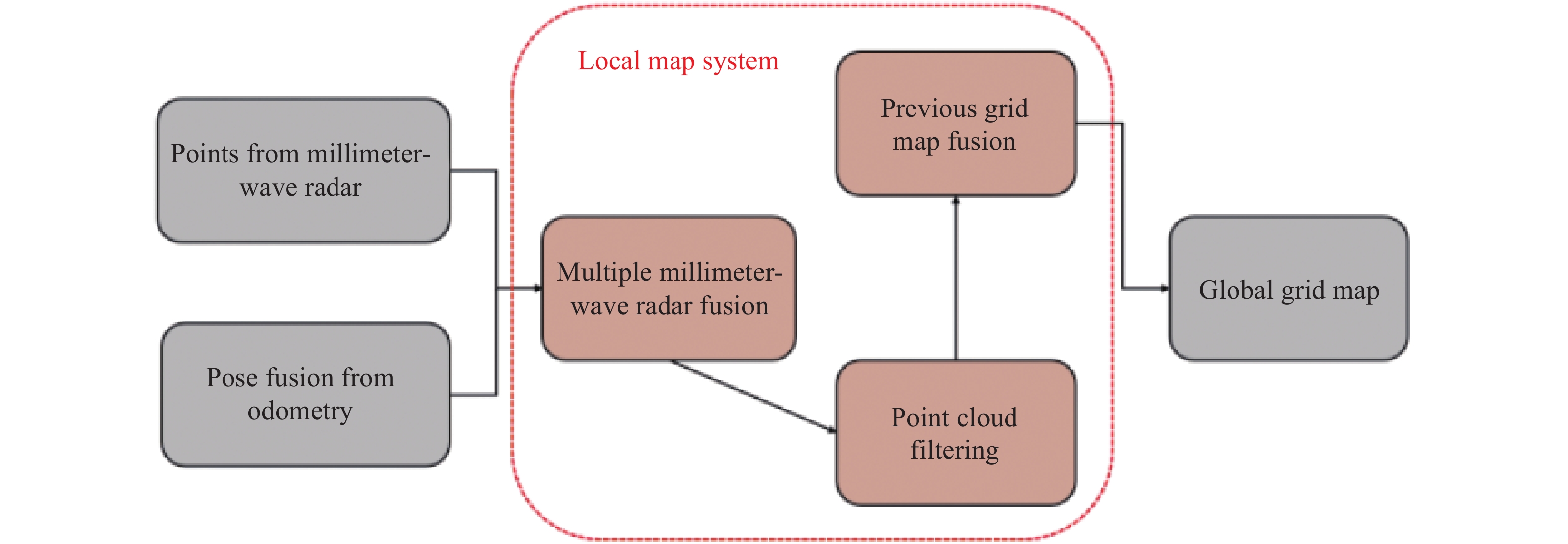

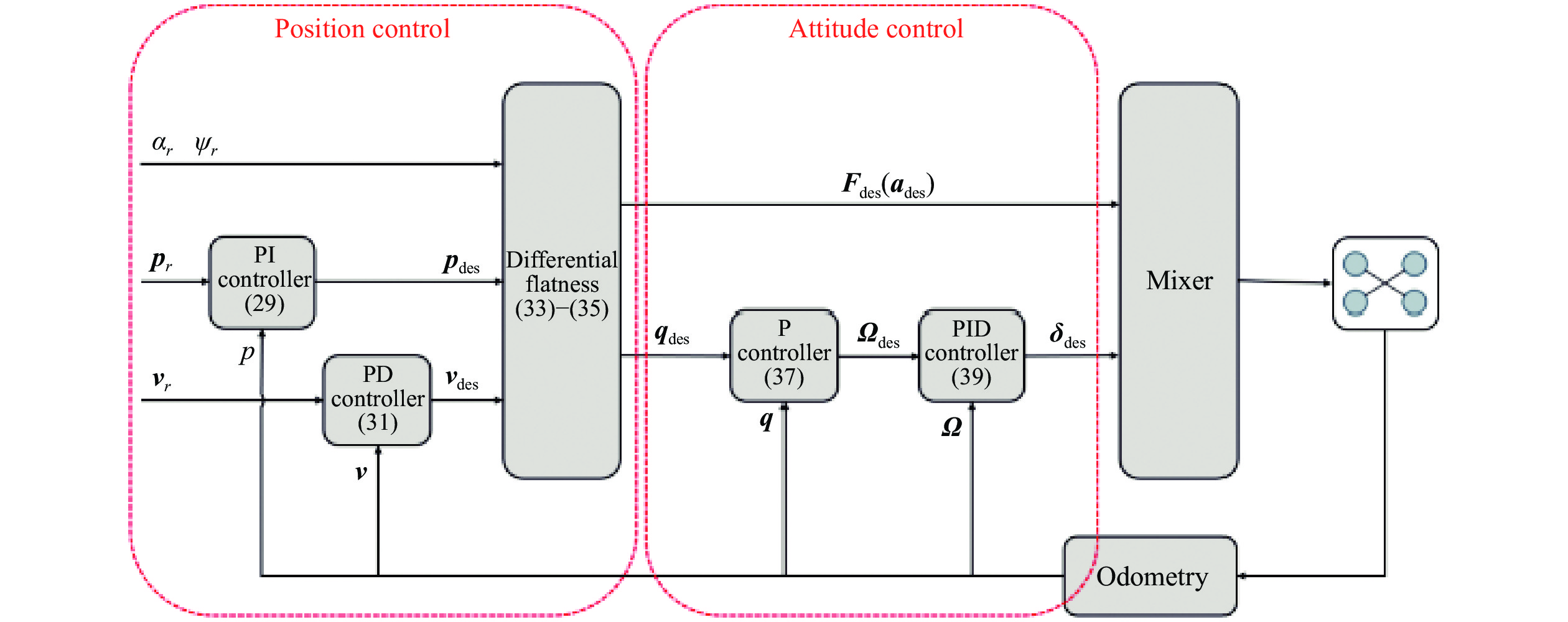

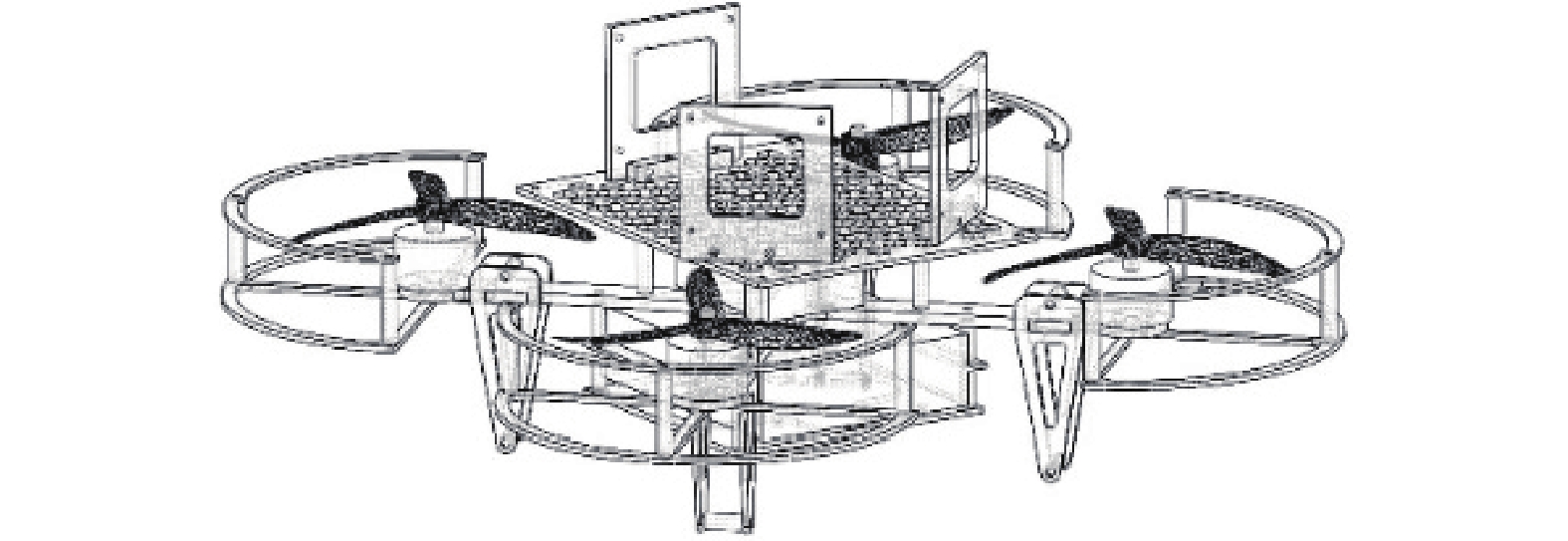

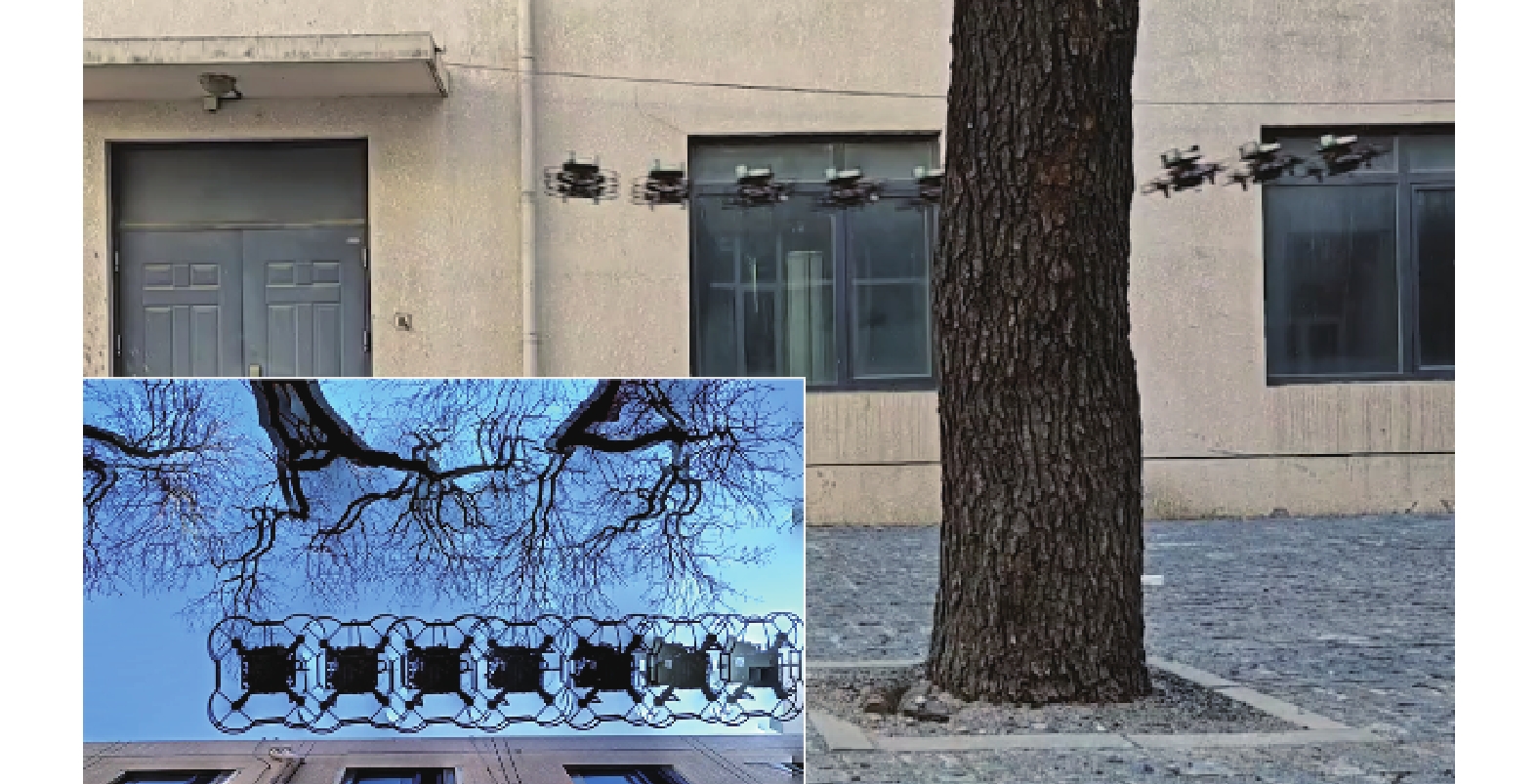

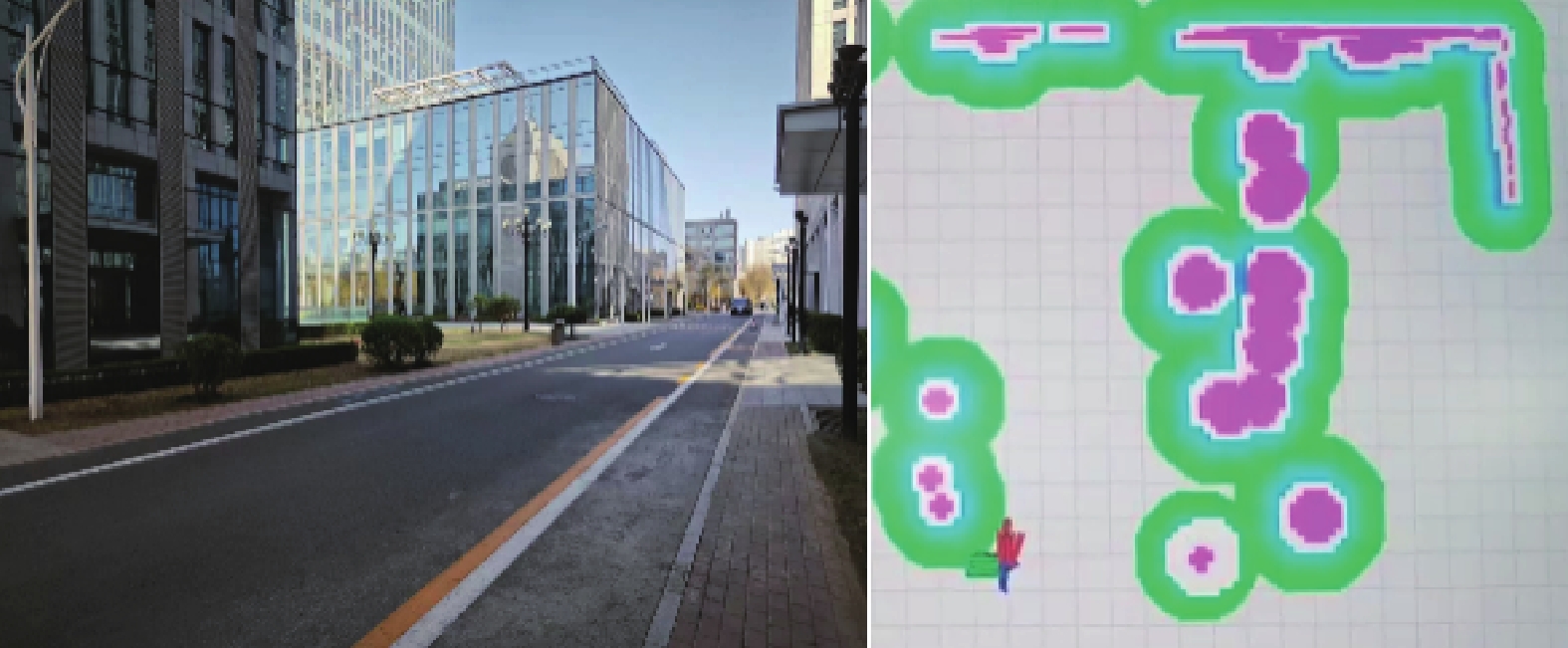

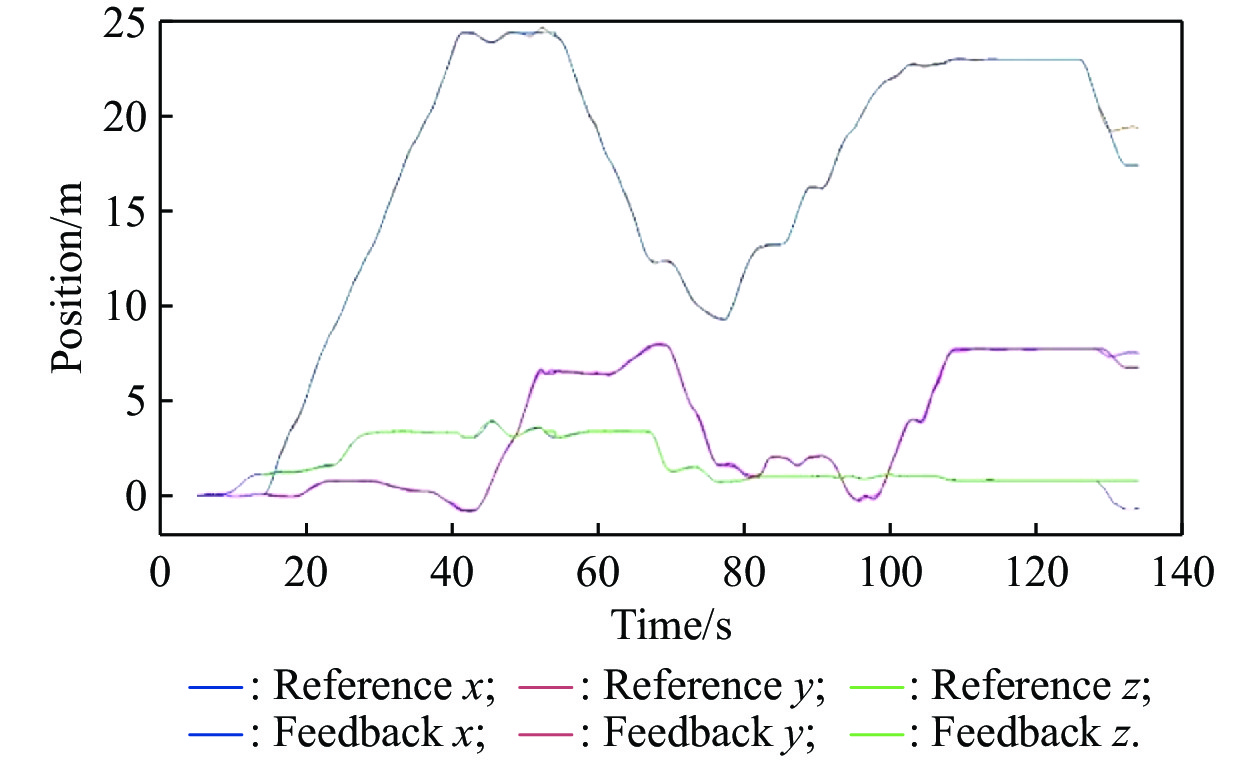

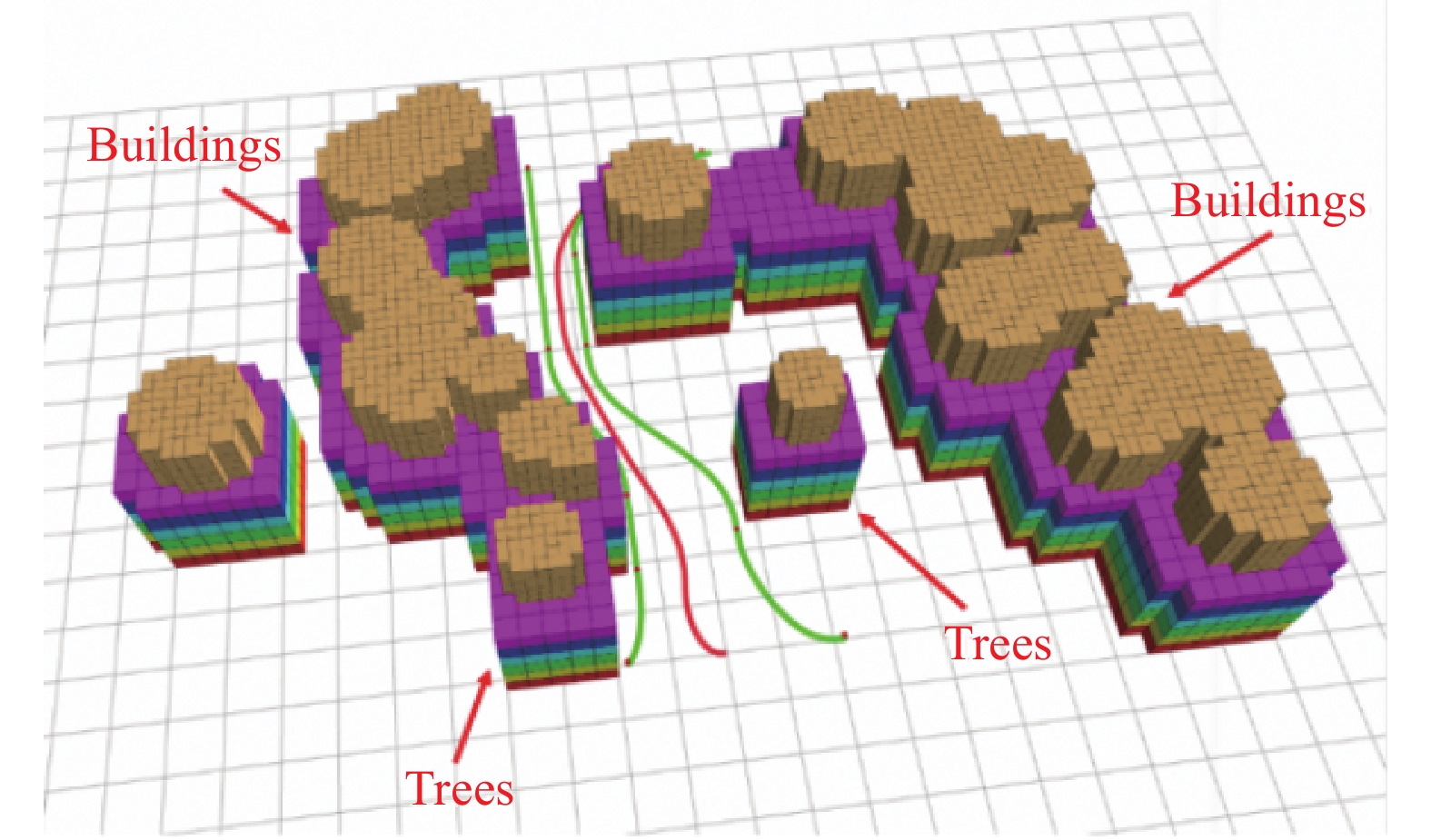

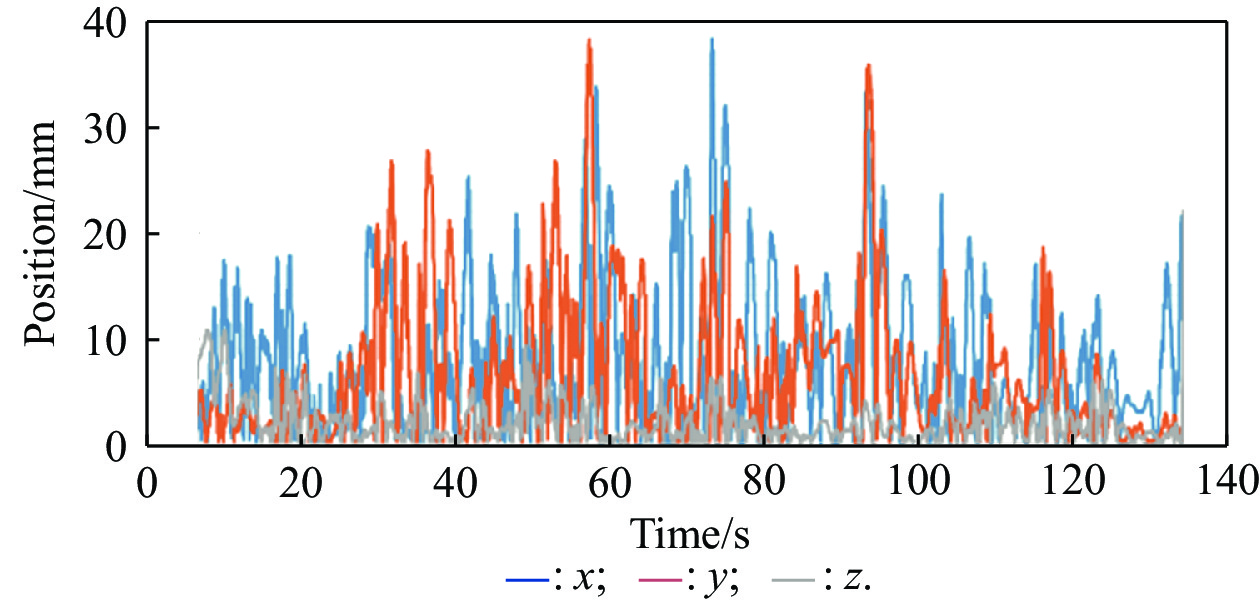

This paper presents a quadcopter system for navigation in outdoor urban environments. The main contributions include the hardware design, the establishment of global occupancy grid maps based on millimeter-wave radars, the trajectory planning scheme based on optimal virtual tube methods, and the controller structure based on dynamics. The proposed system focuses on utilizing a compact and lightweight quadrotor with sensors to achieve navigation that conforms to the direction of urban roads with high computational efficiency and safety. Our work is an application of millimeter-wave radars and virtual tube planning for obstacle avoidance in navigation. The validness and effectiveness of the proposed system are verified by experiments.

Key words: quadrotor navigation, obstacle avoidance, millimeter-wave radar, virtual tube planning

Delong WU, Hao FANG, Yiren HAO, Aobo WANG. Outdoor navigation of millimeter-wave radar quadrotors based on optimal virtual tube[J]. Journal of Systems Engineering and Electronics, 2025, 36(4): 1057-1067.

Figures/Tables 12

Fig 1

Table 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

Table 2

Fig 7

Fig 8

Fig 9

Fig 10

References 31

1	CHEN J, SUN J, WANG G From unmanned systems to autonomous intelligent systems. Engineering, 2022, 12 (1): 16- 19.
2	ZHOU B Y, ZHANG Y C, CHEN X Y, et al Fuel: fast UAV exploration using incremental frontier structure and hierarchical planning. IEEE Robotics and Automation Letters, 2021, 6 (2): 779- 786. doi: 10.1109/LRA.2021.3051563
3	ZHOU B Y, GAO F, WANG L Q, et al Robust and efficient quadrotor trajectory generation for fast autonomous flight. IEEE Robotics and Automation Letters, 2019, 4 (4): 3529- 3536. doi: 10.1109/LRA.2019.2927938
4	ZHOU X, WANG Z P, YE H K, et al Ego-planner: an esdf-free gradient-based local planner for quadrotors. IEEE Robotics and Automation Letters, 2020, 6 (2): 478- 485.
5	PFEIFFER C, SCARAMUZZA D Human-piloted drone racing: visual processing and control. IEEE Robotics and Automation Letters, 2021, 6 (2): 3467- 3474. doi: 10.1109/LRA.2021.3064282
6	RADMANESH M, KUMAR M, GUENTERT P H, et al Overview of path-planning and obstacle avoidance algorithms for UAVs: a comparative study. Unmanned Systems, 2018, 6 (2): 95- 118. doi: 10.1142/S2301385018400022
7	DONG L, HE Z C, SONG C W, et al A review of mobile robot motion planning methods: from classical motion planning workflows to reinforcement learning-based architectures. Journal of Systems Engineering and Electronics, 2023, 34 (2): 439- 459. doi: 10.23919/JSEE.2023.000051
8	MELLINGER D, KUMAR V. Minimum snap trajectory generation and control for quadrotors. Proc. of the IEEE 28th International Conference on Robotics and Automation, 2011: 2520−2525.
9	RICHTER C, BRY A, ROY N. Polynomial trajectory planning for aggressive quadrotor flight in dense indoor environments. Proc. of the 16th International Symposium of Robotics Research, 2016: 649−666.
10	DEITS R, TEDRAKE R. Efficient mixed-integer planning for UAVs in cluttered environments. Proc. of the IEEE 32nd International Conference on Robotics and Automation, 2015: 42−49.
11	ZHANG J D, GUO Y K, ZHENG L H, et al Real-time UAV path planning based on LSTM network. Journal of Systems Engineering and Electronics, 2024, 35 (2): 374- 385. doi: 10.23919/JSEE.2023.000157
12	LIU S K, WATTERSON M, MOHTA K, et al Planning dynamically feasible trajectories for quadrotors using safe flight corridors in 3-D complex environments. IEEE Robotics and Automation Letters, 2017, 2 (3): 1688- 1695. doi: 10.1109/LRA.2017.2663526
13	USENKO V, VONSTUMBERG L, PANGERCIC A, et al. Real-time trajectory replanning for MAVs using uniform B-splines and a 3D circular buffer. Proc. of the IEEE/RSJ 30th International Conference on Intelligent Robots and Systems, 2017: 215−222.
14	DING W C, GAO W L, WANG K X, et al An efficient B-spline-based kinodynamic replanning framework for quadrotors. IEEE Trans. on Robotics, 2019, 35 (6): 1287- 1306. doi: 10.1109/TRO.2019.2926390
15	ZHOU B Y, GAO F, PAN J, et al. Robust real-time UAV replanning using guided gradient-based optimization and topological paths. Proc. of the IEEE 37th International Conference on Robotics and Automation, 2020: 1208−1214.
16	WANG Z P, ZHOU X, XU C, et al Geometrically constrained trajectory optimization for multicopters. IEEE Trans. on Robotics, 2022, 38 (5): 3259- 3278. doi: 10.1109/TRO.2022.3160022
17	AIRBUS. AIRBUS SKYWAYS: the future of the pracel delivery in smart cities. https://www.embention.com/projects/airbus-parcel-delivery/.
18	QUAN Q, FU R, LI M X, et al Practical distributed control for VTOL UAVs to pass a virtual tube. IEEE Trans. on Intelligent Vehicles, 2021, 7 (2): 342- 353.
19	QUAN Q, GAO Y, BAI C G Distributed control for a robotic swarm to pass through a curve virtual tube. Robotics and Autonomous Systems, 2023, 162, 104368. doi: 10.1016/j.robot.2023.104368
20	GAO Y, BAI C G, ZHANG L, et al Multi-UAV cooperative target encirclement within an annular virtual tube. Aerospace Science and Technology, 2022, 128 (1): 107800.
21	MAO P D, QUAN Q. Making robotics swarm flow more smoothly: a regular virtual tube model. Proc. of the 35th IEEE/RSJ International Conference on Intelligent Robots and Systems, 2022: 4498−4504.
22	GAO Y, BAI C G, QUAN Q Distributed control for a multi-agent system to pass through a connected quadrangle virtual tube. IEEE Trans. on Control of Network Systems, 2023, 10 (2): 693- 705. doi: 10.1109/TCNS.2022.3203936
23	MAO P D, FU R, QUAN Q Optimal virtual tube planning and control for swarm robotics. The International Journal of Robotics Research, 2024, 43 (5): 602- 627. doi: 10.1177/02783649231210012
24	BESL P J, MCKAY N D A method for registration of 3-D shapes. IEEE Trans. on Pattern Analysis and Machine Intelligence, 1992, 14 (2): 239- 256. doi: 10.1109/34.121791
25	ZHANG J Y, YAO Y X, DENG B L Fast and robust iterative closest point. IEEE Trans. on Pattern Analysis and Machine Intelligence, 2022, 44 (7): 3450- 3466.
26	ZHANG Z C, SCARAMUZZA D. Perception-aware receding horizon navigation for MAVs. Proc. of the IEEE 35th International Conference on Robotics and Automation, 2018: 2534−2541.
27	YU Y, YANG S, WANG M X, et al. High performance full attitude control of a quadrotor on SO(3). Proc. of the IEEE 32nd International Conference on Robotics and Automation, 2015: 1698−1703.
28	KOENIG S, LIKHACHEV M Fast replanning for navigation in unknown terrain. IEEE Trans. on Robotics, 2005, 21 (3): 354- 363. doi: 10.1109/TRO.2004.838026
29	HARABOR D, GRASTIEN A. Online graph pruning for pathfinding on grid maps. Proc. of the 25th AAAI Conference on Artificial Intelligence, 2011: 1114−1119.
30	SUN S H, ROMERO A, FOEHN P, et al A comparative study of nonlinear mpc and differential-flatness-based control for quadrotor agile flight. IEEE Trans. on Robotics, 2022, 38 (6): 3357- 3373. doi: 10.1109/TRO.2022.3177279
31	MAHONY R, KUMAR V, CORKE P Multirotor aerial vehicles: modeling, estimation, and control of quadrotor. IEEE Robotics and Automation Magazine, 2012, 19 (3): 20- 32. doi: 10.1109/MRA.2012.2206474

Hardware	Detail
Intel NUC11TNHi7	Intel i7-1165G7 117 mm×112 mm×54 mm, 567 g
Holybro Pixhawk 6C mini	STM32H743, BMI055 38 mm×55 mm×15.5 mm, 37.2 g
Nanoradar MR72	0.2−80 m, $ 112^\circ $×$ 14^\circ $ 100 mm×57 mm×16.5 mm, 15.3 g
T-motor F40Pro IV	2 400 kV, 1.448 kg Φ27.9 mm×29.8 mm, 30.6 g

End point/m	v_max/(m/s)	Flight time/s	Tracking error/cm	Collision or not
500, 0	3.26	367	5.09	×
500, −500	3.21	617	5.51	×
0, −500	3.36	392	5.59	×
−500, −500	3.33	644	5.33	×
−500, 0	3.53	356	3.80	×
−500, 500	3.79	647	5.10	×
0, 500	3.13	351	6.47	×
500, 500	3.69	669	5.35	×
Average	3.41	−	5.28	×
