Millimeter-wave broadband dual-circularly polarized antenna based on gap waveguide technology

doi:10.23919/JSEE.2024.000082

Journal of Systems Engineering and Electronics ›› 2025, Vol. 36 ›› Issue (2): 362-369.doi: 10.23919/JSEE.2024.000082

• ELECTRONICS TECHNOLOGY • Previous Articles

Millimeter-wave broadband dual-circularly polarized antenna based on gap waveguide technology

Shuanglong QUAN¹^,*(), Jianyin CAO¹(), Chao HE¹(), Hao WANG¹^,²()

¹ School of Electronic and Optical Engineering, Nanjing University of Science and Technology, Nanjing 210018, China
² Nanhu Laboratory, Jiaxing 314001, China

Received:2023-07-18 Accepted:2024-06-23 Online:2025-04-18 Published:2025-05-20
Contact: Shuanglong QUAN E-mail:njustquansl@163.com;caojianyin92@163.com;3834985151@qq.com;haowang@njust.edu.cn
About author:
QUAN Shuanglong was born in 1991. He received his B.S. and M.S. degrees in electronic information engineering and electromagnetic field and microwave technology from Nanjing University of Science and Technology, Nanjing, China, in 2014 and 2017, respectively. He is pursuing his Ph.D. degree in Nanjing University of Science and Technology, Nanjing, China. His current research interests include circularly polarized antenna, phased array antenna, and radar system. E-mail: njustquansl@163.com

CAO Jianyin was born in 1992. She received her B.S. and Ph.D. degrees in electrical engineering from Nanjing University of Science and Technology, Nanjing, China, in 2014 and 2021, respectively. Currently, she is a post-doctor with the School of Electronic and Optical Engineering, Nanjing University of Science and Technology. Her research interests include terminal antenna subsystems for radar systems, millimeter-wave antenna subsystem, and LTCC-based system-on-package technology. E-mail: caojianyin92@163.com

HE Chao was born in 1999. He received his B.E. degree in electronic information engineering from Nanjing University of Science and Technology, Nanjing, China, in 2021. He is pursuing his M.S. degree with Nanjing University of Science and Technology, Nanjing, China. His current research interest is phased array antenna. E-mail: 3834985151@qq.com

WANG Hao was born in 1980. He received his B.S. and Ph.D. degrees in electrical engineering from Nanjing University of Science and Technology, Nanjing, China, in 2002 and 2009, respectively. Currently, he is a professor with the School of Electronic and Optical Engineering, Nanjing University of Science and Technology. His research interests include radar systems, signal processing and data processing, terminal antenna subsystem for compass navigation satellite system, millimeter-wave antenna subsystem, and antennas in package. E-mail: haowang@njust.edu.cn

Abstract

Abstract:

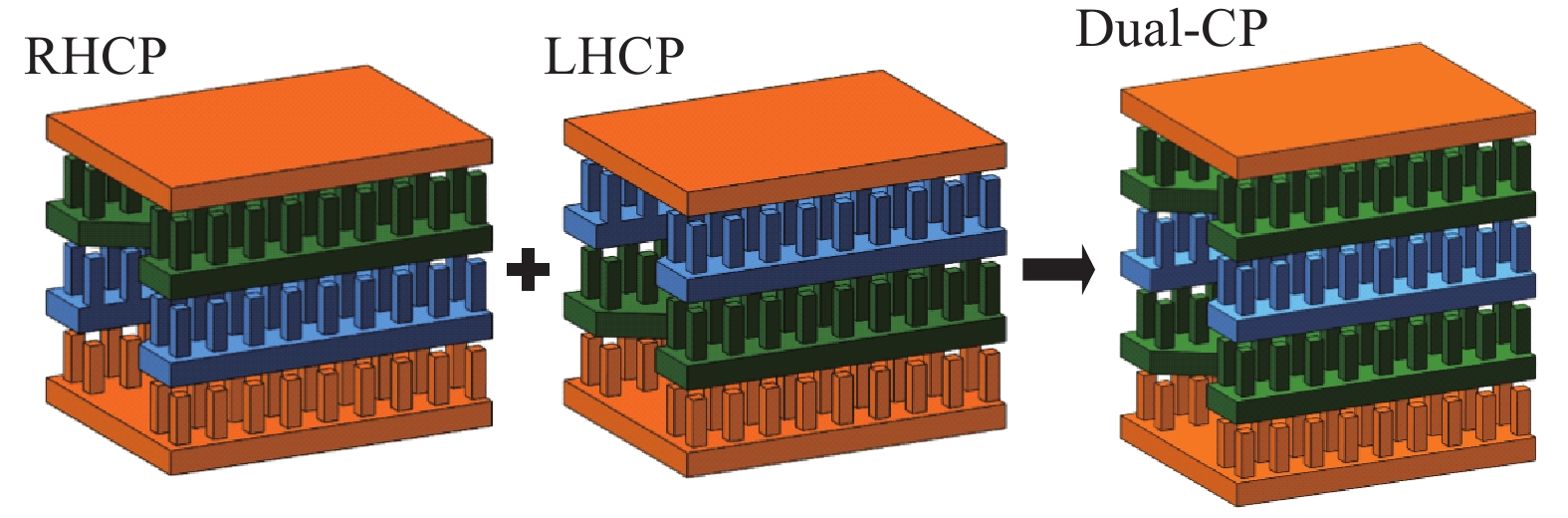

A millimeter-wave (mmW) broadband dual circularly polarized (dual-CP) antenna with high port isolation is proposed in this paper. The dual-CP performance is realized based on the symmetrical septum circular polarizer based on the gap waveguide (GWG) technology. Two sets of symmetrical septum circular polarizers are used for common aperture combination, achieving the broadband dual-CP characteristics. Taking advantage of GWG structure without good electrical contact, the antenna can also be fabricated and assembled easily in the mmW band. The principle analysis of the antenna is given, and the antenna is simulated and fabricated. The measured results show that the bandwidth for S₁₁ lower than ?10.7 dB and the axial ratio (AR) lower than 2.90 dB in 75?110 GHz, with realative bandwidth of 38%. Over the frequency band, the gain is higher than 9.16 dBic, and the dual-CP port isolation is greater than 32 dB. The proposed antenna with dual-CP and highly isolated in a wide bandwidth range has broad application prospects in the field of mmW communication.

Key words: dual circularly polarized (dual-CP) antenna, gap waveguide (GWG), endfire antennas, millimeter-wave (mmW) antennas, broadband antennas

Shuanglong QUAN, Jianyin CAO, Chao HE, Hao WANG. Millimeter-wave broadband dual-circularly polarized antenna based on gap waveguide technology[J]. Journal of Systems Engineering and Electronics, 2025, 36(2): 362-369.

Figures/Tables 16

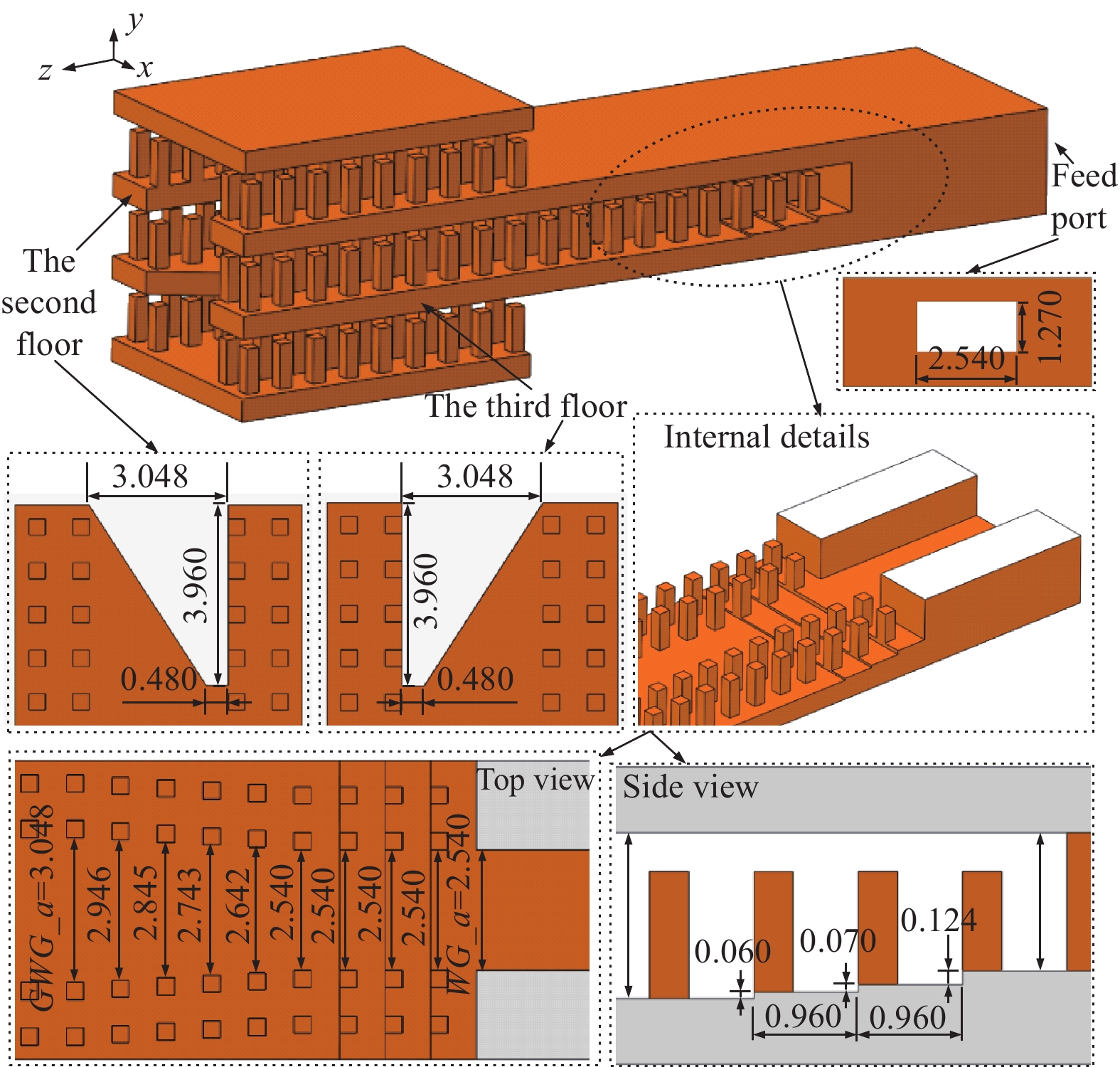

Fig 1

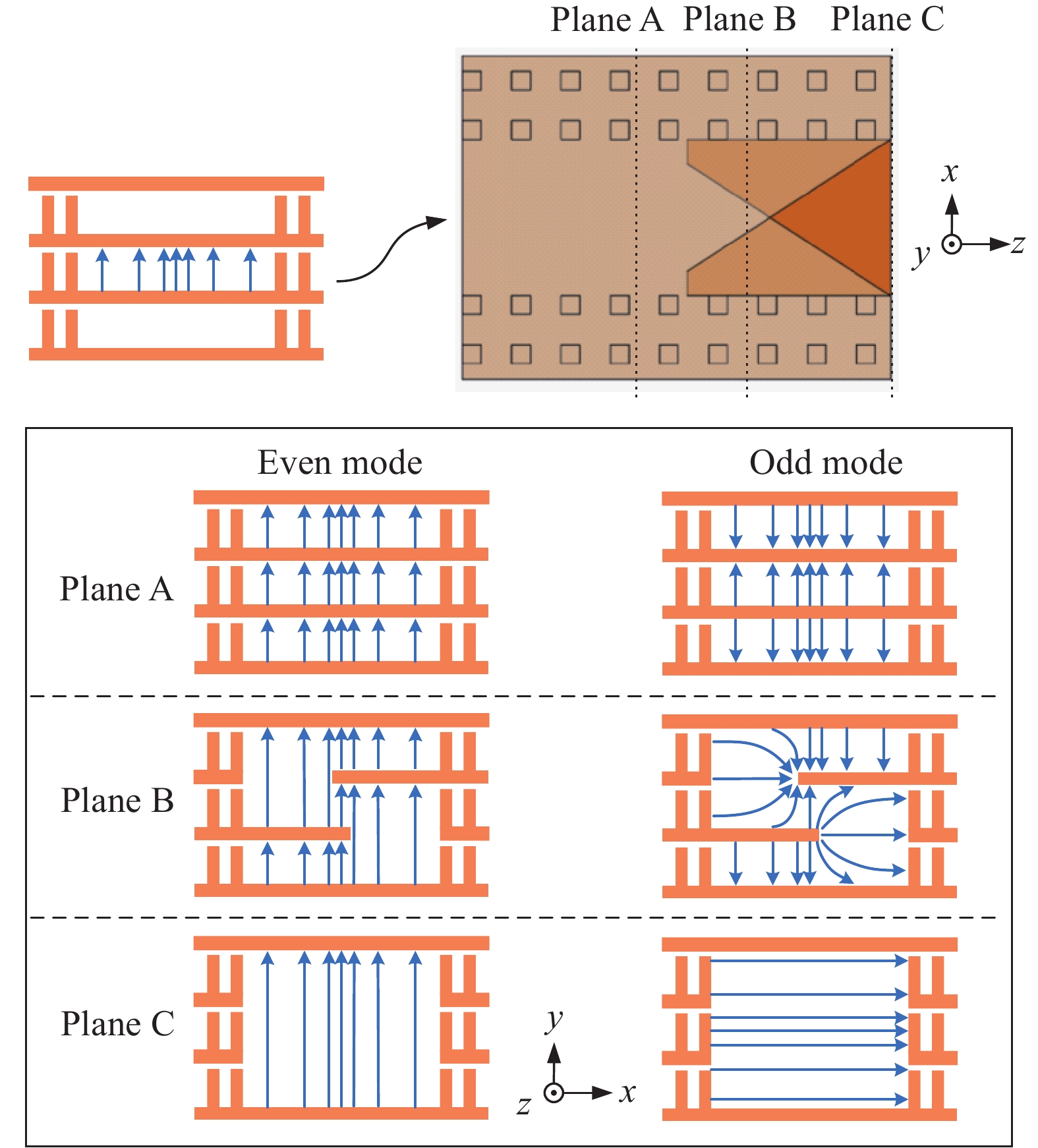

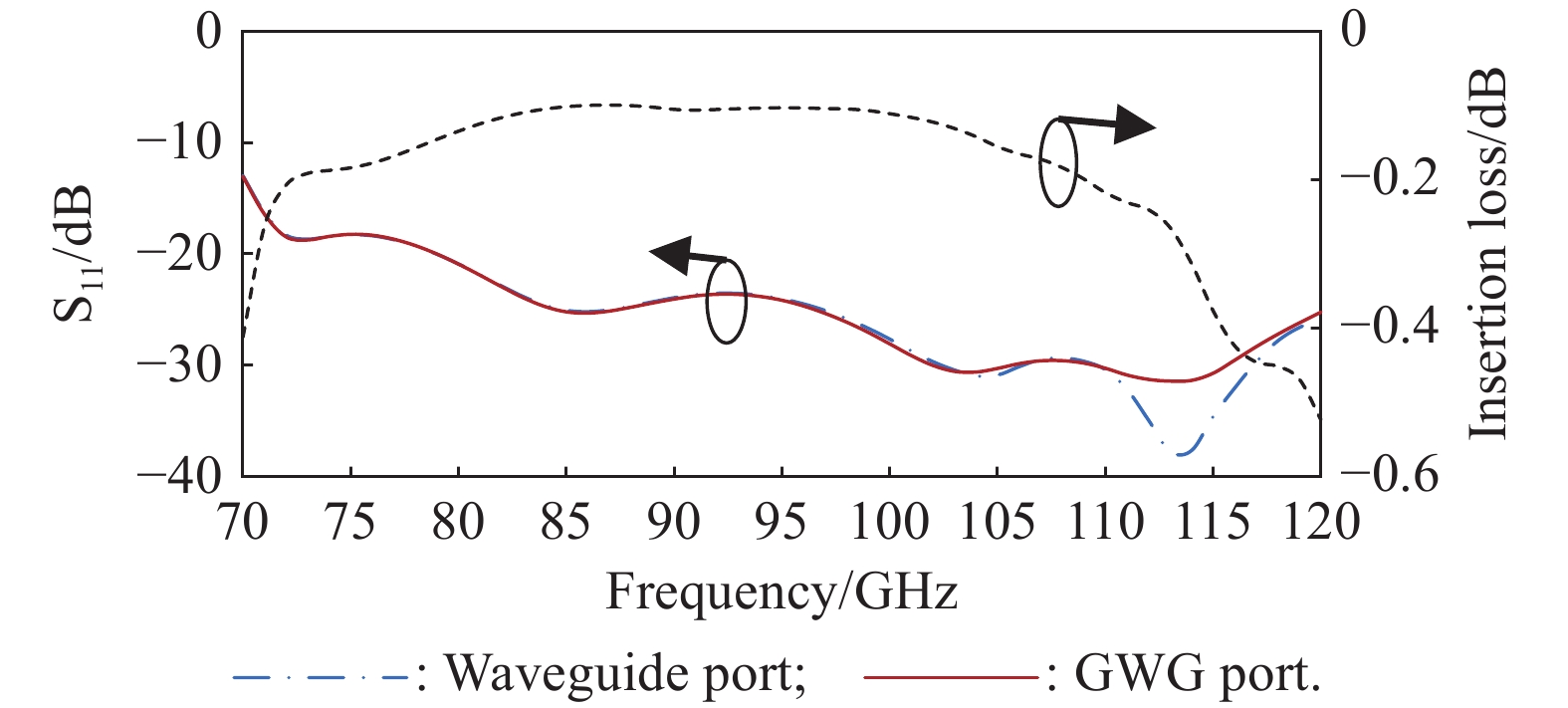

Fig 2

Fig 3

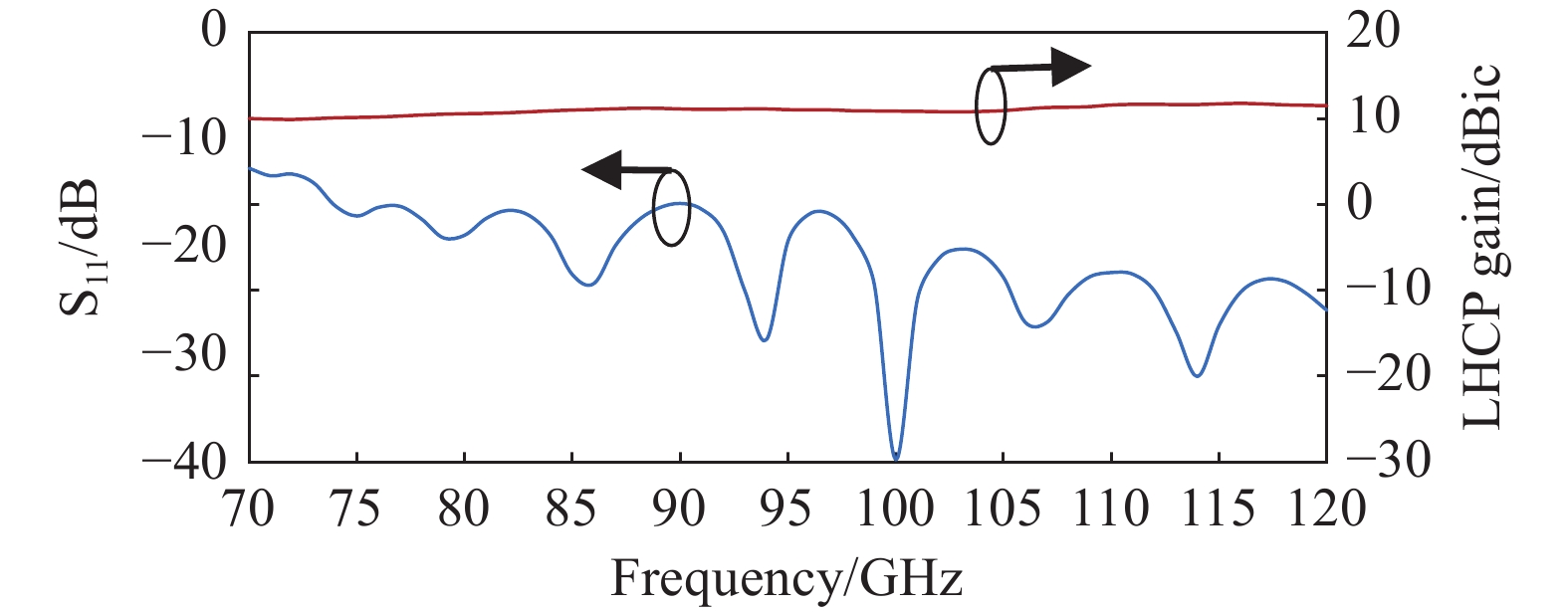

Fig 4

Fig 5

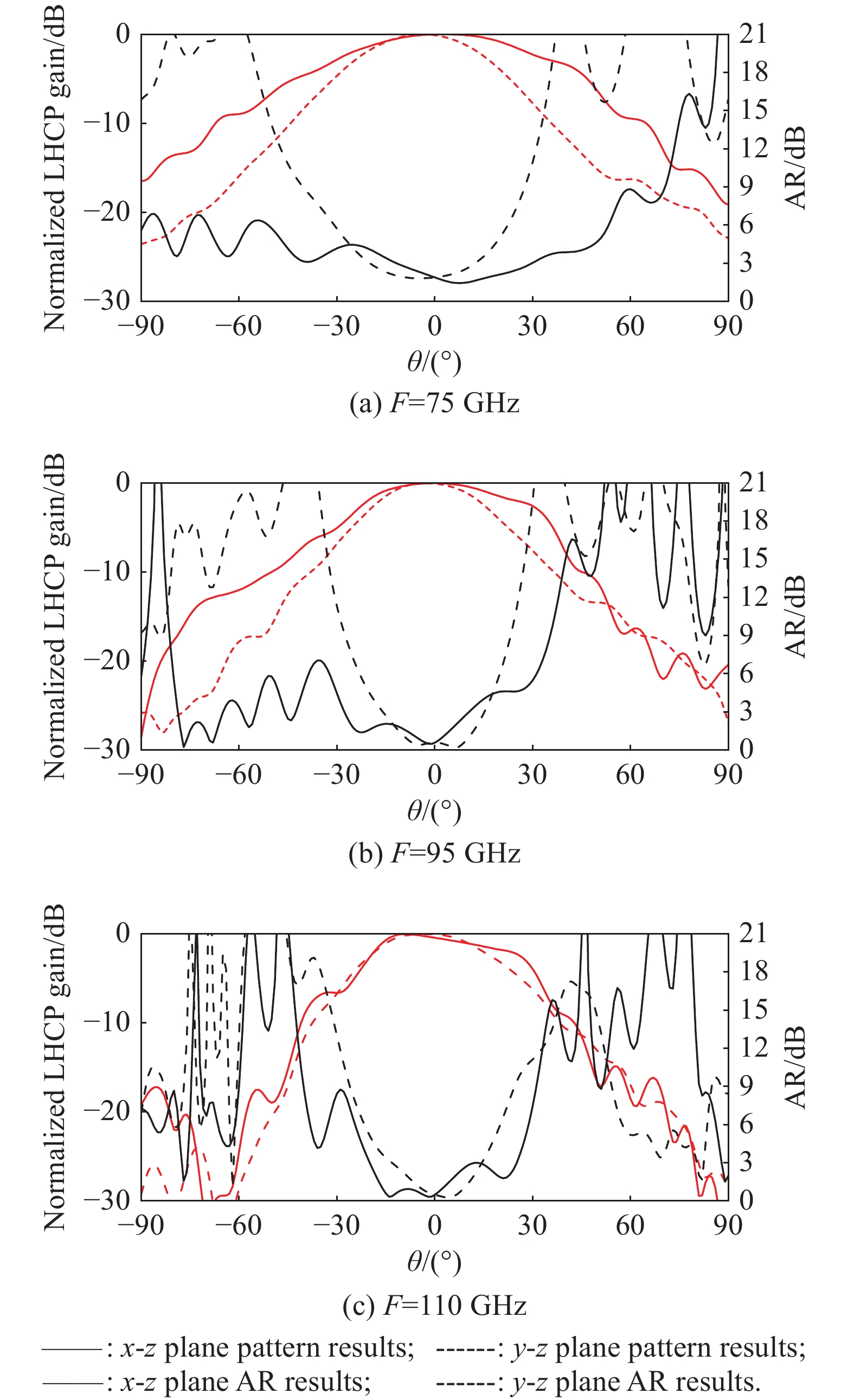

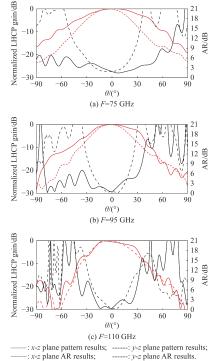

Fig 6

Fig 7

Fig 8

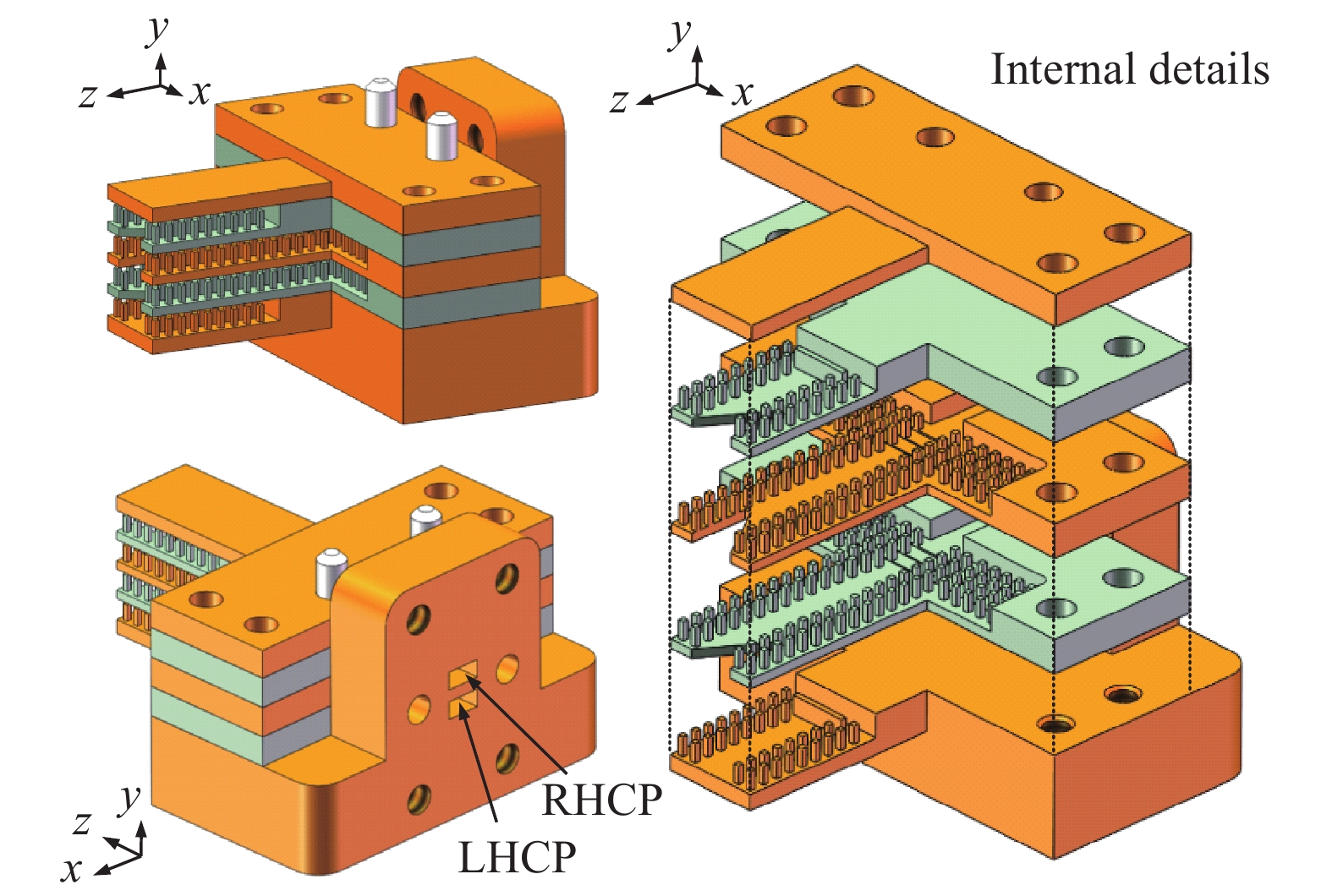

Fig 9

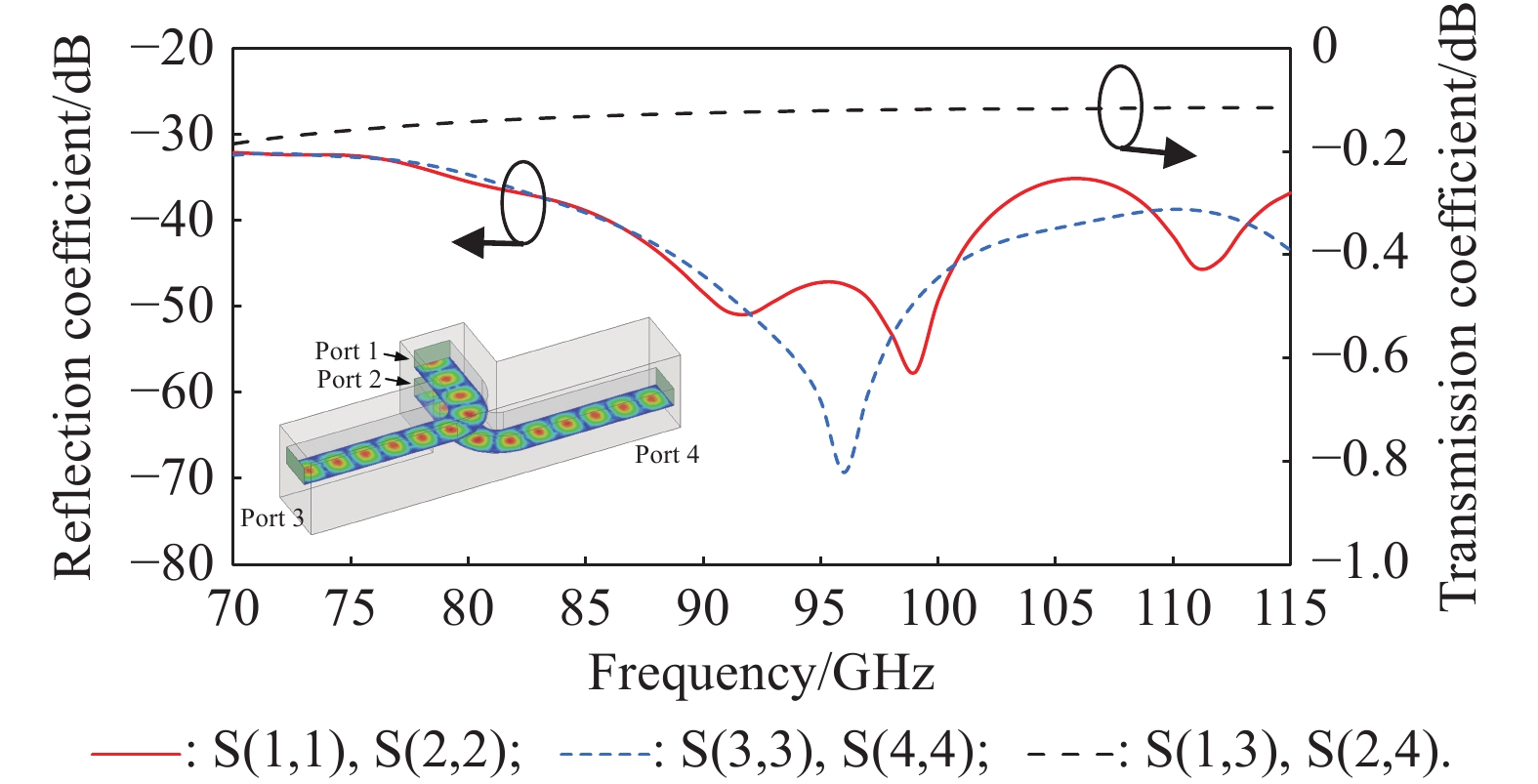

Fig 10

Fig 11

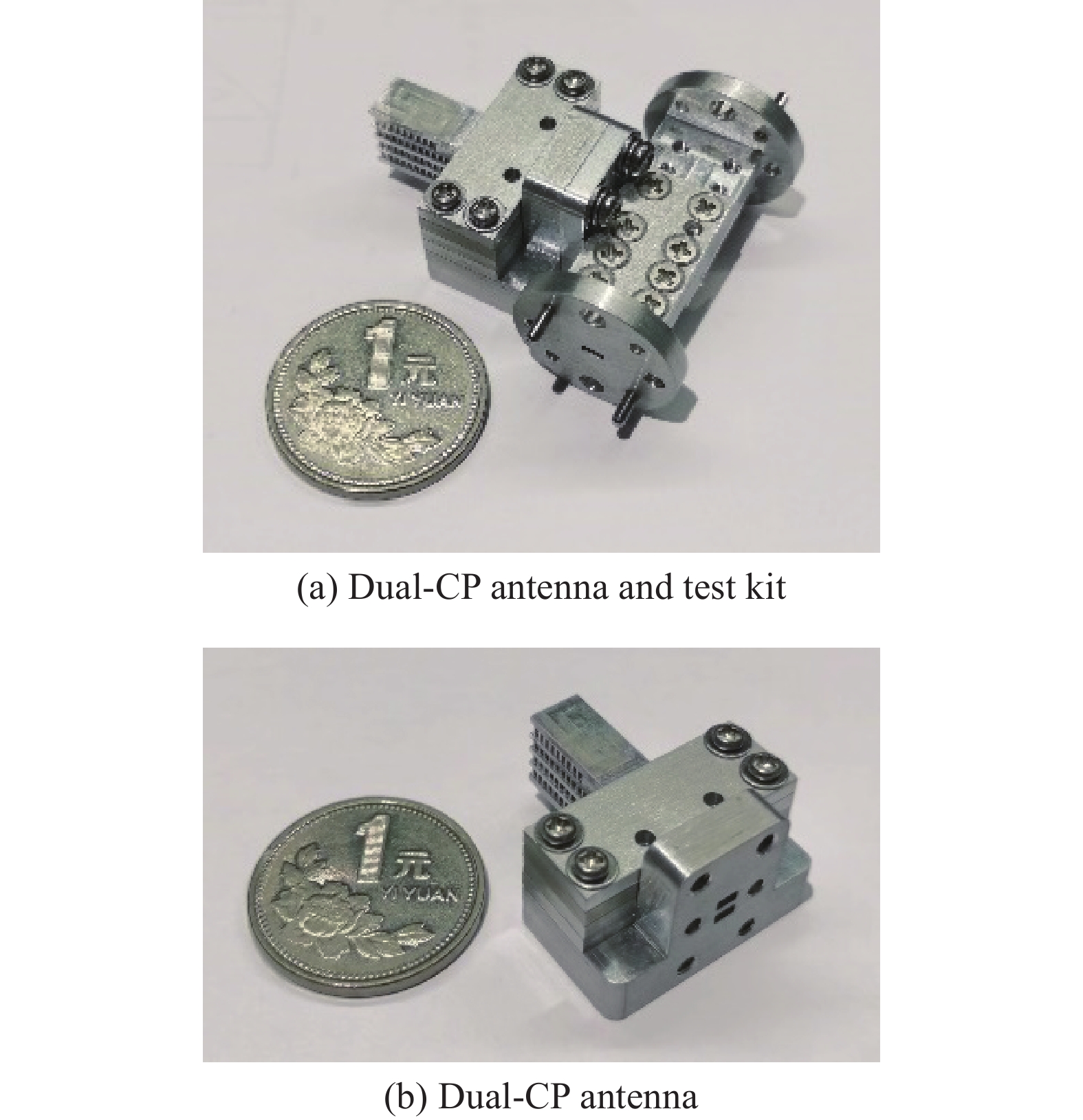

Fig 12

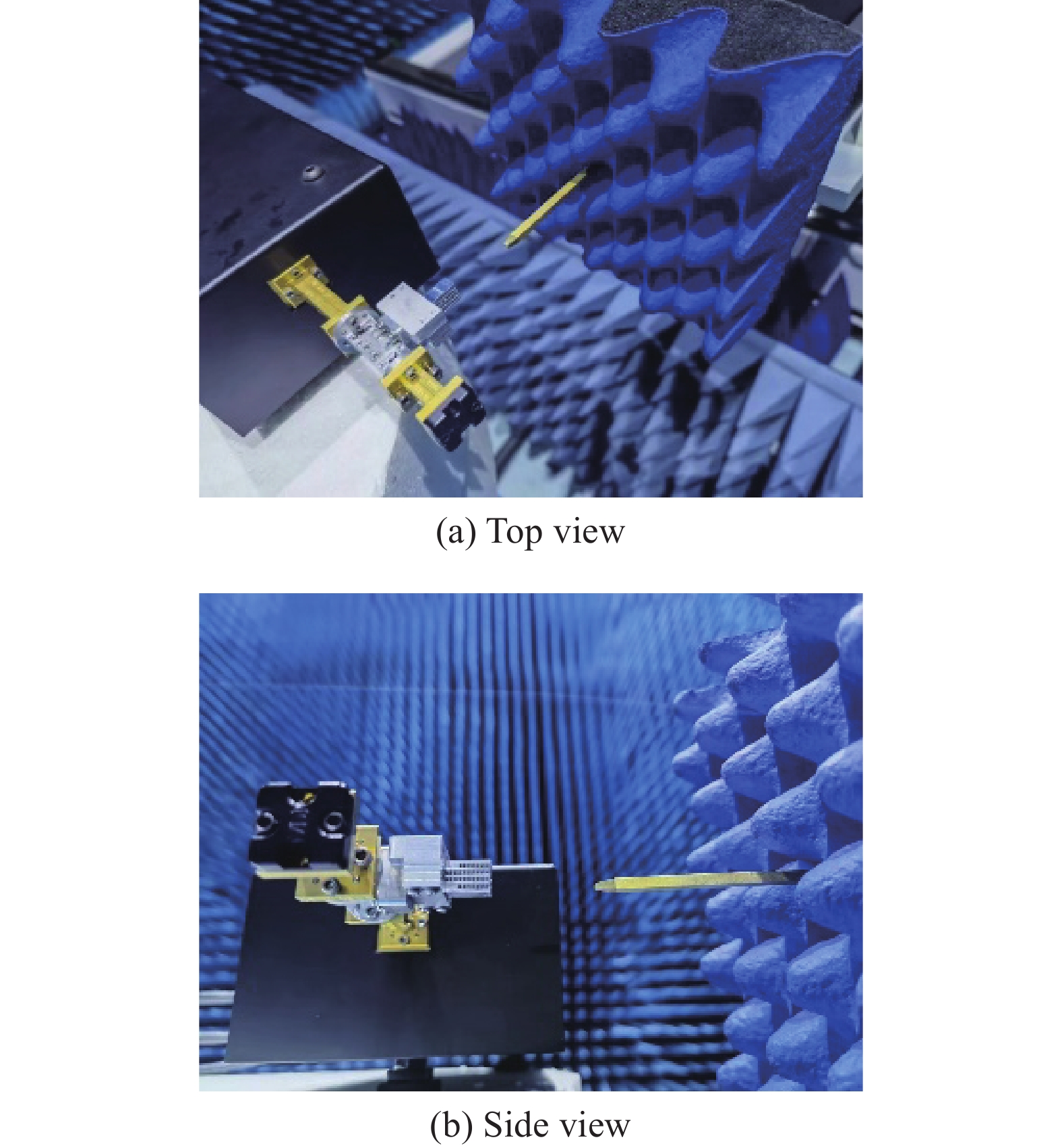

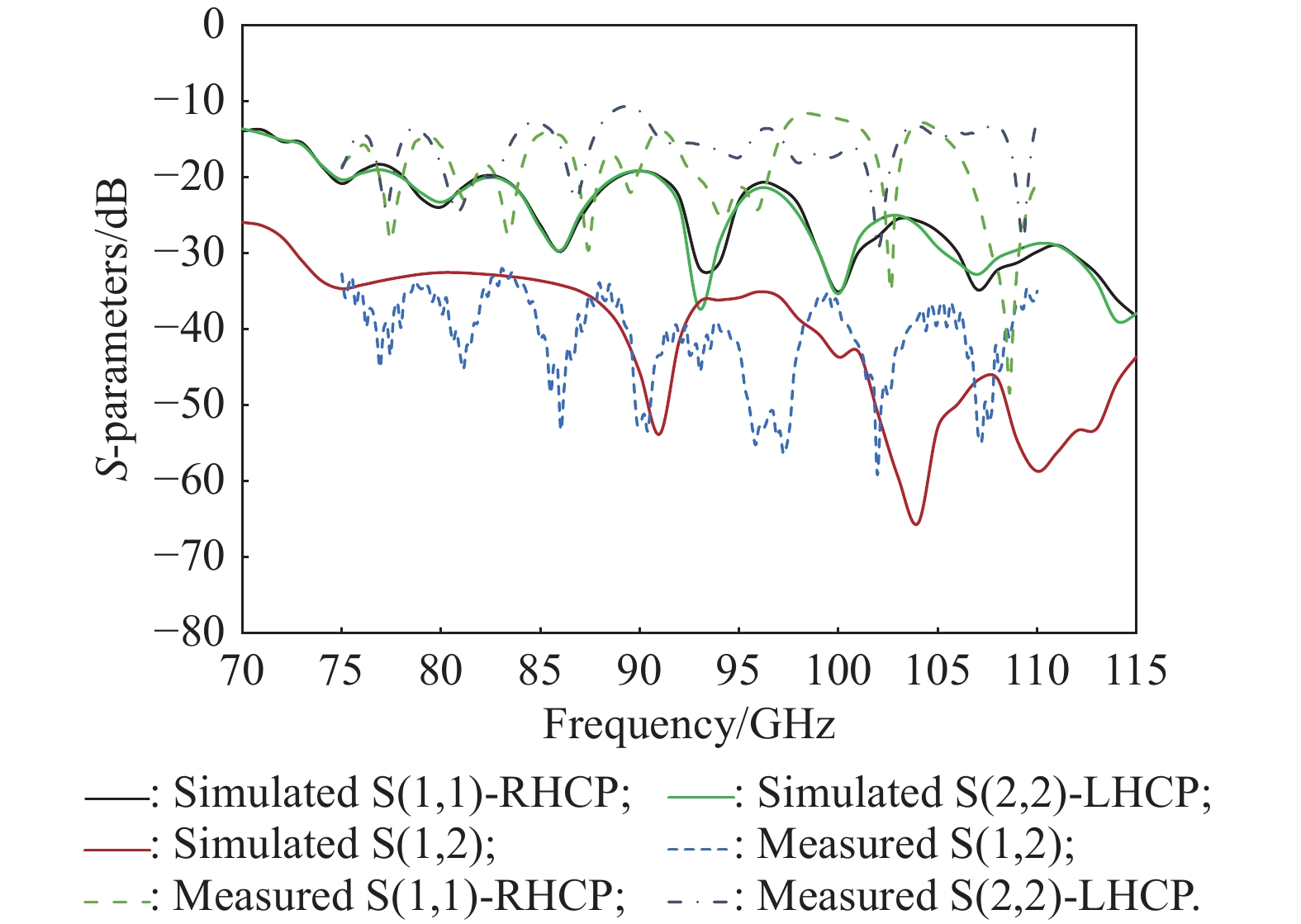

Fig 13

Fig 14

Fig 15

Table 1

References 33

1	SHAFI M, MOLISCH A F, SMITH P J 5G: a tutorial overview of standards, trials, challenges, deployment, and practice. IEEE Journal on Selected Areas in Communications, 2017, 35 (6): 1201- 1221. doi: 10.1109/JSAC.2017.2692307
2	LI A, LUK K M Millimeter-wave dual linearly polarized endfire antenna fed by 180° hybrid coupler. IEEE Antennas and Wireless Propagation Letters, 2019, 18 (7): 1390- 1394. doi: 10.1109/LAWP.2019.2917660
3	ZHANG J, ZHAO K, WANG L, et al Dual polarized phased array with end-fire radiation for 5G handset applications. IEEE Trans. on Antennas and Propagation, 2020, 68 (4): 3277- 3282. doi: 10.1109/TAP.2019.2937584
4	DADGARPOUR A, BAYAT N, ANTONIADES M A, et al A dual-polarized magnetoelectric dipole array based on printed ridge gap waveguide with dual-polarized split-ring resonator lens. IEEE Trans. on Antennas and Propagation, 2020, 68 (5): 3578- 3585. doi: 10.1109/TAP.2020.2964940
5	GAN Z, TU Z H , XIE Z M, et al. Compact wideband circularly polarized microstrip antenna array for 45 GHz application. IEEE Trans. on Antennas and Propagation, 2018, 66(11): 6388–6392.
6	CHEN H K, SHAO Y, ZHANG Y J, et al A low-profile broadband circularly polarized mmWave antenna with special-shaped ring slot. IEEE Antennas and Wireless Propagation Letters, 2019, 18 (7): 1492- 1496. doi: 10.1109/LAWP.2019.2920875
7	LI J W, HU Y, XIANG L, et al Broadband circularly polarized magnetoelectric dipole antenna and array for K-band and Ka-band satellite communications. IEEE Trans. on Antennas and Propagation, 2022, 70 (7): 5807- 5912.
8	WANG J X, LI Y J, GE L, et al Millimeter wave wideband circularly polarized planar complementary source antenna with endfire radiation. IEEE Trans. on Antennas and Propagation, 2018, 66 (7): 3317- 3326. doi: 10.1109/TAP.2018.2829824
9	DING C, LUK K M Wideband high-gain circularly polarized antenna using artificial anisotropic polarizer. IEEE Trans. on Antennas and Propagation, 2019, 67 (10): 6645- 6649.
10	ZHANG Y X, JIAO Y C, ZHANG L Wideband in homogeneous-polarizer loaded circularly polarized SIW horn antenna for broadband millimeter-wave applications. IEEE Antennas and Wireless Propagation Letters, 2019, 18 (7): 1448- 1452. doi: 10.1109/LAWP.2019.2919636
11	LI D Y, JIAO Y C, YU H W, et al Wideband circularly polarized pyramidal horn antenna based on spoof surface plasmon polaritons. IEEE Trans. on Antennas and Propagation, 2021, 69 (4): 2353- 2358. doi: 10.1109/TAP.2020.3019588
12	WU K L, YAO Y, CHENG X H, et al Design of millimeter-wave circularly polarized endfire antenna and multibeam antenna array for wireless applications. IEEE Trans. on Antennas and Propagation, 2021, 69 (12): 8397- 8406. doi: 10.1109/TAP.2021.3083807
13	ROY S S, NAGASEKHAR T, SAHA C, et al Dual band (S-X) ground station antenna for low Earth orbit (LEO) satellite tracking application. IEEE Access, 2022, 10, 80910- 80917.
14	CHENG X H, YAO Y, YU T, et al Analysis and design of a low-cost circularly polarized horn antenna. IEEE Trans. on Antennas and Propagation, 2018, 66 (12): 7363- 7367. doi: 10.1109/TAP.2018.2867024
15	CHENG X H, YAO Y, HIROKAWA J, et al Analysis and design of a wideband endfire circularly polarized septum antenna. IEEE Trans. on Antennas and Propagation, 2018, 66 (11): 5783- 5793.
16	CHENG X H, YAO Y, YU T, et al Compact wideband circularly polarized septum antenna for millimeter-wave applications. IEEE Trans. on Antennas and Propagation, 2020, 68 (11): 7584- 7588. doi: 10.1109/TAP.2020.2981691
17	XU J, HONG W, JIANG Z H, et al Q-band low-profile dual circularly polarized array antenna incorporating linearly polarized substrate integrated waveguide-fed patch subarrays. IEEE Trans. on Antennas and Propagation, 2017, 65 (10): 5200- 5210. doi: 10.1109/TAP.2017.2741065
18	MAO C X, GAO S C, WANG Y, et al Compact broadband dual-sense circularly polarized microstrip antenna array with enhanced isolation. IEEE Trans. on Antennas and Propagation, 2017, 65 (12): 7073- 7082. doi: 10.1109/TAP.2017.2766440
19	YANG Y H, GUO J L, SUN B H, et al The design of dual circularly polarized series-fed arrays. IEEE Trans. on Antennas and Propagation, 2019, 67 (1): 574- 579. doi: 10.1109/TAP.2018.2879775
20	YANG Y H, SUN B H, GUO J L A low-cost single-layer dual circularly polarized antenna for millimeter-wave applications. IEEE Antennas and Wireless Propagation Letters, 2020, 18 (4): 651- 655.
21	LIU Y, YUE Z Z, JIA Y T, et al Dual-band dual-circularly polarized antenna array with printed ridge gap waveguide. IEEE Trans. on Antennas and Propagation, 2021, 69 (8): 5118- 5123. doi: 10.1109/TAP.2020.3048504
22	ZHAO Y, LUK K M Dual circular-polarized SIW-fed high-gain scalable antenna array for 60 GHz applications. IEEE Trans. on Antennas and Propagation, 2018, 66 (3): 1288- 1298. doi: 10.1109/TAP.2018.2797530
23	WU Q, HIROKAWA J, YIN J X, et al Millimeter-wave multibeam endfire dual-circularly polarized antenna array for 5G wireless applications. IEEE Trans. on Antennas and Propagation, 2018, 66 (9): 4930- 4935. doi: 10.1109/TAP.2018.2851667
24	GUO W L, WANG G M, JI W Y, et al Broadband spin-decoupled metasurface for dual-circularly polarized reflector antenna design. IEEE Trans. on Antennas and Propagation, 2020, 68 (5): 3534- 3543. doi: 10.1109/TAP.2020.2963945
25	SHU C, WANG J B, HU S Q, et al A wideband dual-circular-polarization horn antenna for mmWave wireless communications. IEEE Antennas And Wireless Propagation Letters, 2019, 18 (9): 1726- 1730.
26	DEUTSCHMANN B, JACOB A F Broadband septum polarizer with triangular common port. IEEE Trans. on Microwave Theory Technology, 2020, 68 (2): 693- 700. doi: 10.1109/TMTT.2019.2951138
27	LUO N N, YU X H, MISHRA G, et al A millimeter-wave V-band dual-circular-polarized horn antenna based on an inbuilt monogroove polarizer. IEEE Antennas And Wireless Propagation Letters, 2020, 19 (11): 1933- 1937. doi: 10.1109/LAWP.2020.3015745
28	REN Q N, ZAMAN A U, YANG J Dual-circularly polarized array antenna based on gap waveguide utilizing double-grooved circular waveguide polarizer. IEEE Trans. on Antennas and Propagation, 2022, 70 (11): 10436- 10444. doi: 10.1109/TAP.2022.3195458
29	SHU C, HU S Q, CHENG X H, et al Wideband dual-circular-polarization antenna with high isolation for millimeter-wave wireless communications. IEEE Trans. on Antennas and Propagation, 2022, 70 (3): 1750- 1763. doi: 10.1109/TAP.2021.3118837
30	CHENG X H, YAO Y, YU T, et al Wideband dual circularly polarized antipodal septum antenna for millimeter wave applications. IEEE Trans. on Antennas and Propagation, 2021, 69 (6): 3549- 3554. doi: 10.1109/TAP.2020.3037768
31	YANG Y H, SHAO C, ZHANG H F, et al A wideband endfire dual circularly polarized antenna for 5G millimeter-wave applications. IEEE Antennas and Wireless Propagation Letters, 2022, 21 (10): 2000- 2004. doi: 10.1109/LAWP.2022.3187859
32	ROCHER M F, HERRUZO J I H, NOGUEIRA A V, et al 8×8 Ka-band dual-polarized array antenna based on gap waveguide technology. IEEE Trans. on Antennas and Propagation, 2019, 67 (7): 4579- 4588. doi: 10.1109/TAP.2019.2908109
33	ROCHER M F, HERRUZO J I H, NOGUEIRA A V, et al. Dual circularly polarized aperture array antenna in gap waveguide for high-efficiency Ka-band satellite communications. IEEE Open Journal of Antennas Propagations, 2020, 1(1): 283–289.

Reference	Polarization	Feeding line	Frequency/GHz	Bandwidth/%	AR/dB	Isolation/dB	Antenna size (${\lambda _{\text{H}}}$)	Gain/dBic
[8]	RHCP	SIW	22.5−34	41	<3	−	0.86×0.18	≥10.1
[15]	RHCP	RW	50−75	40	<2.5	−	0.94×1.25	≥9.73
[16]	LHCP	DRRW	60−74	20.9	<3	−	0.74×1.02	≥9.1
This work^*	LHCP	GWG	75−110	37.8	<1.9	−	2.31×2.56	≥10.16
[25]	LHCP& RHCP	CW	76.8−94.7	21	<5.8	>20	3.63×3.63	≥16.3
[26]	LHCP& RHCP	TW	18−26	37.8	<1.3	>17	0.94×0.94	−
[27]	LHCP& RHCP	CW	54−60	10.5	<2.2	>25	2×2	−
[29]	LHCP& RHCP	CW	80−110	31.6	<2.8	>32.5	5.13×5.13	≥17.6
[30]	LHCP& RHCP	RW	50−75	40	<3	>22	1.75×1.97	≥5.9
This work	LHCP& RHCP	GWG	75−110	37.8	≤2.9	≥32	2.31×3.34	≥9.2
