Torque estimation for robotic joint with harmonic drive transmission based on system dynamic characteristics

doi:10.23919/JSEE.2022.000151

Journal of Systems Engineering and Electronics ›› 2022, Vol. 33 ›› Issue (6): 1320-1331.doi: 10.23919/JSEE.2022.000151

• CONTROL THEORY AND APPLICATION • Previous Articles

Torque estimation for robotic joint with harmonic drive transmission based on system dynamic characteristics

Minghong ZHU¹^,*(), Shu XIAO², Fei YU³

¹ Faculty of Electrical Engineering and Computer Science, Ningbo University, Ningbo 315211, China
² College of Intelligent Systems Science and Engineering, Harbin Engineering University, Harbin 150001, China
³ College of Mathematical Sciences, Harbin Engineering University, Harbin 150001, China

Received:2021-04-12 Online:2022-12-18 Published:2022-12-24
Contact: Minghong ZHU E-mail:zhumh0109@163.com
About author:
ZHU Minghong was born in 1989. She received her B.E. and Ph.D. degrees from Harbin Engineering University, Harbin, China, in 2013 and 2020, respectively. She is currently a lecturer of Faculty of Electrical Engineering and Computer Science, Ningbo University, Ningbo, China. Her research interests focus on robot joint control and multi-sensor integrated navigation technology. E-mail: zhumh0109@163.com

XIAO Shu was born in 1990. He received his B.E. degree from Harbin Engineering University, Harbin, China, in 2013. Now he is a Ph.D. candidate at Harbin Engineering University. His research interests include robot joint modeling and linear and nonlinear filtering. E-mail: xiaoshu@hrbeu.edu.cn

YU Fei was born in 1974. He received his B.S. degree from Dalian University of Technology, Dalian, China, in 1997, and M.E. and Ph.D. degrees from Harbin Engineering University, Harbin, China, in 2003 and 2005, respectively. He is currently a professor of the College of Mathematical Sciences, Harbin Engineering University, Harbin, China. His research interests focus on ship strapdown inertial navigation technology and integrated navigation technology, including inertial measurement technology, integrated navigation technology of carrier, optimization techniques, high-frequency techniques and other communication skills for ship navigation. E-mail: yufei414@126.com
Supported by:
This work was supported by the National Natural Science Foundation of China (51879055).

Abstract

Abstract:

In the applications of joint control and robot movement, the joint torque estimation has been treated as an effective technique and widely used. Researches are made to analyze the kinematic and compliance model of the robot joint with harmonic drive to acquire high precision torque output. Through analyzing the structures of the harmonic drive and experiment apparatus, a scheme of the proposed joint torque estimation method based on both the dynamic characteristics and unscented Kalman filter (UKF) is designed and built. Based on research and scheme, torque estimation methods in view of only harmonic drive compliance model and compliance model with the Kalman filter are simulated as guidance and reference to promote the research on the torque estimation technique. Finally, a promoted torque estimation method depending on both harmonic drive compliance model and UKF is designed, and simulation results compared with the measurements of a commercial torque sensor, have verified the effectiveness of the proposed method.

Key words: harmonic drive, torque estimation, compliance model, unscented Kalman filter (UKF)

Minghong ZHU, Shu XIAO, Fei YU. Torque estimation for robotic joint with harmonic drive transmission based on system dynamic characteristics[J]. Journal of Systems Engineering and Electronics, 2022, 33(6): 1320-1331.

Figures/Tables 20

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Table 1

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

Fig 11

Fig 12

Fig 13

Fig 14

Fig 15

Fig 16

Fig 17

Fig 18

Table 2

References 28

1	AGHILI F, NAMVAR M Adaptive control of manipulators using uncalibrated joint-torque sensing. IEEE Trans. on Robotics, 2006, 22 (4): 854- 860. doi: 10.1109/TRO.2006.875489
2	YANG G C, LIU Y C, JIN M H A new control method of flexible-joint manipulator with harmonic drive. Proc. of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science, 2020, 234 (9): 1868- 1883. doi: 10.1177/0954406219899697
3	RAMADURAI S, KOSARI S N, KING H H, et al Application of unscented Kalman filter to a cable driven surgical robot: a simulation study. Proc. of the IEEE International Conference on Robotics and Automation, 2012, 1495- 1500.
4	ULRICH S, SASIADEK J Z Extended Kalman filtering for flexible joint space robot control. Proc. of the American Control Conference, 2011, 1021- 1026.
5	HE W, GAO H J, ZHOU C, et al Reinforcement learning control of a flexible two-link manipulator: an experimental investigation. IEEE Trans. on Systems, Man, and Cybernetics: Systems, 2021, 51 (12): 7326- 7336.
6	TSETSERUKOU D, TADAKUMA R, KAJIMOTO H, et al Optical torque sensors for implementation of local impedance control of the arm of humanoid robot. Proc. of the IEEE International Conference on Robotics and Automation, 2006, 1674- 1679.
7	JUNG B, KIM B, KOO J C, et al Joint torque sensor embedded in harmonic drive using order tracking method for robotic application. IEEE/ASME Trans. on Mechatronics, 2017, 22 (4): 1594- 1599. doi: 10.1109/TMECH.2017.2694039
8	PAN X N, WANG H G, JIANG Y A Torque measuring method for robot joints with harmonic drives. Advanced Materials Research, 2013, 694/697, 981- 986.
9	ZHANG H X, RYOO Y J, BYUN K S Development of torque sensor with high sensitivity for joint of robot manipulator using 4-Bar linkage shape. Sensors, 2016, 16 (7): 991. doi: 10.3390/s16070991
10	LIU G, ABDUL S, GOLDENBERG A A Distributed modular and reconfigurable robot control with torque sensing. Proc. of the International Conference on Mechatronics and Automation, 2006, 384- 389.
11	LIU G J, ABDUL S, GOLDENBERG A A Distributed control of modular and reconfigurable robot with torque sensing. Robotica, 2008, 26 (1): 75- 84. doi: 10.1017/S0263574707003608
12	ZHANG H W, AHMAD S, LIU G J Torque estimation technique of robotic joint with harmonic drive transmission. Proc. of the IEEE International Conference on Robotics and Automation, 2013, 3034- 3039.
13	ZHANG H W, AHMAD S, LIU G J Torque estimation for robotic joint with harmonic drive transmission based on position measurements. IEEE Trans. on Robotics, 2015, 31 (2): 322- 330. doi: 10.1109/TRO.2015.2402511
14	LIGHTCAP C A, BANKS S A An extended Kalman filter for real-time estimation and control of a rigid-link flexible-joint manipulator. IEEE Trans. on Control Systems Technology, 2010, 18 (1): 91- 103. doi: 10.1109/TCST.2009.2014959
15	NAERUM E, KING H H, HANNAFORD B Robustness of the unscented Kalman filter for state and parameter estimation in an elastic transmission. Robotics: Science and Systems, 2010, 5, 193- 200.
16	YU F, XIAO S, ZHU M H, et al A novel method to improve the accuracy of torque estimation for robotic joint with harmonic drive transmission. Engineering Letters, 2018, 26 (4): 455- 460.
17	TECHNOLOGIES H D. CSD and SHD ultra-flat component sets and gearheads. https://www.harmonicdrive.net/_hd/content/catalogs/pdf/csd-shd-catalog.pdf.
18	ZHANG H W, AHMAD S, LIU G J Modeling of torsional compliance and hysteresis behaviors in harmonic drives. IEEE/ASME Trans. on Mechatronics, 2015, 20 (1): 178- 185. doi: 10.1109/TMECH.2014.2311382
19	KIRCANSKI N M, GOLDENBERG A A An experimental study of nonlinear stiffness, hysteresis, and friction effects in robot joints with harmonic drives and torque sensors. The International Journal of Robotics Research, 1997, 16 (2): 214- 239. doi: 10.1177/027836499701600207
20	RUDERMAN M, HOFFMANN F, BERTRAM T Modeling and identification of elastic robot joints with hysteresis and backlash. IEEE Trans. on Industrial Electronics, 2009, 56 (10): 3840- 3847. doi: 10.1109/TIE.2009.2015752
21	SHI Z G, LIU G J Torque estimation of robot joint with harmonic drive transmission using a redundant adaptive robust extended Kalman filter. Proc. of the International Conference on Robotics and Automation, 2014, 6382- 6387.
22	SEO J, YU M J, PARK C G, et al An extended robust H_∞ filter for nonlinear constrained uncertain systems . IEEE Trans. on Signal Processing, 2006, 54 (11): 4471- 4475. doi: 10.1109/TSP.2006.880308
23	SZABAT K, WROBEL K, DROD K, et al A fuzzy unscented Kalman filter in the adaptive control system of a drive system with a flexible joint. Energies, 2020, 13 (8): 2056- 2074. doi: 10.3390/en13082056
24	YAN Y S, YU L T, LI C S, et al UKF-based motion estimation of cable-driven forceps for robot-assisted surgical system. IEEE Access, 2020, 8, 94912- 94922. doi: 10.1109/ACCESS.2020.2992457
25	HAGHIGHIPANAH M, LI Y, MIYASAKA M, et al Improving position precision of a servo-controlled elastic cable driven surgical robot using unscented Kalman filter. Proc. of the IEEE/RSJ International Conference on Intelligent Robots & Systems, 2015, 2030- 2036.
26	HAGHIGHIPANAH M, MIYASAKA M, LI Y, et al Unscented Kalman filter and 3D vision to improve cable driven surgical robot joint angle estimation. Proc. of the IEEE International Conference on Robotics & Automation, 2016, 4135- 4142.
27	URREA C, MUNOZ R Joints position estimation of a redundant Scara robot by means of the unscented Kalman filter and inertial sensors. Asian Journal of Control, 2016, 18 (2): 481- 493. doi: 10.1002/asjc.1111
28	ROYA E, ESMAEIL A M Nonlinear H_∞ control for uncertain flexible joint robots with unscented Kalman filter . Journal of Artificial Intelligence in Electrical Engineering, 2014, 2 (8): 40- 47.

Model	Maximum torque difference/(N·m)	RMS of the torque difference/(N·m)	Maximum position difference/(°)

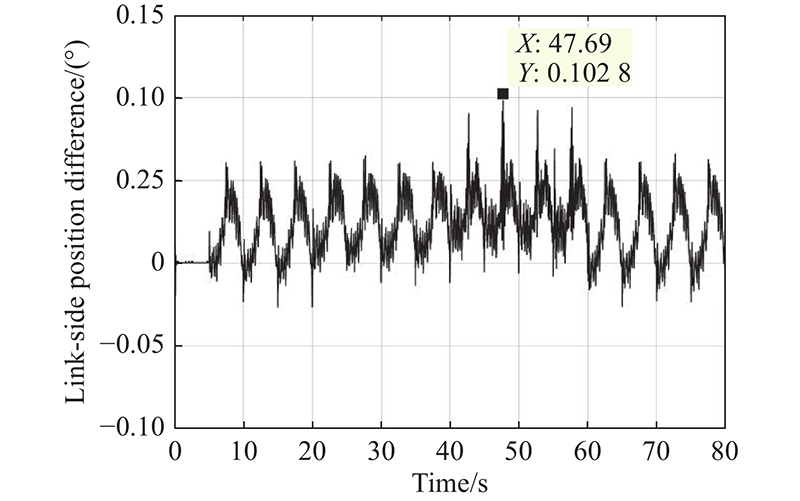

CM	1.754	0.6022	0.1028
CM-KF	2.132	0.1949	0.02957
CM-UKF	0.5793	0.0626	0.004222

Model	Maximum torque difference/(N·m)	RMS of the torque difference/(N·m)	Maximum position difference/(°)
CM	2.430	1.1723	0.2188
CM-KF	5.232	2.9487	0.06391

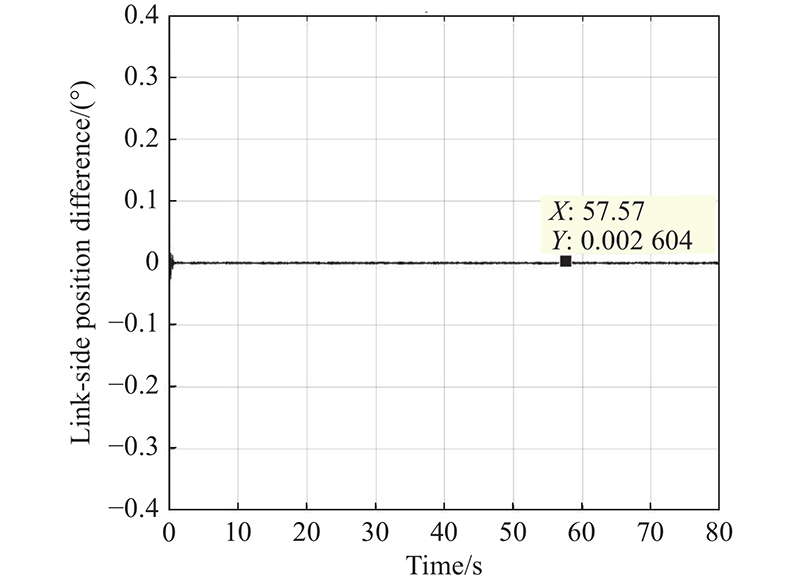

CM-UKF	1.034	0.0482	0.0002604
