Deep neural network based classification of rolling element bearings and health degradation through comprehensive vibration signal analysis

doi:10.23919/JSEE.2022.000023

Journal of Systems Engineering and Electronics ›› 2022, Vol. 33 ›› Issue (1): 233-246.doi: 10.23919/JSEE.2022.000023

• RELIABILITY • Previous Articles

Deep neural network based classification of rolling element bearings and health degradation through comprehensive vibration signal analysis

Kwame Bensah KULEVOME Delanyo^1,², Hong WANG^1,^2,*(), Xuegang WANG¹()

¹ School of Information and Communication Engineering, University of Electronic Science and Technology of China, Chengdu 611731, China
² Yangtze Delta Region Institute (Huzhou), University of Electronic Science and Technology of China, Huzhou 313001, China

Received:2020-11-10 Accepted:2021-11-25 Online:2022-01-18 Published:2022-02-22
Contact: Hong WANG E-mail:hongw@uestc.edu.cn;xgwang@uestc.edu.cn
About author:|KULEVOME Delanyo Kwame Bensah was born in 1983. He received his B.Eng. degree from Accra Institute of Technology and M.Eng. degree in electronic science and technology in 2019 from University of Electronic Science and Technology of China, Chengdu, China, where he is currently pursuing his Ph.D. degree in information and communication engineering. His research interests include prognostics and health management of systems, signal processing, and deep learning. E-mail: kdelanyo@ieee.org||WANG Hong was born in 1974. He received his B.S., M.S., and Ph.D. degrees from Northwestern Polytechnical University, Chongqing University, and University of Electronic Science and Technology of China (UESTC), respectively. He has been a faculty member with UESTC since 2003. From 2007 to 2009 he was engaged in doctoral research with the Second Research Institute of Civil Aviation Administration. From 2009 to 2010 he was a research scholar with Polytechnic Institute of New York University and a research assistant with New Jersey Institute of Technology, USA. His present areas of interest include radar signal processing, avionics, aeronautical telecommunication, and surveillance technologies in ATC. E-mail: hongw@uestc.edu.cn||WANG Xuegang was born in 1962. He received his Ph.D. degree from Xidian University in 1992. He is now a professor and Ph.D. supervisor with University of Electronic Science and Technology of China. His research interests include radar signal processing, and millimeter wave radar. E-mail: xgwang@uestc.edu.cn
Supported by:
This work was supported by the National Natural Science Foundation of China (42027805), National Aeronautical Fund (ASFC-2017 2080005) and National Key R&D Program of China (2017YFC03 07100)

Abstract

Abstract:

Rolling element bearings are machine components used to allow circular movement and hence deliver forces between components of machines used in diverse areas of industry. The likelihood of failure has the propensity of increasing under prolonged operation and varying working conditions. Hence, the accurate fault severity categorization of bearings is vital in diagnosing faults that arise in rotating machinery. The variability and complexity of the recorded vibration signals pose a great hurdle to distinguishing unique characteristic fault features. In this paper, the efficacy and the leverage of a pre-trained convolutional neural network (CNN) is harnessed in the implementation of a robust fault classification model. In the absence of sufficient data, this method has a high-performance rate. Initially, a modified VGG16 architecture is used to extract discriminating features from new samples and serves as input to a classifier. The raw vibration data are strategically segmented and transformed into two representations which are trained separately and jointly. The proposed approach is carried out on bearing vibration data and shows high-performance results. In addition to successfully implementing a robust fault classification model, a prognostic framework is developed by constructing a health indicator (HI) under varying operating conditions for a given fault condition.

Key words: bearing failure, deep neural network, fault classification, health indicator, prognostics and health management

Kwame Bensah KULEVOME Delanyo, Hong WANG, Xuegang WANG. Deep neural network based classification of rolling element bearings and health degradation through comprehensive vibration signal analysis[J]. Journal of Systems Engineering and Electronics, 2022, 33(1): 233-246.

Figures/Tables 29

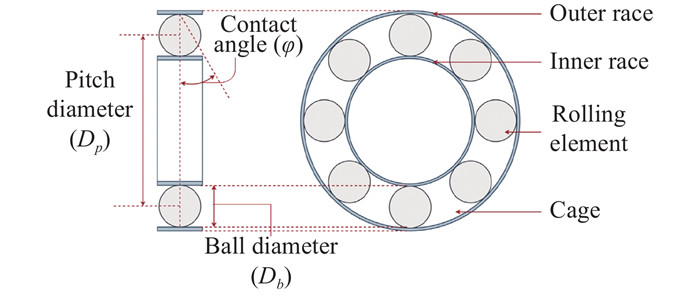

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Table 1

Table 2

Fig 6

Table 3

Fig 7

Table 4

Fig 8

Fig 9

Fig 10

Table 5

Table 6

Fig 11

Fig 12

Fig 13

Fig 14

Fig 15

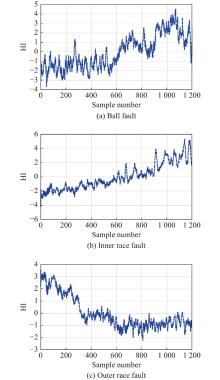

Fig 16

Fig 17

References 39

1	HARRIS T A. Rolling bearing analysis. New York: John Wiley & Sons, 2001.
2	ISLAM M M, KIM J M Reliable multiple combined fault diagnosis of bearings using heterogeneous feature models and multiclass support vector machines. Reliability & Engineering Systems Safety, 2019, 184, 55- 66.
3	SAMANTA B, AL-BALUSHI K R, AL-ARAIMI S A Artificial neural networks and genetic algorithm for bearing fault detection. Soft Computing, 2006, 10 (3): 264- 271. doi: 10.1007/s00500-005-0481-0
4	LEI Y G, LI N P, GUO L, et al Machinery health prognostics: a systematic review from data acquisition to RUL prediction. Mechanical Systems and Signal Processing, 2018, 104, 799- 834. doi: 10.1016/j.ymssp.2017.11.016
5	AHMED H, NANDI A K. Condition monitoring with vibration signals: compressive sampling and learning algorithms for rotating machines. Hoboken: John Wiley & Sons, 2019.
6	MCCORMICK A C, NANDI A K. A comparison of artificial neural networks and other statistical methods for rotating machine condition classification. IEE Colloquium on Modeling and Signal Processing for Fault Diagnosis, 1996. DOI:10.1049/ic:19961372.
7	PRIYA V S, MAHALAKSHMI P, NAIDU V P S Bearing health condition monitoring: wavelet decomposition. Indian Journal of Science and Technology, 2015, 8 (26): 1- 7.
8	NAYANA B R, GEETHANJALI P Analysis of statistical time-domain features effectiveness in identification of bearing faults from vibration signal. IEEE Sensors Journal, 2017, 17 (17): 5618- 5625. doi: 10.1109/JSEN.2017.2727638
9	MCFADDEN P D, TOOZHY M M Application of synchronous averaging to vibration monitoring of rolling element bearings. Mechanical Systems and Signal Processing, 2000, 14 (6): 891- 906. doi: 10.1006/mssp.2000.1290
10	AYAZ E Autoregressive modeling approach of vibration data for bearing fault diagnosis in electric motors. Journal of Vibroengineering, 2014, 16 (5): 2130- 2138.
11	LI X H, FU P Rolling bearing fault diagnosis based on one-dimension blind source separation. Journal of Electronic Measurement and Instrumentation, 2014, 27 (6): 535- 542. doi: 10.3724/SP.J.1187.2013.00535
12	PATIDAR S, SONI P An overview on vibration analysis techniques for the diagnosis of rolling element bearing faults. International Journal of Engineering Trends and Technology, 2013, 4 (5): 1804- 1809.
13	TIAN J, MORILLO C, AZARIAN M H, et al Motor bearing fault detection using spectral kurtosis-based feature extraction coupled with k-nearest neighbor distance analysis . IEEE Trans. on Industrial Electronics, 2015, 63 (3): 1793- 1803.
14	WANG Y X, XIANG J W, MARKERT R, et al Spectral kurtosis for fault detection, diagnosis and prognostics of rotating machines: a review with applications. Mechanical Systems and Signal Processing, 2016, 66, 679- 698.
15	TSAO W C, LI Y F, DU LE D, et al An insight concept to select appropriate IMFs for envelope analysis of bearing fault diagnosis. Measurement, 2012, 45 (6): 1489- 1498. doi: 10.1016/j.measurement.2012.02.030
16	BRANDT A. Noise and vibration analysis: signal analysis and experimental procedures. New York: John Wiley & Sons, 2011.
17	LIU H M, LI L F, MA J Rolling bearing fault diagnosis based on STFT-deep learning and sound signals. Shock and Vibration, 2016, 1- 12.
18	KANKAR P K, SHARMA S C, HARSHA S P Fault diagnosis of ball bearings using continuous wavelet transform. Applied Soft Compututing, 2011, 11 (2): 2300- 2312. doi: 10.1016/j.asoc.2010.08.011
19	DYBAŁA J, ZIMROZ R Rolling bearing diagnosing method based on empirical mode decomposition of machine vibration signal. Applied Acoustics, 2014, 77, 195- 203. doi: 10.1016/j.apacoust.2013.09.001
20	PANG B, TANG G J, TIAN T, et al Rolling bearing fault diagnosis based on an improved HTT transform. Sensors, 2018, 18 (4): 1203. doi: 10.3390/s18041203
21	WEI Z X, WANG Y X, HE S L, et al A novel intelligent method for bearing fault diagnosis based on affinity propagation clustering and adaptive feature selection. Knowledge-Based Systems, 2017, 116, 1- 12. doi: 10.1016/j.knosys.2016.10.022
22	LIU R N, YANG B Y, ZIO E, et al Artificial intelligence for fault diagnosis of rotating machinery: a review. Mechanical Systems and Signal Processing, 2018, 108, 33- 47. doi: 10.1016/j.ymssp.2018.02.016
23	ZHANG S, ZHANG S B, WANG B N, et al Deep learning algorithms for bearing fault diagnosticsx–a comprehensive review. IEEE Access, 2020, 8, 29857- 29881. doi: 10.1109/ACCESS.2020.2972859
24	JANSSENS O, SLAVKOVIKJ V, VERVISCH B, et al Convolutional neural network based fault detection for rotating machinery. Journal of Sound and Vibration, 2016, 377, 331- 345. doi: 10.1016/j.jsv.2016.05.027
25	SHAO H D, JIANG H K, ZHAO H W, et al A novel deep autoencoder feature learning method for rotating machinery fault diagnosis. Mechanical Systems and Signal Processing, 2017, 95, 187- 204. doi: 10.1016/j.ymssp.2017.03.034
26	MENG Z, ZHAN X Y, LI J, et al An enhancement denoising autoencoder for rolling bearing fault diagnosis. Measurement, 2018, 130, 448- 454. doi: 10.1016/j.measurement.2018.08.010
27	KONG X G, MAO G, WANG Q B, et al A multi-ensemble method based on deep auto-encoders for fault diagnosis of rolling bearings. Measurement, 2020, 151, 107132. doi: 10.1016/j.measurement.2019.107132
28	ZHAO B, ZHANG X M, ZHAN Z H, et al Deep multi-scale convolutional transfer learning network: a novel method for intelligent fault diagnosis of rolling bearings under variable working conditions and domains. Neurocomputing, 2020, 407, 24- 38. doi: 10.1016/j.neucom.2020.04.073
29	GUO L, LEI Y G, XING S B, et al Deep convolutional transfer learning network: a new method for intelligent fault diagnosis of machines with unlabeled data. IEEE Trans. on Industrial Electronics, 2019, 66 (9): 7316- 7325. doi: 10.1109/TIE.2018.2877090
30	WANG X, SHEN C Q, XIA M, et al Multi-scale deep intra-class transfer learning for bearing fault diagnosis. Reliability Engineering & System Safety, 2020, 202, 107050.
31	KHAN S, YAIRI T A review on the application of deep learning in system health management. Mechanical Systems and Signal Processing, 2018, 107, 241- 265. doi: 10.1016/j.ymssp.2017.11.024
32	SIMONYAN K, ZISSERMAN A. Very deep convolutional networks for large-scale image recognition. Proc. of the 3rd International Conference on Learning Representations, 2015. DOI: arXiv:1409.1556.
33	HE K M, ZHANG X Y, REN S Q, et al Deep residual learning for image recognition. Proc. of the IEEE Conference on Computer Vision and Pattern Recognition, 2016, 770- 778.
34	NYKAZA E T, NETCHAEV A, BUNKLEY S, et al Objectively choosing spectrogram parameters to classify environmental noises. INTER-NOISE and NOISE-CON Congress and Conference Proceedings, 2016, 253 (1): 7336- 7343.
35	SMITH W A, RANDALL R B Rolling element bearing diagnostics using the Case Western Reserve University data: a benchmark study. Mechanical Systems and Signal Processing, 2015, 64, 100- 131.
36	AN F-P Rolling bearing fault diagnosis algorithm based on FMCNN-sparse representation. IEEE Access, 2019, 7, 102249- 102263. doi: 10.1109/ACCESS.2019.2931616
37	ZHAO B, ZHANG X M, LI H, et al Intelligent fault diagnosis of rolling bearings based on normalized CNN considering data imbalance and variable working conditions. Knowledge-Based Systems, 2020, 199, 105971. doi: 10.1016/j.knosys.2020.105971
38	CHEN X H, ZHANG B K, GAO D Bearing fault diagnosis base on multi-scale CNN and LSTM model. Journal of Intelligent Manufacturing, 2020, 1- 17.
39	BLOCH H P, GEITNER F K. Machinery failure analysis and troubleshooting. Waltham: Elsevier, 2012.

Parameter	Value
Type	6205-2RS JEM SKF
Inside diameter/mm	25
Outside diameter/mm	52
Thickness/mm	15
Ball diameter/mm	8
Pitch diameter/mm	34.35
Fatigue load/kN	0.335

Bearing operating condition	Length of data
Bearing operating condition	0 hp	3 hp
Normal	240 000	480 000
Ball, inner, and outer race fault	120 000	120 000

Bearing operating condition	Diameter of faults/ mm	Size of segment				Class label
		Training		Validation and testing
		0 hp	3 hp	0 hp	3 hp
Normal	0	480	960	120	240	1
Ball	0.18	240	240	60	60	2
Ball	0.36	240	240	60	60	3
Ball	0.54	240	240	60	60	4
Inner race	0.18	240	240	60	60	5
Inner race	0.36	240	240	60	60	6
Inner race	0.54	240	240	60	60	7
Outer race	0.18	240	240	60	60	8
Outer race	0.36	240	240	60	60	9
Outer race	0.54	240	240	60	60	10

Parameter	Value
Sampling frequency/kHz	12
Window type	Hamming
Overlap length/%	50
Number of DFT points	256
Filter bank	Triangular
Number of filters	32
Window length	128

Load	Input data	Average accuracy/%		Average time/ (epoch/s)	Epoch for best model
Load	Input data	Train	Test	Average time/ (epoch/s)	Epoch for best model
0 hp	Raw signal	91.26	89.52	35	16
	Spectrogram	99.77	97.88	30	15
	Mel spectrogram	99.98	98.79	27	16
3 hp	Raw signal	98.27	91.03	41	34
	Spectrogram	100	98.97	38	34
	Mel Spectrogram	100	99.23	35	25

Deep neural network based classification of rolling element bearings and health degradation through comprehensive vibration signal analysis

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

Share this article

Figures/Tables 29

References 39

Related Articles 3

Recommended Articles

Metrics

Comments

Deep learning method	Average testing accuracy/%
Ensemble DAE	97.18
FCNN	98.8
Normalized CNN	98.5
MSCNN-LSTM	98.46
The proposed method	99.23
