Equipment damage measurement method of wartime based on FCE-PCA-RF

doi:10.23919/JSEE.2024.000065

Journal of Systems Engineering and Electronics ›› 2024, Vol. 35 ›› Issue (3): 707-719.doi: 10.23919/JSEE.2024.000065

• SYSTEMS ENGINEERING • Previous Articles

Equipment damage measurement method of wartime based on FCE-PCA-RF

Mingyu LI¹^,²(), Lu GAO¹^,*(), Hongwei XU¹(), Kai LI¹(), Yisong HUANG¹()

¹ Shijiazhuang Campus of Army Engineering University, Shijiazhuang 050003, China
² Shijiazhuang Campus of Army Infantry Academy, Shijiazhuang 050227, China

Received:2022-03-28 Online:2024-06-18 Published:2024-06-19
Contact: Lu GAO E-mail:1441741393@qq.com;178508362@qq.com;258115205@qq.com;779025078@qq.com;1215459736@qq.com
About author:
LI Mingyu was born in 1993. He received his master’s degree in military equipment and engineering with Army Engineering University, Shijiazhuang, in 2022. His research interests include the theory and application of equipment support. E-mail: 1441741393@qq.com

GAO Lu was born in 1976. He received his doctorate’s degree in military equipment science from the Ordnance Engineering College, Shijiazhuang, in 2006. He is currently an associate professor with Army Engineering University, Shijiazhuang. His research interests include the theory and application of equipment management. E-mail: 178508362@qq.com

XU Hongwei was born in 1987. He received his bachelor’s degree in computer science and technology from the Ordnance Engineering College, Shijiazhuang, in 2010. Now he ispursuing his master’s degree in military equipment and engineering with Army Engineering University, Shijiazhuang. His research interests include the theoryand application of equipment support.E-mail: 258115205@qq.com

LI Kai was born in 1991. He received his bachelor’s degree in road and bridge and sea crossing engineering from National University of Defense Technology, Changsha, in 2016. Now he is pursuing his master’s degree in military equipment and engineering with Army Engineering University, Shijiazhuang. His research interests include the theory and application of equipment support. E-mail: 779025078@qq.com

HUANG Yisong was born in 1993. He received his bachelor’s degree in ground weapon mobile engineering from North University of China, Taiyuan, in 2015. Now he is pursuing his master’s degree in military equipment and engineering in Army Engineering University, Shijiazhuang. His research interests include the theory and application of equipment support. E-mail: 1215459736@qq.com

Abstract

Abstract:

As the “engine” of equipment continuous operation and repeated operation, equipment maintenance support plays a more prominent role in the confrontation of symmetrical combat systems. As the basis and guide for the planning and implementation of equipment maintenance tasks, the equipment damage measurement is an important guarantee for the effective implementation of maintenance support. Firstly,this article comprehensively analyses the influence factors to damage measurement from the enemy’s attributes, our attributes and the battlefield environment starting from the basic problem of wartime equipment damage measurement. Secondly, this article determines the key factors based on fuzzy comprehensive evaluation (FCE) and performed principal component analysis (PCA) on the key factors. Finally, the principal components representing more than 85% of the data features are taken as the input and the equipment damage quantity is taken as the output. The data are trained and tested by artificial neural network (ANN) and random forest (RF). In a word, FCE-PCA-RF can be used as a reference for the research of equipment damage estimation in wartime.

Key words: wartime, equipment damage, fuzzy comprehensive evaluation (FCE), principal component analysis (PCA), artificial neural network (ANN), random forest (RF)

Mingyu LI, Lu GAO, Hongwei XU, Kai LI, Yisong HUANG. Equipment damage measurement method of wartime based on FCE-PCA-RF[J]. Journal of Systems Engineering and Electronics, 2024, 35(3): 707-719.

Figures/Tables 16

Fig 1

Fig 2

Table 1

Fig 3

Table 2

Fig 4

Fig 5

Table 3

Fig 6

Fig 7

Table 4

Fig 8

Fig 9

Fig 10

Fig 11

Table 5

References 43

1	WANG X, SMITH-MILES K, HYNDMAN R Rule induction for forecasting method selection: meta-learning the characteristics of univariate time series. Neurocomputing, 2009, 72 (10/12): 2581- 2594.
2	DONG Q, WU D Q, LI Z, et al Analysis on the influence factors of strategic operational equipment maintenance support calculation. Value Engineering, 2015, 34 (34): 62- 64.
3	GAO Y G, QI Y G Research on task-oriented equipment damage prediction method. Science and Technology Information, 2012, (10): 130.
4	GUO Y M, CHEN C L, CAO Y H, et al Determination of wartime maintenance support equipment quantity based on queuing theory and lanchester equation. Fire Control & Command Control, 2021, 46 (11): 124- 129.
5	XUE H, LIU G Y, LIU T L, et al Spare parts support probability distribution and demand forecast model based on combat missions. Journal of Armored Forces Engineering College, 2018, 32 (6): 22- 27.
6	KANG J Y, CHEN Z, LIU Y J, et al Demand prediction algorithm for equipment support spare parts. Modern Defense Technology, 2020, 48 (4): 102- 109.
7	WANG Y B Predication and optimization of maintenance resources for weapon system. International Journal of Intelligent Systems and Applications, 2011, 3 (5): 1- 9. doi: 10.5815/ijisa.2011.05.01
8	RAO D Damage estimation and assessment modelling of ground targets in air-land battle simulations. Journal of Battlefield Technology, 2015, 18 (1): 21- 29.
9	AEBISCHER D, VATTEROTT J, GRIMES M, et al Bayesian networks for combat equipment diagnostics. Interfaces, 2017, 47 (1): 85- 105. doi: 10.1287/inte.2016.0883
10	SONG X, JIA H L, WANG Q, et al Prediction of maintenance support capability of synthetic brigade equipment based on time series mining. Systems Engineering and Electronics, 2020, 42 (4): 878- 886.
11	SONG W X, LEI Z J, LE Q, et al Maintenance personnel optimization model of vehicle equipment based on support task. Mathematical Problems in Engineering, 2021, 2021 (4): 1- 13.
12	SHAN J C, LIU Q B Analysis of the impact of battlefield environment on military operation effectiveness using fuzzy influence diagram. International Journal of Fuzzy Systems, 2019, 21 (6): 1882- 1893. doi: 10.1007/s40815-019-00662-6
13	XIA J Y, PI Z Y, FANG W G Predicting war outcomes based on a fuzzy influence diagram. International Journal of Fuzzy Systems, 2021, 23 (4): 984- 1002. doi: 10.1007/s40815-020-01026-1
14	KARIM Y, CHERKAOUI A Fuzzy analytical hierarchy process and fuzzy comprehensive evaluation method applied to assess and improve human and organizational factors maturity in mining industry. ASTES Journal, 2021, 6 (2): 75- 84. doi: 10.25046/aj060210
15	WANG Q A fuzzy comprehensive evaluation method of area resource carrying capacity. International Journal of Circuits, 2021, 14, 1137- 1153.
16	DU Y W, FANG J, WANG P, et al Ecological security evaluation of marine ranching based on DEMATEL-Fuzzy comprehensive evaluation. Mathematical Problems in Engineering, 2021, 2021, 6688110.
17	XIAO W, LIANG Y S Fuzzy comprehensive evaluation of oil field waterflooding effect. International Journal of Geosciences, 2021, 12 (6): 560- 571. doi: 10.4236/ijg.2021.126031
18	JIA H T, ZHU L, DU J Fuzzy comprehensive evaluation model of the farmers’ sense of gain in the provision of rural infrastructures: the case of tourism-oriented rural areas of China. Sustainability, 2022, 14 (10): 5831- 5848. doi: 10.3390/su14105831
19	SUN X L, TENG G, GUO X L, et al Risk assessment of water inrush in karst tunnels based on fuzzy comprehensive evaluation considering misjudgment losses: a case study. Arabian Journal of Geosciences, 2022, 15, 421. doi: 10.1007/s12517-022-09633-y
20	WU M F, CHEN W. Forecast of electric vehicle sales in the world and China based on PCA-GRNN. Sustainability, 2022, 14(4): 2206−2220.
21	SIDOU L F, BORGES E M Teaching principal component analysis using a free and open source software program and exercises applying PCA to real-world examples. Journal of Chemical Education, 2020, 97 (6): 1666- 1676. doi: 10.1021/acs.jchemed.9b00924
22	ORCHE A E, BOUATIA M, YANISSE S, et al Evaluation of the capability of horizontal ATR-FTMIR and UV-visible spectroscopy in the discrimination of virgin olive oils from the moroccan region of Beni Mellal-Khenifra. Journal of Spectroscopy, 2020, 2020, 9317350.
23	PAN X, GUO G H A new method for rolling bearing compound fault diagnosis based on WT-PCA method. Vibroengineering PROCEDIA, 2021, 36 (2): 13- 18.
24	WANG S C, XUE Y, JIA W W A new population initialization of particle swarm optimization method based on PCA for feature selection. School of Computer and Software, 2021, 3 (1): 1- 9.
25	WAGALE M, SINGH A P, SARKAR A K Socio-economic impacts of low-volume roads using a mixed-method approach of PCA and fuzzy-TOPSIS. International Review for Spatial Planning and Sustainable Development, 2021, 9 (2): 112- 133. doi: 10.14246/irspsda.9.2_112
26	HIRATA M, ASAHI T, SHIRAISHI T, et al Scheduling parameter reduction of diesel engine air path LPV model by PCA and autoencoder-based method. IFAC-PapersOnLine, 2020, 53 (2): 13994- 13999. doi: 10.1016/j.ifacol.2020.12.919
27	LI S, WEN J A model-based fault detection and diagnostic methodology based on PCA method and wavelet transform. Energy & Buildings, 2014, 68, 63- 71.
28	JARBOUI R, SELLAMI F, AZRI C, et al Olive mill wastewater evaporation management using PCA method. Journal of Hazardous Materials, 2009, 176 (1): 992- 1005.
29	SUN X, MARQUEZ J H, CHEN T W, et al An improved PCA method with application to boiler leak detection. ISA Transactions, 2005, 44 (3): 379- 397. doi: 10.1016/S0019-0578(07)60211-0
30	NISHIMURA K, ABE K, ISHIKAWA S, et al A PCA based method of gene expression visual analysis. Genome Informatics, 2003, 14, 346- 347.
31	Al-BAKRI A Y, SAZID M Application of artificial neural network (ANN) for prediction and optimization of blast-induced impacts. Mining, 2021, 1 (3): 315- 334. doi: 10.3390/mining1030020
32	SHAO Y X, WANG Z J, CAO N N, et al Prediction of 3-month treatment outcome of IgG4-DS based on BP artificial neural network. Oral Diseases, 2021, 27 (4): 934- 941. doi: 10.1111/odi.13601
33	EFFENDY N, AZIZ S, KAMARI H M, et al Artificial neural network prediction on ultrasonic performance of bismuth-tellurite glass compositions. Journal of Materials Research and Technology, 2020, 9 (6): 14082- 14092. doi: 10.1016/j.jmrt.2020.09.107
34	WANG Y, LING C J, YIN H Q, et al Thermophysical properties of KCl-NaF reciprocal eutectic by artificial neural network prediction and experimental measurements. Solar Energy, 2020, 204, 667- 672.
35	JING X, LUO J G, WANG J M, et al A multi-imputation method to deal with hydro-meteorological missing values by integrating chain equations and random forest. Water Resources Management, 2022, 36 (4): 1159- 1173. doi: 10.1007/s11269-021-03037-5
36	TIE J J, LEI X, PAN Y Metabolite-disease association prediction algorithm combining deepWalk and random forest. Tsinghua Science and Technology, 2022, 27 (1): 58- 67. doi: 10.26599/TST.2021.9010003
37	DEB S, GAO X Z, CHEN M E Prediction of charging demand of electric city buses of helsinki. Finland by Random Forest, 2022, 15 (10): 3679- 3696.
38	LU S F, SHI X, LI M, et al Semi-supervised random forest regression model based on co-training and grouping with information entropy for evaluation of depression symptoms severity. Mathematical Biosciences and Engineering, 2021, 18 (4): 4586- 4602. doi: 10.3934/mbe.2021233
39	AZHAR Y, MAHESA G A, MUSTAQIM M C Prediction of hotel bookings cancellation using hyperparameter optimization on random forest algorithm. Jurnal Teknologi dan Sistem Komputer, 2021, 9 (1): 15- 21. doi: 10.14710/jtsiskom.2020.13790
40	XU A K, LI R, CHANG H M Artificial neural network modeling for the prediction of odor emission rates from landfill working surface. Waste Management, 2022, 138, 158- 171. doi: 10.1016/j.wasman.2021.11.045
41	GAO Y P, HONG Y, CUI X Z Prediction model and realization for water quality in an intensive aquaculture based on L-M BP neural network. Journal of Dalian Fisheries University, 2008, 23 (3): 221- 224.
42	YANG S X, YANG G Y Emotion recognition of EMG based on improved L-M BP neural network and SVM. Journal of Software, 2011, 6 (8): 1529- 1536.
43	NOORIZADEH H, FARMANY A, NOORIZADEH M pK_a modelling and prediction of drug molecules through GA-KPLS and L-M ANN. Drug Testing & Analysis, 2013, 5 (2): 103- 109.

Influencing factor	Comprehensive membership			Evaluation result
Influencing factor	High	Middle	Low	Evaluation result
Enemy equipment lethality	0.57	0.2	0.23	High
Application of enemy equipment	0.28	0.265	0.455	Low
Enemy fire strategy	0.505	0.27	0.225	High
Combat style	0.56	0.235	0.205	High
Combat time limit	0.315	0.29	0.395	Low
Annihilation scale	0.4	0.29	0.31	High
Equipment composition	0.59	0.2	0.21	High
Personnel operation quality	0.33	0.2	0.47	Low
Camouflage and protection	0.43	0.3	0.27	High
Natural environment	0.315	0.37	0.315	Middle
Electromagnetic interference	0.295	0.365	0.34	Middle
Cultural environment	0.315	0.35	0.335	Middle

Serial number	Y₁	Y₂	Y₃	Y₄	Y₅	Y₆	Y₇
1	64910	0.07	3.0	0.83	0.83	0.87	0.7
2	82200	0.07	2.4	0.61	0.69	0.68	0.6
3	92200	0.31	2.4	0.44	0.82	0.68	0.4
4	12230	0.59	1.3	0.22	0.11	0.23	0.3
5	22590	0.14	1.5	0.83	0.63	0.77	0.7
6	15980	0.34	1.0	0.67	0.46	0.56	0.6
7	18970	0.34	1.0	0.61	0.47	0.64	0.1
8	14205	0.41	0.6	0.11	0.32	0.41	0.1
9	16970	0.24	1.5	0.44	0.54	0.60	0.6
10	17590	0.62	0.3	0.17	0.12	0.23	0.1
$\vdots $	$\vdots $	$\vdots $	$\vdots $	$\vdots $	$\vdots $	$\vdots $	$\vdots $
21	27900	0.10	2.0	1.00	0.64	0.77	0.6
22	20350	0.21	1.5	0.56	0.52	0.62	0.4
23	32870	0.20	2.0	0.61	0.77	0.82	0.4
24	14450	0.28	0.6	0.67	0.35	0.58	0.6
25	45640	0.31	2.4	0.83	0.75	0.86	0.7
26	22687	0.24	1.4	0.61	0.50	0.62	0.1
27	21890	0.24	1.5	0.61	0.50	0.62	0.9
28	21460	0.21	1.5	0.83	0.63	0.84	0.7
29	25490	0.24	1.6	0.50	0.52	0.64	0.9
30	23480	0.41	0.7	0.28	0.31	0.42	0.1

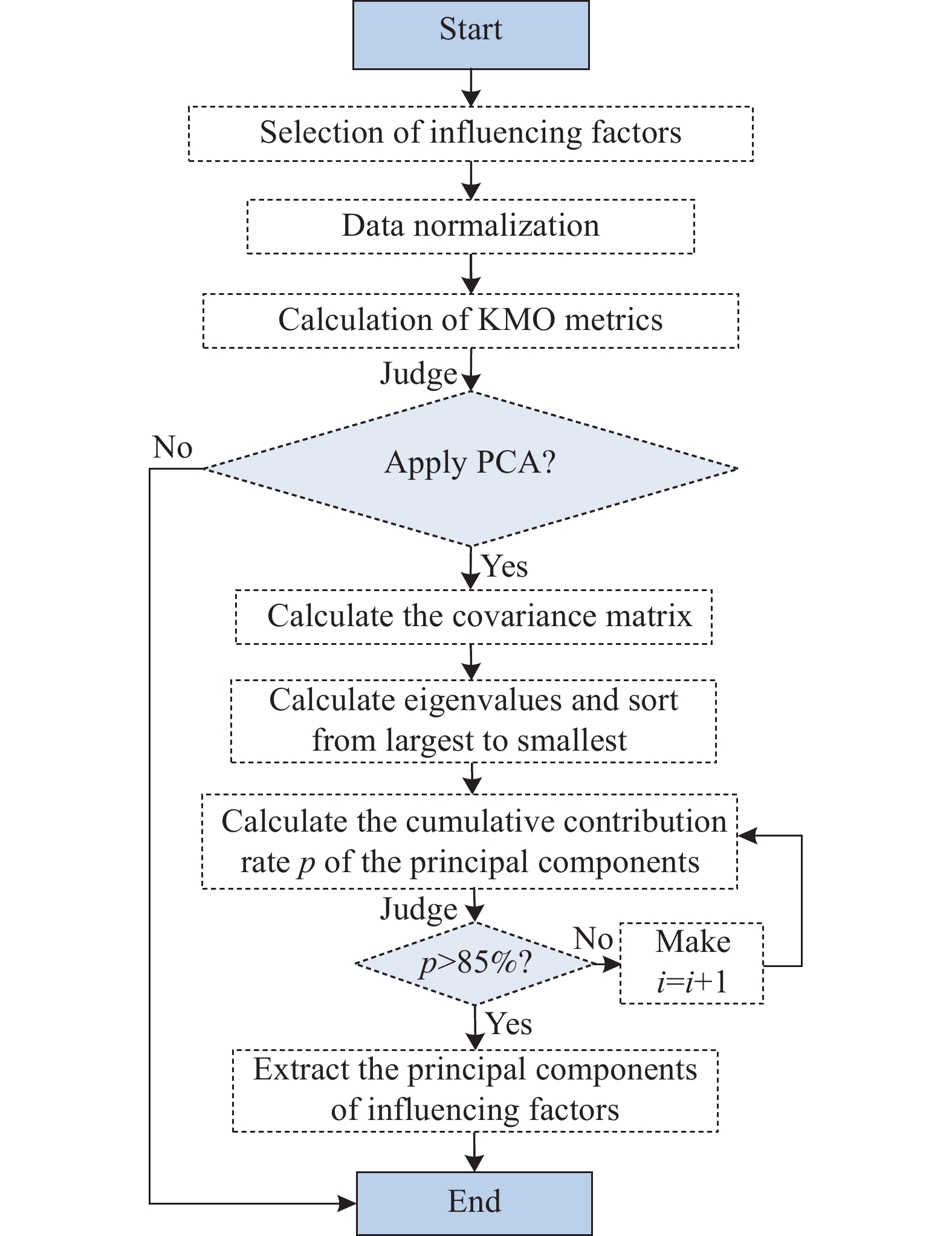

Main ingredient	Eigenvalue	Contribution rate	Grand total contribution rate
Comp1	4.9905	0.7129	0.7129
Comp2	1.0744	0.1535	0.8664
Comp3	0.4165	0.0595	0.9259
Comp4	0.2424	0.0346	0.9605
Comp5	0.1541	—	—
Comp6	0.1035	—	—
Comp7	0.0187	—	1.00

Variable	Comp1	Comp2
Enemy combat equipment effectiveness index	0.2817	0.6873
Enemy target fire strike effectiveness coefficient	−0.3949	0.1596
Combat style modifier	0.4034	0.2809
Destroy the enemy’s combat power ratio	0.3839	−0.3270
Participation rate of a certain type of equipment	0.4299	0.1792
Camouflage and protection factor	0.4240	−0.0889
Environmental impact factor	0.3001	−0.5256

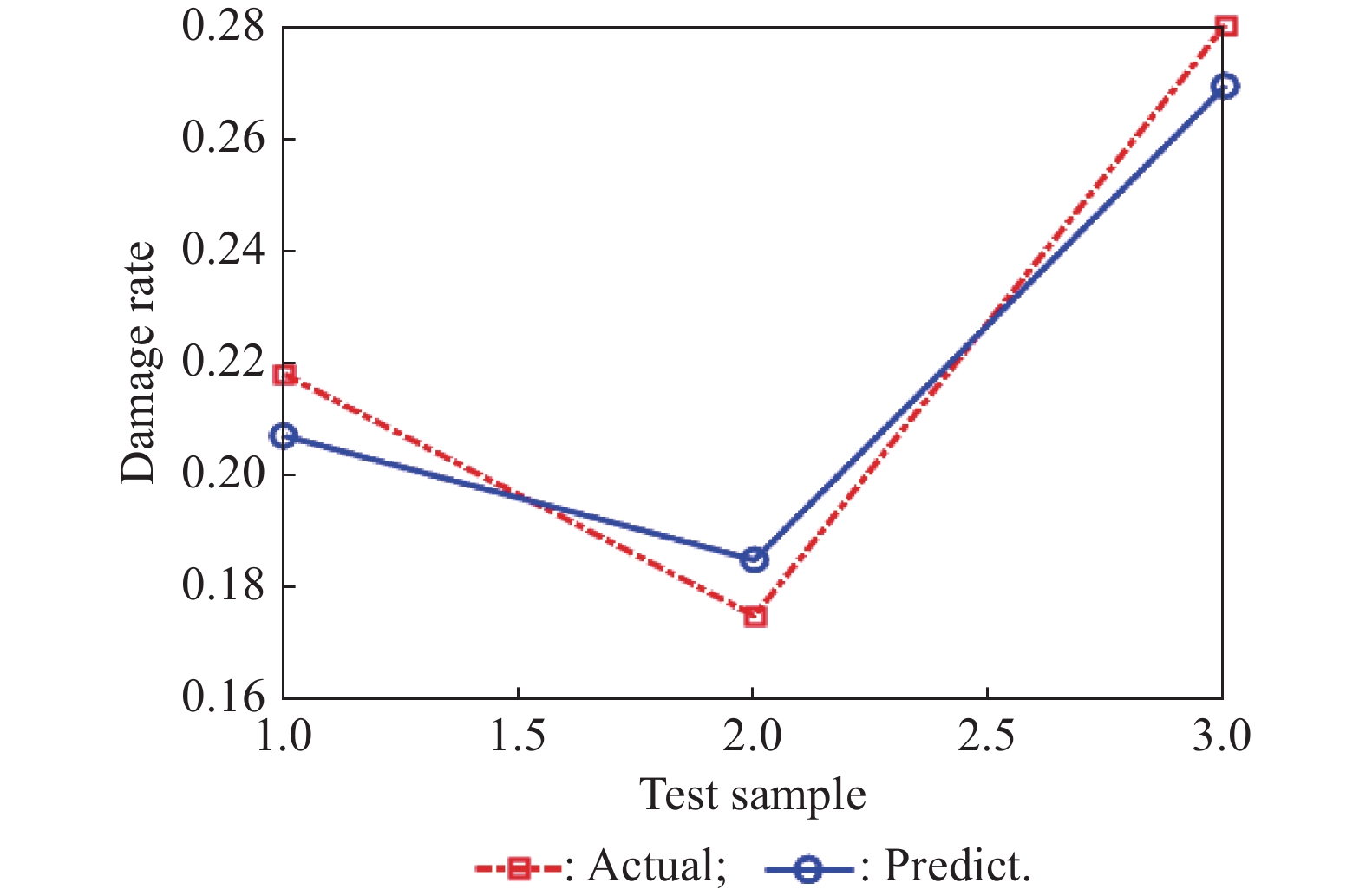

Model	Data set	R²	MSE
ANN	Train	0.9727	0.0004
ANN	Test	0.8071	0.0014
RF	Train	0.8736	0.0004
RF	Test	0.9127	0.0001
