Analysis of high precision detection technique based on optical MEMS accelerometer with double gratings

doi:10.23919/JSEE.2025.000072

Journal of Systems Engineering and Electronics ›› 2025, Vol. 36 ›› Issue (5): 1335-1341.doi: 10.23919/JSEE.2025.000072

• CONTROL THEORY AND APPLICATION • Previous Articles

Analysis of high precision detection technique based on optical MEMS accelerometer with double gratings

Honghao MA¹(), Xiao WANG¹(), Shan GAO²(), Yu ZHANG³^,*()

¹ School of Instrumentation and Optoelectronic Engineering, Beihang University, Beijing 150001, China
² Beijing Institute of Electronic System Engineering, Beijing 100854, China
³ National Innovative Institute of Defense Technology, Beijing 100071, China

Received:2024-07-24 Online:2025-10-18 Published:2025-10-24
Contact: Yu ZHANG E-mail:mahonghao@buaa.edu.cn;dogno@vip.qq.com;shangao@buaa.edu.cn;zhangyu163buaa@163.com
About author:
MA Honghao was born in 1992. He received his Ph.D. degree in optical engineering from the School of Instrumentation and Optoelectronic Engineering, Beihang University. He is an assistant professor with the School of Instrumentation and Optoelectronic Engineering, Beihang University. His research interest is micro electro-mechanical system (MEMS) sensors. E-mail: mahonghao@buaa.edu.cn

WANG Xiao was born in 1987. He received his Ph.D. degree in optical engineering from Beihang University. He is an assistant professor in the School of Instrumentation and Optoelectronic Engineering, Beihang University. His research interest is inertial navigation technology. E-mail: dogno@vip.qq.com

GAO Shan was born in 1992. He received his Ph.D. degree in optical engineering from Beihang University. He is an assistant professor in Beijing Institute of Electronic System Engineering. His research interest is inertial sensor integration. E-mail: shangao@buaa.edu.cn

ZHANG Yu was born in 1991. She received her Ph.D. degree in optical engineering from Beihang University. She is an assistant professor in National Innovative Institute of Defense Technology. Her research interest is optical accelerometer. E-mail: zhangyu163buaa@163.com
Supported by:
This work was supported by the National Natural Science Foundation of China (62205377).

Abstract

Abstract:

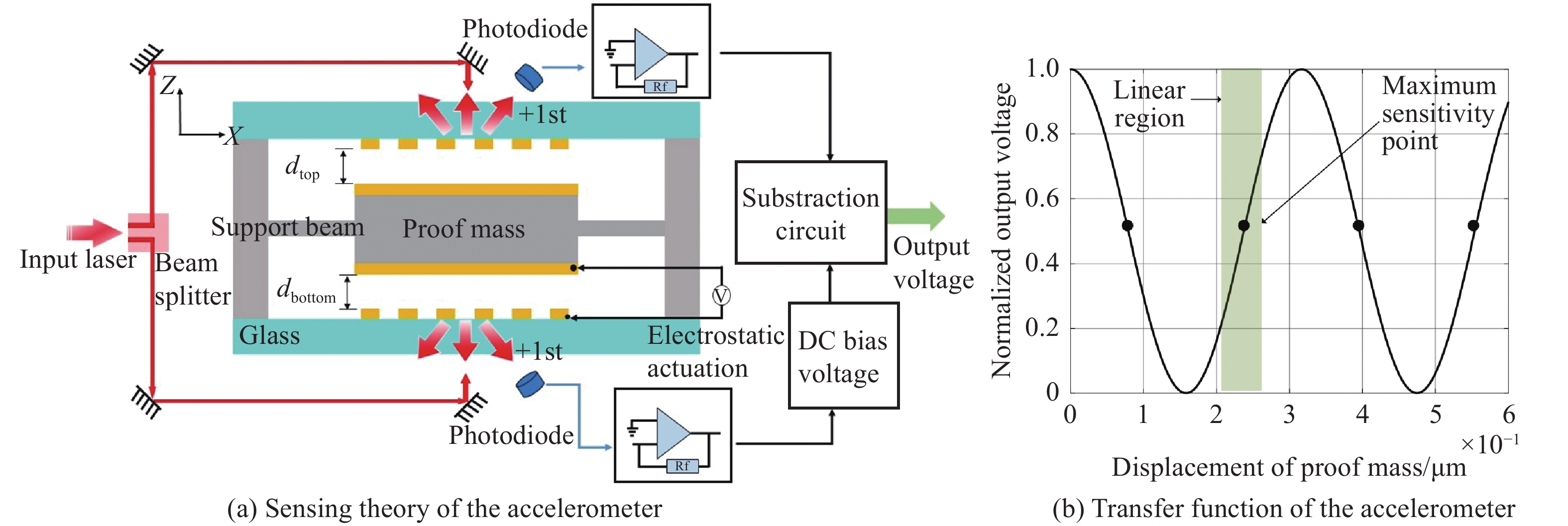

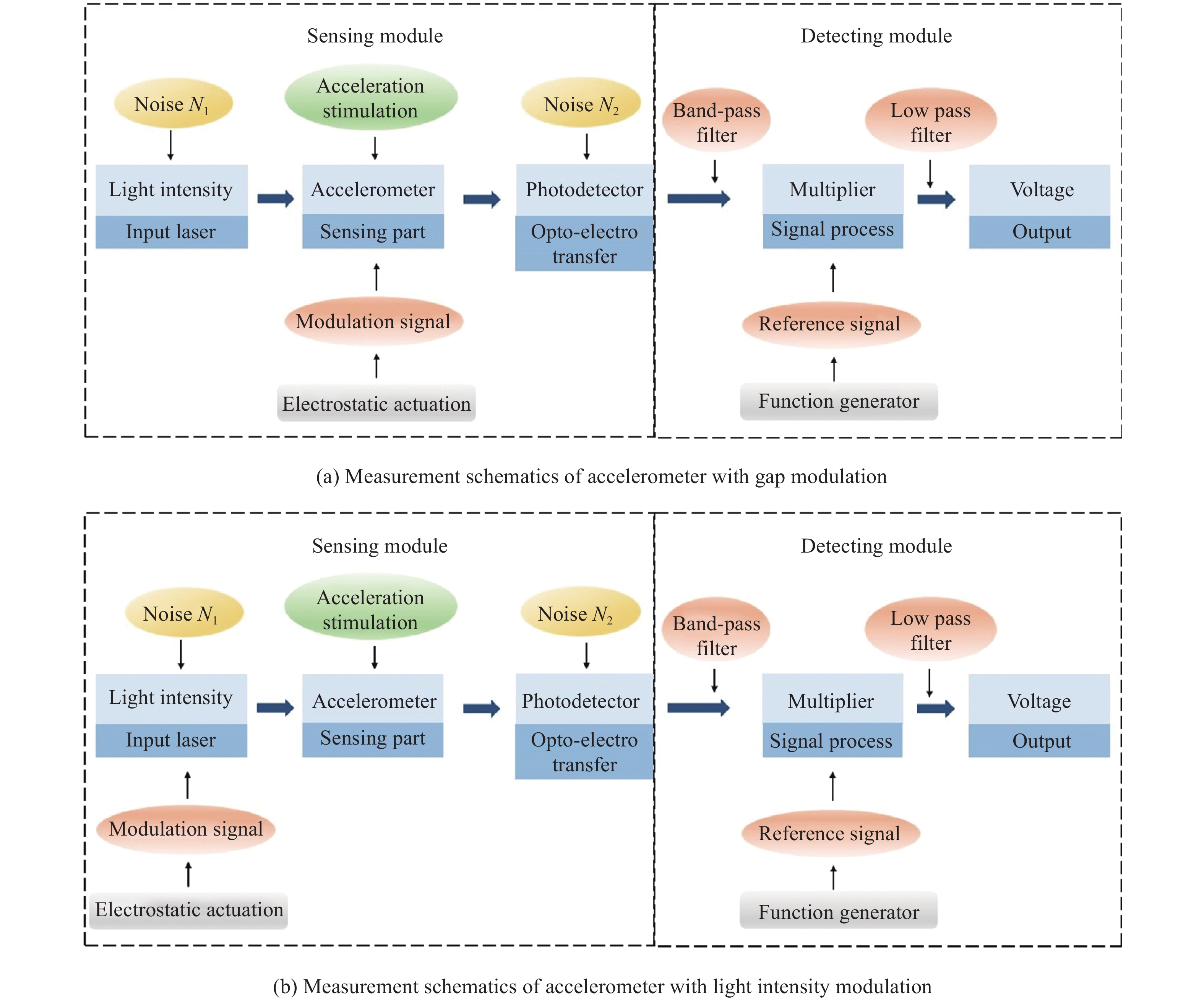

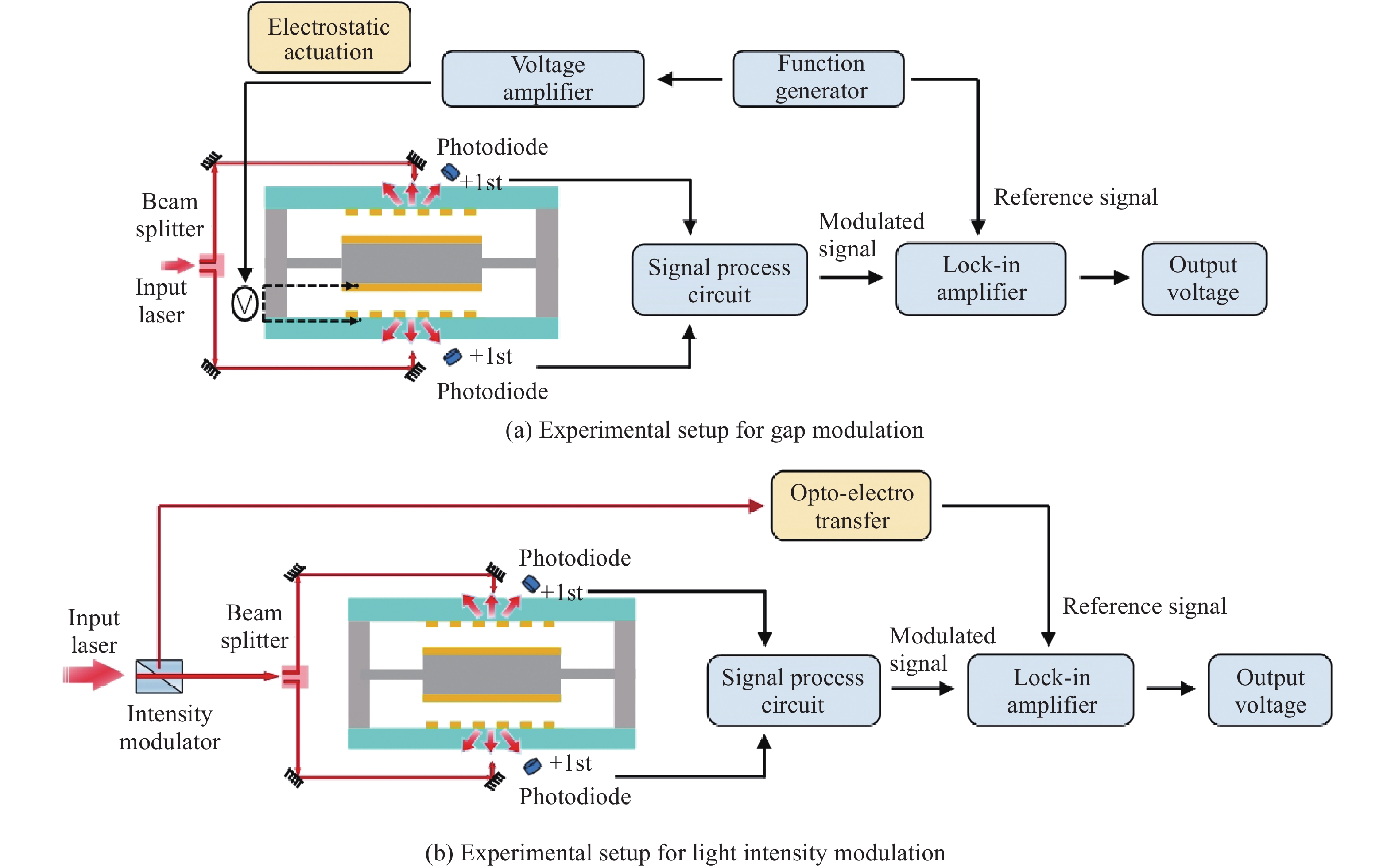

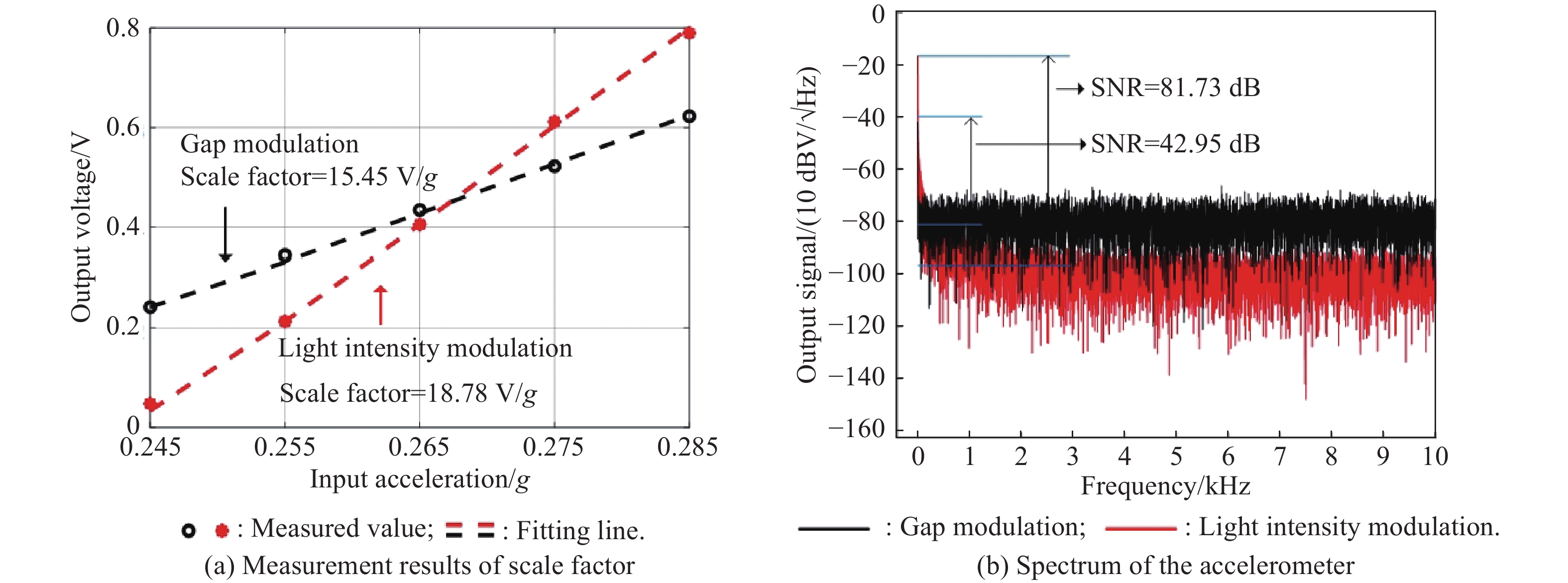

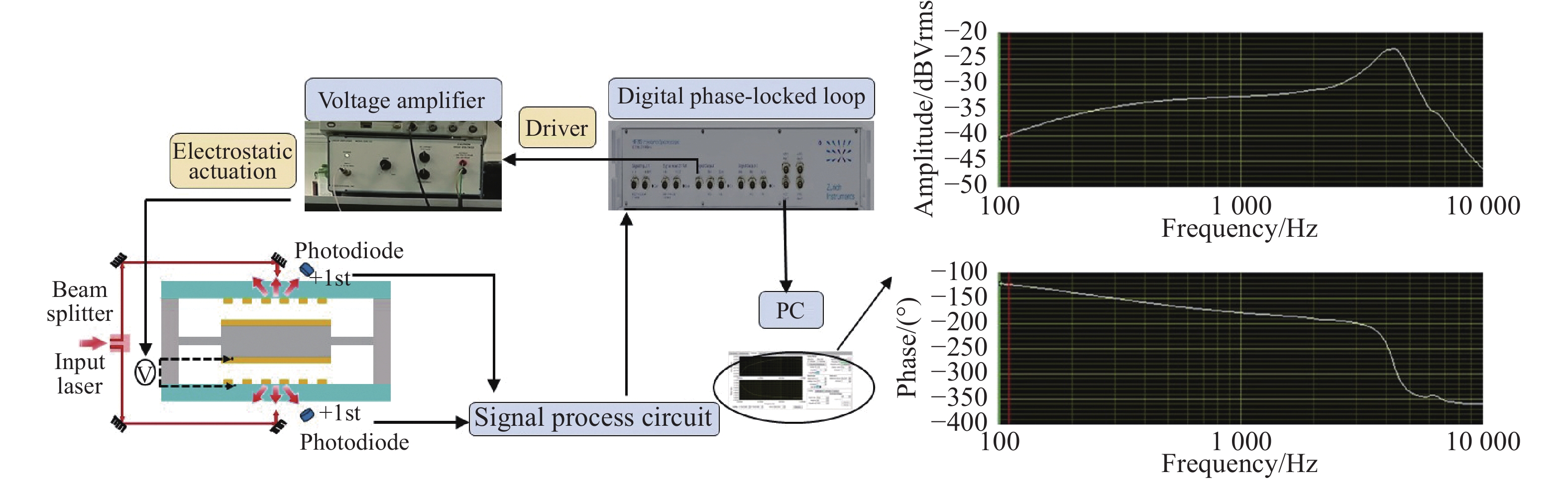

A high precision detection technique is analyzed based on the optical micro electro-mechanical system (MEMS) accelerometer with double gratings for noise suppression and scale factor enhancement. The brief sensing model and modulation detection model are built using the phase sensitive detection, and the relationship between stimulated acceleration and system output is given. The schematics of gap modulation and light intensity modulation are analyzed respectively, and the choice of modulation frequency in the optical MEMS accelerometer system is discussed. According to the experimental results, the scale factor is improved from 15.45 V/g with the gap modulation to 18.78 V/g with the light intensity modulation, and the signal to noise ratio is improved from 42.95 dB to 81.73 dB. The overall noise level in the optical MEMS accelerometer is effectively suppressed.

Key words: accelerometer, optics, micro electro-mechanical system (MEMS), noise suppression

Honghao MA, Xiao WANG, Shan GAO, Yu ZHANG. Analysis of high precision detection technique based on optical MEMS accelerometer with double gratings[J]. Journal of Systems Engineering and Electronics, 2025, 36(5): 1335-1341.

Figures/Tables 5

References 30

1	YU W, ZHANG L Optical micro/nanofiber enabled wearable accelerometer. Applied Optics, 2024, 63 (19): F89- F94.
2	JIN Y M, MA Z P, YE Z Y, et al. A self-centering and stiffness-controlled MEMS accelerometer. Microsystems & Nanoengineering, 2024, 10: 11.
3	KRAUSE A G, WINGER M, BLASIUS T D, et al A high-resolution microchip optomechanical accelerometer. Nature Photonics, 2012, 6 (11): 768- 772. doi: 10.1038/nphoton.2012.245
4	TAGHAVI M, ABEDI A, PARSANASAB G M, et al, Closed-loop MOEMS accelerometer. Optics Express, 2022, 30(12): 20159−20174.
5	LIANGRID L S, JANDERSON, R R, ANGELO P, et al. MEMS capacitive accelerometer: dynamic sensitivity analysis based on analytical squeeze film damping and mechanical thermoelasticity approaches. Discover Applied Sciences, 2019. DOI: 10.1007/s42452–019-0327-5.
6	LIU W, ZHAO T L, HE Z Y, et al. The high-efficiency design method for capacitive MEMS accelerometer. Micromachines, 2023, 14(10). DOI: 10.3390/mi14101891.
7	LEE I, YOON G H, PARK J, et al Development and analysis of the vertical capacitive accelerometer. Sensors and Actuators A: Physical, 2005, 119 (1): 8- 18. doi: 10.1016/j.sna.2004.06.033
8	LI H Z, WU F, ZHAO M, et al. A novel MASH 2-1 sigma-delta A/D converter with high-to-low conversion for closed-loop MEMS accelerometer interface. Proc. of the IEEE International Nanoelectronics Conference, 2016. DOI: 10.1109/INEC.2016.7589323.
9	LIN J, PHAM L, TAO R, et al A low-power, wide-bandwidth, three-axis mems accelerometer asic using beyond-resonant-frequency sensing. IEEE Journal of Solid-State Circuits, 2024, 59 (3): 774- 783. doi: 10.1109/JSSC.2023.3344114
10	ONO K, MAEDA D, OSHIMA T, et al. A low 1/f-noise accelerometer frontend using chopper stabilization at a frequency matched with a notch of quantization noise. Proc. of the IEEE Sensors, 2016. DOI: 10.1109/ICSENS.2016.7808794.
11	ROMANSSINI M, COMPASSI-SEVERO L, AGUIRRE P C C, et al. Design of a low-noise signal conditioning circuit for analog MEMS accelerometers. Proc. of the 7th International Symposium on Instrumentation Systems, Circuits and Transducers, 2023. DOI: 10.1109/INSCIT59673.2023.10258504.
12	SELVAKUMAR A, YAZDI N, NAJAFI K A wide-range micromachined threshold accelerometer array and interface circuit. Journal of Micromechanics and Microengineering, 2001, 11 (2): 118- 125. doi: 10.1088/0960-1317/11/2/306
13	YIN L, LIU X W, CHEN W P, et al. High resolution interface circuit for closed-loop accelerometer. Journal of Semiconductors, 2011, 32(4): 116−123.
14	PAEMEL M V Interface circuit for capacitive accelerometer. Sensors and Actuators, 1989, 17 (3/4): 629- 637. doi: 10.1016/0250-6874(89)80055-1
15	STEFANI A, ANDRESEN S, YUAN W, et al High sensitivity polymer optical fiber-bragg-grating-based accelerometer. IEEE Photonics Technology Letters, 2012, 24 (9): 763- 765. doi: 10.1109/LPT.2012.2188024
16	WANG J J, WEI L, LI R Y, et al An FBG-based 2-D vibration sensor with adjustable sensitivity. IEEE Sensors Journal, 2017, 17 (15): 4716- 4724. doi: 10.1109/JSEN.2017.2715066
17	BASUMALLICK N, BHATTACHARYA S, DEY T K, et al Wideband fiber bragg grating accelerometer suitable for health monitoring of electrical machines. IEEE Sensors Journal, 2020, 20 (24): 14865- 14872. doi: 10.1109/JSEN.2020.3011414
18	HOU C L, WU Y H, ZENG X, et al Novel high sensitivity accelerometer based on a microfiber loop resonator. Optical Engineering, 2010, 49 (1): 014402. doi: 10.1117/1.3294883
19	LIU W L, ROMERIA B, LI M, et al A wavelength tunable optical buffer based on self-pulsation in an active microring resonator. Journal of Lightwave Technology, 2016, 34 (14): 3466- 3472. doi: 10.1109/JLT.2016.2567456
20	BALAKIREVA I V, BLINOV I Y, KHARIREV N P. Optical WGM resonator sensor of earth gravity acceleration inhomogeneities. Proc. of the Joint Conference of the European Frequency and Time Forum and IEEE International Frequency Control Symposium, 2021. DOI: 0.1109/EFTF/IFCS52194.2021.9604305.
21	HALL N A, OKANDAN M, LITTRELL R, et al. Micromachined accelerometers with optical interferometric read-out and integrated electrostatic actuation. Journal of Microelectromechanical Systems, 2008, 17(1): 37–44.
22	LOH N C, SCHMIDT M A, MANALIS S R. Sub-10 cm³ interferometry accelerometer with Nano-g resolution. Journal of Microelectromechnical Systems, 2002, 11(3): 182−187.
23	WILLIAMS R P, HORD S, HALL N A. Optically read displacement detection using phase-modulated diffraction gratings with reduced zeroth-order reflections. Applied Physics Letters, 2017, 110(15): 151104.
24	SHI Y, XU Z L, WU J H. Ultra-low frequency high-precision displacement measurement based on dual-polarization differential fiber heterodyne interferometer. Journal of Lightwave Technology, 2023, 41(17): 5773−5779.
25	TAGHAVI M, ABEDI A, PARSANASAB G M, et al Closed-loop MOEMS accelerometer. Optics Express, 2022, 30 (12): 20159- 20174. doi: 10.1364/OE.455772
26	CHEN Z J, KUANG T F, HAN X. Differential displacement measurement of the levitated particle using D-shaped mirrors in the optical tweezers. Optics Express, 2022, 30(17): 30791−30798.
27	HALL N A, OKANDAN M, LITTRELL R, et al Simulation of thin-film damping and thermal mechanical noise spectra for advanced micromachined microphone structures. Journal of Microelectromechanical Systems, 2008, 17 (3): 688- 697. doi: 10.1109/JMEMS.2008.918384
28	LU Q B, WANG C, BAI J, et al Minimizing cross axis sensitivity in grating-based optomechanical accelerometers. Optics Express, 2016, 24 (8): 9094- 9111. doi: 10.1364/OE.24.009094
29	BICEN B, JOLLY S, JEELANI K, et al Integrated optical displacement detection and electrostatic actuation for directional optical microphones with micromachined biomimetic diaphragms. Sensors Journal, 2009, 9 (12): 1933- 1941. doi: 10.1109/JSEN.2009.2031810
30	ZHANG Y, MA H H. Optical micro mechanical accelerometer with double grating: design and simulation. Applied Optics, 2023, 62(22): 6016−6024.
