State of charge estimation for lithium battery based on grey Kalman filter model

doi:10.23919/JSEE.2025.000125

Abstract

Abstract:

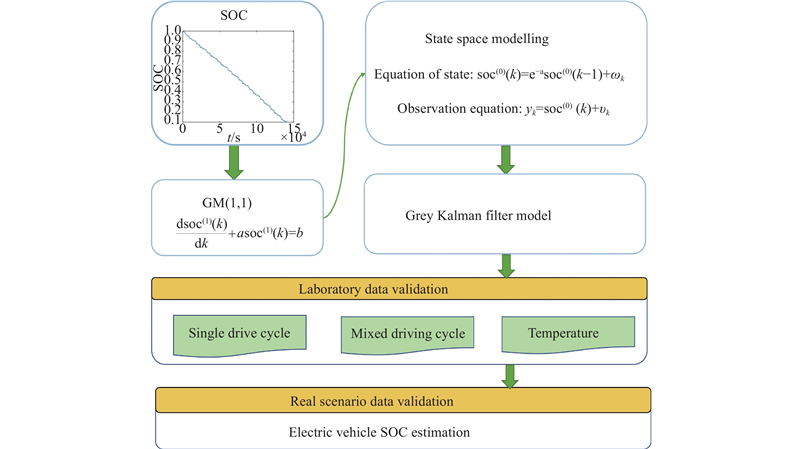

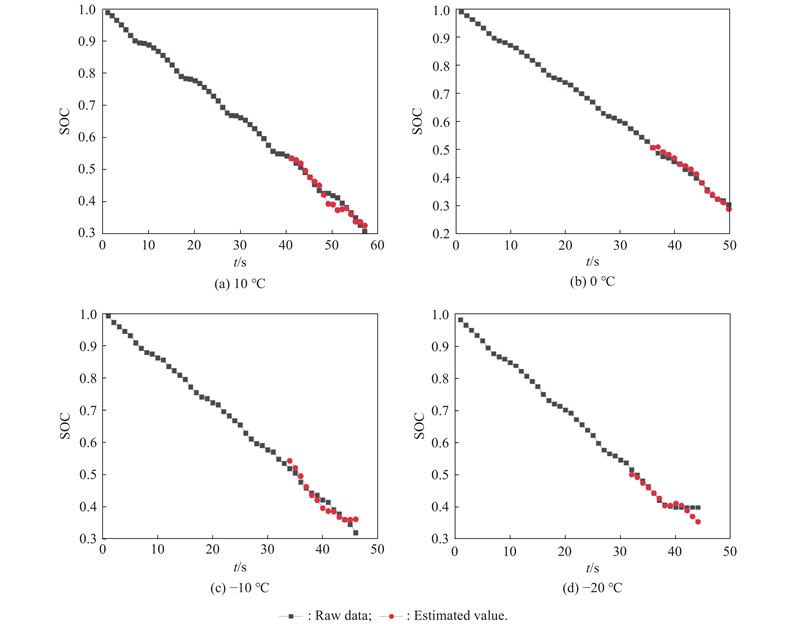

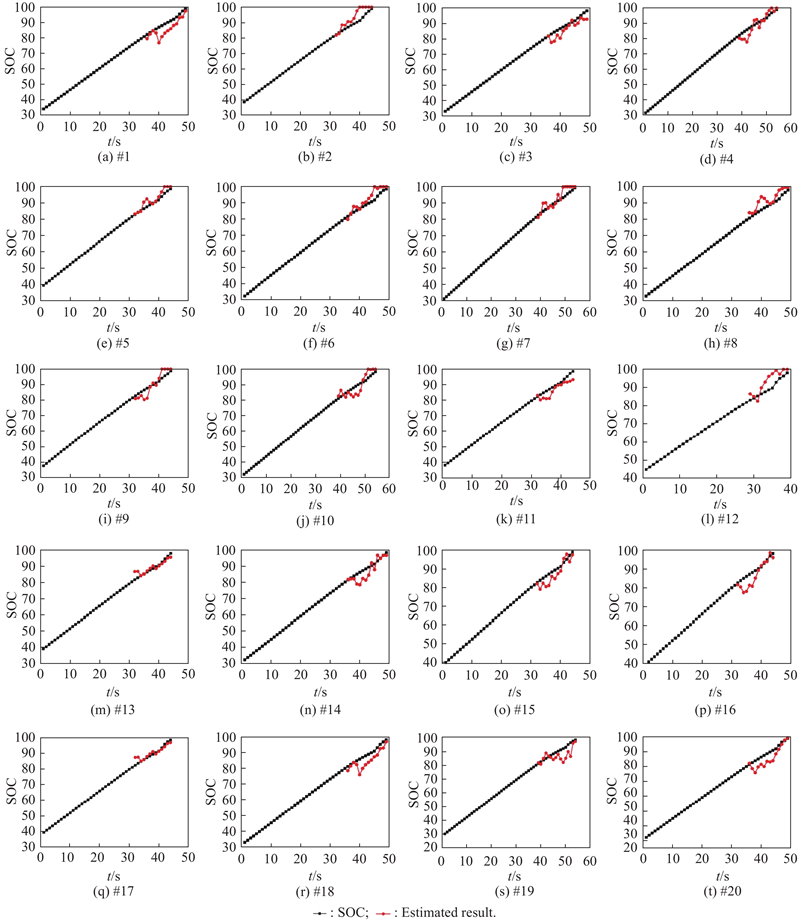

In this paper, a grey Kalman filter model is proposed for lithium battery charge state estimation. Firstly, this paper establishes a recursive relation equation between the front and back terms through the grey model (GM). Secondly, the state space expression is constructed based on the recursive relationship equation. Next, the Kalman filter algorithm is integrated to form a grey Kalman filter model. Finally, the charge state is estimated based on public lithium battery data. In this paper, the state of charge is estimated from three different aspects, including different driving cycles, randomly mixed driving cycles, and the estimation of the state of charge by different temperatures under the same driving cycle conditions. On this basis, the model is applied to a life scenario using the charge state of 20 electric vehicles. The results show that the proposed model has good accuracy.

Key words: grey model (GM), lithium batteries, state of charge, electric vehicle

Zhicun XU, Naiming XIE. State of charge estimation for lithium battery based on grey Kalman filter model[J]. Journal of Systems Engineering and Electronics, 2025, 36(6): 1579-1594.

Figures/Tables 16

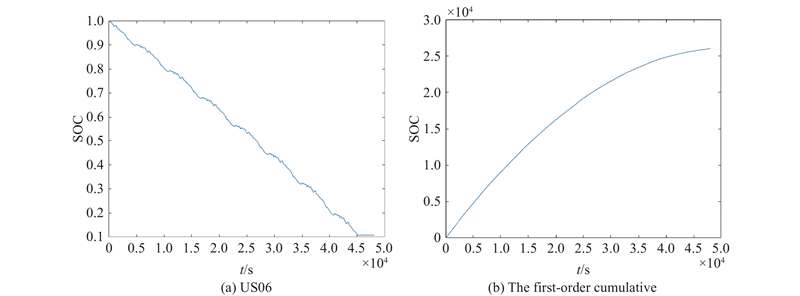

Fig 1

Fig 2

Fig 3

Fig 4

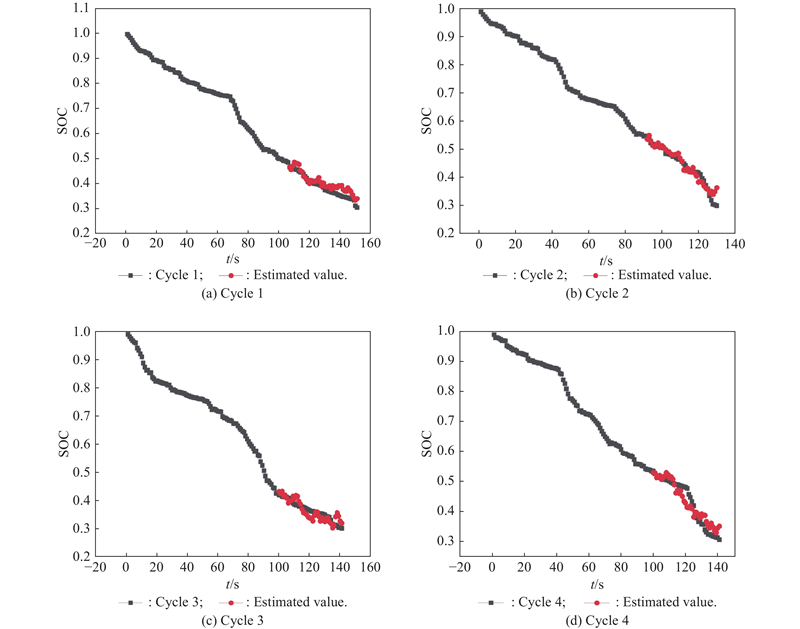

Fig 5

Fig 6

Table 1

Table 2

Fig 7

Table 3

Fig 8

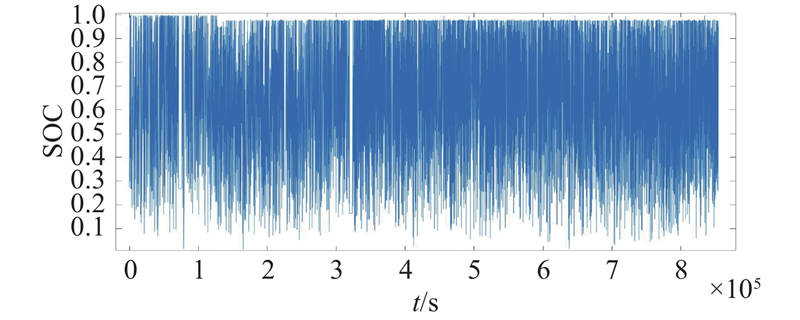

Fig 9

Table 4

Table 5

Fig 10

Table 6

References 31

1	CHEN M L, CHEN J K, TAN X X, et al Facile self-assembly of sandwich-like Mxene/raphene oxide/nickel– anganese layered double hydroxide nanocomposite for high performance supercapacitor. Journal of Energy Storage, 2021, 44, 103456. doi: 10.1016/j.est.2021.103456
2	LAI X, WENG J H, YANG Y P, et al State of charge estimation of lithium-ion battery pack based on BPNN-EKF-GD-RF algorithm. Journal of Mechanical Engineering, 2025, 61 (12): 251- 265.
3	LI W F, YANG K, MA H F, et al An online state of charge estimation algorithm for lithium batteries. Journal of Xi’an Jiao Tong University, 2024, 58 (9): 164- 172.
4	HE H W, XIONG R, ZHANG X W, et al State-of-charge estimation of the lithium-ion battery using an adaptive extended kalman filter based on an improved Thevenin model. IEEE Trans. on Vehicular Technology, 2011, 60 (4): 1461- 1469. doi: 10.1109/TVT.2011.2132812
5	FAN K S, WAN Y M, WANG Z, et al Time-efficient identification of lithium-ion battery temperature-dependent OCV-SOC curve using multi-output Gaussian process. Energy, 2023, 268, 126724. doi: 10.1016/j.energy.2023.126724
6	KHAN A A, BAJARIA B. Hybrid energy storage using battery and ultra-capacitor for electric vehicle. Proc. of the 9th International Conference on Power and Energy Systems, 2019: 1–6.
7	ZHANG X G, DUAN L C, GONG Q S, et al State of charge estimation for lithium-ion battery based on adaptive extended Kalman filter with improved residual covariance matrix estimator. Journal of Power Sources, 2024, 589, 233758. doi: 10.1016/j.jpowsour.2023.233758
8	LI J R, HUANG X F, TANG X P, et al The state-of-charge predication of lithium-ion battery energy storage system using data-driven machine learning. Sustainable Energy, Grids and Networks, 2023, 34, 101020. doi: 10.1016/j.segan.2023.101020
9	XUE J W, DU X Z, YANG Z G, et al Extraction of open circuit voltage state of charge curve for lithium-ion batteries based on smoothness optimization. Journal of Tongji University (Natural Science), 2024, 52 (S1): 235- 243.
10	XIAO R X, HU Y W, ZHANG W, et al A novel approach to estimate the state of charge for lithium-ion battery under different temperatures incorporating open circuit voltage online identification. Journal of Energy Storage, 2023, 67, 107509. doi: 10.1016/j.est.2023.107509
11	ZHENG F D, XING Y J, JIANG J C, et al Influence of different open circuit voltage tests on state of charge online estimation for lithium-ion batteries. Applied Energy, 2016, 183, 513- 525. doi: 10.1016/j.apenergy.2016.09.010
12	LI K, ZHOU P, LU Y F, et al Battery life estimation based on cloud data for electric vehicles. Journal of Power Sources, 2020, 468, 228192. doi: 10.1016/j.jpowsour.2020.228192
13	XIONG R, HE H W, SUN F C, et al Evaluation on state of charge estimation of batteries with adaptive extended Kalman filter by experiment approach. IEEE Trans. on Vehicular Technology, 2013, 62 (1): 108- 117. doi: 10.1109/TVT.2012.2222684
14	PAN H H, LV Z Q, LIN W L, et al State of charge estimation of lithium-ion batteries using a grey extended Kalman filter and a novel open-circuit voltage model. Energy, 2017, 138, 764- 775. doi: 10.1016/j.energy.2017.07.099
15	CHEN L P, WU X B, LOPES A M, et al Adaptive state-of-charge estimation of lithium-ion batteries based on square-root unscented Kalman filter. Energy, 2022, 252, 123972.
16	SESIDHAR D, BADACHI C, GREEN R C A review on data-driven SOC estimation with Li-ion batteries: implementation methods & future aspirations. Journal of Energy Storage, 2023, 72, 108420. doi: 10.1016/j.est.2023.108420
17	CHEN L, DING Y H, LIU B H, et al Remaining useful life prediction of lithium-ion battery using a novel particle filter framework with grey neural network. Energy, 2022, 244, 122581. doi: 10.1016/j.energy.2021.122581
18	WANG S S, XIAO X P, DING Q A novel fractional system grey prediction model with dynamic delay effect for evaluating the state of health of lithium battery. Energy, 2024, 290, 130057. doi: 10.1016/j.energy.2023.130057
19	DENG J L Control problems of grey systems. Systems & control letters, 1982, 1 (5): 288- 294.
20	LOU G M, LIN W W, WANG Y Z Remaining useful life prediction of supercapacitors based on DMM-EKF. Journal of Mechanical Engineering, 2024, 60 (14): 306- 316.
21	YANG J S, FANG W G, CHEN J Y, et al A lithium-ion battery remaining useful life prediction method based on unscented particle filter and optimal combination strategy. Journal of Energy Storage, 2022, 55, 105648. doi: 10.1016/j.est.2022.105648
22	LI J F, WANG L X, LYU C, et al Discharge capacity estimation for Li-ion batteries based on particle filter under multi-operating conditions. Energy, 2015, 86, 638- 648.
23	ZHANG Y, CHEN L G H, LI Y, et al A hybrid approach for remaining useful life prediction of lithium-ion battery with adaptive levy flight optimized particle filter and long short-term memory network. Journal of Energy Storage, 2021, 44, 103245. doi: 10.1016/j.est.2021.103245
24	ZHANG K, ZHAO P, SUN C F, et al Remaining useful life prediction of aircraft lithium-ion batteries based on F-distribution particle filter and kernel smoothing algorithm. Chinese Journal of Aeronautics, 2020, 33 (5): 1517- 1531. doi: 10.1016/j.cja.2020.01.007
25	HE N, QIAN C, HE L L Short-term prediction of remaining life for lithium-ion battery based on adaptive hybrid model with long short-term memory neural network and optimized particle filter. Journal of Electrochemical Energy Conversion and Storage, 2022, 19 (3): 031004. doi: 10.1115/1.4053141
26	MIAO Q, XIE L, CUI H J, et al Remaining useful life prediction of lithium-ion battery with unscented particle filter technique. Microelectronics Reliability, 2013, 53 (6): 805- 810. doi: 10.1016/j.microrel.2012.12.004
27	XUE Z W, ZHANG Y, CHENG C, et al Remaining useful life prediction of lithium-ion batteries with adaptive unscented kalman filter and optimized support vector regression. Neurocomputing, 2020, 376, 95- 102. doi: 10.1016/j.neucom.2019.09.074
28	MENG J W, YUE M L, DIALLO D A degradation empirical-model-free battery end-of-life prediction framework based on gaussian process regression and kalman filter. IEEE Trans. on Transportation Electrification, 2023, 9 (4): 4898- 4908. doi: 10.1109/TTE.2022.3209629
29	CHEN D, MENG J H, HUANG H Y, et al An empirical-data hybrid driven approach for remaining useful life prediction of lithium-ion batteries considering capacity diving. Energy, 2022, 245, 123222. doi: 10.1016/j.energy.2022.123222
30	KOLLMEYER P. Panasonic 18650PF Li-ion battery data. https://data.mendeley.com/datasets/wykht8y7tg/1.
31	DENG Z W, XU L, LIU H A, et al Prognostics of battery capacity based on charging data and data-driven methods for on-road vehicles. Applied Energy, 2023, 339, 120954. doi: 10.1016/j.apenergy.2023.120954

k	US06	GKFM	GM	ADGM	NNAR	SVM
44	0.5062	0.504 0	0.5369	0.489 0	0.516 0	0.5523
45	0.4914	0.4989	0.529 0	0.4759	0.5108	0.5577
46	0.4703	0.497 0	0.5213	0.4626	0.5063	0.5653
47	0.4516	0.474 0	0.5137	0.4491	0.5024	0.5747
48	0.4427	0.4722	0.5062	0.4354	0.499 0	0.5858
49	0.4432	0.4659	0.4988	0.4215	0.4961	0.5981
50	0.4364	0.4623	0.4916	0.4074	0.4936	0.6113
51	0.430 0	0.4401	0.4844	0.3931	0.4915	0.6251
52	0.4137	0.4197	0.4773	0.3785	0.4896	0.6389
53	0.4012	0.4236	0.4704	0.3638	0.4881	0.6526
54	0.3856	0.3967	0.4635	0.3487	0.4868	0.6659
55	0.3703	0.3612	0.4567	0.3335	0.4856	0.6784
56	0.3486	0.3547	0.4501	0.318	0.4847	0.6899
57	0.3294	0.3456	0.4435	0.3023	0.4839	0.7005
58	0.3194	0.3432	0.437	0.2864	0.4832	0.7099
59	0.3208	0.3477	0.4307	0.2702	0.4827	0.7182
60	0.313 0	0.3362	0.4244	0.2538	0.4822	0.7253
61	0.3071	0.3418	0.4182	0.2371	0.4818	0.7314
RMSE	—	0.0204	0.0811	0.0353	0.1077	0.2734
MAPE	—	0.0479	0.2074	0.0848	0.2627	0.6791

Model	MAPE	RMSE
GKFM	0.047 9	0.020 4
GM	0.207 4	0.081 1
ADGM	0.084 8	0.035 3
NNAR	0.262 7	0.107 7
SVM	0.679 1	0.273 4

Model	HWFETa		HWFETb		UDDS		LA92
Model	MAPE	RMSE	MAPE	RMSE	MAPE	RMSE	MAPE	RMSE
GKFM	0.030 5	0.014 4	0.027 1	0.014 5	0.046 1	0.000 5	0.038 9	0.020 3
GM	0.194 1	0.077 9	0.194 9	0.078 1	0.188 0	0.076 8	0.183 1	0.074 8
ADGM	0.162 2	0.065 4	0.162 4	0.065 4	0.160 4	0.065 6	0.124 9	0.063 8
NNAR	0.239 5	0.102 6	0.235 3	0.100 8	0.289 7	0.124 7	0.264 7	0.114 9
SVM	0.629 3	0.263 5	0.631 1	0.263 8	0.587 2	0.253 2	0.569 6	0.246 5

EV	Cycle	EV	Cycle	EV	Cycle	EV	Cycle
#1	1566	#6	1504	#11	1498	#16	1559
#2	1580	#7	1518	#12	1515	#17	1404
#3	1498	#8	1509	#13	1846	#18	1549
#4	1532	#9	1455	#14	1474	#19	1469
#5	1532	#10	1322	#15	1261	#20	1499

EV	a	EV	a
#1	−0.0234	#11	−0.024
#2	−0.0231	#12	−0.021
#3	−0.024 0	#13	−0.023
#4	−0.0233	#14	−0.024
#5	−0.0229	#15	−0.022
#6	−0.0245	#16	−0.023
#7	−0.0237	#17	−0.023
#8	−0.024 0	#18	−0.024
#9	−0.0239	#19	−0.024
#10	−0.0228	#20	−0.025
