Dynamic vehicle routing for a dual-channel distribution center with stochastic demands and shared resources

doi:10.23919/JSEE.2025.000139

Journal of Systems Engineering and Electronics ›› 2025, Vol. 36 ›› Issue (6): 1501-1531.doi: 10.23919/JSEE.2025.000139

• SYSTEMS ENGINEERING • Previous Articles

Dynamic vehicle routing for a dual-channel distribution center with stochastic demands and shared resources

Mei XU¹(), Feng YANG¹^,*(), Ting CHEN²()

¹ School of Management, University of Science and Technology of China, Hefei 230026, China
² School of Foreign Language, Hefei Normal University, Hefei 230601, China

Received:2025-03-05 Online:2025-12-18 Published:2026-01-07
Contact: Feng YANG E-mail:xmadyy@mail.ustc.edu.cn;fengyang@ustc.edu.cn;tinachen@mail.ustc.edu.cn
About author:
XU Mei was born in 1994. She received her B.S. and M.S. degrees in information management and information systems and in management science and engineering from Nanjing University of Posts and Telecommunications in 2016 and 2019, respectively. Currently, she is pursuing her Ph.D. degree in management science and engineering at the University of Science and Technology of China. Her research interests include supply chain management, logistics management, and path optimization. E-mail: xmadyy@mail.ustc.edu.cn

YANG Feng was born in 1977. He received his B.S. and Ph.D. degrees in finance by the University of Science and Technology of China in 2000 and 2006, respectively. He is a professor in the School of Management, University of Science and Technology of China. His research interests include multi-objective optimization and multi-criteria decision modeling. E-mail: fengyang@ustc.edu.cn

CHEN Ting was born in 1983. She received her B.S. and M.S. degrees in tourism management from Anhui Universit in 2005 and 2008, respectively. She received her Ph.D. degree in business administration from the University of Science and Technology of China in 2019. She is a professor at Hefei Normal University. Her research interests include platform supply chain and operations management. E-mail: tinachen@mail.ustc.edu.cn
Supported by:
This work was supported by the National Natural Science Foundation of China (71991464/71991460;72301261;72001066) and 2024 Anhui Province High-end Talent Introduction and Cultivation Project.

Abstract

Abstract:

This paper addresses a dynamic vehicle routing problem with stochastic requests in a dual-channel distribution center that utilizes shared vehicle resources to serve two types of customers: offline corporate clients (CCs) with fixed and stochastic batch demands, and online individual customers (ICs) with single-unit demands. To manage stochastic batch demands from CCs, this paper proposes three recourse policies under a differentiated resource-sharing scheme: the waiting-tour-based (WTB) policy, the advance-tour-based (ATB) policy, and the advance-customer-based (ACB) policy. These policies differ in their response priorities to random requests and the scope of route reoptimization. The problem is formulated as a two-stage stochastic recourse programming model, where the first stage establishes routes for fixed demands. In the second stage, we construct three stochastic recourse programming models corresponding to the proposed recourse policies. To solve these models, this paper develop rolling horizon algorithms integrated with mathematical programming models or metaheuristic algorithms. Extensive numerical experiments validate the effectiveness of the proposed algorithms and policies. The results indicate that both the ATB and ACB policies lead to cost savings compared to the WTB policy, especially when stochastic demands are urgent and delivery resources are quite limited. Specifically, when the number of ICs is small, the expected total cost savings can exceed 12%, and in some scenarios, savings of over 20% can be achieved. When the number of ICs is large, some scenarios can achieve cost savings exceeding 7%. Furthermore, the ACB policy yields lower costs, fewer worsened ICs, fewer trips, and less vehicle time than the ATB policy.

Key words: dynamic vehicle routing, stochastic request, dual-channel distribution, stochastic recourse programming, rolling horizon algorithm

Mei XU, Feng YANG, Ting CHEN. Dynamic vehicle routing for a dual-channel distribution center with stochastic demands and shared resources[J]. Journal of Systems Engineering and Electronics, 2025, 36(6): 1501-1531.

Figures/Tables 17

Table 1

Table 2

Notation in the second stage model"

Parameter	Definition
$ {T} $	Set of periods during a day’s working hours. $ {T}=\{\mathrm{1,2},\cdots ,Z\} $
$ \varOmega $	Set of random scenarios for demand realization. $ \varOmega =\{1, 2, \cdots , \|\varOmega \left\|\right\} $
$ {N}_{\tau \omega }^{+} $	Set of nodes of CCs that generate new requests in period $ \tau -1 $ in scenario $ \omega $. $ \left\|{N}_{\tau \omega }^{+}\right\|={n}_{\tau \omega }^{+} $
$ {N}_{\tau \omega }^{\#} $/$ {N}_{\tau \omega }^{-} $	Set of nodes of CCs/ICs whose trip departure times are no earlier than the start of period $ \tau $ in the latest schedule in scenario $ \omega $
$ {N}_{\tau \omega }^{\mathrm{*}} $	$ {N}_{\tau \omega }^{\mathrm{*}}={N}_{\tau \omega }^{\#}\cup {N}_{\tau \omega }^{-} $
$ {\overrightarrow{N}}_{\tau \omega }^{+} $	$ {{\overrightarrow{N}}_{\tau \omega }^{+}}=N^{+}_{\tau \omega }\cup {N}_{\tau \omega }^{\#} $
$ {N}_{\tau \omega }' $	$ {N}_{\tau \omega }'={N}_{\tau \omega }^{+}\cup {N}_{\tau \omega }^{\#}\cup {N}_{\tau \omega }^{-} $
$ {N}_{\tau \omega } $	$ {N}_{\tau \omega }=\left\{0\right\}\cup {N}_{\tau \omega }^{+}\cup {N}_{\tau \omega }^{\#}\cup {N}_{\tau \omega }^{-} $
$ {N}_{\omega }^{+} $	Set of CCs that generate new requests in scenario $ \omega $. $ {N}_{\omega }^{+}={N}_{1\omega }^{+}\cup {N}_{2\omega }^{+}\cup \cdots \cup {N}_{Z\omega }^{+} $
$ {G}_{\tau \omega }' $	Set of trips in the latest schedule in scenario $ \omega $, satisfying (i) active trips: the departure time is no earlier than the start of period $ \tau $, or (ii) inactive trips. $ {G}_{\tau \omega }'=\{{G}_{1\tau \omega }',{G}_{2\tau \omega }',\cdots ,{G}_{H\tau \omega }'\} $
$ {y}_{ij\tau \omega } $	Binary parameter. If node $ j $ is served after node $ i $ after the start of period $ \mathrm{\tau } $ in the latest schedule in scenario $ \omega $, $ {y}_{ij\tau \omega }=1 $; otherwise, $ {y}_{ij\tau \omega }=0 $. Note that $ {y}_{0i\tau \omega }={y}_{i0\tau \omega }=1(i\in {N}_{\tau \omega }^{+}) $. $ i,j\in {N}_{\tau \omega } $
$ {t}_{\tau } $	Start time of period $ \mathrm{\tau } $
$ [\underline{{t}_{i\omega }'},\overline {{t}_{i\omega }'}] $	Lower and upper bounds for the delivery time window of node $ i $’s new request in scenario $ \omega $. $ i\in {N}_{\tau \omega }^{+} $
$ {x}_{ik{g}'\tau \omega }' $	Binary variable. If node $ i $ is served on tour $ {g}' $ of vehicle $ k $ in period $ \mathrm{\tau } $ and scenario $ \omega $, $ {x}_{ik{g}'\omega }'=1 $; otherwise, $ {x}_{ik{g}'\omega }'=0 $. $ i\in {N}_{\tau \omega }',k\in K,{g}'\in {G}_{k\tau \omega }' $

Table 2

Table 3

Fig 1

Fig 2

Table 4

Table 5

Table 6

Table 7

Table 8

Fig 3

Table 9

Table 10

Fig 4

Table 11

Table 12

Table 13

References 62

63	CHANG Z X, ZHOU Z B, YAO F, et al Observation scheduling problem for AEOS with a comprehensive task clustering. Journal of Systems Engineering and Electronics, 2021, 32 (2): 347- 364. doi: 10.23919/JSEE.2021.000029
64	SHI J M, ZHANG J M, LEI H T, et al Joint mission and route planning of unmanned air vehicles via a learning-based heuristic. Journal of Systems Engineering and Electronics, 2023, 34 (1): 81- 98. doi: 10.23919/JSEE.2023.000005
65	BUSTOS-CORAL D, COSTA A M Adaptive large neighborhood search for drayage routing problems involving longer combination vehicles. Computers & Operations Research, 2025, 173, 106826.
66	VOIGT S A review and ranking of operators in adaptive large neighborhood search for vehicle routing problems. European Journal of Operational Research, 2025, 322 (2): 357- 375. doi: 10.1016/j.ejor.2024.05.033
67	MASSON R, LEHUEDE F, PETON O An adaptive large neighborhood search for the pickup and delivery problem with transfers. Transportation Science, 2013, 47 (3): 344- 355. doi: 10.1287/trsc.1120.0432
1	LI F, XU Z, CHEN Z L Production and transportation integration for commit-to-delivery mode with general shipping costs. INFORMS Journal on Computing, 2020, 32 (4): 1012- 1029.
2	YILDIZ B Package routing problem with registered couriers and stochastic demand. Transportation Research Part E: Logistics and Transportation Review, 2021, 147, 102248. doi: 10.1016/j.tre.2021.102248
3	SILVA D F, VINEL A, KIRKICI B On-demand public transit: a markovian continuous approximation model. Transportation Science, 2022, 56 (3): 704- 724. doi: 10.1287/trsc.2021.1063
4	BEIRIGO B A, SCHULTE F, NEGENBORN R R A learning-based optimization approach for autonomous ridesharing platforms with service-level contracts and on-demand hiring of idle vehicles. Transportation Science, 2022, 56 (3): 677- 703. doi: 10.1287/trsc.2021.1069
5	ZHANG J, LUO K, FLORIO A M, et al Solving large-scale dynamic vehicle routing problems with stochastic requests. European Journal of Operational Research, 2023, 306 (2): 596- 614. doi: 10.1016/j.ejor.2022.07.015
6	ZIGRAND L, CALVO R W, TRAVERSI E, et al A scalable combinatorial benders decomposition for the stochastic dial-a-ride problem. Transportation Research Part C: Emerging Technologies, 2024, 163, 104624. doi: 10.1016/j.trc.2024.104624
7	BERTSIMAS D J, JAILLET P, ODONI A R A priori optimization. Operations Research, 1990, 38 (6): 1019- 1033. doi: 10.1287/opre.38.6.1019
8	GOODSON J C A priori policy evaluation and cyclic-order-based simulated annealing for the multi-compartment vehicle routing problem with stochastic demands. European Journal of Operational Research, 2015, 241 (2): 361- 369. doi: 10.1016/j.ejor.2014.09.031
9	HAUGHTON M A Assigning delivery routes to drivers under variable customer demands. Transportation Research Part E: Logistics and Transportation Review, 2007, 43 (2): 157- 172. doi: 10.1016/j.tre.2005.09.009
10	SECOMANDI N, MARGOT F Reoptimization approaches for the vehicle-routing problem with stochastic demands. Operations Research, 2009, 57 (1): 214- 230. doi: 10.1287/opre.1080.0520
11	ZHANG J, LAM W H K, CHEN B Y On-time delivery probabilistic models for the vehicle routing problem with stochastic demands and time windows. European Journal of Operational Research, 2016, 249 (1): 144- 154. doi: 10.1016/j.ejor.2015.08.050
12	LOUVEAUX F V, SALAZAR-GONZALEZ J J Exact approach for the vehicle routing problem with stochastic demands and preventive returns. Transportation Science, 2018, 52 (6): 1463- 1478. doi: 10.1287/trsc.2017.0780
13	FLORIO A M, HARTL R F, MINNER S, et al A branch-and-price algorithm for the vehicle routing problem with stochastic demands and probabilistic duration constraints. Transportation Science, 2021, 55 (1): 122- 138. doi: 10.1287/trsc.2020.1002
14	FLORIO A M, FEILLET D, POGGI M, et al Vehicle routing with stochastic demands and partial reoptimization. Transportation Science, 2022, 56 (5): 1393- 1408. doi: 10.1287/trsc.2022.1129
15	WANG F L, LI H Q, XIONG H X Truck-drone routing problem with stochastic demand. European Journal of Operational Research, 2025, 322 (3): 854- 869. doi: 10.1016/j.ejor.2024.11.036
16	HVATTUM L M, LØKKETANGEN A, LAPORTE G Solving a dynamic and stochastic vehicle routing problem with a sample scenario hedging heuristic. Transportation Science, 2006, 40 (4): 421- 438. doi: 10.1287/trsc.1060.0166
17	GU R X, LIU Y, POON M Dynamic truck-drone routing problem for scheduled deliveries and on-demand pickups with time-related constraints. Transportation Research Part C: Emerging Technologies, 2023, 151, 104139. doi: 10.1016/j.trc.2023.104139
18	YAN S, LIN J R, LAI C W The planning and real-time adjustment of courier routing and scheduling under stochastic travel times and demands. Transportation Research Part E: Logistics and Transportation Review, 2013, 53, 34- 48. doi: 10.1016/j.tre.2013.01.011
19	ULMER M W, GOODSON J C, MATTFELD D C, et al Offline–online approximate dynamic programming for dynamic vehicle routing with stochastic requests. Transportation Science, 2019, 53 (1): 185- 202. doi: 10.1287/trsc.2017.0767
20	LEI L, LIU S, RUSZCZYNSKI A, et al On the integrated production, inventory, and distribution routing problem. IIE Transactions, 2006, 38 (11): 955- 970. doi: 10.1080/07408170600862688
21	LEE J, KIM B I, JOHNSON A L, et al The nuclear medicine production and delivery problem. European Journal of Operational Research, 2014, 236 (2): 461- 472. doi: 10.1016/j.ejor.2013.12.024
22	JUAN A, FAULIN J, GRASMAN S, et al Using safety stocks and simulation to solve the vehicle routing problem with stochastic demands. Transportation Research Part C: Emerging Technologies, 2011, 19 (5): 751- 765. doi: 10.1016/j.trc.2010.09.007
23	GOODSON J C, OHLMANN J W, THOMAS B W Rollout policies for dynamic solutions to the multivehicle routing problem with stochastic demand and duration limits. Operations Research, 2013, 61 (1): 138- 154. doi: 10.1287/opre.1120.1127
24	ABDULLAHI H, REYES-RUBIANO L, OUELHADJ D, et al A reliability-extended simheuristic for the sustainable vehicle routing problem with stochastic travel times and demands. Journal of Heuristics, 2025, 31 (2): 19. doi: 10.1007/s10732-025-09555-4
25	SALAVATI-KHOSHGHALB M, GENDREAU M, JABALI O, et al An exact algorithm to solve the vehicle routing problem with stochastic demands under an optimal restocking policy. European Journal of Operational Research, 2019, 273 (1): 175- 189. doi: 10.1016/j.ejor.2018.07.039
26	FLORIO A M, HARTL R F, MINNER S New exact algorithm for the vehicle routing problem with stochastic demands. Transportation Science, 2020, 54 (4): 1073- 1090. doi: 10.1287/trsc.2020.0976
27	CACERES H, BATTA R, HE Q School bus routing with stochastic demand and duration constraints. Transportation Science, 2017, 51 (4): 1349- 1364. doi: 10.1287/trsc.2016.0721
28	ALKAABNEH F, SHEHADEH K S, DIABAT A Routing and resource allocation in non-profit settings with equity and efficiency measures under demand uncertainty. Transportation Research Part C: Emerging Technologies, 2023, 149, 104023. doi: 10.1016/j.trc.2023.104023
29	MUNARI P, MORENO A, VEGA J D L, et al The robust vehicle routing problem with time windows: compact formulation and branch-price-and-cut method. Transportation Science, 2019, 53 (4): 1043- 1066. doi: 10.1287/trsc.2018.0886
30	LI M, LEE E, LO H K Offline planning and online operation of zonal-based flexible transit service under demand uncertainties and dynamic cancellations. Transportation Research Part C: Emerging Technologies, 2024, 168, 104715. doi: 10.1016/j.trc.2024.104715
31	PAPADIMITRIOU C H The Euclidean travelling salesman problem is NP-complete. Theoretical Computer Science, 1977, 4 (3): 237- 244. doi: 10.1016/0304-3975(77)90012-3
32	JUNGER M, LIEBLING T M, NADDEF D, et al. 50 years of integer programming 1958-2008. Berlin: Springer, 2010.
33	REUSKEN M, LAPORTE G, ROHMER S U K, et al Vehicle routing with stochastic demand, service and waiting times—the case of food bank collection problems. European Journal of Operational Research, 2024, 317 (1): 111- 127. doi: 10.1016/j.ejor.2024.03.031
34	SECOMANDI N A rollout policy for the vehicle routing problem with stochastic demands. Operations Research, 2001, 49 (5): 796- 802. doi: 10.1287/opre.49.5.796.10608
35	LAPORTE G, LOUVEAUX F V, HAMME V L An integer L-shaped algorithm for the capacitated vehicle routing problem with stochastic demands. Operations Research, 2002, 50 (3): 415- 423. doi: 10.1287/opre.50.3.415.7751
36	FLORIO A M, GENDREAU M, HARTL R F, et al Recent advances in vehicle routing with stochastic demands: Bayesian learning for correlated demands and elementary branch-price-and-cut. European Journal of Operational Research, 2023, 306 (3): 1081- 1093. doi: 10.1016/j.ejor.2022.10.045
37	SALAVATI-KHOSHGHALB M, GENDREAU M, JABALI O, et al A rule-based recourse for the vehicle routing problem with stochastic demands. Transportation Science, 2019, 53 (5): 1334- 1353. doi: 10.1287/trsc.2018.0876
38	VEGA J D L, GENDREAU M, MORABITO R, et al An integer L-shaped algorithm for the vehicle routing problem with time windows and stochastic demands. European Journal of Operational Research, 2023, 308 (2): 676- 695. doi: 10.1016/j.ejor.2022.11.040
39	CHE Y X, ZHANG Z Z An integer L-shaped algorithm for vehicle routing problem with simultaneous delivery and stochastic pickup. Computers & Operations Research, 2023, 154, 106201.
40	HOOGENDOORN Y N, SPLIET R An evaluation of common modeling choices for the vehicle routing problem with stochastic demands. European Journal of Operational Research, 2025, 321 (1): 107- 122. doi: 10.1016/j.ejor.2024.09.007
41	LI R, CUI Z, KUO Y H, et al Scenario-based distributionally robust optimization for the stochastic inventory routing problem. Transportation Research Part E: Logistics and Transportation Review, 2023, 176, 103193. doi: 10.1016/j.tre.2023.103193
42	GOODSON J C, OHLMANN J W, THOMAS B W Cyclic-order neighborhoods with application to the vehicle routing problem with stochastic demand. European Journal of Operational Research, 2012, 217 (2): 312- 323. doi: 10.1016/j.ejor.2011.09.023
43	HUANG S H, LIN P C A modified ant colony optimization algorithm for multi-item inventory routing problems with demand uncertainty. Transportation Research Part E: Logistics and Transportation Review, 2010, 46 (5): 598- 611. doi: 10.1016/j.tre.2010.01.006
44	ZHONG S, CHENG R, JIANG Y, et al Risk-averse optimization of disaster relief facility location and vehicle routing under stochastic demand. Transportation Research Part E: Logistics and Transportation Review, 2020, 141, 102015. doi: 10.1016/j.tre.2020.102015
45	LUO Z, QIN H, ZHANG D, et al Adaptive large neighborhood search heuristics for the vehicle routing problem with stochastic demands and weight-related cost. Transportation Research Part E: Logistics and Transportation Review, 2016, 85, 69- 89. doi: 10.1016/j.tre.2015.11.004
46	YU V F, ANH P T, BALDACCI R A robust optimization approach for the vehicle routing problem with cross-docking under demand uncertainty. Transportation Research Part E: Logistics and Transportation Review, 2023, 173, 103106. doi: 10.1016/j.tre.2023.103106
47	LIU Y J, ZHANG T, LEI H T, et al Stochastic programming approach for earthquake disaster relief mobilization with multiple objectives. Journal of Systems Engineering and Electronics, 2013, 24 (4): 642- 654. doi: 10.1109/JSEE.2013.00075
48	ALVAREZ A, CORDEAU J F, JANS R The consistent vehicle routing problem with stochastic customers and demands. Transportation Research Part B: Methodological, 2024, 186, 102968. doi: 10.1016/j.trb.2024.102968
49	ARSLAN A M, AGATZ N, KROON L, et al Crowdsourced delivery—a dynamic pickup and delivery problem with ad hoc drivers. Transportation Science, 2019, 53 (1): 222- 235. doi: 10.1287/trsc.2017.0803
50	AL-E-HASHEM S M J M, REKIK Y, HOSEINHAJLOU E M A hybrid L-shaped method to solve a bi-objective stochastic transshipment-enabled inventory routing problem. International Journal of Production Economics, 2019, 209, 381- 398. doi: 10.1016/j.ijpe.2017.06.020
51	NEVES-MOREIRA F, ALMADA-LOBO B, GUIMARAES L, et al The multi-product inventory-routing problem with pickups and deliveries: mitigating fluctuating demand via rolling horizon heuristics. Transportation Research Part E: Logistics and Transportation Review, 2022, 164, 102791. doi: 10.1016/j.tre.2022.102791
52	MA W J, ZENG L, AN K Dynamic vehicle routing problem for flexible buses considering stochastic requests. Transportation Research Part C: Emerging Technologies, 2023, 148, 104030. doi: 10.1016/j.trc.2023.104030
53	MENDOZA J E, CASTANIER B, GUERET C, et al Constructive heuristics for the multicompartment vehicle routing problem with stochastic demands. Transportation Science, 2011, 45 (3): 346- 363. doi: 10.1287/trsc.1100.0353
54	ORTEGA E J A, MALICKI S, DOERNER K F, et al Stochastic inventory routing with dynamic demands and intra-day depletion. Computers & Operations Research, 2024, 163, 106503.
55	KIRKPATRICK S, GELATT C D, VECCHI M P Optimization by simulated annealing. Science, 1983, 220 (4598): 671- 680. doi: 10.1126/science.220.4598.671
56	WEI L, ZHANG Z, ZHANG D, et al A simulated annealing algorithm for the capacitated vehicle routing problem with two-dimensional loading constraints. European Journal of Operational Research, 2018, 265 (3): 843- 859. doi: 10.1016/j.ejor.2017.08.035
57	ZHOU T R, XIONQ H G, ZHANG Z Hierarchical resource allocation for integrated modular avionics systems. Journal of Systems Engineering and Electronics, 2011, 22 (5): 780- 787. doi: 10.3969/j.issn.1004-4132.2011.05.009
58	WANG C G, TANG J, CHENG X H, et al Distributed cooperative task planning algorithm for multiple satellites in delayed communication environment. Journal of Systems Engineering and Electronics, 2016, 27 (3): 619- 633. doi: 10.1109/JSEE.2016.00066
59	ROPKE S, PISINGER D An adaptive large neighborhood search heuristic for the pickup and delivery problem with time windows. Transportation Science, 2006, 40 (4): 455- 472. doi: 10.1287/trsc.1050.0135
60	WEI C G, WØHLK S, CHE A A multi-level capacitated arc routing problem with intermediate facilities in waste collection. Computers & Operations Research, 2024, 167, 106671.
61	GUO J F, SONG R, HE S W Vehicle and onboard UAV collaborative delivery route planning: considering energy function with wind and payload. Journal of Systems Engineering and Electronics, 2025, 36 (1): 194- 208. doi: 10.23919/JSEE.2025.000020
62	GUIMARAES T A, COELHO L C, SCHENEKEMBERG C M, et al The two-echelon multi-depot inventory-routing problem. Computers & Operations Research, 2019, 101, 220- 233.

Parameter	Definition
$ N $	Set of transportation nodes, indexed by $ i $ and $ j $. Note that $ i=0 $ denotes the depot. $ N=\left\{0\right\}\cup {N}^{+}\cup {N}^{-}=\{\mathrm{0,1},2,\cdots ,{n}^{+},{n}^{+}+1,{n}^{+}+2,\mathrm{ }\cdots ,{n}^{+}+{n}^{-}\} $
$ {N}^{+} $	Set of CCs. $ {N}^{+}=\{\mathrm{1,2},\cdots ,{n}^{+}\} $
$ {N}^{-} $	Set of ICs. $ {N}^{-}=\{{n}^{+}+1,{n}^{+}+2,\mathrm{ }\cdots ,{n}^{+}+{n}^{-}\} $
$ {\overrightarrow{N}}^{-} $	Set of nodes of ICs and the depot. $ {\overrightarrow{N}}^{-}=\left\{0\right\}\cup {N}^{-} $
$ {N}' $	Set of nodes of customers. $ {N}'={N}^{+}\cup {N}^{-} $
$ K $	Set of vehicles. $ K=\{\mathrm{1,2},\cdots ,H\} $
$ G $	Set of trips. $ G=\{\mathrm{1,2},\cdots ,F\} $
$ Q $	Maximum capacity of vehicles
$ {\mathrm{sp}} $	Travel speed of vehicles
$ {t}_{ij} $	Travel time between transportation node $ i $ and transportation node $ j $. $ i,j\in N $
$ {s}_{i} $	Service time at transportation node $ i $. $ i\in N $
$ \underline{{t}_{i}},\overline {{t}_{i}} $	Lower and upper bounds of the delivery time window for node $ i $. $ i\in N $
$ M $	A fixed, sufficiently large number
$ {x}_{ikg} $	Binary variable. If node $ i $ is served on tour $ g $ of vehicle $ k $, $ {x}_{ikg}=1 $; otherwise, $ {x}_{ikg}=0 $. $ i\in {N}',k\in K,g\in G $
$ {y}_{ij} $	Binary variable. If node $ j $ is served immediately after node $ i $, $ {y}_{ij}=1 $; otherwise, $ {y}_{ij}=0 $. $ i,j\in N $
$ {r}_{kg} $	Ready time for tour $ g $ of vehicle $ k $. $ k\in K,g\in G $
$ {d}_{kg} $	Departure time for tour $ g $ of vehicle $ k $. $ k\in K,g\in G $
$ {c}_{i} $	Arrival time for node $ i $. $ i\in {N}' $
$ {b}_{i} $	Service start time for node $ i $. $ i\in {N}' $
$ {l}_{i} $	Late delivery time for node $ i $. $ i\in {N}' $
$ {p}_{k} $	Return time for vehicle $ k $ to the depot after completing all trips. $ k\in K $
$ {o}_{k} $	Overwork time for vehicle $ k $. $ k\in K $

Parameter	Definition
$ {N}_{\tau \omega }^{\#} $/$ {N}_{\tau \omega }^{-} $	Set of nodes of CCs/ICs that belong to trips with a return time later than $ {t}_{\tau } $ in the latest schedule in scenario $ \omega $
$ {\tilde {G}}_{\tau \omega }' $	Set of ongoing trips at $ {t}_{\tau } $ in the latest schedule in scenario $ \omega $. $ {\tilde {G}}_{\tau \omega }'=\{{\tilde {G}}_{1\tau \omega }',{\tilde {G}}_{2\tau \omega }',\cdots ,{\tilde {G}}_{H\tau \omega }'\} $
$ {\overrightarrow{G}}_{\tau \omega }' $	$ {\overrightarrow{G}}_{\tau \omega }'={G}_{\tau \omega }'\cup {\tilde {G}}_{\tau \omega }' $, $ {\overrightarrow{G}}_{\tau \omega }'=\{{\overrightarrow{G}}_{1\tau \omega }',{\overrightarrow{G}}_{2\tau \omega }',\cdots ,{\overrightarrow{G}}_{H\tau \omega }'\} $
$ {v}_{ik{g}'\tau \omega } $	Binary parameter. If node $ i $ is the current destination of the ongoing tour at $ {t}_{\tau } $ in the latest schedule in scenario $ \omega $, $ {v}_{ik{g}'\tau \omega }=1 $; otherwise, $ {v}_{ik{g}'\tau \omega }=0 $. $ i\in {N}_{\tau \omega }^{\mathrm{*}},k\in K,{g}'\in {\tilde {G}}_{k\tau \omega }' $
$ {z}_{i\tau \omega }' $	Binary variable. If the vehicle returns to the depot early after servicing node $ i $ in period $ \mathrm{\tau } $ and scenario $ \omega $, $ {z}_{i\tau \omega }'=0 $; otherwise, $ {z}_{i\tau \omega }'=1 $. $ i\in {N}_{\tau \omega } $
$ {y}_{ij\tau \omega }' $	Binary variable. If node $ j $ is served after node $ i $ in period $ \mathrm{\tau } $ and scenario $ \omega $, $ {y}_{ij\tau \omega }'=1 $; otherwise, $ {y}_{ij\tau \omega }'=0 $. $ i,j\in {N}_{\tau \omega } $

$ {n}^{+} $	Group C0				Group C1				Group C2
$ {n}^{+} $	Cost/CNY	Time/s	$\text{cs}_\text{to} $/%	$\text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%
2	158.19	0.60	−	−	156.95	220.33	0.78	4.98	157.05	219.60	0.72	4.35
3	255.34	2.70	−	−	214.13	1039.38	16.14	30.00	223.87	996.77	12.32	24.65
4	219.97	12.41	−	−	208.31	4189.46	5.30	20.66	209.05	4011.15	4.96	20.36
5	324.13	19.56	−	−	323.40	6192.03	0.23	10.04	323.40	6011.72	0.23	10.23
6	228.81	14.54	−	−	227.14	7043.57	0.73	11.80	227.12	6845.27	0.74	11.92
Average	237.29	9.96	−	−	225.99	3736.95	4.64	15.49	228.10	3616.90	3.79	14.30

$ {n}^{+} $	Group C3				Group C4				Group C5
$ {n}^{+} $	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%
2	156.85	247.27	0.85	5.61	157.06	186.73	0.71	4.30	157.07	182.99	0.71	4.23
3	213.72	1080.25	16.30	31.34	214.19	824.24	16.12	31.34	215.28	811.41	15.69	30.34
4	209.87	4265.01	4.59	20.66	209.97	4300.86	4.55	20.66	208.19	3325.82	5.36	20.66
5	323.38	6475.14	0.23	10.04	323.45	6535.39	0.21	10.04	323.48	5009.37	0.20	9.92
6	227.16	7727.40	0.72	12.26	229.95	6726.92	−0.50	31.09	227.13	6212.30	0.73	11.88
Average	226.20	3959.01	4.54	15.98	226.92	3714.83	4.22	19.48	226.23	3108.38	4.54	15.41

$ {n}^{+} $	$ {n}^{-} $	$ H-Q-{\mathrm{sp}} $	WTB policy		ATB policy		ACB policy
			CPLEX		CPLEX		CPLEX		SA-RR		ALNS-RR
			Cost/CNY	Time/s	Cost/CNY	Time/s	Cost/CNY	Time/s	Cost/CNY	Time/s	Cost/CNY	Time/s
2	13	3-3-60	131.34	0.47	131.34	0.85	131.21	4.11	131.21	44.93	131.21	42.36
	14	3-3-60	173.08	0.44	147.64	1.03	141.99	2.34	141.99	47.20	141.99	49.81
	15	3-3-60	145.53	1.81	145.53	0.75	144.58	1490.56	144.58	47.58	144.58	46.48
	16	3-3-60	160.14	0.50	160.14	1.19	160.08	14969.26	160.08	53.14	160.08	55.81
	17	3-3-60	154.26	0.63	152.90	1.15	−	−	152.87	54.88	152.87	52.26
3	13	4-3-60	154.71	1.01	149.06	1.91	149.06	4.32	149.06	128.08	149.06	127.41
	14	4-3-60	156.76	1.89	156.76	2.13	156.74	15.95	156.74	136.70	156.74	158.78
	15	4-3-60	179.79	1.93	179.39	3.24	179.36	1469.62	179.36	141.70	179.36	165.68
	16	4-3-60	216.57	2.39	185.61	3.63	185.54	63093.18	185.54	163.98	185.54	164.70
	17	4-3-60	175.96	1.92	174.78	3.24	−	−	173.68	160.65	173.68	177.90

$ {n}^{+}/H $	WTB policy		ATB policy				ACB policy with SA-RR				ACB policy with ALNS-RR
$ {n}^{+}/H $	Cost/CNY	Time/s	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%
2-3	159.60	0.64	155.34	1.65	2.67	12.32	154.54	136.95	3.17	11.08	154.81	135.11	3.00	10.61
2-4	161.91	0.96	160.88	1.67	0.63	15.56	160.21	161.80	1.05	9.54	160.24	170.70	1.03	9.54
3-4	206.11	2.70	194.10	6.96	5.83	15.55	190.43	647.94	7.61	21.06	188.75	667.39	8.42	20.62
3-5	189.98	3.73	183.81	7.14	3.25	9.34	182.57	690.19	3.90	13.42	181.55	775.73	4.44	15.94
4-5	194.96	13.55	191.03	24.06	2.01	20.38	190.09	2309.22	2.50	21.94	190.41	2383.42	2.33	18.31
4-6	205.99	9.23	194.77	28.36	5.44	20.65	194.40	2454.87	5.62	22.36	194.37	2837.40	5.64	24.83
5-6	326.67	34.24	324.23	110.01	0.75	10.34	323.97	3634.61	0.83	8.41	323.94	4063.31	0.83	10.17
5-7	336.29	23.19	329.83	69.66	1.92	14.91	326.06	3680.46	3.04	12.51	326.22	4451.27	2.99	13.40
6-7	314.85	16.14	278.07	58.07	11.68	19.04	275.22	3912.97	12.59	23.85	274.48	4860.39	12.82	24.30
6-8	313.40	15.05	273.97	45.96	12.58	18.87	271.37	4068.90	13.41	20.51	271.69	4366.01	13.31	20.31
Average	240.97	11.94	228.60	35.35	5.13	15.98	226.88	2169.79	5.85	16.94	226.65	2471.07	5.95	17.31

Dynamic vehicle routing for a dual-channel distribution center with stochastic demands and shared resources

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

Share this article

Figures/Tables 17

References 62

Related Articles 0

Recommended Articles

Metrics

Comments

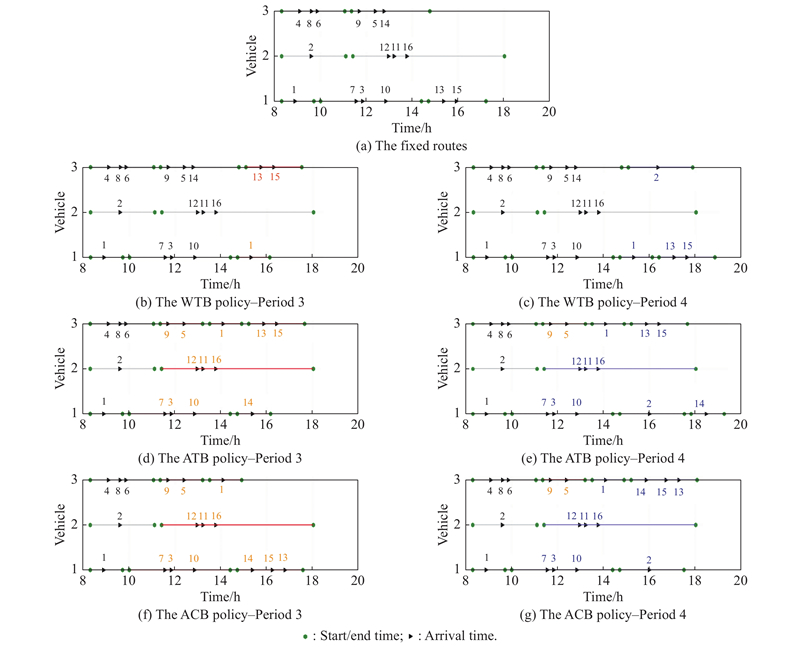

Figure	Trip	Moment-Vehicle 1	Moment-Vehicle 2	Moment-Vehicle 3
Fig. 3(a)	1	8.30-8.90-9.70	8.30-9.60-11.10	8.30-9.10-9.61-9.87-11.05
	2	10.00-11.56-11.84-12.85-14.40	11.40-12.98-13.23-13.78-18.02	11.35-11.70-12.40-12.78-14.77
	3	14.70-15.38-15.93-17.21	−	−
Fig. 3(b)	1	8.30-8.90-9.70	8.30-9.60-11.10	8.30-9.10-9.61-9.87-11.05
	2	10.00-11.56-11.84-12.85-14.40	11.40-12.98-13.23-13.78-18.02	11.35-11.70-12.40-12.78-14.77
	3	14.70-15.31-16.11	−	15.07-15.75-16.30-17.51
Fig. 3(c)	1	8.30-8.90-9.70	8.30-9.60-11.10	8.30-9.10-9.61-9.87-11.05
	2	10.00-11.56-11.84-12.85-14.40	11.40-12.98-13.23-13.78-18.02	11.35-11.70-12.40-12.78-14.77
	3	14.70-15.31-16.11	−	15.07-16.37-17.88
	4	16.41-17.08-17.64-18.85	−	−
Fig. 3(d)	1	8.30-8.90-9.70	8.30-9.60-11.10	8.30-9.10-9.61-9.87-11.05
	2	10.00-11.56-11.84-12.85-14.40	11.40-12.98-13.23-13.78-18.02	11.35-11.70-12.40-13.20
	3	14.70-15.38-16.15	−	13.50-14.10-14.90
	4	−	−	15.20-15.88-16.43-17.64
Fig. 3(e)	1	8.30-8.90-9.70	8.30-9.60-11.10	8.30-9.10-9.61-9.87-11.05
	2	10.00-11.56-11.84-12.85-14.40	11.40-12.98-13.23-13.78-18.02	11.35-11.70-12.40-13.20
	3	14.70-16.01-17.51	−	13.50-14.10-14.90
	4	17.81-18.48-19.25	−	15.20-15.88-16.43-17.64
Fig. 3(f)	1	8.30-8.90-9.70	8.30-9.60-11.10	8.30-9.10-9.61-9.87-11.05
	2	10.00-11.56-11.84-12.85-14.40	11.40-12.98-13.23-13.78-18.02	11.35-11.70-12.40-13.20
	3	14.70-15.38-16.25-16.80-17.57	−	13.50-14.10-14.90
Fig. 3(g)	1	8.30-8.90-9.70	8.30-9.60-11.10	8.30-9.10-9.61-9.87-11.05
	2	10.00-11.56-11.84-12.85-14.40	11.40-12.98-13.23-13.78-18.02	11.35-11.70-12.40-13.20
	3	14.70-16.01-17.51	−	13.50-14.10-14.90
	4	−	−	15.20-15.88-16.74-17.30-18.07

Policy	Vehicle	Cost related to trips/CNY			Overtime cost/ CNY	Total cost/ CNY
Policy	Vehicle	Period 0	Period 3	Period 4	Overtime cost/ CNY	Total cost/ CNY
WTB	1	1: 8.81 7-3-10: 24.66	−	1: 61.04 13-15: 14.05	5.08	205.76
	2	2: 14.41 12-11-16: 20.40	−	−	0.14
	3	4-8-6: 13.81 9-5-14: 14.00	−	2: 29.36	−
ATB	1	1: 8.81	−	7-3-10: 24.66 2: 14.68 14: 11.86	7.51	155.18
	2	2: 14.41	−	12-11-16: 20.40	0.14
	3	4-8-6: 13.81	9-5: 13.00	1: 12.94 13-15: 12.96	−
ACB	1	1: 8.81	−	7-3-10: 24.66 2: 14.68	−	138.86
	2	2: 14.41	−	12-11-16: 20.40	0.14
	3	4-8-6: 13.81	9-5: 13.00	1: 12.94 14-15-13: 15.57	0.44

$ {\alpha }_\text{3} $	ATB policy/%						ACB policy/%
$ {\alpha }_\text{3} $	$ \text{cs}_\text{travel} $	$ \text{cs}_\text{fixed} $	$ \text{cs}_\text{CC} $	$ \text{cs}_\text{IC} $	$ \text{cs}_\text{overtime} $	$ \text{cs}_\text{to} $	$ \text{cs}_\text{travel} $	$ \text{cs}_\text{fixed} $	$ \text{cs}_\text{CC} $	$ \text{cs}_\text{IC} $	$ \text{cs}_\text{overtime} $	$ \text{cs}_\text{to} $
10	−0.35	−0.47	13.85	0.72	2.96	0.25	−0.34	−0.52	16.89	3.75	7.83	0.72
20	−0.66	−0.82	23.51	1.29	7.98	0.85	−0.57	−0.76	27.01	3.27	9.04	1.47
30	−0.95	−1.10	29.71	1.55	7.94	1.55	−0.76	−0.99	32.00	3.41	11.84	2.22
40	−1.17	−1.33	37.64	−4.86	2.37	2.34	−0.91	−1.23	39.81	−2.76	9.90	3.20
50	−1.55	−1.70	43.07	−7.77	−4.12	3.19	−1.05	−1.37	43.13	−2.43	8.59	4.14
60	−1.78	−1.90	44.73	−10.39	−9.99	4.04	−1.05	−1.37	43.73	−3.08	8.08	5.08
70	−1.88	−1.90	45.48	−12.43	−12.59	4.95	−0.95	−1.31	43.75	−2.62	9.05	5.94
80	−2.20	−2.35	49.04	−17.84	−17.00	5.78	−1.20	−1.76	46.58	−8.25	5.08	6.61
90	−2.35	−2.55	49.68	−17.52	−15.99	6.78	−1.42	−1.99	48.35	−7.51	5.93	7.73
100	−2.55	−2.94	51.35	−20.59	−17.59	7.57	−1.39	−2.33	48.77	−10.55	6.35	8.38
Average	−1.54	−1.71	38.81	−8.79	−5.60	3.73	−0.96	−1.36	39.00	−2.68	8.17	4.55

Group	$ {n}^{+} $	FR	WTB policy	ATB policy			ACB policy
Group	$ {n}^{+} $	Cost/CNY	Cost/CNY	Cost/CNY	$ \text{cs}_\text{to} $	$ \text{cs}_\text{bs} $	Cost/CNY	$ \text{cs}_\text{to} $	$ \text{cs}_\text{bs} $
W1	2	114.51	158.19	157.76	0.27	2.67	156.77	0.90	6.08
	3	147.22	255.34	232.59	8.91	16.96	224.22	12.19	30.63
	4	150.52	219.97	209.27	4.86	20.66	207.38	5.72	20.66
	5	211.62	324.13	323.68	0.14	8.23	323.36	0.24	10.38
	6	183.71	228.81	227.18	0.71	12.26	227.11	0.74	12.26
	Average	161.52	237.29	230.10	2.98	12.15	227.77	3.96	16.00
W2	2	132.35	189.97	189.22	0.39	4.06	188.73	0.65	4.89
	3	161.40	224.57	223.71	0.38	8.48	223.15	0.63	10.56
	4	184.39	384.74	337.26	12.34	18.15	334.68	13.01	19.09
	5	280.61	742.00	632.14	14.81	22.80	630.15	15.07	23.55
	6	204.90	399.64	399.64	0.00	0.00	399.62	0.01	0.01
	Average	192.73	388.18	356.39	5.58	10.70	355.27	5.88	11.62
W3	2	114.51	133.40	133.40	0.00	0.00	132.98	0.31	0.45
	3	146.19	166.85	166.85	0.00	0.09	166.84	0.01	0.09
	4	149.41	186.25	186.14	0.06	1.57	185.20	0.56	11.37
	5	210.53	269.94	269.94	0.00	0.00	269.85	0.03	0.17
	6	183.68	221.47	221.47	0.00	0.05	221.44	0.01	4.72
	Average	160.86	195.58	195.56	0.01	0.34	195.26	0.19	3.36

$ {n}^{+}-H $	$ Q $	FR	WTB policy	ATB policy			ACB policy
$ {n}^{+}-H $	$ Q $	Cost/CNY	Cost/CNY	Cost/CNY	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%
2-3	3	138.18	180.26	180.26	0.00	0.00	168.25	6.66	15.22
	4	84.26	158.19	157.76	0.27	2.67	156.77	0.90	6.08
	5	97.03	128.18	126.63	1.21	11.92	126.41	1.38	12.70
	6	87.06	162.01	136.40	15.81	41.55	137.66	15.03	41.09
	7	84.26	120.21	113.12	5.90	30.79	112.78	6.18	31.14
	Average	98.16	149.77	142.83	4.64	17.39	140.37	6.03	21.24
2-4	3	131.28	161.25	157.26	2.47	26.36	156.98	2.65	27.56
	4	111.31	155.19	143.99	7.22	31.73	139.97	9.81	33.60
	5	95.01	137.68	129.47	5.96	29.96	130.66	5.10	29.98
	6	86.00	138.21	130.50	5.58	33.55	131.85	4.60	33.82
	7	82.14	102.71	101.84	0.85	9.26	101.59	1.09	11.76
	Average	101.15	139.01	132.61	4.42	26.17	132.21	4.65	27.34
3-4	3	147.22	255.34	232.59	8.91	16.96	213.51	16.38	30.47
	4	122.71	158.33	154.56	2.38	12.26	154.23	2.59	13.23
	5	107.50	208.15	160.80	22.75	37.74	163.56	21.42	40.89
	6	98.32	162.52	142.37	12.40	22.83	143.75	11.55	22.83
	7	93.35	297.41	157.46	47.06	69.64	160.16	46.15	70.85
	Average	113.82	216.35	169.56	18.70	31.89	167.04	19.62	35.66
3-5	3	144.49	182.02	181.57	0.25	1.31	181.30	0.40	3.38
	4	120.65	152.87	151.58	0.84	24.58	151.44	0.94	28.02
	5	105.32	168.10	153.40	8.74	27.86	153.40	8.74	27.93
	6	96.10	143.18	128.04	10.57	33.68	131.25	8.33	33.68
	7	93.19	229.53	150.75	34.32	56.69	150.82	34.29	57.86
	Average	111.95	175.14	153.07	10.95	28.82	153.64	10.54	30.17

$ {n}^{+}/H $	WTB policy		ATB policy				ACB policy with SA-RR				ACB policy with ALNS-RR
$ {n}^{+}/H $	Cost/CNY	Time/s	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%
2-4	175.84	1.12	175.18	5.51	0.38	5.21	174.78	176.40	0.60	3.93	174.74	204.85	0.63	4.41
2-5	196.50	1.24	194.92	5.68	0.81	4.76	193.98	193.82	1.28	4.67	194.01	203.81	1.27	4.55
3-4	214.05	7.28	211.20	119.32	1.33	12.08	208.18	750.47	2.74	13.95	208.61	846.62	2.54	13.11
3-5	221.64	6.65	220.49	34.78	0.52	15.94	219.55	848.27	0.94	16.26	219.07	889.56	1.16	15.96
4-5	241.44	32.60	240.31	265.27	0.47	7.03	238.98	2917.89	1.02	5.88	239.18	3249.24	0.94	8.19
4-6	272.09	59.69	271.99	104.47	0.04	1.88	267.44	3188.40	1.71	10.67	267.48	3455.40	1.70	7.78
5-6	279.63	74.91	278.72	153.87	0.33	5.45	272.43	4440.27	2.58	9.87	272.66	4422.25	2.50	9.68
5-7	270.60	45.53	270.30	96.13	0.11	1.68	265.81	4539.94	1.77	7.89	265.97	4717.46	1.71	6.56
6-7	326.51	191.88	326.41	319.70	0.03	1.60	323.88	4787.90	0.81	6.05	324.19	4835.49	0.71	5.79
6-8	320.86	88.53	319.90	201.73	0.30	6.26	317.13	5005.59	1.16	7.93	317.43	5488.78	1.07	7.23
Average	251.92	50.94	250.94	130.64	0.39	6.20	248.22	2684.89	1.47	8.92	248.33	2831.35	1.42	8.47

$ {n}^{+}/H $	WTB policy		ATB policy				ACB policy with SA-RR				ACB policy with ALNS-RR
$ {n}^{+}/H $	Cost/CNY	Time/s	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%	Cost/CNY	Time/s	$ \text{cs}_\text{to} $/%	$ \text{cs}_\text{bs} $/%
2-5	178.51	2.39	177.96	22.52	0.31	1.99	177.74	252.05	0.44	1.75	177.74	248.48	0.43	1.50
2-6	208.13	3.41	208.11	27.61	0.01	1.64	207.83	282.88	0.15	0.68	208.04	322.11	0.04	0.58
3-5	199.44	12.77	199.01	197.35	0.22	7.15	198.68	1001.12	0.38	9.00	198.48	1047.97	0.49	9.29
3-6	222.93	18.70	222.85	118.14	0.03	6.48	222.51	1048.76	0.19	6.25	222.58	1333.76	0.16	5.13
4-6	249.17	103.55	248.86	953.67	0.12	4.86	248.37	3853.16	0.32	4.31	248.47	4055.40	0.28	5.87
4-7	267.57	191.24	267.43	562.37	0.05	1.56	265.91	4456.39	0.62	4.23	265.49	4471.23	0.78	5.48
5-7	235.85	75.56	234.84	817.27	0.43	6.54	233.91	5248.05	0.82	7.98	234.04	6108.27	0.77	7.73
5-8	258.06	69.58	258.04	493.20	0.01	2.40	256.96	5915.16	0.43	4.55	256.88	6481.91	0.46	3.79
6-8	240.06	60.81	239.85	479.92	0.09	3.04	239.26	5838.46	0.33	5.45	239.35	6770.34	0.30	5.11
6-9	264.34	111.80	263.95	641.41	0.15	1.95	263.21	6330.27	0.43	4.34	263.44	6985.03	0.34	4.63
Average	232.41	64.98	232.09	431.34	0.14	3.82	231.44	3422.63	0.42	5.00	231.45	3782.45	0.41	5.04
