Mutual interference mitigation for automotive FMCW radar based on TRPCA

doi:10.23919/JSEE.2026.000123

Abstract

Abstract:

The dramatic rise in vehicle numbers and the development of autonomous driving technology have underscored the importance of accurate environment perception to prevent traffic accidents. Due to its distinctive advantages, millimeter-wave radar has emerged as the dominant type of vehicle-mounted sensor. However, frequency band for automotive radar is restricted to 76−81 GHz, resulting in insufficient spectrum resources because of the high-resolution requirement. The rapid increase of radars in the actual traffic environment will inevitably lead to mutual interference between radars, posing a potential threat to public transportation. To address this problem, this paper investigates the mutual interference of automotive frequency modulated continuous wave (FMCW) radars, and mitigates the mutual interference utilizing a low-rank tensor model. By stacking the short-time Fourier transform (STFT) matrix of all chirps in a single channel as tensors, a tensor robust principal component analysis (TRPCA) algorithm is employed to separate the target signal and the interference. Mutual interference of multiple input multiple output (MIMO) radar could be suppressed by applying TRPCA in all channels. Both simulations and numerical experiments demonstrate that the proposed method achieves higher signal to interference plus noise ratio (SINR) and lower root mean square error (RMSE) compared with other methods, thereby proving its superior interference suppression capability in different practical scenarios.

Key words: automotive frequency modulated continuous wave (FMCW) radar, mutual interference, interference mitigation, tensor robust principal component analysis (TRPCA)

Ken Chen, Xinyu Guan, Hui Zhang, Ruizhe Zhang, Yan Huang, Xiaowei Zhu, Wei Hong. Mutual interference mitigation for automotive FMCW radar based on TRPCA[J]. Journal of Systems Engineering and Electronics, 2026, 37(4): 1120-1137.

Figures/Tables 22

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

Table 1

Fig 7

Table 2

Fig 8

Table 3

Fig 9

Table 4

Fig 10

Fig 11

Table 5

Fig 12

Table 6

Fig 13

Fig 14

Table 7

Fig 15

References 49

1	World Health Organization. Global status report on road safety 2018 [R]. Geneva: World Health Organization, 2018.
2	Patole S, Torlak M, Wang D, et al Automotive radars: a review of signal processing techniques. IEEE Signal Processing Magazine, 2017, 34 (2): 22.
3	Bilik I Comparative analysis of radar and lidar technologies for automotive applications. IEEE Intelligent Transportation Systems Magazine, 2023, 15 (1): 244.
4	Federal Communications Commission. Operation of radar services in the 76-81 GHz band [R/OL]. 2025-01-25. https://public-inspection.federalregister.gov/2015-04032.pdf.
5	Romain F, Matthias N, Frank N, et al Fabrication of organic light-emitting diode pixels by laser-assisted forward transfer. Applied Physics Letters, 2007, 91 (6): 061103.
6	Hakobyan G, Yang B High-performance automotive radar: a review of signal processing algorithms and modulation schemes. IEEE Signal Processing Magazine, Signal Processing Magazine, 2019, 36 (5): 32.
7	Luo T N, Wu C H E, Chen Y J E A 77 GHz CMOS automotive radar transceiver with anti-interference function. IEEE Trans. on Circuits and Systems, 2013, 60 (12): 3247.
8	Kim Y. Identification of FMCW radar in mutual interference environments using frequency ramp modulation [C]//10th European Conference on Antennas and Propagation, 2016.
9	Kitsukawa Y, Mitsumoto M, Mizutani H, et al. An interference suppression method by transmission chirp waveform with random repetition interval in fast-chirp FMCW radar[C]//16th European Radar Conference, 2019: 165.
10	Hossain M, Elshafiey I, Al-sanie A. Mutual interference mitigation in automotive radars under realistic road environments[C]//8th International Conference on Information Technology, 2017: 895.
11	Bechter J, Sippel C, Waldschmidt C. Bats-inspired frequency hopping for mitigation of interference between automotive radars[C]//IEEE MTT-S International Conference on Microwaves for Intelligent Mobility, 2016.
12	Liu T H, Hsu M L, Tsai Z M. Mutual interference of pseudorandom noise radar in automotive collision avoidance application at 24 GHz[C]//IEEE 5th Global Conference on Consumer Electronics, 2016.
13	Uysal F Phase-coded FMCW automotive radar: system design and interference mitigation. IEEE Trans. on Vehicular Technology, 2020, 69 (1): 270.
14	Xu Z H, Shi Q Interference mitigation for automotive radar using orthogonal noise waveforms. IEEE Geoscience and Remote Sensing Letters, 2018, 15 (1): 137.
15	Hakobyan G, Armanious K, Yang B Interference-aware cognitive radar: a remedy to the automotive interference problem. IEEE Trans. on Aerospace and Electronic Systems, 2020, 56 (3): 2326.
16	Basireddy A, Moradi H OFDM waveform design for interference resistant automotive radars. IEEE Sensors Journal, 2021, 21 (14): 15670. doi: 10.1109/JSEN.2021.3057119
17	Khoury J, Ramanathan R, Mccloskey D, et al. RadarMAC: mitigating radar interference in self-driving cars[C]//13th Annual IEEE International Conference on Sensing, Communication, and Networking, 2016.
18	Aydogdu C, Garcia N, Hammarstrand L, et al. Radar communications for combating mutual interference of FMCW radars[C]//IEEE Radar Conference, 2019.
19	Aydogdu C, Keskin M, Garcia N, et al RadChat: spectrum sharing for automotive radar interference mitigation. IEEE Trans. on Intelligent Transportation Systems, 2021, 22 (1): 416.
20	Mazher K, Heath R, Gulati K, et al. Automotive radar interference characterization and reduction by partial coordination[C]//IEEE Radar Conference, 2020.
21	Ishikawa S, Kurosawa M, Umehira M, et al. Packet-based FMCW radar using CSMA technique to avoid narrowband interference[C]//International Radar Conference, 2019.
22	Jin F, Cao S Y Automotive radar interference mitigation using adaptive noise canceller. IEEE Trans. on Vehicular Technology, 2019, 68 (4): 3747.
23	Wagner M, Sulejmani F, MelzeR A, et al. Threshold-free interference cancellation method for automotive FMCW radar systems[C]//IEEE International Symposium on Circuits and Systems, 2018.
24	Bechter J, Rameez M, Waldschmidt C Analytical and experimental investigations on mitigation of interference in a DBF MIMO radar. IEEE Trans. on Microwave Theory and Techniques, 2017, 65 (5): 1727.
25	Rameez M, Dahl M, Pettersson M. Adaptive digital beamforming for interference suppression in automotive FMCW radars[C]//IEEE Radar Conference, 2018: 0252.
26	Takuya N, Yuya M, Nobuyuki T, et al. An anti-collision automotive FMCW radar using time-domain interference detection and suppression[C]//International Conference on Radar Systems, 2017.
27	Liu Z Y, Lu W, Wu J Y, et al A PELT-KCN algorithm for FMCW radar interference suppression based on signal reconstruction. IEEE Access, 2020, 8, 45108.
28	Zhou B L, Liu W J, Li R F, et al A target parameter estimation method via atom-reconstruction in radar mainlobe jamming. Journal of Systems Engineering and Electronics, 2024, 35 (2): 350. doi: 10.23919/JSEE.2024.000001
29	Neemat S, Krasnov O, Yarovoy A An interference mitigation technique for FMCW radar using beat-frequencies interpolation in the STFT domain. IEEE Trans. on Microwave Theory and Techniques, 2019, 67 (3): 1207.
30	Wang J P CFAR-based interference mitigation for FMCW automotive radar systems. IEEE Trans. on Intelligent Transportation Systems, 2022, 23 (8): 12229.
31	Wang J P, Ding M, Yarovoy A Matrix-pencil approach-based interference mitigation for FMCW radar systems. IEEE Trans. on Microwave Theory and Techniques, 2021, 69 (11): 5099.
32	Rameez M, Dahl M, Pettersson M Autoregressive model-based signal reconstruction for automotive radar interference mitigation. IEEE Sensors Journal, 2021, 21 (5): 6575.
33	Zhang H L, Zhang G, Xue B, et al Mainlobe jamming suppression via improved BSS method for rotated array radar. Journal of Systems Engineering and Electronics, 2022, 33 (6): 1151.
34	Uysal F, Sanka S. Mitigation of automotive radar interference[C]//IEEE Radar Conference, 2018: 0405.
35	Liu Z Y, Wu J Y, Yang S Y, et al DOA estimation method based on EMD and MUSIC for mutual interference in FMCW automotive radars. IEEE Geoscience and Remote Sensing Letters, 2022, 19, 3504005.
36	Lee S, Lee J, Kim S Mutual interference suppression using wavelet denoising in automotive FMCW radar systems. IEEE Trans. on Intelligent Transportation Systems, 2021, 22 (2): 887.
37	Xu Z H, Yuan M An interference mitigation technique for automotive millimeter wave radars in the tunable Q-factor wavelet transform domain. IEEE Trans. on Microwave Theory and Techniques, 2021, 69 (12): 5270.
38	Wang J P, Ding M, Yarovoy A Interference mitigation for FMCW radar with sparse and low-rank Hankel matrix decomposition. IEEE Trans. on Signal Processing, Signal Processing, 2022, 70, 822.
39	Lee W, Lee S Geometric sequence decomposition-based interference cancellation in automotive radar systems. IEEE Access, 2022, 10, 4318.
40	Wang Y X, Huang Y, Wen C, et al. Mutual interference mitigation for automotive FMCW radar with time and frequency domain decomposition[J]. IEEE Trans. on Microwave Theory and Techniques, 2023, 71(11): 5028.
41	Mun J, Kim H, Lee J. A deep learning approach for automotive radar interference mitigation[C]//IEEE 88th Vehicular Technology Conference, 2018.
42	Mun J, Ha S, Lee J. Automotive radar signal interference mitigation using RNN with self attention[C]//ICASSP IEEE International Conference on Acoustics, Speech and Signal Processing, 2020: 3802.
43	Rock J, Toth M, Messner E, et al. Complex signal denoising and interference mitigation for automotive radar using convolutional neural networks[C]//22th International Conference on Information Fusion, 2019.
44	Fuchs J, Dubey A, Lubke M, et al. Automotive radar interference mitigation using a convolutional autoencoder[C]//IEEE International Radar Conference, 2020: 315.
45	Ristea N, Anghel A, Ionescu R. Fully convolutional neural networks for automotive radar interference mitigation[C]//IEEE 92nd Vehicular Technology Conference, 2020.
46	Durak L, Arikan O Short-time Fourier transform: two fundamental properties and an optimal implementation. IEEE Trans. on Signal Processing, 2003, 51 (5): 1231.
47	Su J, Tao H H, Tao M L, et al Narrow-band interference suppression via RPCA-based signal separation in time-frequency domain. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2017, 10 (11): 5016.
48	Lu C Y, Feng J S, Chen Y D, et al. Tensor robust principal component analysis: exact recovery of corrupted low-rank tensors via convex optimization[C]//IEEE Conference on Computer Vision and Pattern Recognition, 2016: 5249.
49	Jung J, Lim S, Kim J, et al. Interference suppression and signal restoration using Kalman filter in automotive radar systems[C]//IEEE International Radar Conference, 2020: 726.

Parameters	Victim	Interferer
Start frequency/GHz	76.5	76.505
Chirp duration/${\text{μs}}$	46.079	51.079
Repetition period/${\text{μs}}$	51.2	101.08
Slope/(MHz/${\text{μs}}$)	2.4634	−2.4634
Number of chirps	64	33
Number of samples	1024	1277
Sampling rate/MHz	25	25
Bandwidth/MHz	113.51	125.828

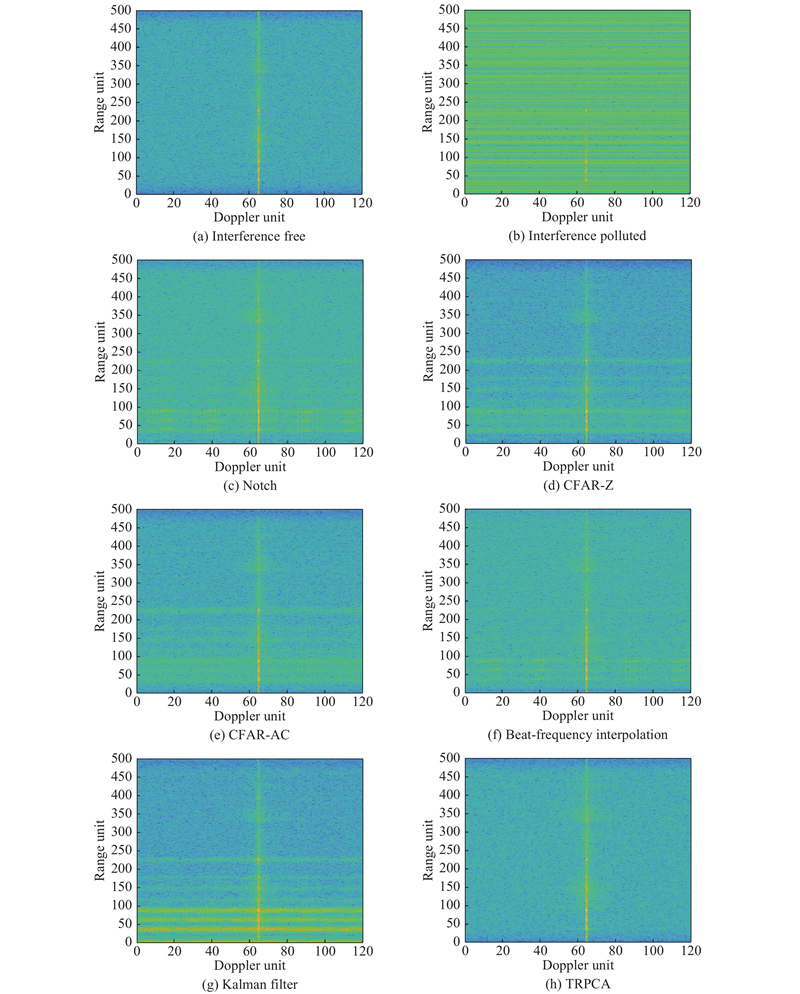

Indicator	Method
Indicator	Notch	CFAR-Z	CFAR-AC	Beat-frequency interpolation	Kalman filter	TRPCA
SINR of Target 1	10.6342	5.9888	4.9058	8.0998	4.4440	21.7833
SINR of Target 2	10.3302	4.9592	3.9283	8.1075	3.9078	20.7642
RMSE	0.9357	0.9395	0.9577	0.8285	0.8742	0.6997

Parameter	Victim	Interferer
Start Frequency/GHz	79.47	77
Chirp duration/${\text{μs}}$	29.5	110
Slope/(MHz/${\text{μs}}$)	−32.23	32.23
Number of Chirps	128	128
Number of samples	512	512
Bandwidth/MHz	950	3.5453

Indicator	Method
Indicator	Notch	CFAR-Z	CFAR-AC	Beat-frequency interpolation	Kalman filter	TRPCA
SINR of Target 1/dB	11.8298	12.0262	11.9737	12.0215	4.9314	15.4977
SINR of Target 2/dB	15.5758	15.8541	15.7813	15.8507	7.2385	18.9219
SINR of Target 3/dB	16.5618	16.7746	16.6958	16.7699	7.2136	19.7379
RMSE	0.5956	0.5933	0.5935	0.5941	0.7621	0.4596

Parameter	Victim	Interferer
Start frequency/GHz	79.47	77
Chirp Duration/${\text{μs}}$	105	110
Slope/(MHz/${\text{μs}}$)	−16.11	32.23
Number of chirps	128	128
Number of samples	512	512
Bandwidth/GHz	1.6915	3.5453
