Location-driven beamforming for massive multi-user MIMO systems

doi:10.23919/JSEE.2023.000163

Journal of Systems Engineering and Electronics ›› 2025, Vol. 36 ›› Issue (3): 609-622.doi: 10.23919/JSEE.2023.000163

• ELECTRONICS TECHNOLOGY • Previous Articles

Location-driven beamforming for massive multi-user MIMO systems

Tao MA¹(), Jun HUANG¹(), Jiahao ZU²^,*(), Wen’gang LI²()

¹ Institute of Electronic Countermeasure, National University of Defense Technology, Hefei 230037, China
² School of Telecommunications Engineering Xidian University, Xi’an 710071, China

Received:2022-11-04 Online:2025-06-18 Published:2025-07-10
Contact: Jiahao ZU E-mail:matao@nudt.edu.cn;huangjun0111@nudt.edu.cn;jh_zu@stu.xidian.edu.cn;wgli@xidian.edu.cn
About author:
MA Tao was born in 1979. He received his B.S., M.S. and Ph.D. degrees from Electronic Engineering Intitute of PLA, Hefei, China, in 2001, 2005 and 2009, respectively. He is currently an professor with National University of Defense Technology. His research interests include wireless network security and system simulation. E-mail: matao@nudt.edu.cn

HUANG Jun was born in 1983. He received his B.E. degree in automation, M.S. degree in military communication, and Ph.D. degree in information security all from Electronic Engineeoring Institute of PLA. He is an associate professor at National University of Denfense Technology, China. His research interest is wireless network security. E-mail: huangjun0111@nudt.edu.cn

ZU Jiahao was born in 2000. He received his B.S. degree from ShaanXi University of Science Technology, Xi ’an, China. He is currently a master student with the State Key Laboratory of Integrated Services Networks, Xidian University, and the School of Telecommunication Engineering, Xidian University. His research interests include communication technology and massive multiple input multiple output technology. E-mail: jh_zu@stu.xidian.edu.cn

LI Wen’gang was born in 1980. He received his B.S. and Ph.D. degrees in communication and information systems from Xidian University, Xi’an, China, in 2004 and 2010, respectively. He is currently an associate professor with the School of Communication Engineering, Xidian University. His research interests include navigation and positioning, broadband wireless communication, massive multiple input multiple output technology, satellite communications, cognitive radio networks and its application. E-mail: wgli@xidian.edu.cn
Supported by:
This work was supported by the National Natural Science Foundation of China (61901341).

Abstract

Abstract:

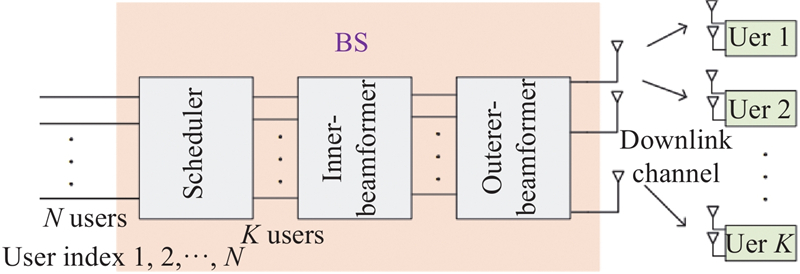

Using the existing positioning technology can easily obtain high-precision positioning information, which can save resources and reduce complexity when used in the communication field. In this paper, we propose a location-based user scheduling and beamforming scheme for the downlink of a massive multi-user input-output system. Specifically, we combine an analog outer beamformer with a digital inner beamformer. An outer beamformer can be selected from a codebook formed by antenna steering vectors, and then a reduced-complexity inner beamformer based on iterative orthogonal matrices and right triangular matrices (QR) decomposition is applied to cancel inter-user interference. Then, we propose a low-complexity user selection algorithm using location information in this paper. We first derive the geometric angle between channel matrices, which represent the correlation between users. Furthermore, we derive the asymptotic signal to interference-plus-noise ratio (SINR) of the system in the context of two-stage beamforming using random matrix theory (RMT), taking into account inter-channel correlations and energies. Simulation results show that the algorithm can achieve higher system and speed while reducing computational complexity.

Key words: massive multiple input multiple output, user scheduling, two-stage beamforming, low-complexity

Tao MA, Jun HUANG, Jiahao ZU, Wen’gang LI. Location-driven beamforming for massive multi-user MIMO systems[J]. Journal of Systems Engineering and Electronics, 2025, 36(3): 609-622.

Figures/Tables 11

Fig 1

Fig 2

Fig 3

Fig 4

Table 1

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

References 33

1	MOWLA M M, AHMAD I, HABIBI D, et al A green communication model for 5G systems. IEEE Trans. on Green Communications and Networking, 2017, 1 (3): 264- 280. doi: 10.1109/TGCN.2017.2700855
2	RUAN X C, ZHOU M, QIAO X, et al. Rate analysis of full-pilot zero-forcing in cell-free massive MIMO with low- resolution ADCs. Proc. of the IEEE 5th International Conference on Computer and Communications , 2019: 2072−2076.
3	SULTAN Q, KHAN M S, CHO Y S. Fast beamforming technique for large antenna arrays. Proc. of the International Conference on Information and Communication Technology Convergence, 2020: 45−47.
4	DEVI B R, KIRANMAI B, GURUCHARAN K, et al. A coherent hybrid precoding for homogenize millimeter-wave multiple-in multiple-out systems for 5G communication. Proc. of the 5th International Conference on Computing Methodologies and Communication , 2021: 207−211.
5	WELLANDARI M, FIRDAUSI A, UMAISAROH U et al. Design of hybrid element transmitarray antenna with beamforming at millimeter-wave frequency. Proc. of the International Conference on Radar, Antenna, Microwave, Electronics, and Telecommunications , 2021: 74−78.
6	KIM M, LEE Y H Mse-based hybrid RF/baseband processing for millimeter-wave communication systems in mimo interference channels. IEEE Trans. on Vehicular Technology, 2015, 64 (6): 2714- 2720. doi: 10.1109/TVT.2014.2346400
7	PAYAMI S, GHORAISHI M, DIANATI M Hybrid beamforming for large antenna arrays with phase shifter selection. IEEE Trans. on Wireless Communications, 2016, 15 (11): 7258- 7271. doi: 10.1109/TWC.2016.2599526
8	MOGHADAM N N, FODOR G, BENGTSSON M, et al On the energy efficiency of mimo hybrid beamforming for millimeter wave systems with nonlinear power amplifiers. IEEE Trans. on Wireless Communications, 2018, 17 (11): 7208- 7221. doi: 10.1109/TWC.2018.2865786
9	ZHU D K, LI B Y, LIANG P A novel hybrid beamforming algorithm with unified analog beamforming by subspace cons- truction based on partial CSI for massive mimo-ofdm systems. IEEE Trans. on Communications, 2017, 65 (2): 596- 607.
10	IZADINASAB K, SHABAN A W, DAMEN O Detection for hybrid beamforming millimeter wave massive MIMO systems. IEEE Communications Letters, 2021, 25 (4): 1168- 1172. doi: 10.1109/LCOMM.2020.3047994
11	ALKHATEEB A, LEUS G, HEATH R W Limited feedback hybrid precoding for multi-user millimeter wave systems. IEEE Trans. on Wireless Communications, 2015, 14 (11): 6481- 6494. doi: 10.1109/TWC.2015.2455980
12	RAJASHEKAR R, HANZO L Iterative matrix decomposition aided block diagonalization for mmwave multiuser mimo systems. IEEE Trans. on Wireless Communications, 2017, 16 (3): 1372- 1384. doi: 10.1109/TWC.2016.2628357
13	NI W H, DONG X D Hybrid block diagonalization for massive multiuser mimo systems. IEEE Trans. on Communications, 2016, 64 (1): 201- 211. doi: 10.1109/TCOMM.2015.2502954
14	RAJASHEKAR R, HANZO L User selection algorithms for block diagonalization aided multiuser downlink mm-wave communication. IEEE Access, 2017, 5, 5760- 5772. doi: 10.1109/ACCESS.2017.2687078
15	LEE G, SUNG Y, SEO G Randomly-directional beamforming in millimeter-wave multiuser miso downlink. IEEE Trans. on Wireless Communications, 2016, 15 (2): 1186- 1100. doi: 10.1109/TWC.2015.2487268
16	LEE G, SUNG Y, KOUNTOURIS M On the performance of random beamforming in sparse millimeter wave channels. IEEE Journal of Selected Topics in Signal Processing, 2016, 10 (3): 560- 575. doi: 10.1109/JSTSP.2016.2524999
17	ROBAEI M, AKL R, CHATAUT R, et al. Adaptive millimeter-wave channel estimation and tracking. Proc. of the 24th International Conference on Advanced Communication Technology , 2022: 23−28.
18	CHOI J, LOVE D J, BIDIGARE P Downlink training techniques for FDD massive MIMO systems: open-loop and closed-loop training with nemory. IEEE Journal of Selected Topics in Signal Processing, 2014, 8 (5): 802- 814. doi: 10.1109/JSTSP.2014.2313020
19	YU H W, TUAN H D, DUTKIEWICZ E, et al RIS-aided zero-forcing and regularized zero-forcing beamforming in integrated information and energy delivery. IEEE Trans. on Wireless Communications, 2022, 21 (7): 5500- 5513. doi: 10.1109/TWC.2022.3141491
20	LEE G, SUNG Y A new approach to user scheduling in massive multi-user mimo broadcast channels. IEEE Trans. on Communications, 2018, 66 (4): 1481- 1495. doi: 10.1109/TCOMM.2017.2786670
21	XU Y, YUE G S, MAO S W User grouping for massive mimo in fdd systems: new design methods and analysis. IEEE Access, 2014, 2, 947- 959. doi: 10.1109/ACCESS.2014.2353297
22	WANG Y L, WU Y, SHEN Y Joint spatiotemporal multipath mitigation in large-scale array localization. IEEE Trans. on Signal Process, 2019, 67 (3): 783- 797. doi: 10.1109/TSP.2018.2879625
23	SHAHMANSOORI A, GARCIA G E, DESTINO G, et al Position and orientation estimation through millimeter-wave mimo in 5G systems. IEEE Trans. on Wireless Communications, 2018, 17 (3): 1822- 1835. doi: 10.1109/TWC.2017.2785788
24	ZHOU B P, LIU A, LAU L Successive localization and beamforming in 5G mmwave mimo communication systems. IEEE Trans. on Signal Process, 2019, 67 (6): 1620- 1635. doi: 10.1109/TSP.2019.2894789
25	LI T, WANG X D, FAN P Y, et al Position-aided large-scale mimo channel estimation for high-speed railway communication systems. IEEE Trans. on Vehicular Technology, 2017, 66 (10): 8964- 8978. doi: 10.1109/TVT.2017.2703595
26	ABDELREHEEM A, MOHAMED E M, ESMAIEL H Location-based millimeter wave multilevel beamforming using compressive sensing. IEEE Communications Letters, 2018, 22 (1): 185- 188. doi: 10.1109/LCOMM.2017.2766629
27	PAN A J, ZHANG T K, HAN X. Location information aided beam allocation algorithm in mmWave massive MIMO systems. Proc. of the IEEE/CIC International Conference on Communications, 2017. DOI: 10.1109/ICCChina.2017.8330410.
28	AL-SAEDY M, AL-IMARI M, SHURAIFI M A, et al Joint user selection and multimode scheduling in multicell mimo cellular networks. IEEE Trans. on Vehicular Technology, 2017, 66 (12): 962- 972.
29	WAGNER S, COUILLET R, DEBBAH M, et al Slock, large system analysis of linear precoding in correlated miso broadcast channels under limited feedback. IEEE Trans. on Information Theory, 2012, 58 (7): 4509- 4537. doi: 10.1109/TIT.2012.2191700
30	COUILLET R, DEBBAH M. Random matrix methods for wireless communications. Cambridge: Cambridge University Press, 2012.
31	NARASIMHAN R Finitesnr diversity multiplexing tradeoff for correlated Rayleigh and Rician Mimo channels. IEEE Trans. on Information Theory, 2006, 52 (9): 3965- 3979. doi: 10.1109/TIT.2006.880057
32	TREES H L V, TIAN Z. Detection estimation and modulation theory, part I—detection, estimation, and filtering theory. Hoboken: Wiley, 2013.
33	LIU H J, GAO H, YANG S S, et al Low-complexity downlink user selection for massive mimo systems. IEEE Systems Journal, 2017, 11 (2): 1072- 1083.

Scheme	Complexity
Scheme	Analog precoder	Digital precoder
Proposed	−	$ O({N_S}N_R^2 + N_S^2{N_R}) $
ZF based	−	$ O(N_R^3 + {N_T}N_R^2) $
Typical hybrid	$ O(N_T^2) $	$ O({N_S}N_R^2 + N_S^2{N_R}) $
