Design and implementation of disturbance sliding mode observer for enhancing the dynamic control precision of inertial stabilization platform

doi:10.23919/JSEE.2025.000027

Journal of Systems Engineering and Electronics ›› 2025, Vol. 36 ›› Issue (3): 791-802.doi: 10.23919/JSEE.2025.000027

• CONTROL THEORY AND APPLICATION • Previous Articles

Design and implementation of disturbance sliding mode observer for enhancing the dynamic control precision of inertial stabilization platform

Zhidong ZHANG¹(), Gongliu YANG¹^,²(), Qingzhong CAI¹^,*(), Jing FAN³(), Tao LI⁴()

¹ School of Instrumentation and Optoelectronic Engineering, Beihang University, Beijing 100191, China
² School of Mechanical Engineering, Zhejiang University, Hangzhou 310058, China
³ Systems Engineering Research Institute, Beijing 100094, China
⁴ Beijing Institute of Space Long March Vehicle, Beijing 100076, China

Received:2024-07-23 Accepted:2025-02-28 Online:2025-06-18 Published:2025-07-10
Contact: Qingzhong CAI E-mail:zzdong@buaa.edu.cn;yanggongliu@buaa.edu.cn;qingzhong_cai@buaa.edu.cn;csscseri0101@yeah.net;eason@matrix-system.com
About author:
ZHANG Zhidong was born in 1992. He received his B.E. degree in measurement and control technology and instrumentation from Harbin Engineering University, Harbin, China, in 2017, and M.E. degree in instrument science and technology from Beihang University, Beijing, China, in 2020. Since September 2020, he has been a Ph.D. candidate of precision instrumentation and mechanism in Beihang University. His research interests include rotation inertial navigation system (RINS) and permanent magnet synchronous motor control. E-mail: zzdong@buaa.edu.cn

YANG Gongliu was born in 1967. He received his Ph.D. degree in precision instrumentation and mechanism from Tsinghua University, Beijing, China, in 2004. He is currently a professor with the School of Mechanical Engineering, Zhejiang University, Hangzhou, China. His current research interests include inertial navigation and cooperative navigation. E-mail: yanggongliu@buaa.edu.cn

CAI Qingzhong was born in 1986. He received his Ph.D. degree in optical engineering from Beihang University, Beijing, China, in 2014. He is currently an associate researcher of the School of Instrumentation and Optoelectronic Engineering in Beihang University. His current research interests include inertial navigation, cooperative navigation and digital twin. E-mail: qingzhong_cai@buaa.edu.cn

FAN Jing was born in 1996. She received her B.E. degree in electrical engineering and automation from Harbin Engineering University, Harbin, China, in 2019, and M.E. degree in control engineering from Beijing Institute of Technology, Beijing, China, in 2022. Since July 2022, she has been an associate engineer in the Systems Engineering Research Institute of China State Shipbuilding Corporation Limited (CSSC), Beijing, China. Her research interests include unmanned aerial vehicles motion planning and control. E-mail: csscseri0101@yeah.net

LI Tao was born in 1983. He received his M.E. degree in flight vehicle design from China Academy of Launch Vehicle Technology, Beijing, China, in 2009. He is currently the senior engineer with Design and Simulation of Spacecraft Control System Group, Beijing Institute of Space Long March Vehicle. His current research interests include flight dynamics, guidance, navigation, control and hardware-in-the-loop simulation of spacecraft. E-mail: eason@matrix-system.com
Supported by:
This work was supported by the National Natural Science Foundation of China (61803015).

Abstract

Abstract:

In order to enhance the dynamic control precision of inertial stabilization platform (ISP), a disturbance sliding mode observer (DSMO) is proposed in this paper suppressing disturbance torques inherent within the system. The control accuracy of ISP is fundamentally circumscribed by various disturbance torques in rotating shaft. Therefore, a dynamic model of ISP incorporating composite perturbations is established with regard to the stabilization of axis in the inertial reference frame. Subsequently, an online estimator for control loop uncertainties based on the sliding mode control algorithm is designed to estimate the aggregate disturbances of various parameters uncertainties and other unmodeled disturbances that cannot be accurately calibrated. Finally, the proposed DSMO is integrated into a classical proportional-integral-derivative (PID) control scheme, utilizing feedforward approach to compensate the composite disturbance in the control loop online. The effectiveness of the proposed disturbance observer is validated through simulation and hardware experimentation, demonstrating a significant improvement in the dynamic control performance and robustness of the classical PID controller extensively utilized in the field of engineering.

Key words: inertial stabilization platform, disturbance suppression, sliding mode observer, robust control

Zhidong ZHANG, Gongliu YANG, Qingzhong CAI, Jing FAN, Tao LI. Design and implementation of disturbance sliding mode observer for enhancing the dynamic control precision of inertial stabilization platform[J]. Journal of Systems Engineering and Electronics, 2025, 36(3): 791-802.

Figures/Tables 20

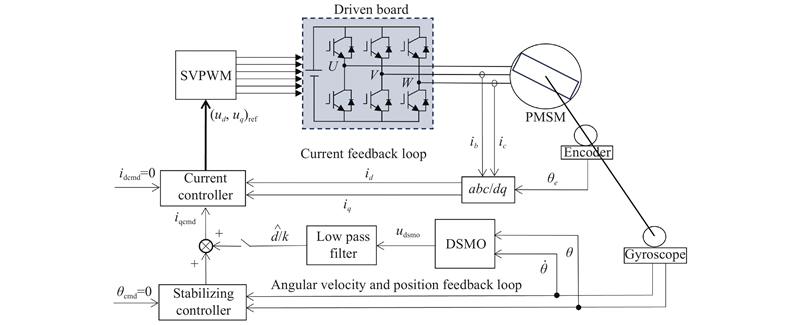

Fig 1

Table 1

Table 2

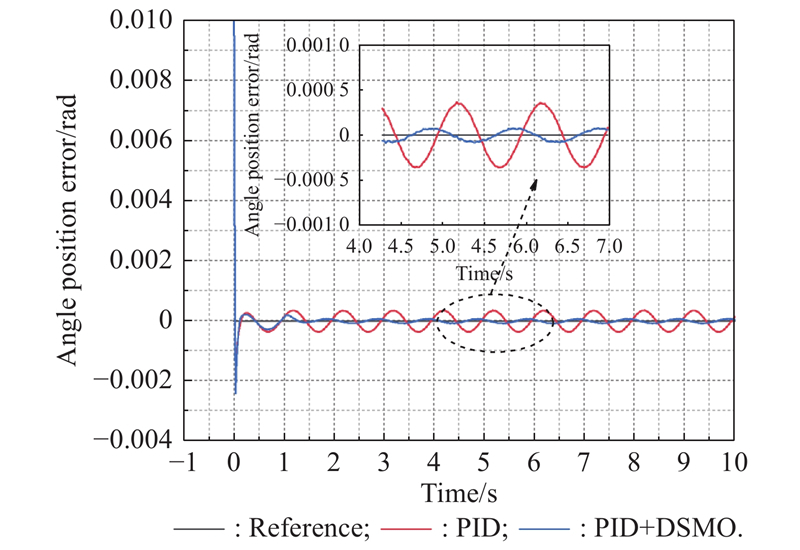

Fig 2

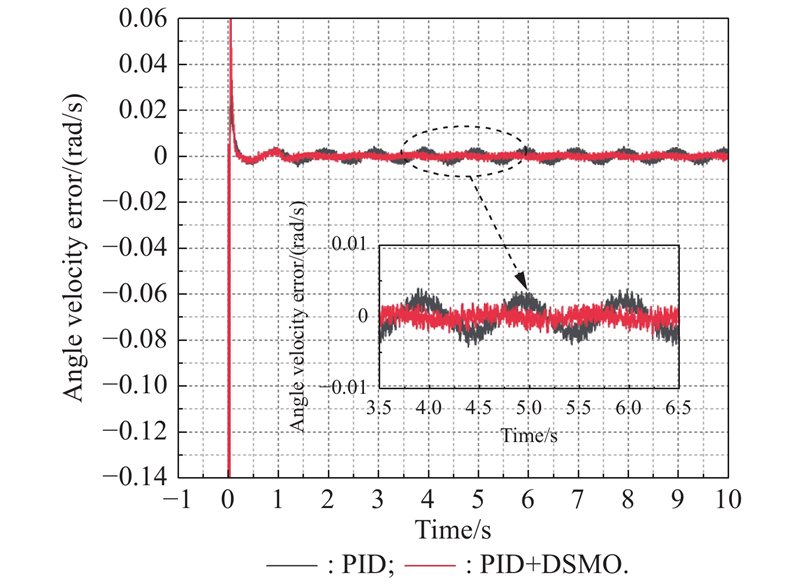

Fig 3

Table 3

Table 4

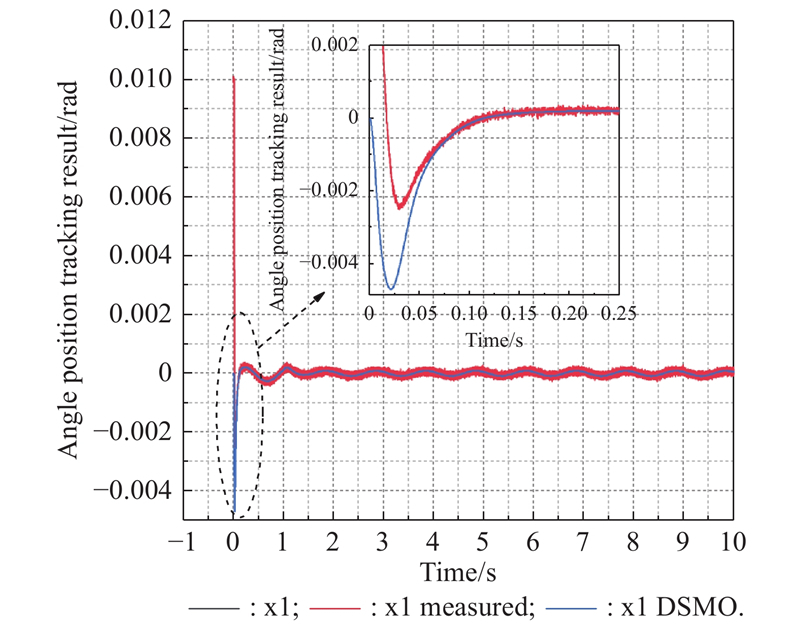

Fig 4

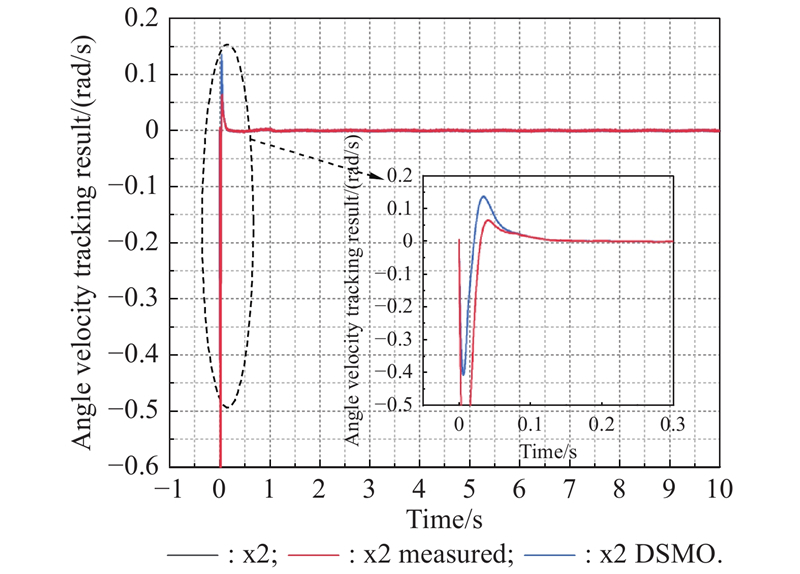

Fig 5

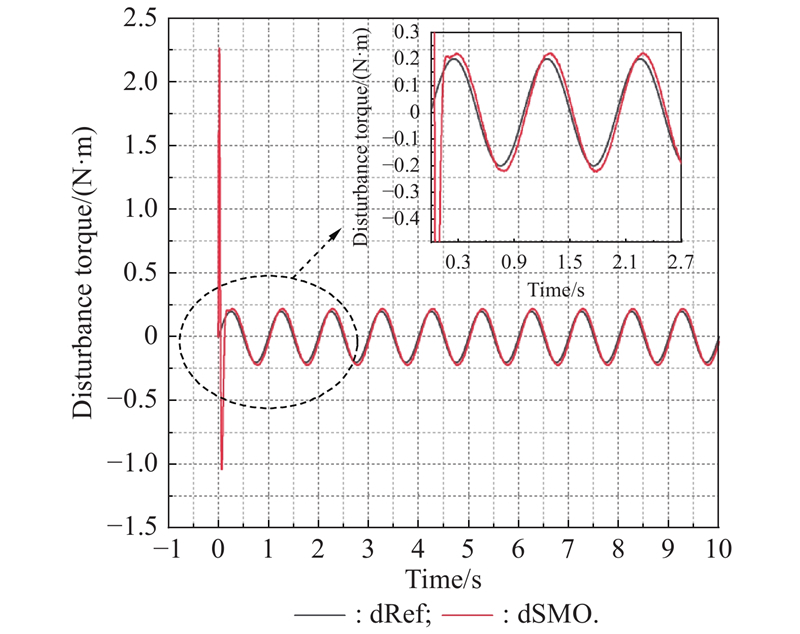

Fig 6

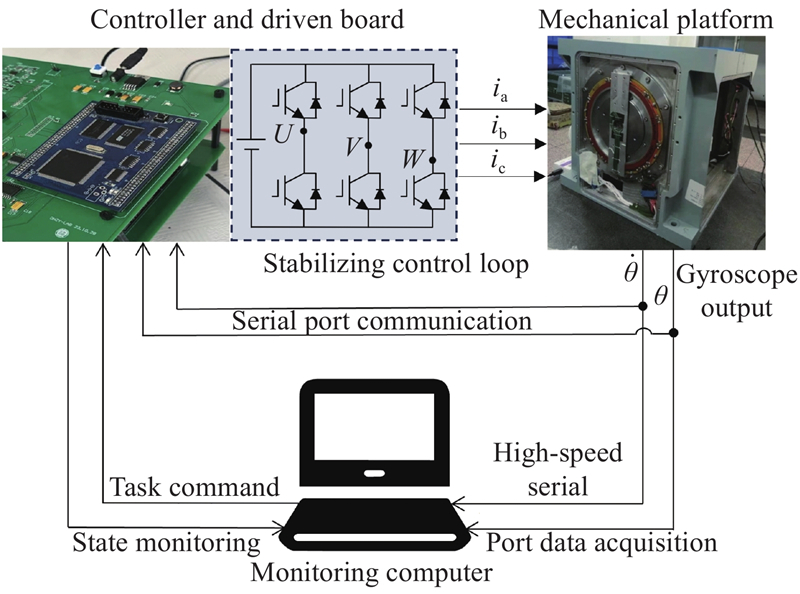

Fig 7

Table 5

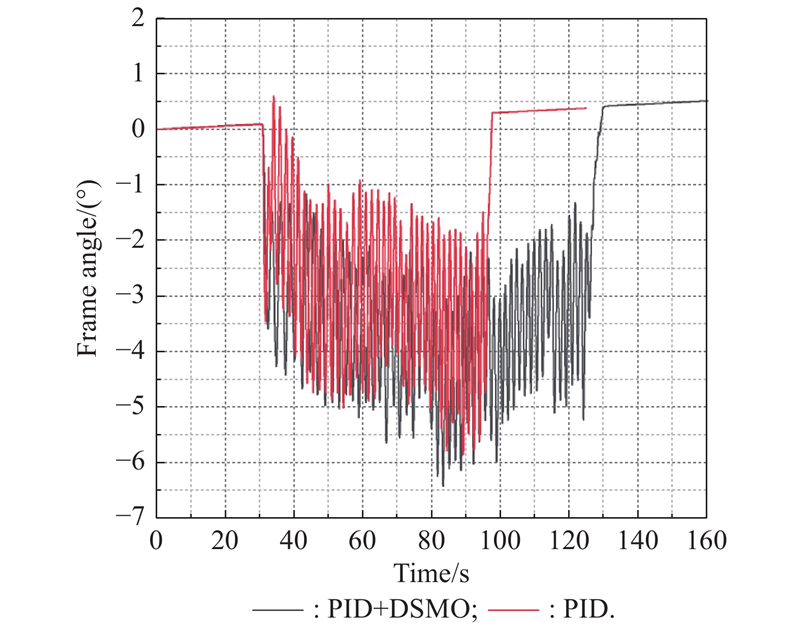

Fig 8

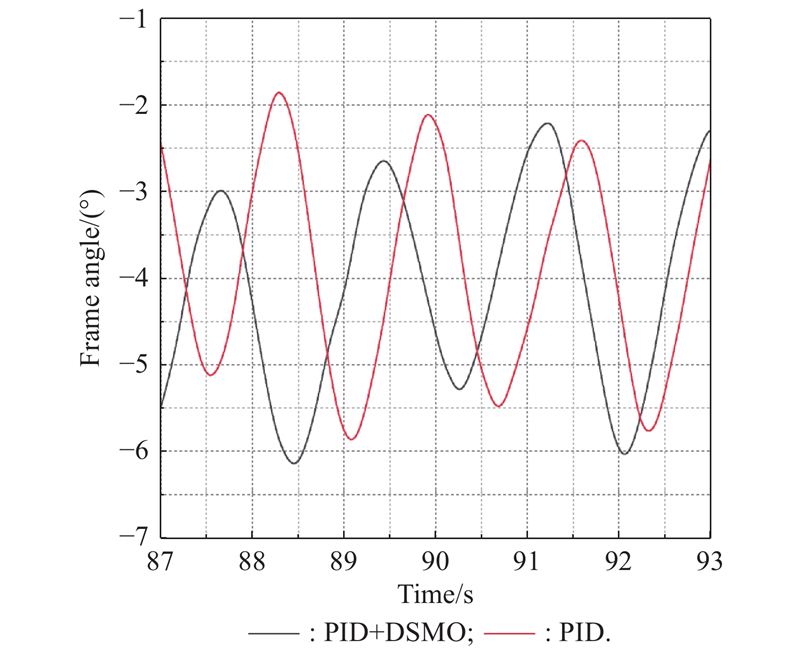

Fig 9

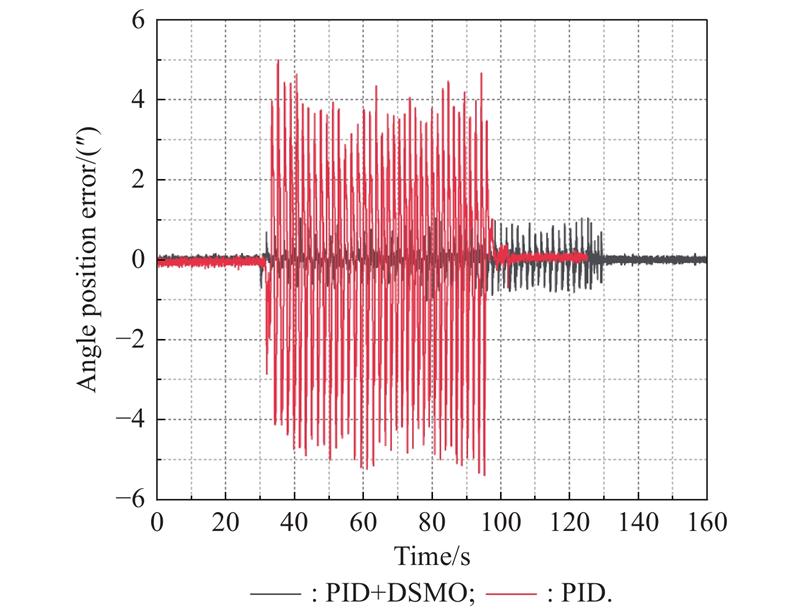

Fig 10

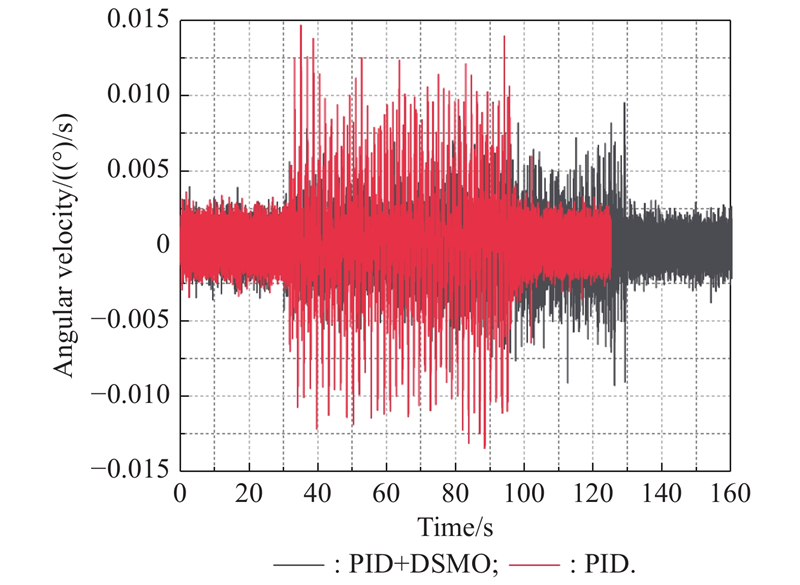

Fig 11

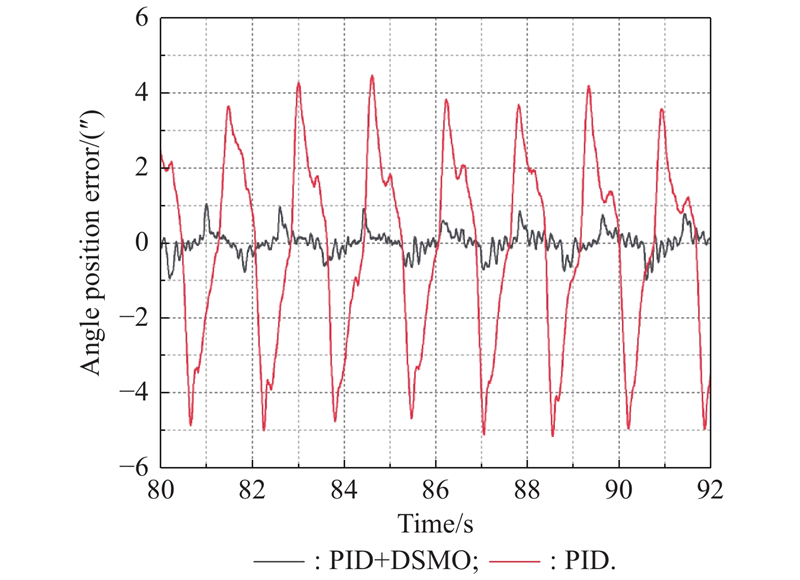

Fig 12

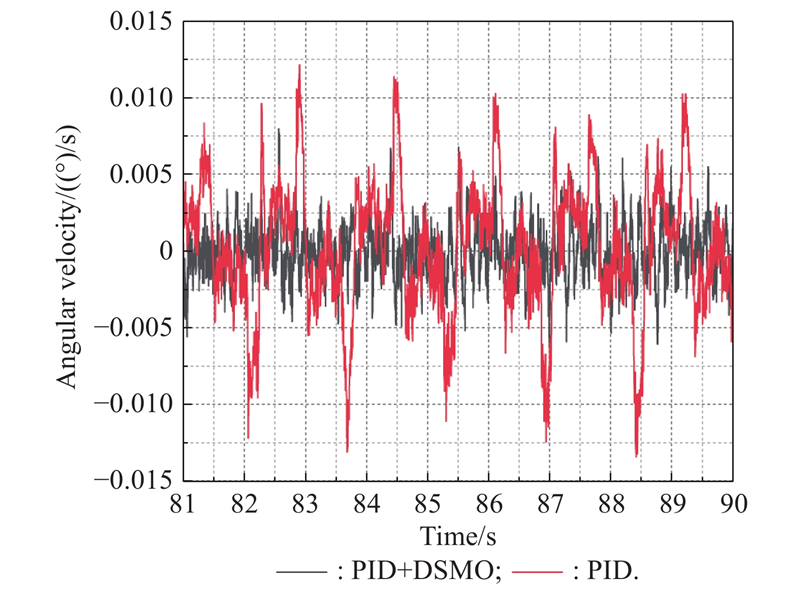

Fig 13

Table 6

Table 7

References 31

1	HUANG S, LIANG W, TAN K K Intelligent friction compensation: a review. IEEE/ASME Trans. on Mechatronics, 2019, 24 (4): 1763- 1774. doi: 10.1109/TMECH.2019.2916665
2	ARMSTRONG-HLOUVRY B. Control of machines with friction. New York: Springer US, 1991.
3	CANUDAS DE WIT C, OLSSON H, ASTROM K, et al A new model for control of systems with friction. IEEE Trans. on Automatic Control, 1995, 40 (3): 419- 425. doi: 10.1109/9.376053
4	WANG C, PENG J D, PAN J F A novel friction compensation method based on stribeck model with fuzzy filter for PMSM servo systems. IEEE Trans. on Industrial Electronics, 2023, 70 (12): 12124- 12133. doi: 10.1109/TIE.2022.3232667
5	ZHANG Z Y, LI Z Q, ZHOU Q K, et al Application in prestiction friction compensation for angular velocity loop of inertially stabilized platforms. Chinese Journal of Aeronautics, 2014, 27 (3): 655- 662. doi: 10.1016/j.cja.2014.04.026
6	WANG B F, IWASAKI M, YU J P Finite-time command-filtered backstepping control for dual-motor servo systems with LuGre friction. IEEE Trans. on Industrial Informatics, 2023, 19 (5): 6376- 6386. doi: 10.1109/TII.2022.3182341
7	ZHOU X Y, ZHAO B L, LIU W, et al A compound scheme on parameters identification and adaptive compensation of nonlinear friction disturbance for the aerial inertially stabilized platform. ISA Transactions, 2017, 67, 293- 305. doi: 10.1016/j.isatra.2017.01.003
8	HUANG S N, TAN K K, LEE T H Adaptive friction compensation using neural network approximations. IEEE Trans. on Systems, Man and Cybernetics, Part C (Applications and Reviews), 2000, 30 (4): 551- 557. doi: 10.1109/5326.897081
9	CANDELO-ZULUAGA C, RIBA J R, GARCIA A. PMSM parameter estimation for sensorless FOC based on differential power factor. IEEE Trans. on Instrumentation and Measurement, 2021, 70: 1−12.
10	SANDRE-HERNANDEZ O, MORALES-CAPORAL R, RANGEL-MAGDALENO R, et al Parameter identification of PMSMs using experimental measurements and a PSO algorithm. IEEE Trans. on Instrumentation and Measurement, 2015, 64 (8): 2146- 2154. doi: 10.1109/TIM.2015.2390958
11	WANG Q W, WANG G L, ZHAO N N, et al An impedance model-based multiparameter identification method of PMSM for both offline and online conditions. IEEE Trans. on Power Electronics, 2021, 36 (1): 727- 738. doi: 10.1109/TPEL.2020.3000896
12	WALLSCHEID O, BOCKER J Global identification of a low-order lumped-parameter thermal network for permanent magnet synchronous motors. IEEE Trans. on Energy Conversion, 2016, 31 (1): 354- 365. doi: 10.1109/TEC.2015.2473673
13	WASIM M, ALI A, CHOUDHRY M A, et al Robust design of sliding mode control for airship trajectory tracking with uncertainty and disturbance estimation. Journal of Systems Engineering and Electronics, 2024, 35 (1): 242- 258. doi: 10.23919/JSEE.2024.000017
14	FARAJZADEH-DEVIN M-G, SANI S K H Enhanced two-loop model predictive control design for linear uncertain systems. Journal of Systems Engineering and Electronics, 2021, 32 (1): 220- 227. doi: 10.23919/JSEE.2021.000019
15	LIU F, WANG H, SHI Q L, et al Comparison of an ANFIS and fuzzy PID control model for performance in a two-axis inertial stabilized platform. IEEE Access, 2017, 5, 12951- 12962. doi: 10.1109/ACCESS.2017.2723541
16	FANG J C, YIN R, LEI X S An adaptive decoupling control for three-axis gyro stabilized platform based on neural networks. Mechatronics, 2015, 27, 38- 46. doi: 10.1016/j.mechatronics.2015.02.002
17	GUO Q Y, LIU G, XIANG B, et al Robust control of magnetically suspended gimbals in inertial stabilized platform with wide load range. Mechatronics, 2016, 39, 127- 135. doi: 10.1016/j.mechatronics.2016.08.003
18	ZHAO L, HE M H, CAO X Y Research on inertial reference units prescribed performance integral sliding mode angle control. Advances in Space Research, 2023, 71 (10): 4210- 4221. doi: 10.1016/j.asr.2023.01.003
19	ZHAO Z Q, ZHANG L, NAN H J, et al System modeling and motion control of a cable-driven parallel platform for underwater camera stabilization. IEEE Access, 2021, 9, 132954- 132966. doi: 10.1109/ACCESS.2021.3115359
20	MAO J L, LI S H, LI Q, et al Design and implementation of continuous finite-time sliding mode control for 2-DOF inertially stabilized platform subject to multiple disturbances. ISA Transactions, 2019, 84, 214- 224. doi: 10.1016/j.isatra.2018.09.014
21	DING Z S, ZHAO F, LANG Y D, et al Anti-disturbance neural-sliding mode control for inertially stabilized platform with actuator saturation. IEEE Access, 2019, 7, 92220- 92231. doi: 10.1109/ACCESS.2019.2927427
22	LIU X Y, MAO J L, YANG J, et al Robust predictive visual servoing control for an inertially stabilized platform with uncertain kinematics. ISA Transactions, 2021, 114, 347- 358. doi: 10.1016/j.isatra.2020.12.039
23	QU J H, XIA Y Q, SHI Y P, et al Modified ADRC for inertial stabilized platform with corrected disturbance compensation and improved speed observer. IEEE Access, 2020, 8, 157703- 157716. doi: 10.1109/ACCESS.2020.3020143
24	KNIGSEDER F, KEMMETMLLER W, KUGI A Attitude control strategy for a camera stabilization platform. Mechatronics, 2017, 46, 60- 69. doi: 10.1016/j.mechatronics.2017.06.012
25	QIANG H P, JIN S, FENG X Y, et al Model predictive control of a shipborne hydraulic parallel stabilized platform based on ship motion prediction. IEEE Access, 2020, 8, 181880- 181892. doi: 10.1109/ACCESS.2020.2992458
26	TOLOEI A R, PIRZADEH M, VALI A R Design of predictive control and evaluate the effects of flight dynamics on performance of one axis gimbal system considering disturbance torques. Aerospace Science and Technology, 2016, 54, 143- 150. doi: 10.1016/j.ast.2016.04.019
27	ALTAN A, HACIOGLU R Model predictive control of three-axis gimbal system mounted on UAV for real-time target tracking under external disturbances. Mechanical Systems and Signal Processing, 2020, 138, 106548. doi: 10.1016/j.ymssp.2019.106548
28	GALCHENKO P, PERNICKA H Neural network attitude control system design for the wallops arc-second pointer. Journal of Guidance, Control and Dynamics, 2022, 45 (7): 1365- 1370. doi: 10.2514/1.G006465
29	XIANG B, MU Q Q Gimbal control of inertially stabilized platform for airborne remote sensing system based on adaptive RBFNN feedback model. IFAC Journal of Systems and Control, 2021, 16, 100148. doi: 10.1016/j.ifacsc.2021.100148
30	SAINI K, KUMAR N, BHUSHAN B, et al Artificial neural network-based adaptive control for nonlinear dynamical systems. International Journal of Adaptive Control and Signal Processing, 2024, 38 (8): 2693- 2715. doi: 10.1002/acs.3823
31	BHANU P, PAPPA N SVPWM: torque level controlling of wind turbine system using fuzzy and ABC-DQ transformation. International Journal of Fuzzy Systems, 2017, 19 (1): 141- 154. doi: 10.1007/s40815-016-0157-1

Parameter	Symbol	Value
Rotational inertia of ISP/(kg·m²)	$ J $	0.256
Torque constant of PMSM/(N·m/A)	$ b $	1.0
System sampling time/s	$ \Delta T $	0.0001
Mean amplitude of gyroscope angular velocity noise/(rad/s)	$ \sigma $	0.0002
Noise power of the gyroscope angular velocity/(rad²/s³)	$ {w_G} $	$ {\sigma ^2} \times \Delta T $

Parameter	Symbol	Value
Rotational inertia of ISP/(kg·m²)	$ J $	0.3
Torque constant of PMSM/(N·m/A)	$ b $	1.1

Control scheme	PPE
PID	0.000 716
PID+DSMO	0.000 158

Control scheme	PPE
PID	0.007 756
PID+DSMO	0.003 749

Parameter	Symbol	Value
Rotational inertia of ISP/(kg·m²)	$ {J_0} $	0.173
Gyroscope zero-bias stability/((°)/h)	$ {\varepsilon _G} $	1/1000
Torque constant of PMSM/(N·m/A)	$ {b_0} $	1.14
