Online reentry guidance algorithm based on trajectory analytical solutions

doi:10.23919/JSEE.2026.000089

Abstract

Abstract:

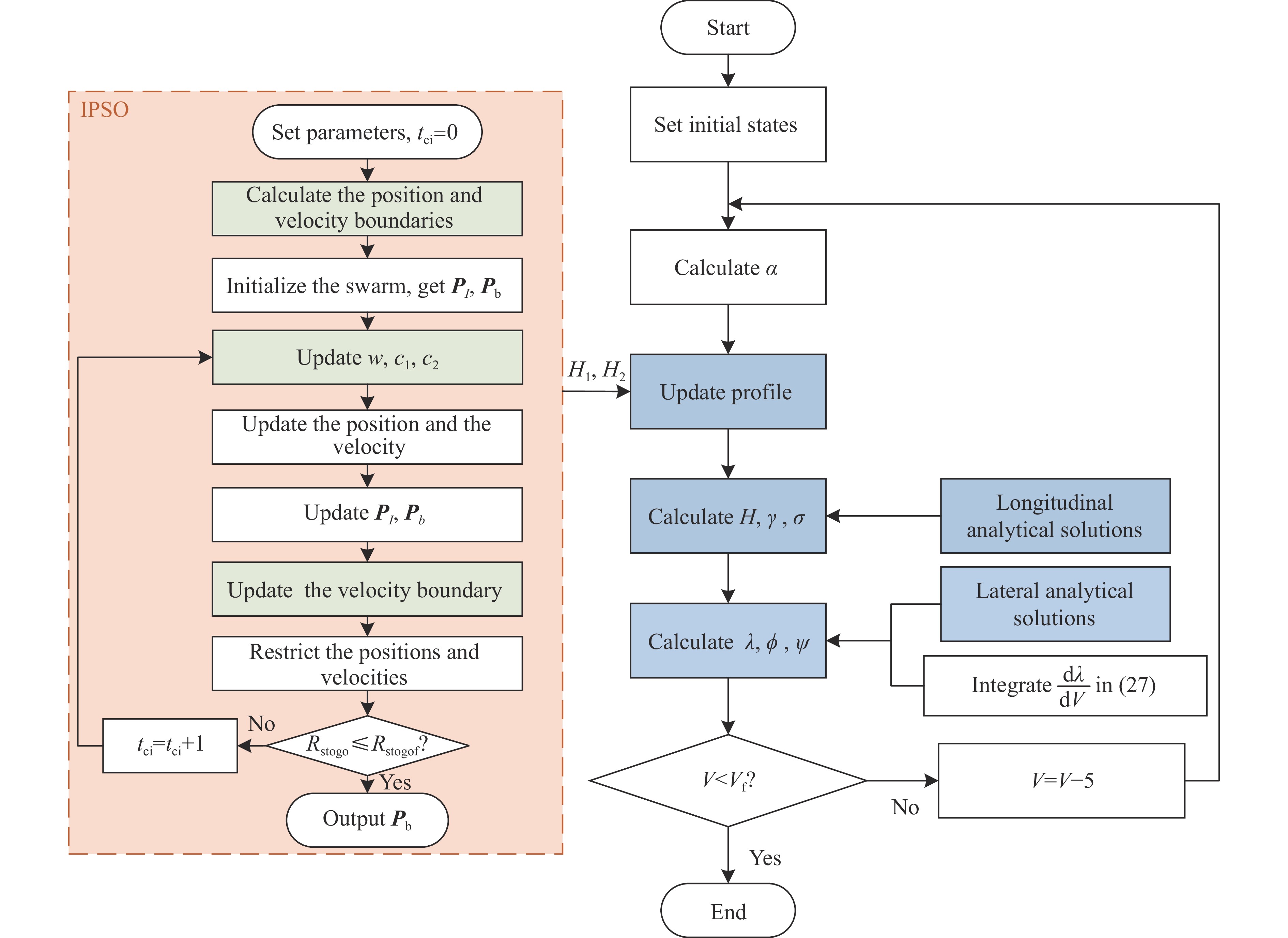

To enhance the real-time performance and accuracy of guidance command generation, we propose an online reentry guidance algorithm based on analytical solutions of the hypersonic glide trajectory (HGT). Initially, an altitude-velocity profile is designed in the longitudinal plane to satisfy both path and terminal constraints. Based on this profile, we derive analytical solutions for the flight path angle (FPA) and bank angle. Subsequently, by employing the Newton-Raphson method to linearize the reentry motion equations, analytical solutions for the latitude and heading angle are obtained. Furthermore, we introduce an improved particle swarm optimization (IPSO) algorithm to optimize the profile parameters. This approach significantly enhances the algorithm’s global convergence by narrowing the parameter optimization range and adaptively adjusting the inertia weight and cognitive factors. Finally, we present an online guidance algorithm that combines the HGT analytical solutions with the IPSO algorithm. This algorithm effectively achieves longitudinal and lateral guidance by continuously updating the altitude-velocity profile and bank angle symbol in real time. Simulation results demonstrate that the proposed algorithm is fast, efficient, accurate, and holds significant potential for broader application.

Key words: altitude-velocity profile, analytical solution, improved particle swarm optimization (IPSO), online reentry guidance

Weibo SUN, Ping MA, Xiaonan LI, Songyan WANG, Tao CHAO. Online reentry guidance algorithm based on trajectory analytical solutions[J]. Journal of Systems Engineering and Electronics, 2026, 37(3): 1002-1018.

Figures/Tables 20

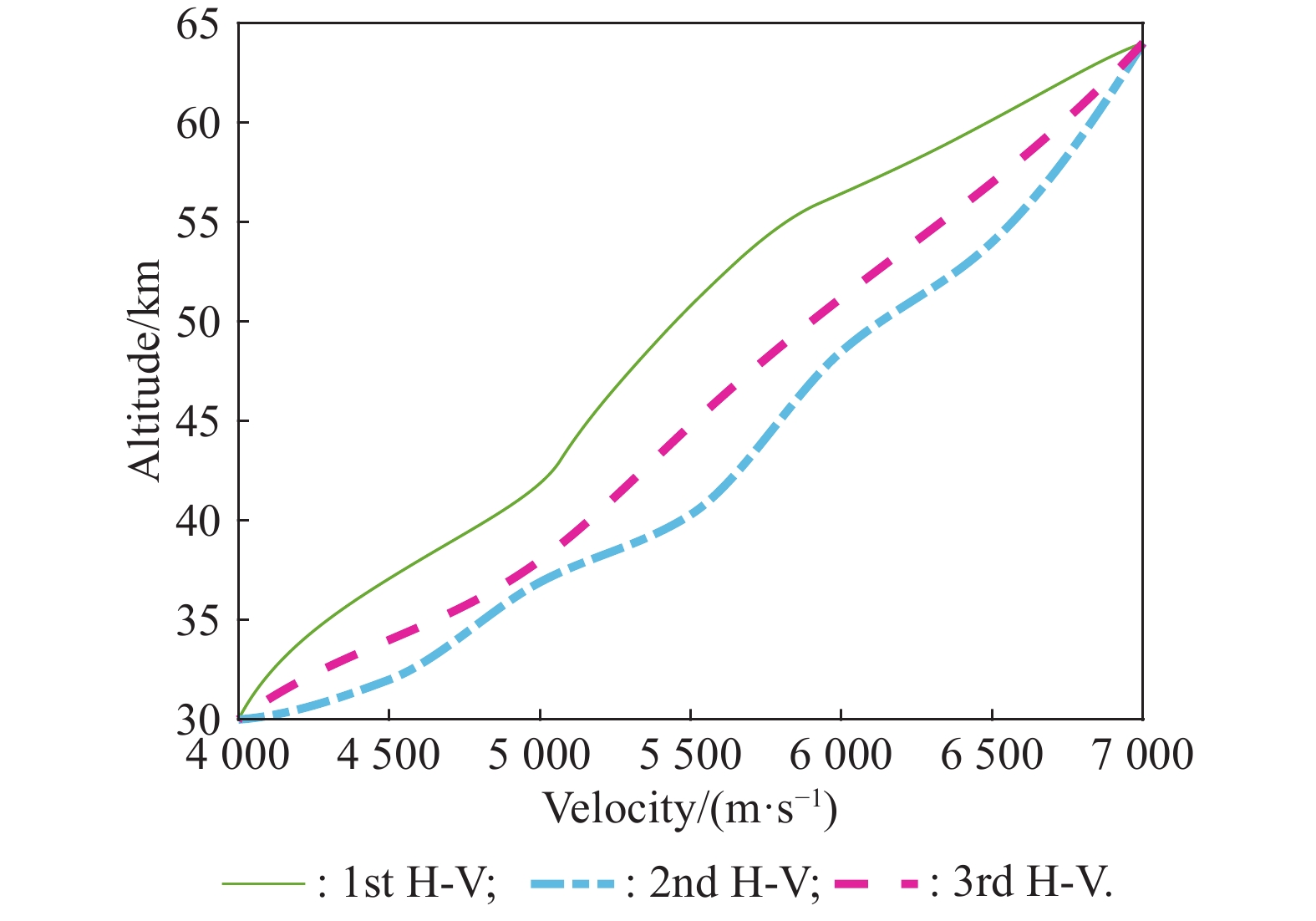

Fig 1

Fig 2

Fig 3

Table 1

Table 2

Table 3

Fig 4

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

Fig 11

Table 4

Fig 12

Table 5

Fig 13

Table 6

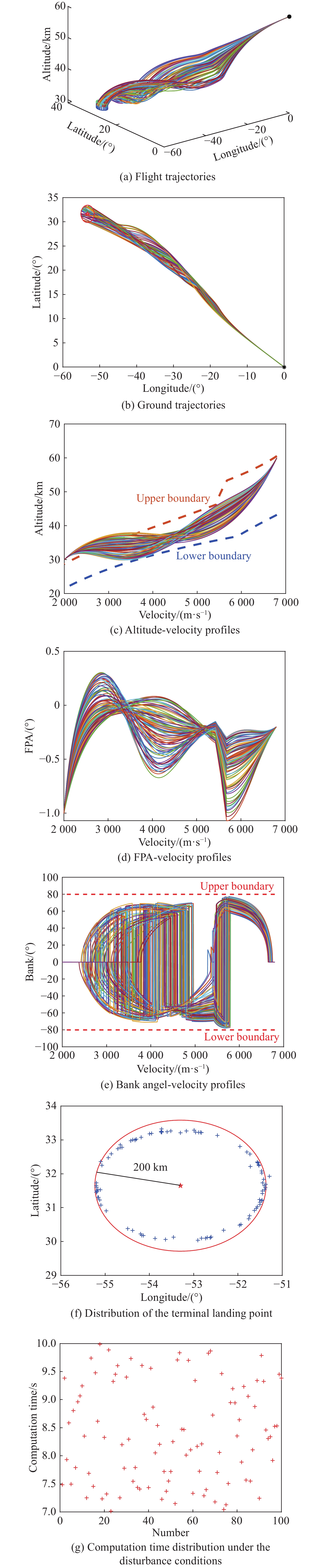

Fig 14

References 25

1	DING Y B, YUE X K, CHEN G S, et al Review of control and guidance technology on hypersonic vehicle. Chinese Journal of Aeronautics, 2022, 35 (7): 1- 18. doi: 10.1016/j.cja.2021.10.037
2	ZHANG Y L, XIE Y Review of trajectory planning and guidance methods for gliding vehicles. Acta Aeronautica et Astronautica Sinica, 2020, 41 (1): 50- 62.
3	GUO J, ZHENG J K, WANG H N, et al Review of research on reentry guidance methods and hot issues of hypersonic gliding vehicle. Aerospace Technology, 2022, 2022 (1): 54- 63.
4	TIAN B L, LI Z Y, WU S Y, et al Reentry trajectory optimization, guidance and control methods for reusable launch vehicles: review. Acta Aeronautica et Astronautica Sinica, 2020, 41 (11): 624072.
5	HE R Z, LIU L H, TANG G J, et al Entry trajectory generation without reversal of bank angle. Aerospace Science and Technology, 2017, 71, 627- 635. doi: 10.1016/j.ast.2017.10.019
6	MORIO V, CAZAURANG F, VERNIS P Flatness-based hypersonic reentry guidance of a lifting-body vehicle. Control Engineering Practice, 2009, 17 (5): 588- 596. doi: 10.1016/j.conengprac.2008.10.018
7	YAN H, HE Y Z Drag-tracking guidance for entry vehicles without drag rate measurement. Aerospace Science and Technology, 2015, 43, 372- 380. doi: 10.1016/j.ast.2015.03.019
8	MEASE K D, CHEN D T, TEUFEL P, et al Reduced-order entry trajectory planning for acceleration guidance. Journal of Guidance, Control, and Dynamics, 2002, 25 (2): 257- 266. doi: 10.2514/2.4906
9	LEAVITT J A, MWASE K D Feasible trajectory generation for atmospheric entry guidance. Journal of Guidance, Control, and Dynamics, 2007, 30 (2): 473- 481. doi: 10.2514/1.23034
10	WANG X, TANG S J, QI S Predictor-corrector entry guidance with terminal altitude constraint. Tactical Missile Technology, 2018, 4, 70- 77.
11	WANG T, ZHANG H B, TANG G J Predictor-corrector entry guidance with waypoint and no-fly zone constraints. Acta Astronautica, 2017, 138, 10- 18. doi: 10.1016/j.actaastro.2017.05.009
12	WANG T, ZHANG H B, ZENG L, et al A robust predictor-corrector entry guidance. Aerospace Science and Technology, 2017, 66, 103- 111. doi: 10.1016/j.ast.2017.03.010
13	ZHANG P, DU Y L, XIANG K Constrained predictive-corrector reentry guidance for high lift-to-drag RLV. Flight Dynamics, 2018, 36 (3): 70- 74.
14	XU H, CAI G B, MU C X, et al Analytical reentry guidance framework based on swarm intelligence optimization and altitude-energy profile. Chinese Journal of Aeronautics, 2023, 36 (12): 336- 348. doi: 10.1016/j.cja.2023.07.029
15	PAN L, PENG S C, XIE Y, et al 3D guidance for hypersonic reentry gliders based on analytical prediction. Acta Astronautica, 2020, 167, 42- 51. doi: 10.1016/j.actaastro.2019.07.039
16	YU W B, CHEN W C Entry guidance with real-time planning of reference based on analytical solutions. Advances in Space Research, 2015, 55 (9): 2325- 2345. doi: 10.1016/j.asr.2015.02.002
17	YU W B, CHEN W C, JIANG Z G, et al Analytical entry guidance based on pseudo-aerodynamic profiles. Aerospace Science and Technology, 2017, 66, 315- 331. doi: 10.1016/j.ast.2017.03.018
18	YU W B, YANG J, CHEN W C Entry guidance based on analytical trajectory solutions. IEEE Trans. on Aerospace and Electronic Systems, 2021, 58 (3): 2438- 2466.
19	YANG J, YU W B, CHEN W C, et al Chebyshev-series solutions for nonlinear systems with hypersonic gliding trajectory example. Aerospace Science and Technology, 2023, 140, 108424. doi: 10.1016/j.ast.2023.108424
20	ZENG L, ZHANG H B, ZHENG W A three-dimensional predictor-corrector entry guidance based on reduced-order motion equations. Aerospace Science and Technology, 2018, 73, 223- 231. doi: 10.1016/j.ast.2017.12.009
21	ZHOU H Y, WANG X G, CUI N G A novel reentry trajectory generation method using improved particle swarm optimization. IEEE Trans. on Vehicular Technology, 2019, 68 (4): 3212- 3223. doi: 10.1109/TVT.2019.2899917
22	ZHOU H Y, WANG X G, CUI N G Glide guidance for reusable launch vehicles using analytical dynamics. Aerospace Science and Technology, 2020, 98, 105678. doi: 10.1016/j.ast.2019.105678
23	ZHOU H Y, LI X, BAI Y L, et al Optimal guidance for hypersonic vehicle using analytical solutions and an intelligent reversal strategy. Aerospace Science and Technology, 2023, 132, 108053. doi: 10.1016/j.ast.2022.108053
24	SOO K K, SIU Y M, CHAN W S, et al Particle-swarm-optimization-based multiuser detector for CDMA communications. IEEE Trans. on Vehicular Technology, 2007, 56 (5): 3006- 3013. doi: 10.1109/TVT.2007.900383
25	PHILLIPS T. A common aero vehicle (CAV) model, description, and employment guide. Schafer Corporation for AFRL and AFSPC, Arlington, VA 2003.

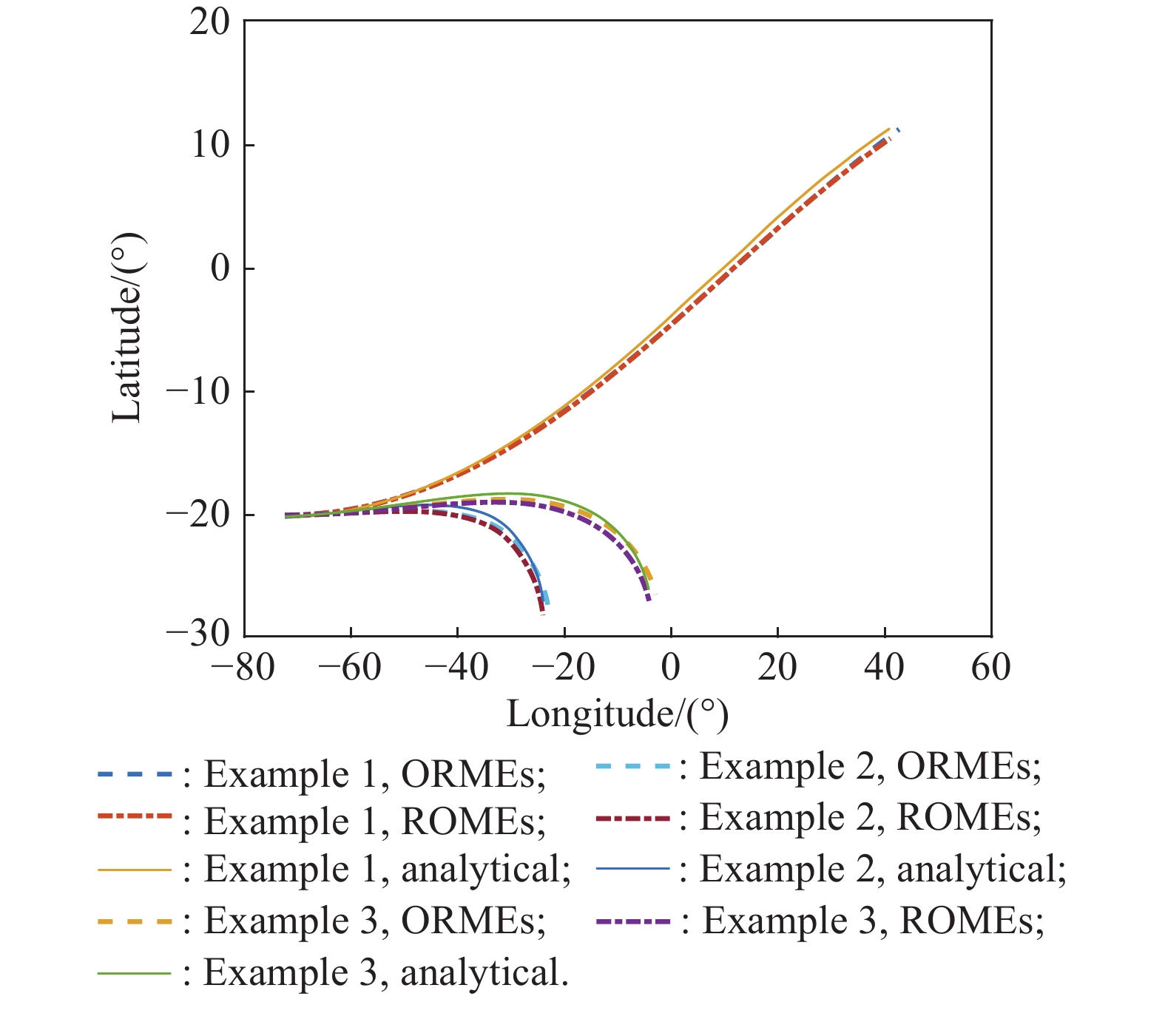

Example	ORME	ROME	HGT analytical solution
Example 1	$ 1 \times {10^{ - 1}} $	$ 6.1 \times {10^{ - 2}} $	$ 9.7 \times {10^{ - 3}} $
Example 2	$ 1.3 \times {10^{ - 1}} $	$ 5.8 \times {10^{ - 2}} $	$10.2 \times {10^{ - 3}}$
Example 3	$ 1.1 \times {10^{ - 1}} $	$ 6.1 \times {10^{ - 2}} $	$9.2 \times {10^{ - 3}}$

Example	Initial condition						Terminal condition
Example	${H_0}$/km	${V_0}$/(m/s)	${\lambda _0}$/(°)	${\phi _0}$/(°)	${\gamma _0}$/(°)	${\psi _0}$/(°)	${H_{\text{f}}}$/km	${V_{\text{f}}}$/(m/s)	${\lambda _{\text{f}}}$/(°)	${\phi _{\text{f}}}$/(°)	${\gamma _{\text{f}}}$/(°)	${R_{{\text{stogof}}}}$/km
Example 1	60	6800	0	0	−0.2	−60	30	2000	−53.3	31.65	−1	200
Example 2	68	6980	0	0	−0.1	70	28	2000	140	45	−2	200
Example 3	64	6000	0	0	−0.15	122	30	2000	134	−10	−2	200
Example 4	60	6200	0	0	−0.1	−120	28	2000	−110	−23	−2	200

Parameter	Value
$ t_{{\text{ci}}}^{{\text{max}}} $	20
${N_{\text{p}}}$	20
${w_1}$	0.1
${w_2}$	0.9
$c_1^0$	2
$c_2^0$	0.9

Example	$H\left( {{t_{\text{f}}}} \right)$/km	$V\left( {{t_{\text{f}}}} \right)$/(m/s)	$\lambda \left( {{t_{\text{f}}}} \right)$/(°)	$\phi \left( {{t_{\text{f}}}} \right)$/(°)	$\gamma \left( {{t_{\text{f}}}} \right)$/(°)	${R_{{\text{stogo}}}}\left( {{t_{\text{f}}}} \right)$/km
Example 1	30	2000	−51.98	32.24	−1	139.26
Example 2	28	2000	138.86	44.56	−2	101.32
Example 3	30	2000	134.33	−11.22	−2	138.86
Example 4	28	2000	−110	−23.60	−1.99	66

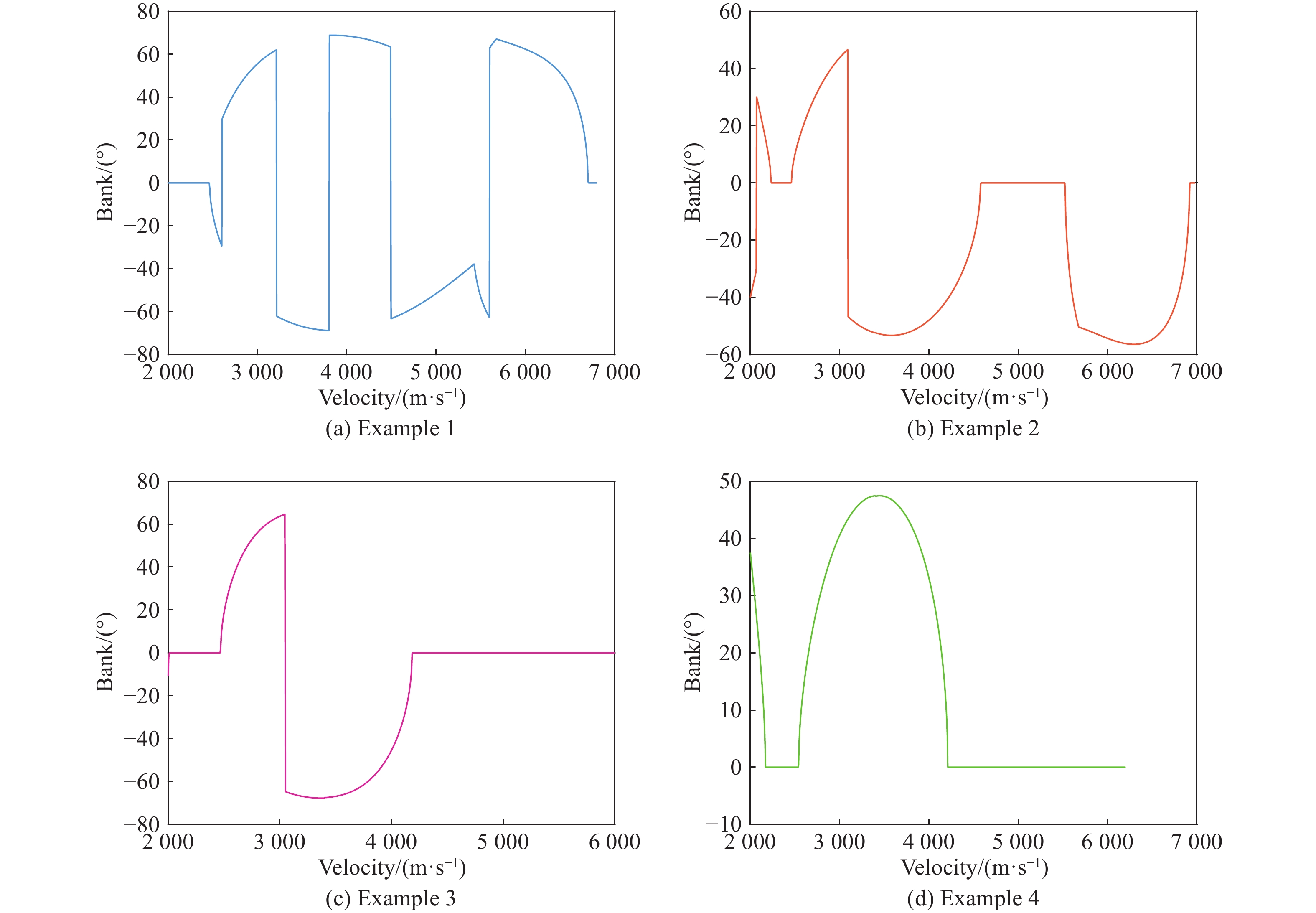

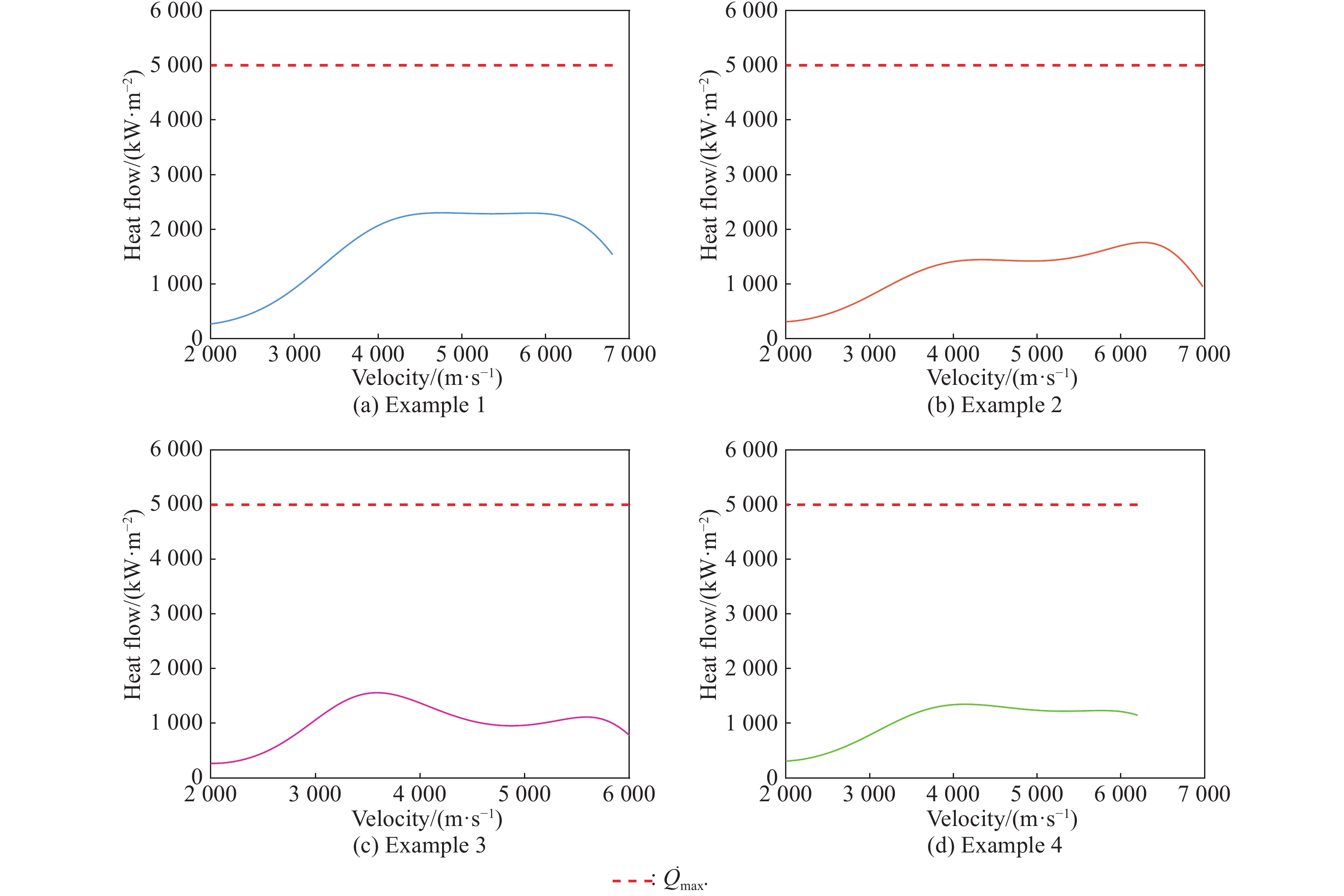

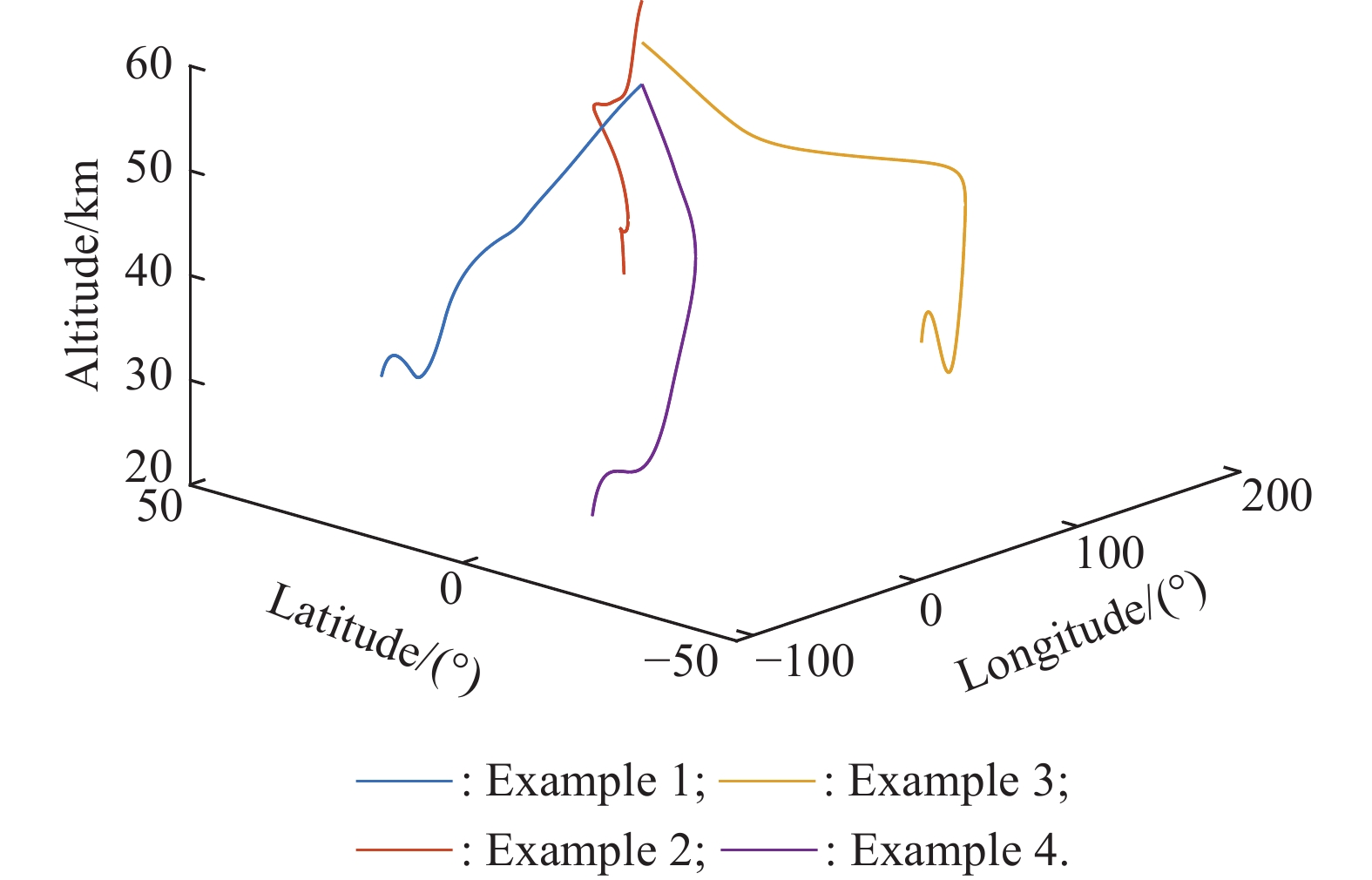

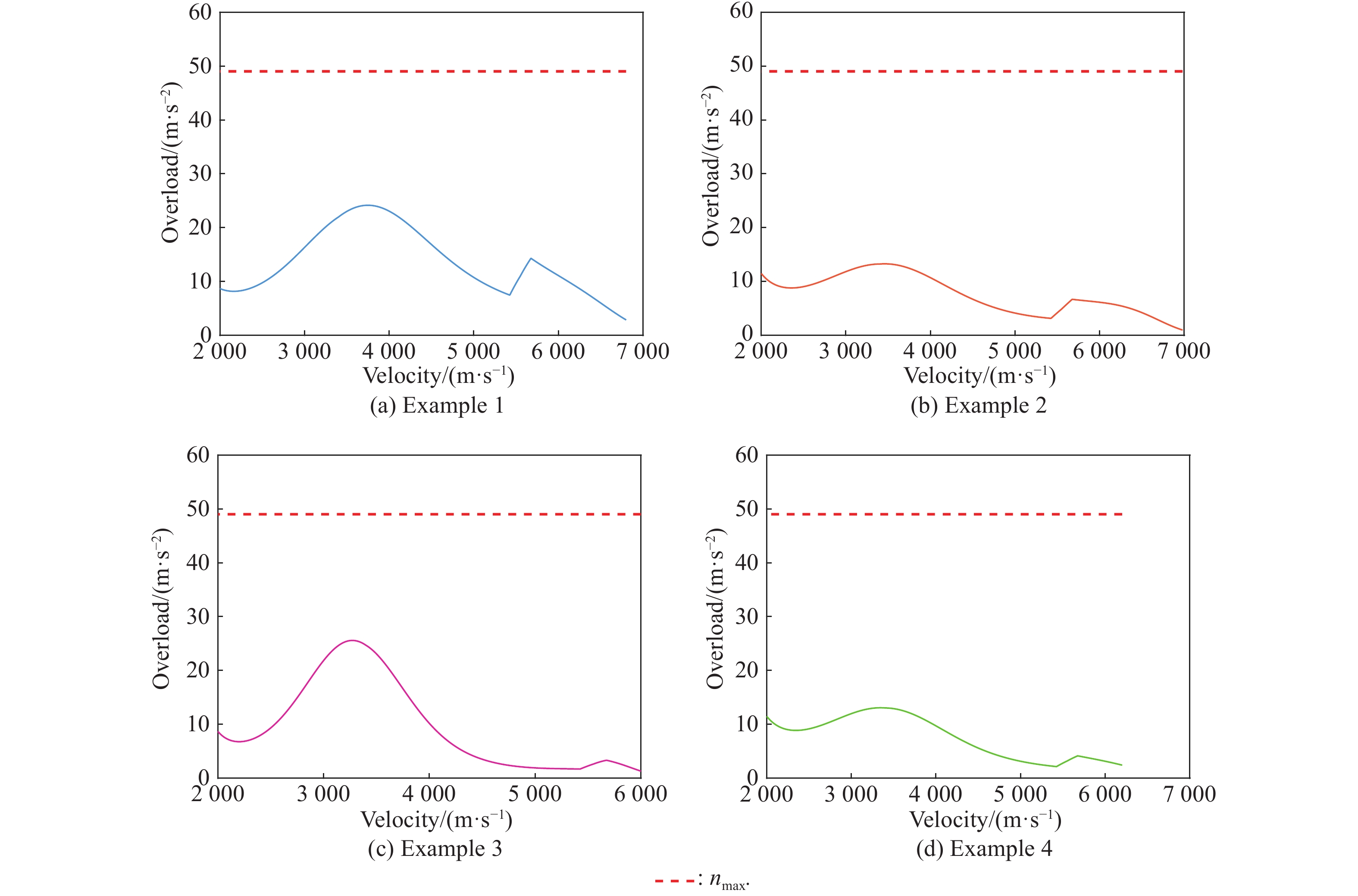

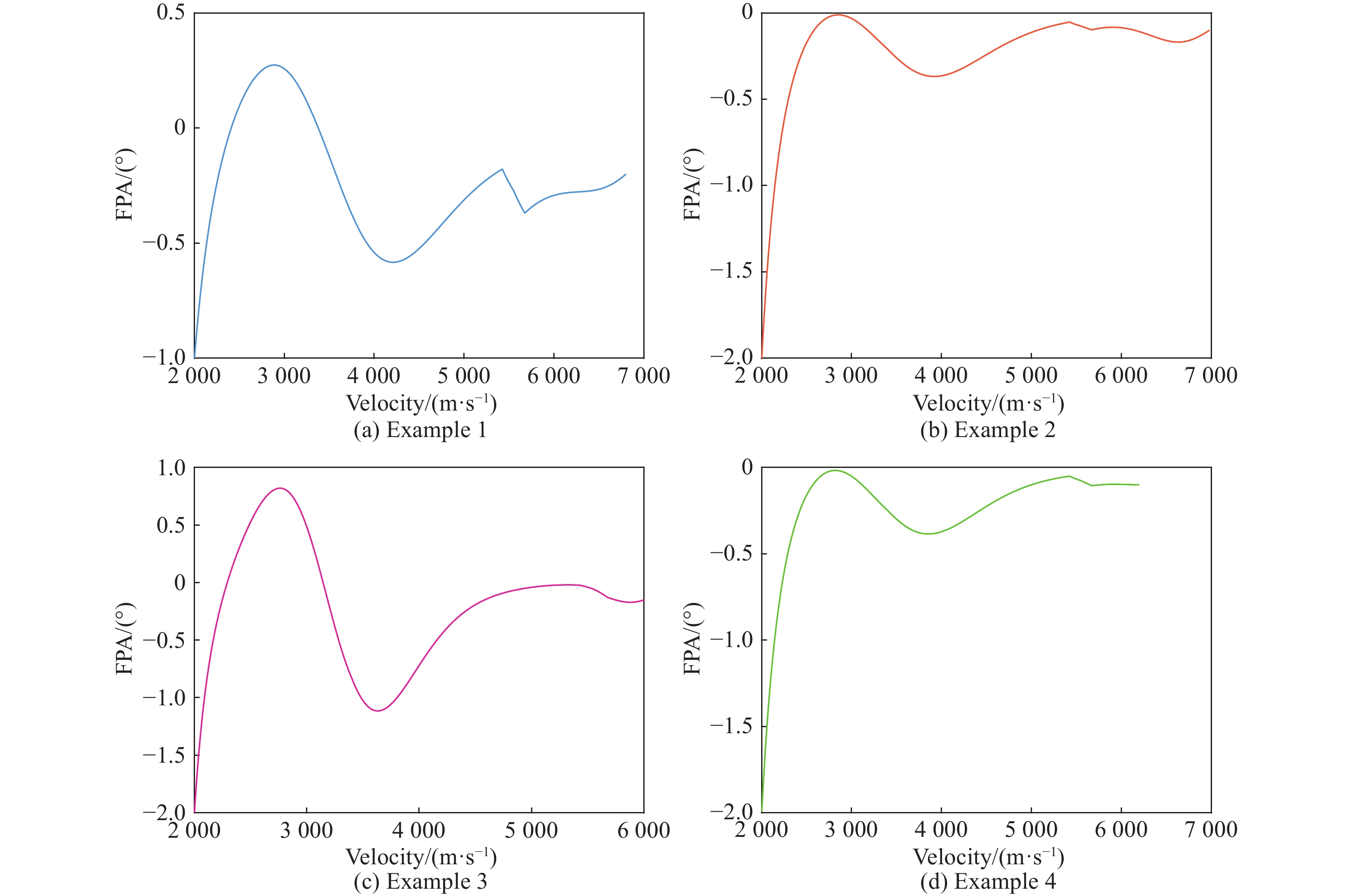

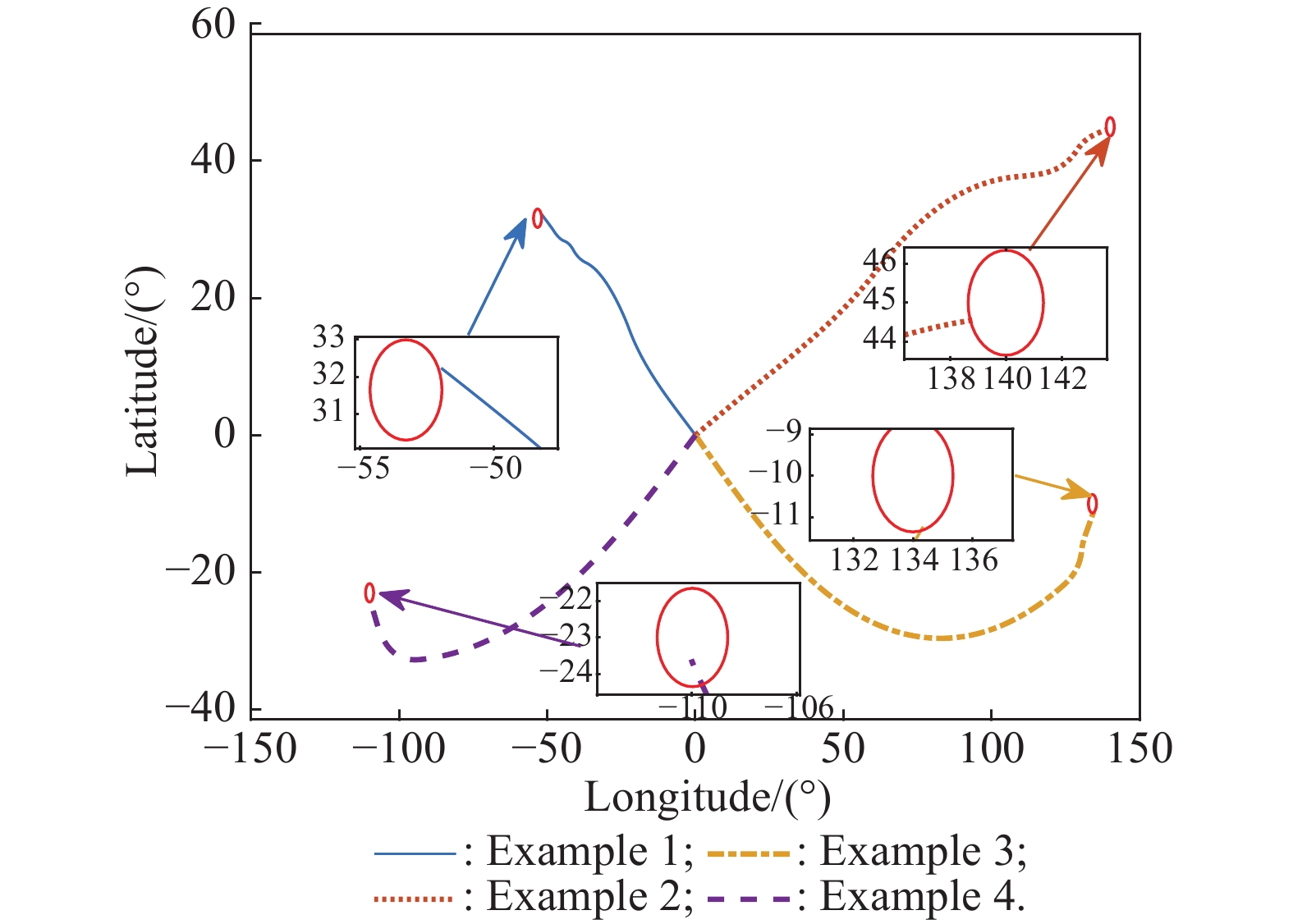

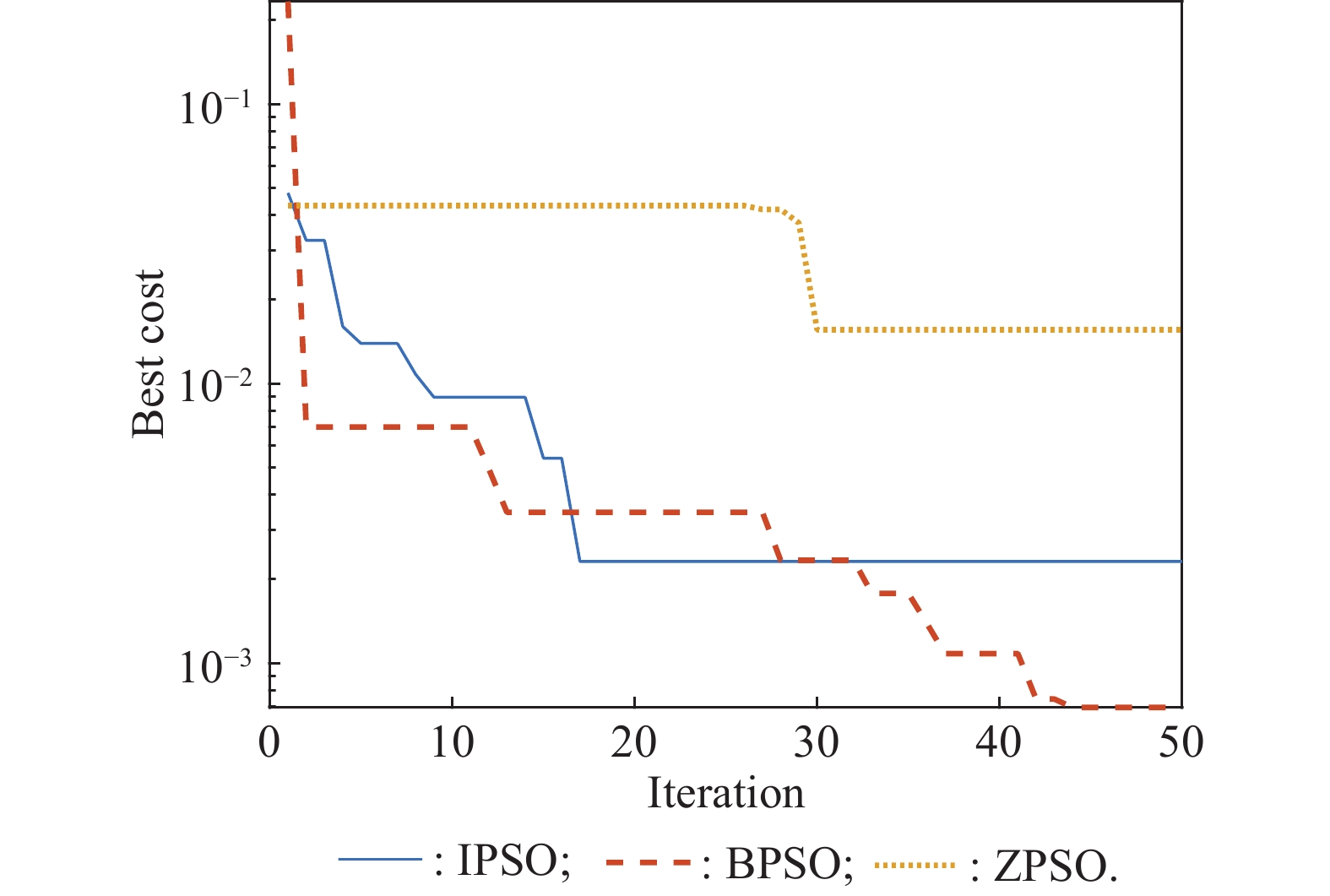

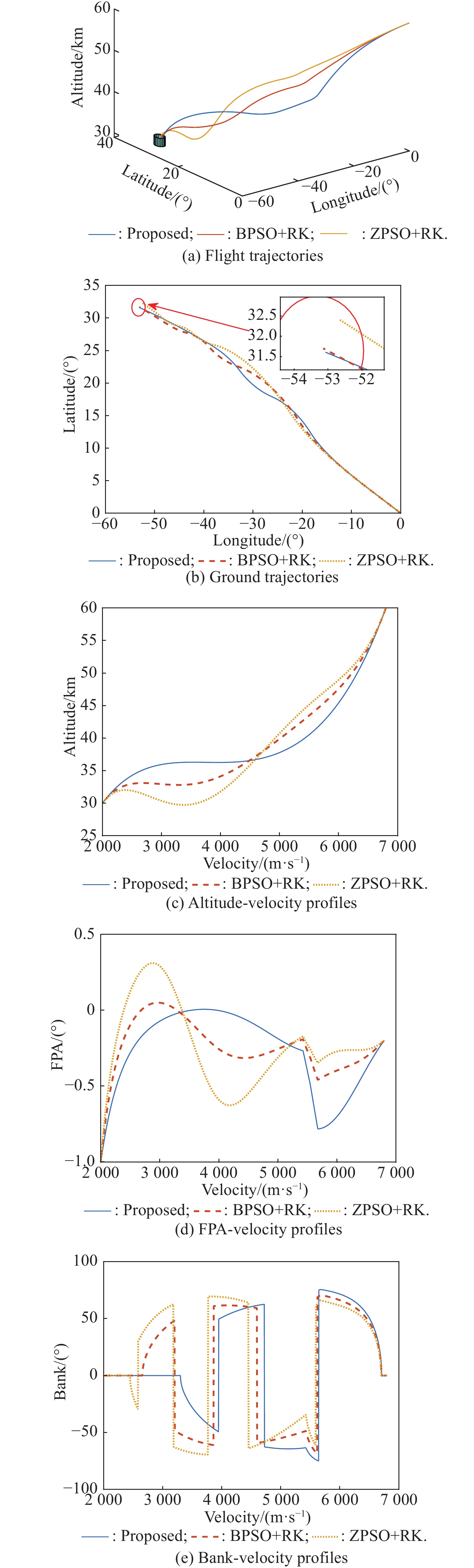

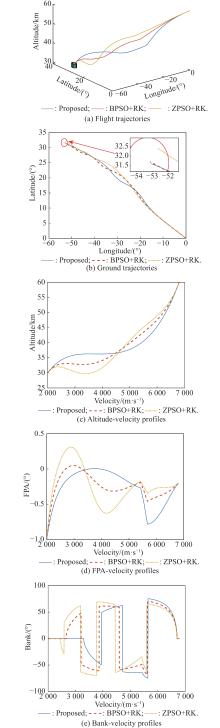

Algorithm	Best cost	Iterations number	Optimization time/s
IPSO	$2.3 \times {10^{ - 3}}$	18	1.6
BPSO	$7.0 \times {10^{ - 4}}$	44	5.3
ZPSO	$1.6 \times {10^{ - 2}}$	30	4.1
