Accurately tracking hypersonic gliding vehicles via an LEO mega-constellation in relay tracking mode

doi:10.23919/JSEE.2023.000078

Abstract

Abstract:

In order to effectively defend against the threats of the hypersonic gliding vehicles (HGVs), HGVs should be tracked as early as possible, which is beyond the capability of the ground-based radars. Being benefited by the developing mega-constellations in low-Earth orbit, this paper proposes a relay tracking mode to track HGVs to overcome the above problem. The whole tracking mission is composed of several tracking intervals with the same duration. Within each tracking interval, several appropriate satellites are dispatched to track the HGV. Satellites that are planned to take part in the tracking mission are selected by a new derived observability criterion. The tracking performances of the proposed tracking mode and the other two traditional tracking modes, including the stare and track-rate modes, are compared by simulation. The results show that the relay tracking mode can track the whole trajectory of a HGV, while the stare mode can only provide a very short tracking arc. Moreover, the relay tracking mode achieve higher tracking accuracy with fewer attitude controls than the track-rate mode.

Key words: target tracking, mega-constellation, hypersonic gliding vehicle (HGV), sensor selection, observability analysis

Zhao LI, Yidi WANG, Wei ZHENG. Accurately tracking hypersonic gliding vehicles via an LEO mega-constellation in relay tracking mode[J]. Journal of Systems Engineering and Electronics, 2024, 35(1): 211-221.

Figures/Tables 17

Fig 1

Fig 2

Fig 3

Table 1

Fig 4

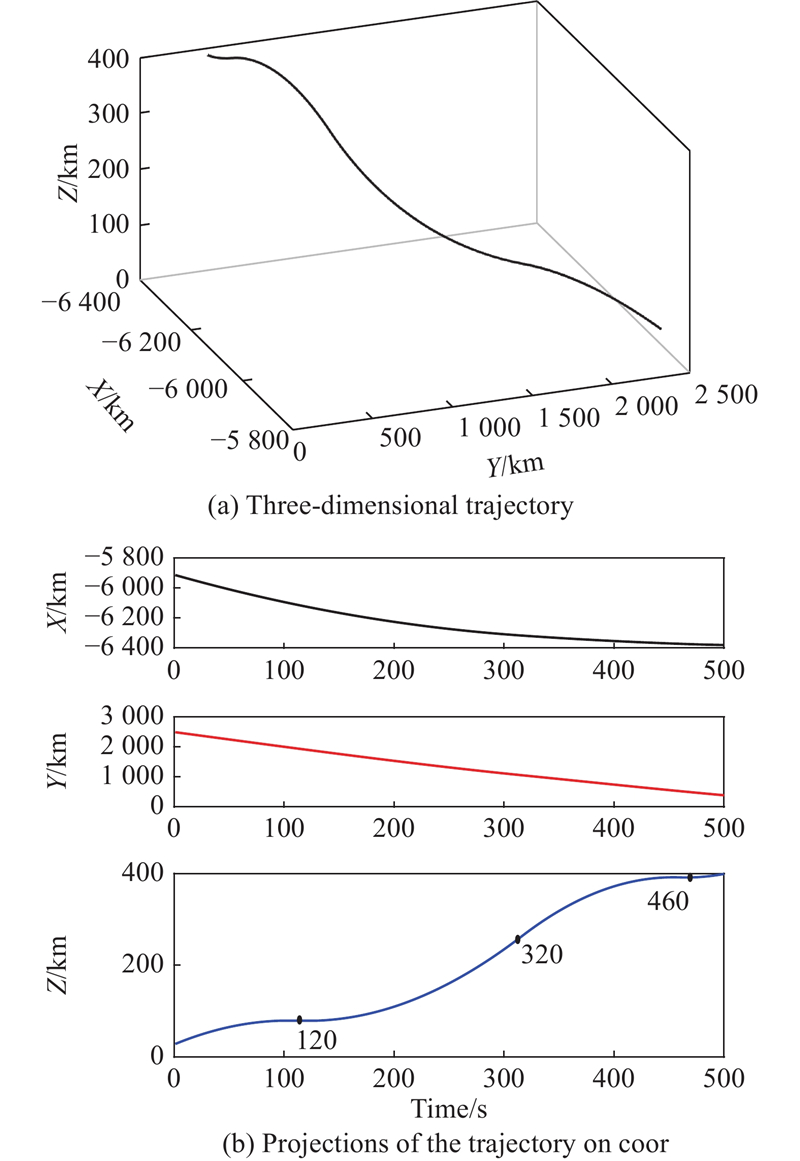

Fig 5

Table 2

Table 3

Fig 6

Fig 7

Fig 8

Fig 9

Table 4

Fig 10

Fig 11

Fig 12

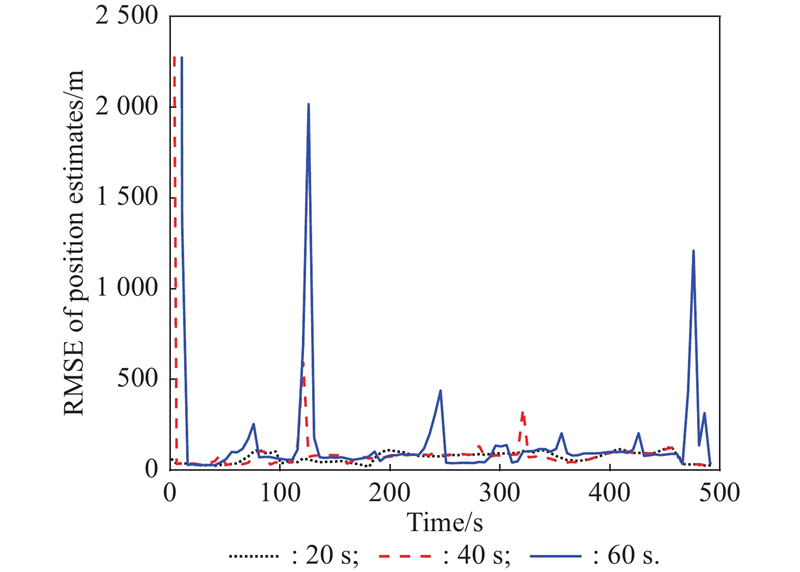

Fig 13

References 30

1	ZHANG K, XIONG J J, FU T T Coupled dynamic model of state estimation for hypersonic glide vehicle. Journal of Systems Engineering and Electronics, 2018, 29 (6): 1284- 1292. doi: 10.21629/JSEE.2018.06.15
2	WANG F, FAN P F, FAN Y H, et al Robust adaptive control of hypersonic vehicle considering inlet unstart. Journal of Systems Engineering and Electronics, 2022, 33 (1): 188- 196.
3	ZHANG Z H, ZHOU G J Maneuvering target state estimation based on separate modeling of target trajectory shape and dynamic characteristics. Journal of Systems Engineering and Electronics, 2022, 33 (5): 1195- 1209.
4	LI F, XIONG J J, QU Z G, et al A damped oscillation model for tracking near space hypersonic gliding targets. IEEE Trans. on Aerospace and Electronic Systems, 2019, 55 (6): 2871- 2890. doi: 10.1109/TAES.2019.2897517
5	HU J X, YANG L P, HUANG G H, et al Optimal reconfiguration of constellation using adaptive innovation driven multiobjective evolutionary algorithm. Journal of Systems Engineering and Electronics, 2021, 32 (6): 1527- 1538.
6	BUDIANTO I A, OLDS J R. A collaborative optimization approach to design and deployment of a space based infrared system constellation. Proc. of the IEEE Aerospace Conference Proceedings, 2000: 385−393.
7	CHEN Q, CHEN X Q, YANG L, et al A distributed congestion avoidance routing algorithm in mega-constellation network with multi-gateway. Acta Astronautica, 2019, 162, 376- 387. doi: 10.1016/j.actaastro.2019.05.051
8	GE H B, LI B F, NIE L W, et al LEO constellation optimization for LEO enhanced global navigation satellite system (LeGNSS). Advances in Space Research, 2020, 66 (3): 520- 532. doi: 10.1016/j.asr.2020.04.031
9	CHEN Q, GIAMBENE G, YANG L, et al Analysis of inter-satellite link paths for LEO mega-constellation networks. IEEE Trans. on Vehicular Technology, 2021, 70 (3): 2743- 2755.
10	LI Z, WANG Y D, ZHENG W Space-based optical observations on space debris via multi-point of view. International Journal of Aerospace Engineering, 2020, 2020, 8328405.
11	ANSALONE L, CURTI F A genetic algorithm for initial orbit determination from a too short arc optical observation. Advances in Space Research, 2013, 52 (3): 477- 489. doi: 10.1016/j.asr.2013.04.004
12	LI L, YUAN L, WANG L, et al Recent advances in precision measurement and pointing control of spacecraft. Chinese Journal of Aeronautics, 2021, 34 (10): 191- 209. doi: 10.1016/j.cja.2020.11.018
13	SHI Y C, JIU B, YAN J K, et al Data-driven radar selection and power allocation method for target tracking in multiple radar system. IEEE Sensors Journal, 2021, 21 (17): 19296- 19306. doi: 10.1109/JSEN.2021.3087747
14	AUGHENBAUGH J M, LACOUR B R Sensor management for particle filter tracking. IEEE Trans. on Aerospace and Electronic Systems, 2011, 47 (1): 503- 523. doi: 10.1109/TAES.2011.5705688
15	XU G G, SHAN G L, DUAN X S Sensor scheduling for ground maneuvering target tracking in presence of detection blind zone. Journal of Systems Engineering and Electronics, 2020, 31 (4): 692- 702. doi: 10.23919/JSEE.2020.000044
16	LUO K P Space-based infrared sensor scheduling with high uncertainty: issues and challenges. Systems Engineering, 2014, 18 (1): 102- 113.
17	KAPLAN L M Local node selection for localization in a distributed sensor network. IEEE Trans. on Aerospace and Electronic Systems, 2006, 42 (1): 136- 146. doi: 10.1109/TAES.2006.1603410
18	LI Z, WANG Y D, ZHENG W Observability analysis of autonomous navigation using inter-satellite range: an orbital dynamics perspective. Acta Astronautica, 2020, 170, 577- 585. doi: 10.1016/j.actaastro.2020.02.023
19	TANG M N, CHEN S J, ZHENG X H, et al, Sensors deployment optimization in multi-dimensional space based on improved particle swarm optimization algorithm. Journal of Systems Engineering and Electronics, 2018, 29(5): 969−982.
20	OU Y W, ZHANG H B. Mars final approach navigation using ground beacons and orbiters: an information propagation perspective. Acta Astronautica, 138: 490-500.
21	ZHOU Y Y, LI J, AN W, Information processing technology in optical space-based space surveillance. Opto-Electronic Engineering, 2008, 35(4): 43−48. (in Chinese)
22	STOKES G H, BRAUN C V, SRIDHARAN R, et al. The space-based visible program. Proc. of the Space 2000 Conference and Exposition, 2000. https://doi.org/10.2514/6.2000-5334.
23	LI Z, WANG Y D, ZHENG W Adaptive consensus-based unscented information filter for tracking target with maneuver and colored noise. Sensors, 2019, 19, 30692019.
24	WANG Y D, ZHENG W, SUN S M, et al Robust information filter based on maximum correntropy criterion. Journal of Guidance Control and Dynamics, 2016, 39 (5): 1124- 1129.
25	KAPLAN L M. Global node selection for localization in a distributed sensor network. IEEE Trans. on Aerospace and Electronic Systems, 2016, 42(1): 113−135.
26	FELICETTI L, EMAMI M R A multi-spacecraft formation approach to space debris surveillance. Acta Astronautica, 2016, 127, 491- 504. doi: 10.1016/j.actaastro.2016.05.040
27	KASSAS Z M, HUMPHREYS T E Observability analysis of collaborative opportunistic navigation with pseudorange measurements. IEEE Trans. on Intelligent Transportation Systems, 2014, 15 (1): 260- 273. doi: 10.1109/TITS.2013.2278293
28	LI G H, ZHANG H B, TANG G J Maneuver characteristics analysis for hypersonic glide vehicles. Aerospace Science and Technology, 2015, 43, 321- 328. doi: 10.1016/j.ast.2015.03.016
29	LI X R, ILKOV V P Survey of maneuvering target tracking Part I: dynamic models. IEEE Trans. on Aerospace and Electronic Systems, 2004, 39 (4): 1333- 1364.
30	WANG Y D, SUN S M, L LI Adaptively robust unscented Kalman filter for tracking a maneuvering vehicle. Journal of Guidance Control and Dynamics, 2014, 37 (5): 1696- 1701. doi: 10.2514/1.G000257

Modes	Tracking arc length/s	Attitude control required by the satellite	Measurement accuracy/ arcsec	Required priori information about the target
Relay tracking mode	>500	Once in each tracking interval	5−10	Rough initial motion state
Stare mode	<30	−	5−10	−
Track-rate mode	>500	Real-time	30−60	Accurate trajectory

Parameter	Value
h/km	821.820
i/(°)	98.7
T	200
P	10
F	1

Parameter type	Item	Value
Initial condition of the target tracking	Initial state error	$\Delta { {{{\boldsymbol{x}}} }_0}$= [10 km; 10 km; 10 km; 10 m/s; 10 m/s; 10 m/s]
	Process noise matrix	$\begin{gathered} { { {\boldsymbol{Q} } } } = {\rm{diag} }\left( {\left[ {q_1^2,q_1^2,q_1^2,q_2^2,q_2^2,q_2^2} \right]} \right) \\ {\text{where } }{q_1}{\text{ is } }{10^{ { { - 2} } } }{\text{, } }{q_2}{\text{ is } }1{ {\text{0} }^{ { { - 5} } } } \\ \end{gathered}$
	Simulation duration/s	500
Initial condition of the infrared sensor	Measurement period/s	1
	Measurement error/arcsec	5
	FWHM/(°)	5
	Maximal detectable distance/km	5000
Initial condition of the satellite selection	Virtual FWHM/(°)	50
Initial condition of the satellite selection	Tracking interval/s	30

Satellite selection criterion	Average computing time of a single satellite selection/s
Length of PTA	0.0286
CN	0.2293
Det(Y) based on RIM	0.1072
Det(Y) based on the proposed method	0.0347
