AUV 3D path planning based on improved PSO

doi:10.23919/JSEE.2025.000074

Journal of Systems Engineering and Electronics ›› 2025, Vol. 36 ›› Issue (3): 854-866.doi: 10.23919/JSEE.2025.000074

• CONTROL THEORY AND APPLICATION • Previous Articles

AUV 3D path planning based on improved PSO

Hongen LI(), Shilong LI(), Qi WANG(), Xiaoming HUANG()

School of Chemical Engineering, Ocean and Life Sciences, Dalian University of Technology, Panjin 124221, China

Received:2024-03-22 Online:2025-06-18 Published:2025-07-10
Contact: Xiaoming HUANG E-mail:980192418@qq.com;1761704166@qq.com;1623380406@qq.com;huangxm@dlut.edu.cn
About author:
LI Hongen was born in 1999. He received his B.S. degree in vehicle engineering from the College of Automotive and Traffic Engineering, Nanjing Forestry University in 2022. He is currently pursuing his M.S. degree at the School of Chemical Engineering, Ocean and Life Sciences, Dalian University of Technology. His research interests include the lane markings recognition based on deep learning and underwater robot path planning and evaluation. E-mail: 980192418@qq.com

LI Shilong was born in 1997. He received his B.S. degree in marine engineering from the College of Maritime, Ningbo University, China, in 2020, and M.S. degree in engineering mechanics from the School of Ocean Science and Technology, Dalian University of Technology, China, in 2023. His research interests include the design of underwater vehicles, and path planning of autonomous underwater vehicles. E-mail: 1761704166@qq.com

WANG Qi was born in 1999. She received her B.S. degree in vehicle engineering from the College of Traffic and Vehicle Engineering, Shandong University of Technology in 2022. She is currently pursuing her M.S. degree at the School of Chemical Engineering, Ocean and Life Sciences, Dalian University of Technology. Her research interests include path planning and obstacle avoidance processing of intelligent vehicles, underwater robot path planning, and polar sea ice risk management. E-mail: 1623380406@qq.com

HUANG Xiaoming was born in 1987. She received her B.S. degree in electronic science and technology from the School of Physics, Dalian University of Technology, China, in 2010, and Ph.D. degree in condensed matter physics from the same school in 2015. Since 2021, she worked as an associate professor and her research interests include the design of underwater vehicles, path planning of autonomous underwater vehicles, and autonomous motion control. E-mail: huangxm@dlut.edu.cn
Supported by:
This work was supported by the High-tech Ship Projects of the Ministry of Industry and Information Technology of China (2021-342).

Abstract

Abstract:

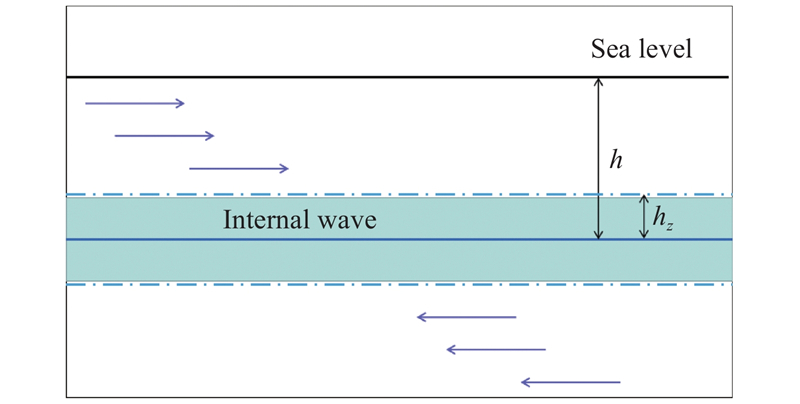

The influence of ocean environment on navigation of autonomous underwater vehicle (AUV) cannot be ignored. In the marine environment, ocean currents, internal waves, and obstacles are usually considered in AUV path planning. In this paper, an improved particle swarm optimization (PSO) is proposed to solve three problems, traditional PSO algorithm is prone to fall into local optimization, path smoothing is always carried out after all the path planning steps, and the path fitness function is so simple that it cannot adapt to complex marine environment. The adaptive inertia weight and the “active” particle of the fish swarm algorithm are established to improve the global search and local search ability of the algorithm. The cubic spline interpolation method is combined with PSO to smooth the path in real time. The fitness function of the algorithm is optimized. Five evaluation indexes are comprehensively considered to solve the three-demensional (3D) path planning problem of AUV in the ocean currents and internal wave environment. The proposed method improves the safety of the path planning and saves energy.

Key words: autonomous underwater vehicle (AUV), three-dimensional (3D) path planning, particle swarm optimization (PSO), cubic spline interpolation

Hongen LI, Shilong LI, Qi WANG, Xiaoming HUANG. AUV 3D path planning based on improved PSO[J]. Journal of Systems Engineering and Electronics, 2025, 36(3): 854-866.

Figures/Tables 18

Fig 1

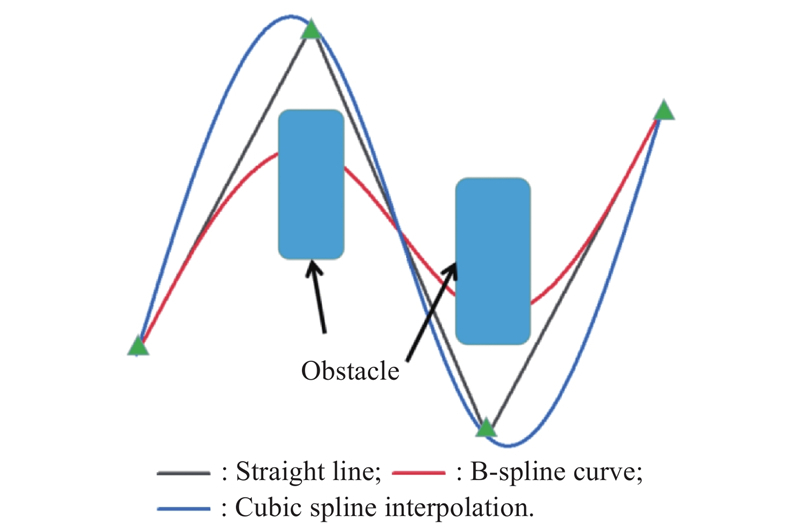

Fig 2

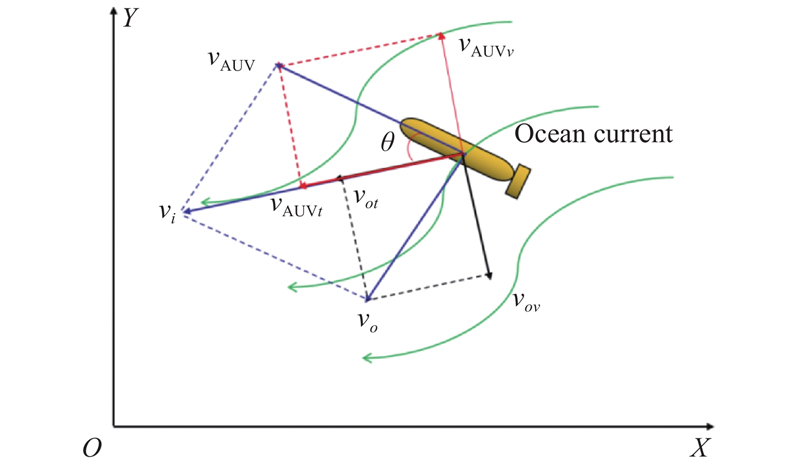

Fig 3

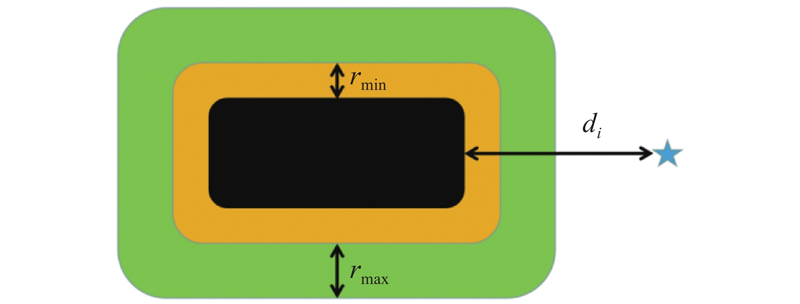

Fig 4

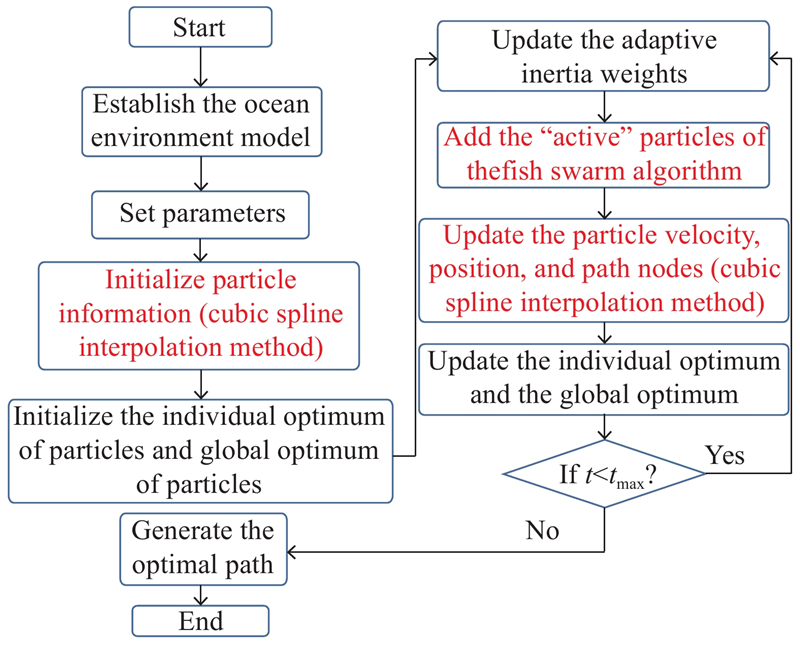

Fig 5

Fig 6

Table 1

Fig 7

Fig 8

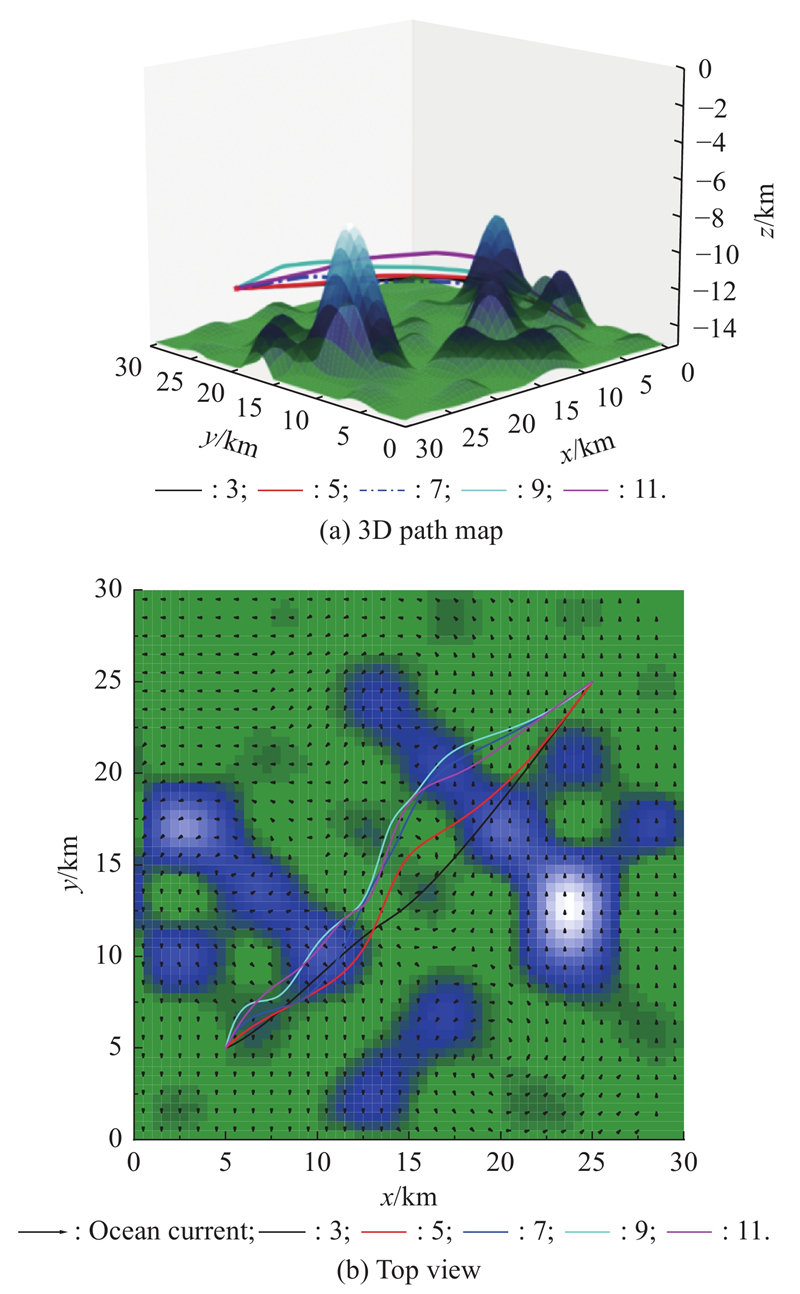

Fig 9

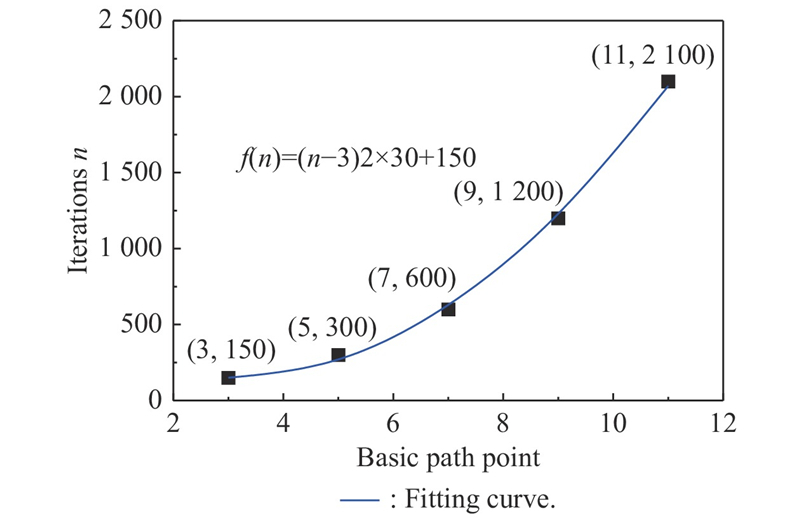

Fig 10

Fig 11

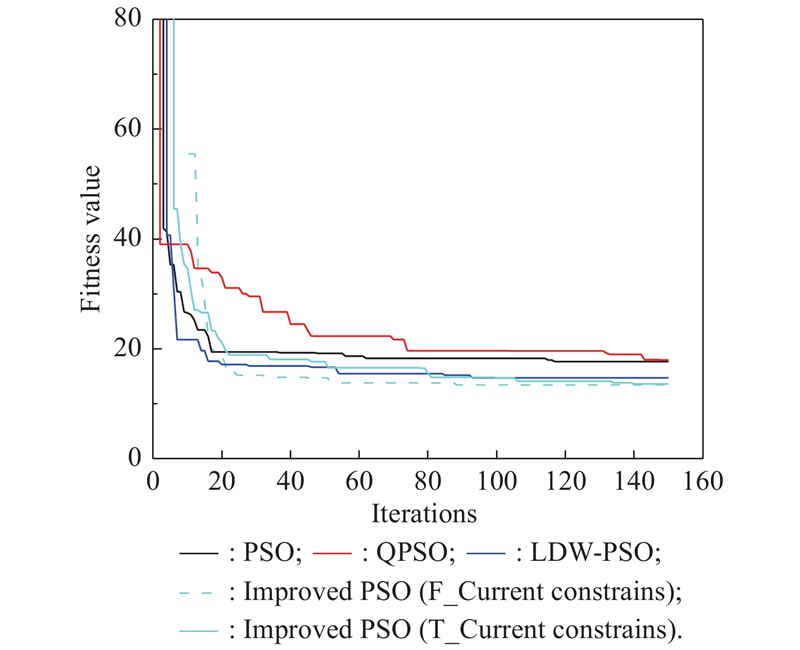

Fig 12

Fig 13

Table 2

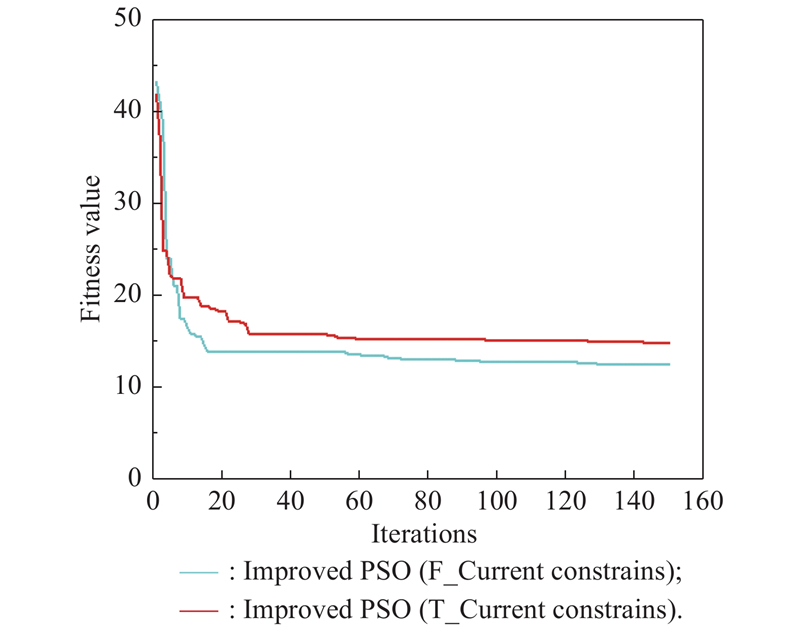

Fig 14

Table 3

Fig 15

References 31

1	BONIN-FONT F, BURGUERA A, LISANI J L Visual discrimination and large area mapping of posidonia oceanica using a lightweight AUV. IEEE Access, 2017, 5, 24479- 24494. doi: 10.1109/ACCESS.2017.2764998
2	WEN J Y, WANG A Q, ZHU J W, et al Adaptive energy-efficient reinforcement learning for AUV 3D motion planning in complex underwater environments. Ocean Engineering, 2024, 312 (2): 119111- 119122.
3	SEE V B T, GREINERT J, MEURER T Detection and tracking of ocean layers using an AUV with UKF based extremum seeking control in the Baltic Sea. Scientific Reports, 2024, 14 (1): 20629- 20640. doi: 10.1038/s41598-024-70775-y
4	ZHU J Y, GAO M. AUV path planning based on particle swarm optimization and improved ant colony optimization. Computer Engineering and Applications, 2021, 57(6): 267−273.
5	CHEN J X, LIU X Q, WU C, et al An ant colony path planning optimization based on opposition-based learning for AUV in irregular regions. Computing, 2024, 106 (7): 2489- 2520. doi: 10.1007/s00607-024-01293-y
6	ZHANG W, WANG N X, WU W H A hybrid path planning algorithm considering AUV dynamic constraints based on improved A* algorithm and APF algorithm. Ocean Engineering, 2023, 285 (1): 115333- 115342.
7	WU X L, ZHANG Q Y, BAI Z F, et al A self-adaptive safe A* algorithm for AGV in large-scale storage environment. Intelligent Service Robotics, 2024, 17 (2): 221- 235. doi: 10.1007/s11370-023-00494-2
8	SUN B, ZHANG W, LI S Q, et al Energy optimized D* AUV path planning with obstacle avoidance and ocean current environment. Journal of Navigation, 2022, 75 (3): 685- 703. doi: 10.1017/S0373463322000091
9	IVAN M, MARIJA S, KRUNO L, et al Path planning for active SLAM based on the D* algorithm with negative edge weights. IEEE Trans. on Systems, Man, and Cybernetics: Systems, 2018, 48 (8): 1321- 1331. doi: 10.1109/TSMC.2017.2668603
10	NYEONG S H, CHEN J H, LIAO Y C, et al Auto-splitting D* lite path planning for large disaster area. Intelligent Service Robotics, 2022, 15 (3): 289- 306. doi: 10.1007/s11370-022-00416-8
11	YAO Y L, LIANG X F, LI M Z, et al Path planning method based on D* lite algorithm for unmanned surface vehicles in complex environments. China Ocean Engineering, 2021, 35 (3): 372- 383. doi: 10.1007/s13344-021-0034-z
12	CARRERAS M, HERNANDEZ J D, VIDAL E, et al Sparus II AUV-A hovering vehicle for seabed inspection. IEEE Journal of Oceanic Engineering, 2018, 43 (2): 344- 355. doi: 10.1109/JOE.2018.2792278
13	YAO Z F, LIU Q Z, JU Y Z Improved artificial fish swarm based optimize rapidly-exploring random trees multi-robot exploration algorithm. Journal of Computational Methods in Sciences and Engineering, 2023, 23 (5): 2779- 2794. doi: 10.3233/JCM-226866
14	LI X, LI G, BIAN Z J Research on autonomous vehicle path planning algorithm based on improved RRT* algorithm and artificial potential field method. Sensors, 2024, 24 (12): 3899- 3929. doi: 10.3390/s24123899
15	TANG X X, ZHOU H B, XU T Y Obstacle avoidance path planning of 6-DOF robotic arm based on improved A* algorithm and artificial potential field method. Robotica, 2023, 42 (2): 457- 481.
16	MELO D W, JORGE D, MARQUES V Low-cost thermal explorer robot using a hybrid neural networks and intelligent bug algorithm model. International Journal of Computer Applications in Technology, 2021, 65 (3): 245- 252. doi: 10.1504/IJCAT.2021.116013
17	NELOYI A M, BARUA V, DAS M, et al An intelligent obstacle and edge recognition system using bug algorithm. American Scientific Research Journal for Engineering, Technology, and Sciences (ASRJETS), 2020, 64 (1): 133- 143.
18	LI Y J, WU Y, ZHANG G A real-time path planning algorithm for AUV in unknown underwater environment based on combining PSO and waypoint guidance. Sensors, 2019, 19 (1): 20- 34.
19	ABOLFAZL S M FOPID Control of quadrotor based on neural networks optimization and path planning through machine learning and PSO algorithm. International Journal of Aeronautical and Space Sciences, 2022, 23 (3): 567- 582. doi: 10.1007/s42405-022-00461-8
20	ZHAO R, XU J, WANG M, et al Heading control of AUV based on GA and fractional order technology. Chinese Journal of Ship Research, 2018, 13 (6): 87- 93.
21	ZHANG S C, PU J X, SI Y N, et al Survey on application of ant colony algorithm in path planning of mobile robot. Computer Engineering and Application, 2020, 56 (8): 10- 19.
22	HUANG Y J, LI Y B, ZHANG Z T, et al A novel path planning approach for AUV based on improved whale optimization algorithm using segment learning and adaptive operator selection. Ocean Engineering, 2023, 280 (13): 114591- 114604. doi: 10.1016/j.oceaneng.2023.114591
23	WANG X W, YAO X L, ZHANG L Path planning under constraints and path following control of autonomous underwater vehicle with dynamical uncertainties and wave disturbances. Journal of Intelligent & Robotic Systems, 2020, 99 (15): 891- 908.
24	RAVANKAR A, RAVANKAR A A, KOBAYASHI Y, et al Path smoothing techniques in robot navigation: state of theart current and future challenges. Sensors, 2018, 18 (9): 3170- 3199. doi: 10.3390/s18093170
25	LIU L, WANG D, PENG Z H Path following of marine surface vehicles with dynamical uncertainty and time-varying ocean disturbances. Neurocomputing, 2016, 173 (25): 799- 808.
26	LEKKAS A M, FOSSEN T I Integral LOS path following for curved paths based on a monotone cubic Hermite spline Parametrization. IEEE Trans. on Control Systems Technology, 2014, 22 (6): 2287- 2301. doi: 10.1109/TCST.2014.2306774
27	ATAEI M, KOMA A Y Three-dimensional optimal path planning for waypoint guidance of an autonomous underwater vehicle. Robotics and Autonomous Systems, 2015, 67 (17): 23- 32.
28	HADSELL R Space-carving kernels for accurate rough terrain estimation. The International Journal of Robotics Research, 2010, 29 (8): 981- 996. doi: 10.1177/0278364910369996
29	WANG C, DU W, LI C H, et al Numerical simulation of influence of ocean internal waves on hydrodynamic characteristics of underwater vehicles. Chinese Journal of Ship Research, 2022, 17 (3): 102- 111.
30	CHENG L, DU P, WANG C, et al Tuning control parameters of underwater vehicle to minimize the influence of internal solitary waves. Ocean Engineering, 2024, 310 (1): 118681- 118705.
31	MENG R H, CHENG X H, WU Z J, et al Improved ant colony optimization for safe path planning of AUV. Heliyon, 2024, 10 (7): 27753- 27766. doi: 10.1016/j.heliyon.2024.e27753

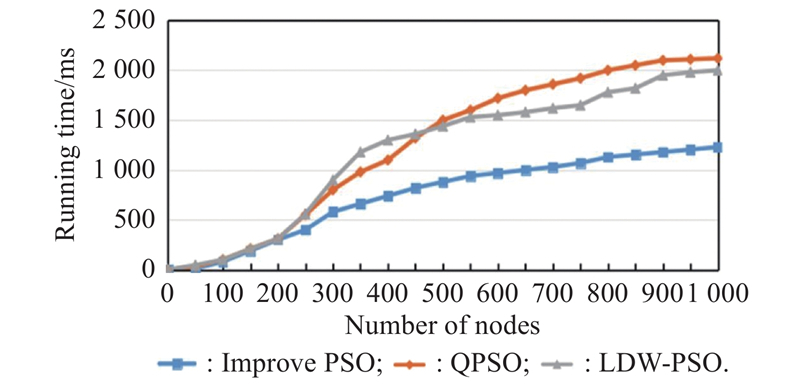

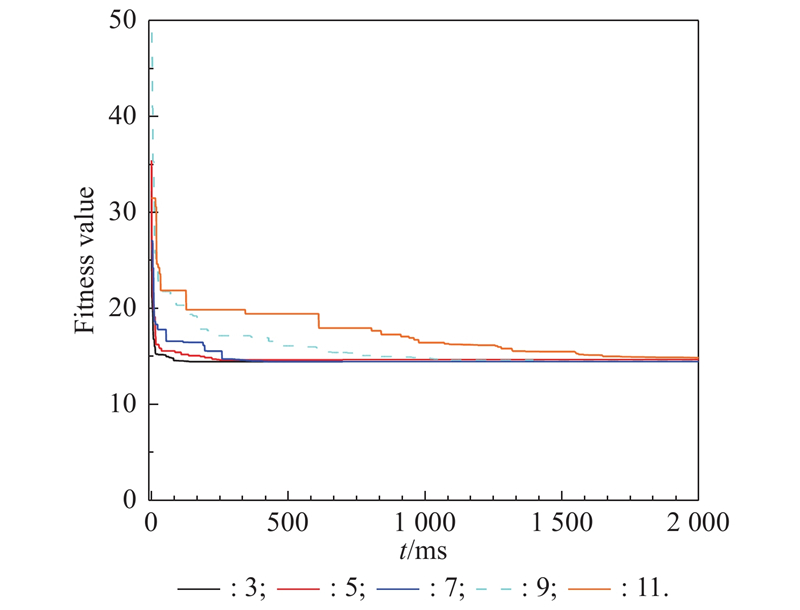

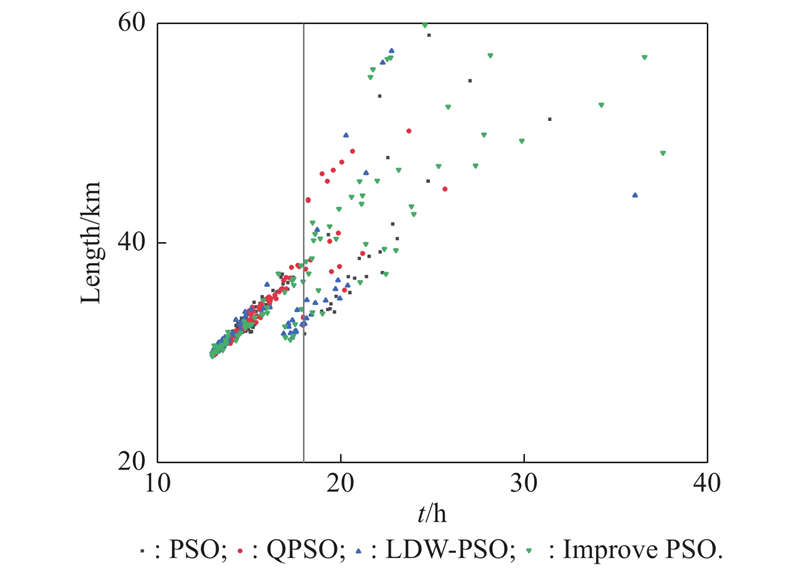

Algorithm	Average time/h	Average length/km	Pass rate
PSO	15.13	33.17	0.74
QPSO	15.12	33.10	0.78
LDW-PSO	14.64	32.28	0.55
Improved PSO	14.05	31.35	0.85

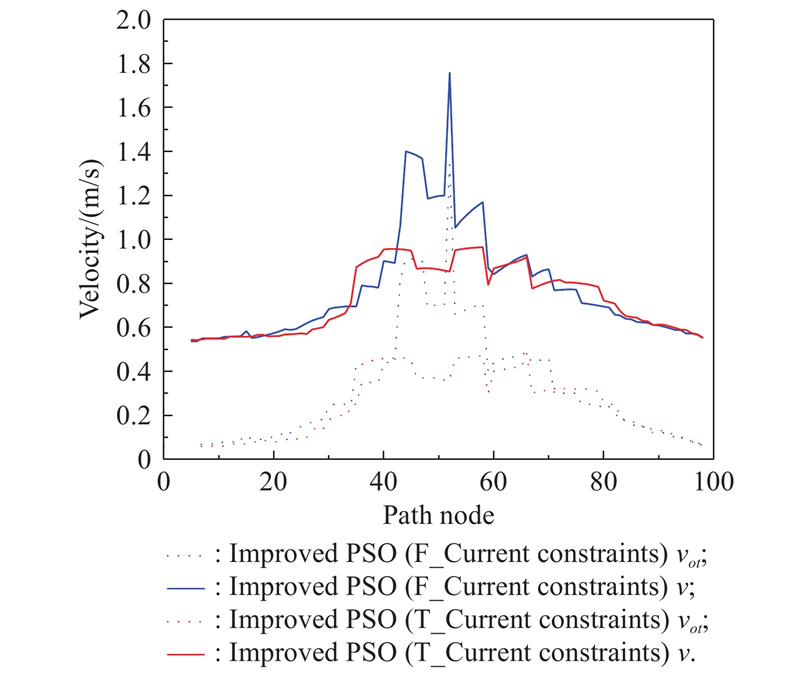

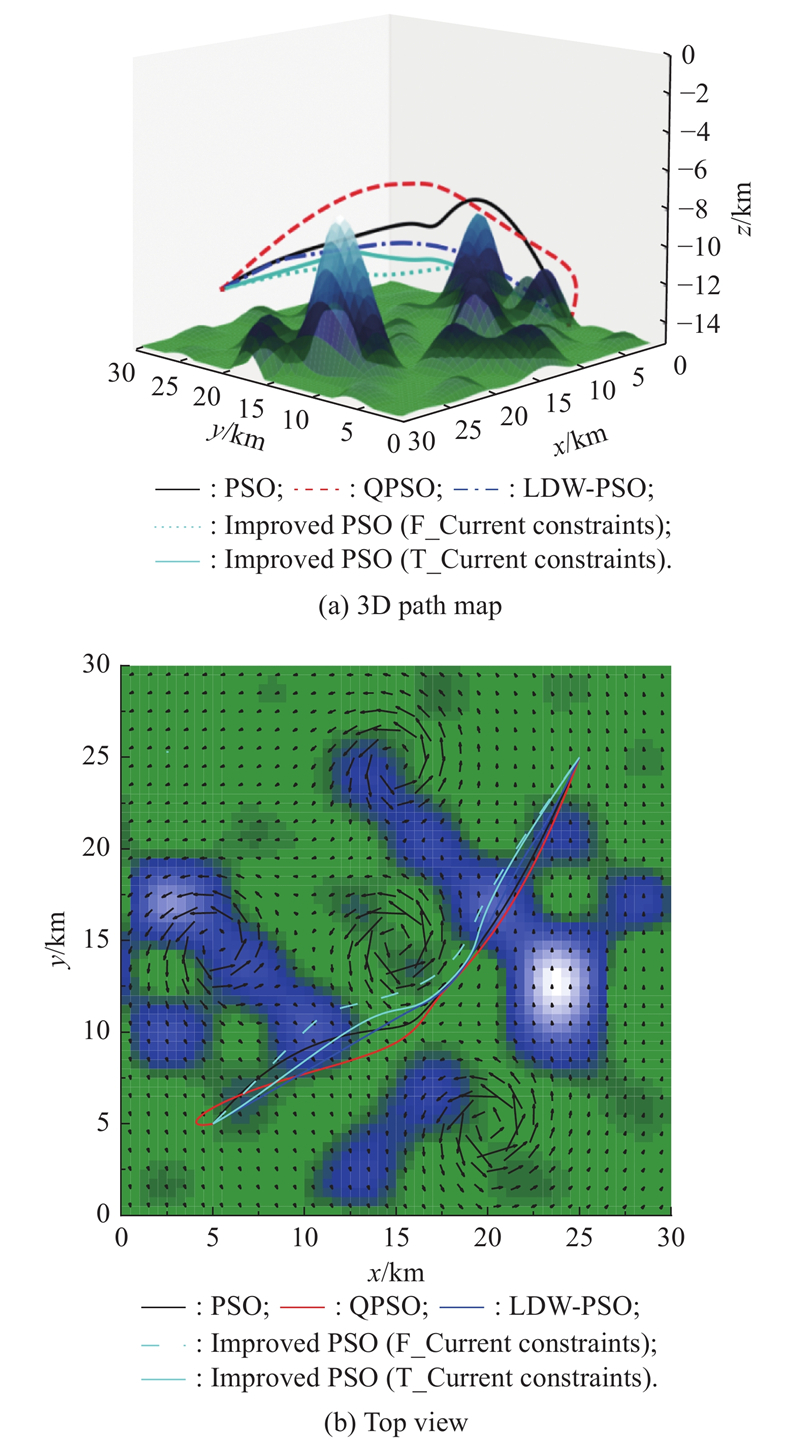

Improved PSO constraint	Sailing time/ h	Average path nodes v/(m/s)	Maximum fluctuation of v/(m/s)	Standard deviation of v/(m/s)
F_ ocean currents	12.74	0.765	0.705	0.247
T_ ocean currents	13.12	0.722	0.172	0.152

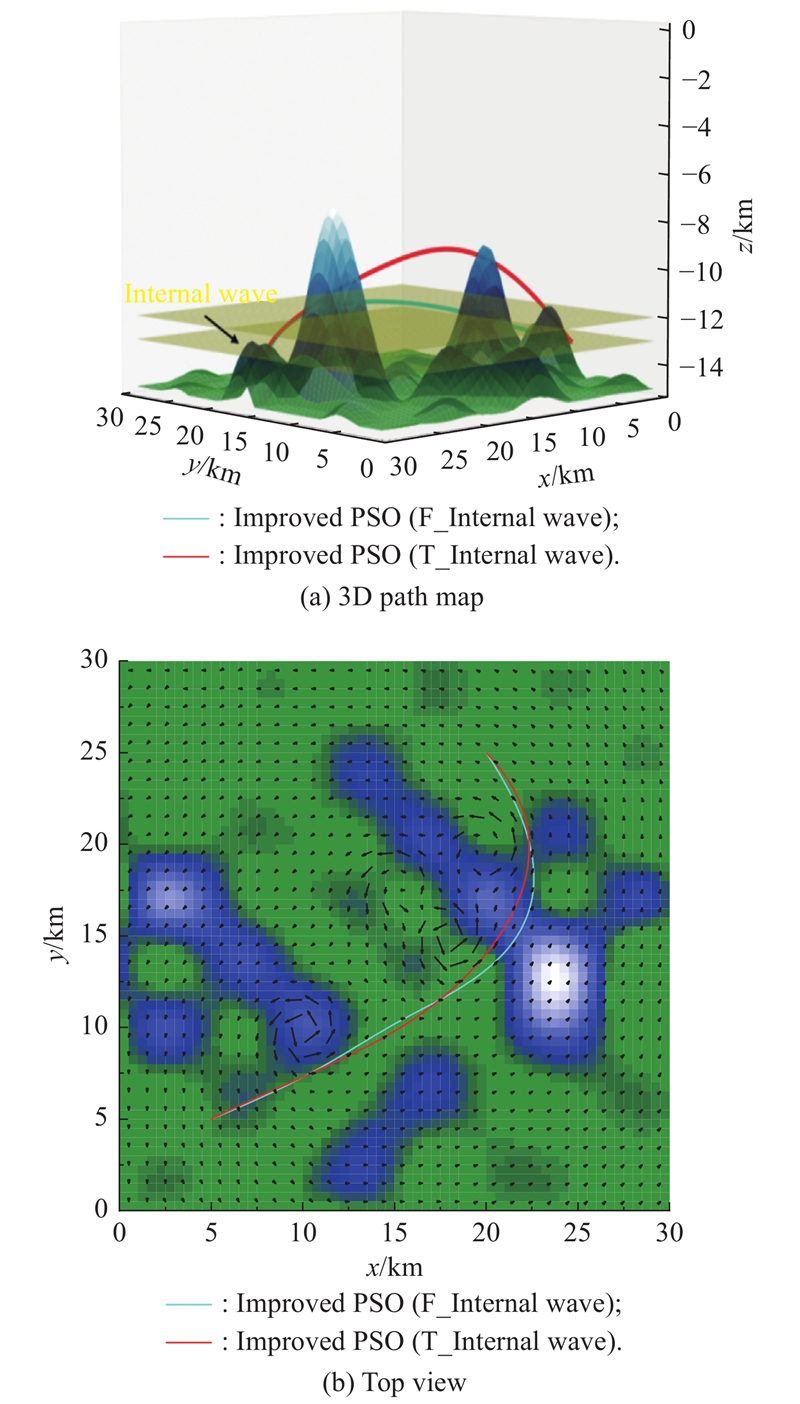

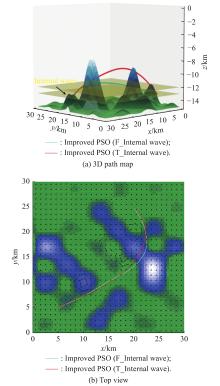

Improved PSO constraint	Sailing time/h	Length/ km	Internal wave time/h	Internal wave length/km
F_Internal wave	12.44	30.87	4.47	10.79
T_Internal wave	12.80	31.52	2.03	4.90
