On-orbit servicing launch dynamics and multi-objective optimization of impulsive rendezvous

doi:10.23919/JSEE.2025.000123

Journal of Systems Engineering and Electronics ›› 2026, Vol. 37 ›› Issue (2): 697-711.doi: 10.23919/JSEE.2025.000123

• CONTROL THEORY AND APPLICATION • Previous Articles

On-orbit servicing launch dynamics and multi-objective optimization of impulsive rendezvous

Weikang LI¹(), Ju JIANG¹(), Yue BIAN²(), Yanhua HAN³^,*()

¹College of Automation Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
²Aviation Industry Corporation of China Nanjing Electromechanical Technology Co., Ltd, Nanjing 130012, China
³College of Astronautics, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China

Received:2025-03-18 Online:2026-04-18 Published:2026-04-30
Contact: Yanhua HAN E-mail:liweikang@nuaa.edu.cn;jiangju@nuaa.edu.cn;bianyue@nuaa.edu.cn;hanyanhua@nuaa.edu.cn
About author:
LI Weikang was born in 1997. He received his B.S. degree in mechanical engineering from Northeastern University, Shenyang, China, in 2019, and M.S. degree in control science and engineering from Nanjing University of Aeronautics and Astronautics (NUAA), Nanjing, China, in 2023. He is pursuing his doctoral degree at NUAA. His current research interests include multi-agent systems and aircraft control. E-mail: liweikang@nuaa.edu.cn

JIANG Ju was born in 1963. He received his B.S. and M.S. degrees from Beihang University, Beijing, China, in 1984 and 1987, respectively, and Ph.D. degree from the University of Waterloo, Canada, in 2007. He is a professor with the College of Automation Engineering, Nanjing University of Aeronautics and Astronautics. His research interests include advanced flight control technology, intelligent decision-making and control, machine learning, and artificial intelligence. E-mail: jiangju@nuaa.edu.cn

BIAN Yue was born in 1998. She received her B.S. and M.S. degrees in electronic information engineering from Nanjing University of Aeronautics and Astronautics, Nanjing, China, in 2020 and 2023, respectively. She is currently an engineer at Aviation Industry Corporation of China Nanjing Electromechanical Technology Co., Ltd. Her research interests include vehicle navigation, guidance and control. E-mail: bianyue@nuaa.edu.cn

HAN Yanhua was born in 1976. He received his Ph.D. degree in navigation, guidance and control from Northwestern Polytechnical University in 2006. He is currently an associate professor in the College of Astronautics at Nanjing University of Aeronautics and Astronautics. His research interests include multibody coupled dynamics and control in aerospace, flight vehicle guidance and control. E-mail: hanyanhua@nuaa.edu.cn
Supported by:
This work was supported by the Postgraduate Research and Practice Innovation Program of Jiangsu Province(KYCX25_0587).

Abstract

Abstract:

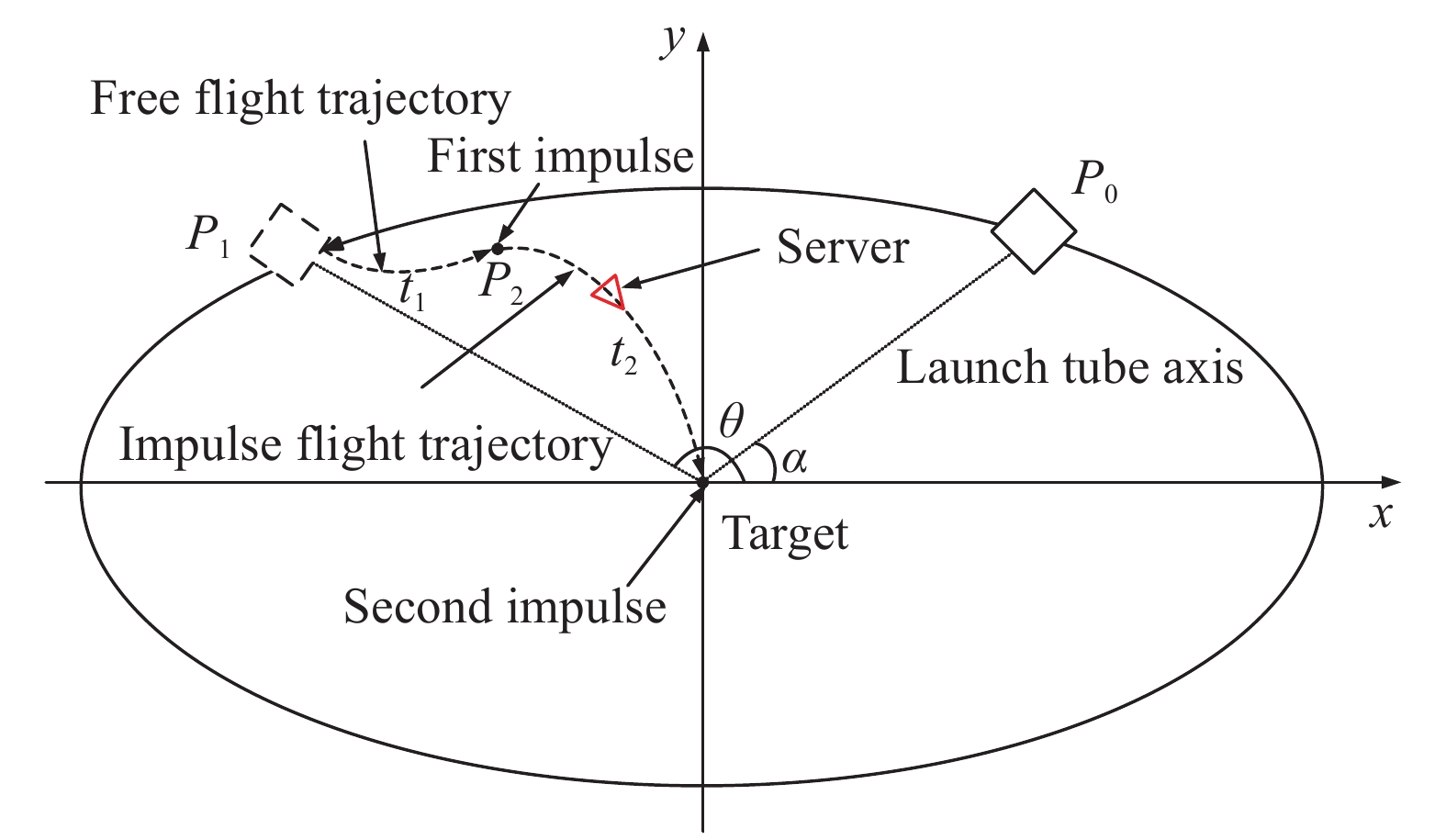

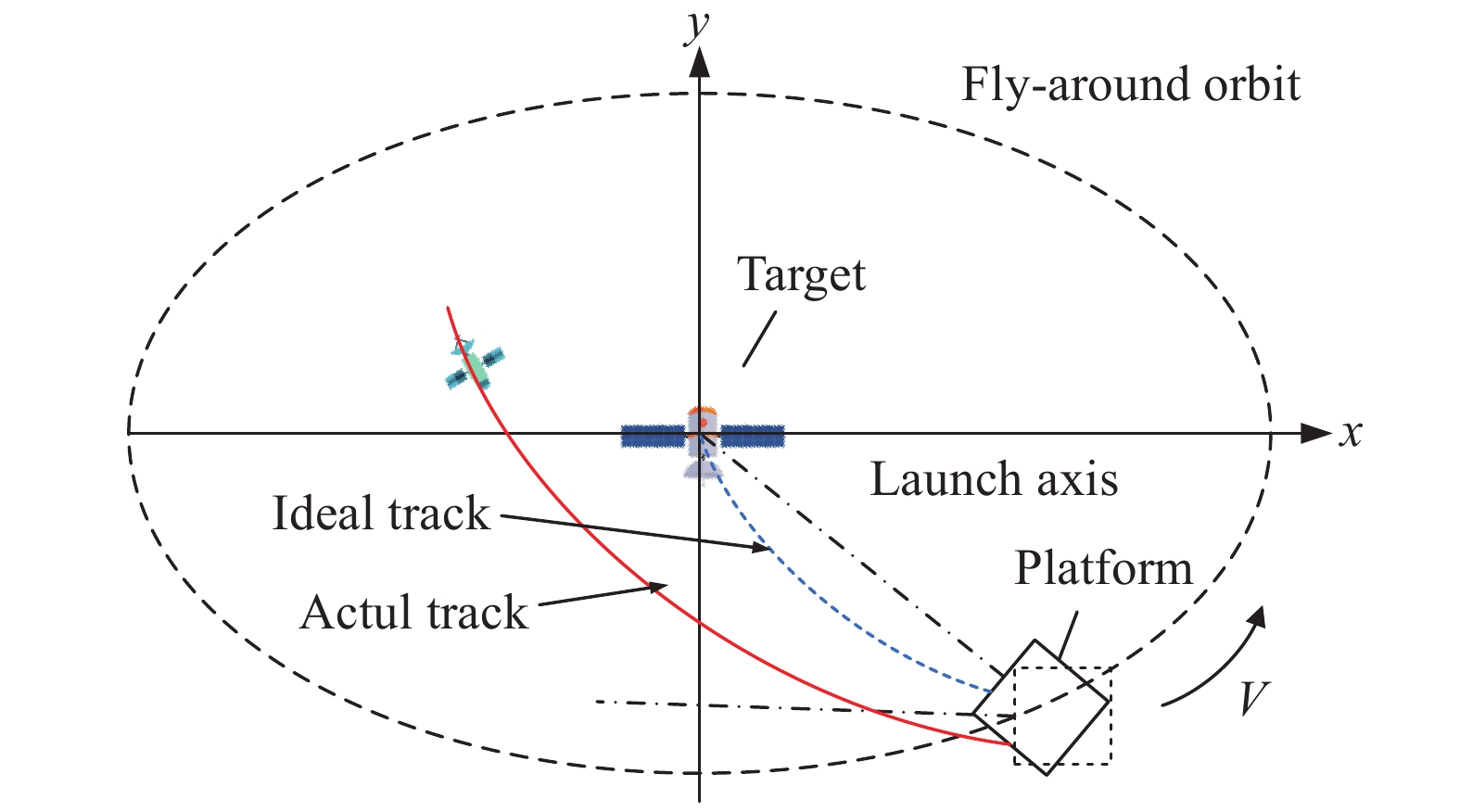

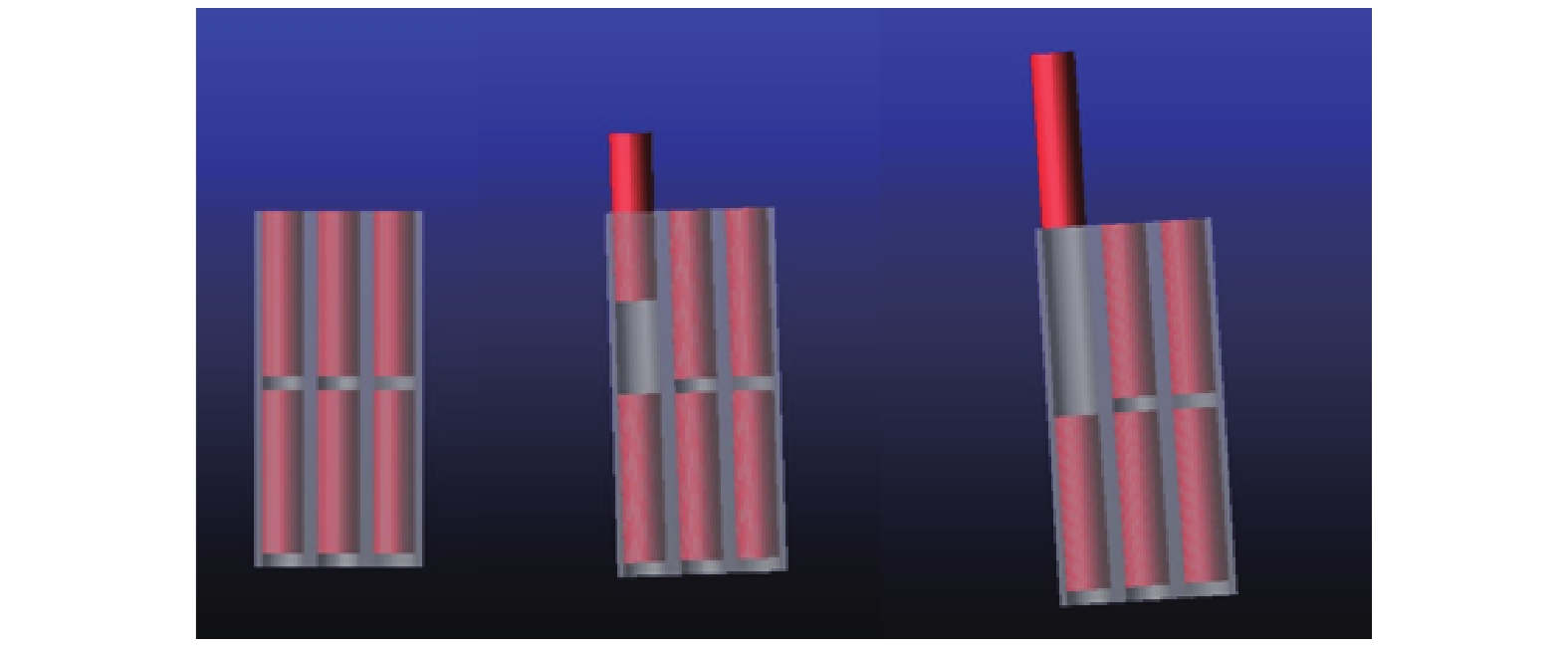

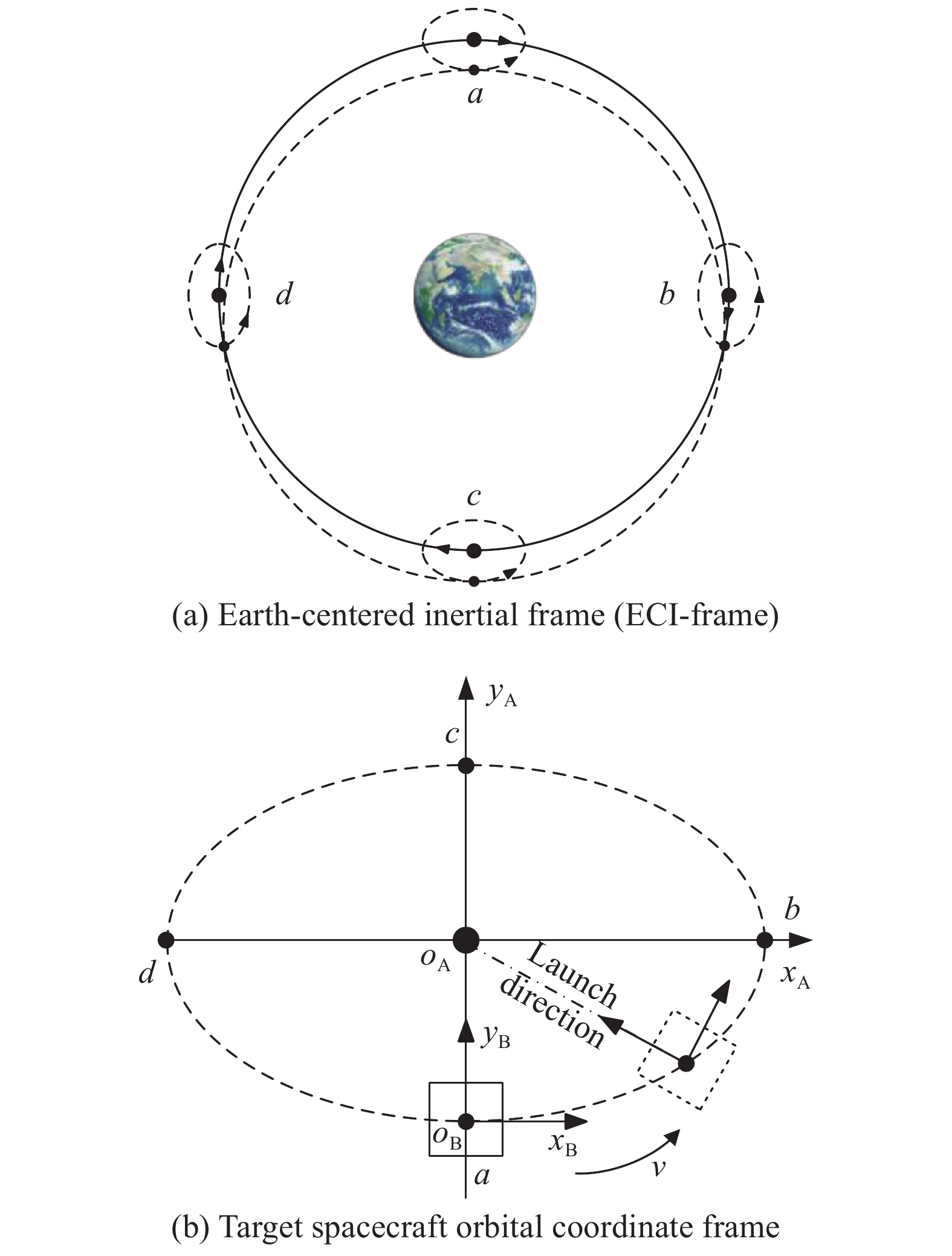

The multi-body dynamics in the launch process of a space platform deploying a server, as well as the optimal double impulse rendezvous guidance law between the server and the target spacecraft, are studied. Firstly, the space platform enters into orbit around the target, keeping its launch tube axis aiming at it. After receiving the launch command, the server shoots out from the launch tube, flying to the target. Due to body coupling, the platform’s attitude is disturbed, preventing the server from accurately aiming at the target during separation. The server uses its small rocket engine to apply two velocity pulses: the first one to adjust its trajectory for rendezvous, and the second near the target to reduce relative velocity to zero for soft docking. A two-body dynamics model is established using the Newton-Euler method, and a virtual prototype is developed in ADAMS for validation. To solve the multi-objective optimization subject to energy consumption and flight time for rendezvous, an improved non-dominated sorting genetic algorithm II (NSGA-II) algorithm is proposed. Simulation results show that launch-induced perturbations are non-negligible, and the proposed algorithm effectively derives the optimal guidance law that balances energy use and flight time.

Key words: multi-body dynamics, virtual prototype, impulse rendezvous, multi-objective optimization, on-orbit servicing

Weikang LI, Ju JIANG, Yue BIAN, Yanhua HAN. On-orbit servicing launch dynamics and multi-objective optimization of impulsive rendezvous[J]. Journal of Systems Engineering and Electronics, 2026, 37(2): 697-711.

Figures/Tables 20

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Table 1

Table 2

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

Fig 11

Table 3

Table 4

Fig 12

Table 5

Table 6

Fig 13

Fig 14

References 35

1	HAN Y H, YING W B, ZHANG Y Dynamics for heavy equipment airdrop and control design. Flight Dynamics, 2022, 54 (2): 311- 320.
2	HAN Y H, YING W B, ZHANG Y Aircraft-rocket coupling dynamics for internally carried gravity air-launch method. Journal of Nanjing University of Aeronautics and Astronautics, 2020, 52 (6): 963- 971.
3	HAN Y H, LI W K, ZHANG Y Dynamics of space platform launching server and optimal double pulse rendezvous. Journal of Dynamics and Control, 2022, 20 (4): 63- 73.
4	HAN Y H Dynamics and homing guidance for space manipulator capturing on-orbit target. Journal of Astronautics, 2016, 37 (9): 1098- 1106.
5	WANG G, CHEN X, XING Y, et al Multi-body separation simulation with an improved general mesh deformation method. Aerospace Science and Technology, 2017, 71, 763- 771. doi: 10.1016/j.ast.2017.10.027
6	ERIC M Q, JILL L P, PRASUN N D Multibody modeling and simulation for mars phoenix entry, descent, and landing. Journal of Spacecraft and Rockets, 2011, 48 (5): 765- 771. doi: 10.2514/1.46918
7	ZHAO Z J, REN G X Multibody dynamic approach of flight dynamics and nonlinear aeroelasticity of flexible aircraft. AIAA Journal, 2011, 49 (1): 41- 54. doi: 10.2514/1.45334
8	WANG W W, WU Z G, LIU J F Dynamic analysis of cislunar suspension tether swings. Acta Astronautica, 2024, 216, 350- 369. doi: 10.1016/j.actaastro.2024.01.010
9	GERADIN M C J G, NIELSEN, ANDRE P. Numerical simulation of the folding and deployment of a polymer reflector. https://doi.org/10.1007/s11044-025-10080-2.
10	BAGHERI, AMIE K, VALENTIN S, et al Nonlinear normal modes of highly flexible beam structures modelled under the SE(3) Lie group framework. Nonlinear Dynamics, 2024, 112 (3): 1641- 1659. doi: 10.1007/s11071-023-09106-1
11	ZHANG G, ZHOU D, MORTARI D Optimal two-impulse rendezvous using constrained multiple-revolution Lambert solutions. Celestial Mechanics and Dynamical Astronomy, 2011, 110 (4): 305- 317. doi: 10.1007/s10569-011-9349-z
12	PRUSSING J E, CHIU J H Optimal multiple-impulse time-fixed rendezvous between circular orbits. Journal of Guidance, Control, and Dynamics, 1986, 9 (1): 17- 22. doi: 10.2514/3.20060
13	LUO Y Z, TANG G J, LI Y J, et al Optimization of multiple-impulse, multiple-revolution, rendezvous-phasing maneuvers. Journal of Guidance, Control, and Dynamics, 2007, 30 (4): 946- 952. doi: 10.2514/1.25620
14	ZINAGE V, BAKOLAS E. Minimum-fuel spacecraft rendezvous based on sparsity promoting optimization. Proc. of the AIAA Scitech Forum, 2022. DOI: 10.2514/6.2022-0760.
15	KIM Y, PARK S Y Nonsingular dual–primal algorithm for fuel-optimal impulsive rendezvous. Journal of Guidance, Control, and Dynamics, 2019, 42 (4): 737- 751. doi: 10.2514/1.G003828
16	BANG J, AHN J Two-phase framework for near-optimal multi-target Lambert rendezvous. Advances in Space Research, 2018, 61 (5): 1273- 1285. doi: 10.1016/j.asr.2017.12.025
17	ZHANG J, PARKS G Multi-objective optimization for multiphase orbital rendezvous missions. Journal of Guidance, Control, and Dynamics, 2013, 36 (2): 622- 629. doi: 10.2514/1.57786
18	ZHANG Y Q, ZHU B L, CHENG M, et al Trajectory optimization for spacecraft autonomous rendezvous and docking with compound state-triggered constraints. Aerospace Science and Technology, 2022, 127, 107733. doi: 10.1016/j.ast.2022.107733
19	ZHANG D W, SONG S M, DUAN G R. Fuel and time optimal transfer of spacecrafts rendezvous using Lambert’s theorem and improved genetic algorithm. Proc. of the 2nd International Symposium on Systems and Control in Aerospace and Astronautics, 2008. DOI: 10.1109/ISSCAA.2008.4776390.
20	GAO X B, DONG Y F, SU J M Lambert transfer based on ant colony algorithm and Powell’s method. Journal of Beijing University of Aeronautics and Astronautics, 2009, 35 (5): 596- 599.
21	PONTANI M, CONWAY B A Particle swarm optimization applied to impulsive orbital transfers. Acta Astronautica, 2012, 74, 141- 155. doi: 10.1016/j.actaastro.2011.09.007
22	LUO Y Z, TANG G J, LEI Y J Optimal multi-objective linearized impulsive rendezvous. Journal of Guidance, Control, and Dynamics, 2007, 30 (2): 383- 389. doi: 10.2514/1.21433
23	LUO Y Z, LEI Y J, TANG G J Optimal multi-objective nonlinear impulsive rendezvous. Journal of Guidance, Control, and Dynamics, 2007, 30 (4): 994- 1002. doi: 10.2514/1.27910
24	WU G Q, TAN L G, LI X, et al Multi-objective optimization for time-open lambert rendezvous between non-coplanar orbits. International Journal of Aeronautical and Space Sciences, 2020, 21 (2): 560- 575. doi: 10.1007/s42405-019-00231-z
25	LUO Y Z, TANG G J, PARKS G Multi-objective optimization of perturbed impulsive rendezvous trajectories using physical programming. Journal of Guidance, Control, and Dynamics, 2008, 31 (6): 1829- 1832. doi: 10.2514/1.35409
26	ZHANG Y Q, CHENG M, NAN B, LI S. Stochastic trajectory optimization for 6-DOF spacecraft autonomous rendezvous and docking with nonlinear chance constraints. Acta Astronautica, 2023, 208: 62−73.
27	LIU S, QIAN Y, SHI W H, et al Research on control and guide methods of short-distance guidance based on C-W equation. Aerospace Shanghai, 2014, 31 (1): 1- 6.
28	MGEOFRION A Proper efficiency and the theory of vector optimization. Journal of Mathematical Analysis and Application, 1998, 41, 491- 502.
29	CHARNES A, COOPER W W Management models and industrial applications of linear programming. Management Science, 1957, 4 (1): 38- 91. doi: 10.1287/mnsc.4.1.38
30	HAIMES Y On a bicriterion formulation of the problems of integrated system identification and system optimization. IEEE Trans. on Systems, Man, and Cybernetics, 1971, 1 (3): 296- 297.
31	ZHANG Q F, LI H MOEA/D: a multiobjective evolutionary algorithm based on decomposition. IEEE Trans. on Evolutionary Computation, 2007, 11 (6): 712- 731. doi: 10.1109/TEVC.2007.892759
32	SRINIUAS N, DEB K Muiltiobjective optimization using nondominated sorting in genetic algorithms. Evolutionary Computation, 1994, 2 (3): 221- 248. doi: 10.1162/evco.1994.2.3.221
33	DEB K, PRATAP A, AGARWAL S, et al A fast and elitist multiobjective genetic algorithm: NSGA-Ⅱ. IEEE Trans. on Evolutionary Computation, 2002, 6 (2): 182- 197. doi: 10.1109/4235.996017
34	ZITZLER E, THIELE L, LAUMANNS M et al Performance assessment of multi-objective optimizers: an analysis and review. IEEE Trans. on Evolutionary Computation, 2003, 7(2): 117–132.
35	ZITZLER E, THIELE L Multi-objective evolutionary algorithms: a comparative case study and the strength Pareto approach. IEEE Trans. on Evolutionary Computation, 2002, 3 (4): 257- 271.

Input parameter	Value
$G/({{\text{m}}^2} \cdot {{\text{s}}^{ - 2}} \cdot {\text{k}}{{\text{g}}^{ - 1}}{\text{)}}$	$6.67 \times {10^{ - 11}}$
${M_{\text{e}}}/{\text{kg}}$	$5.965 \times {10^{24}}$
${R_{\text{e}}}/{\text{m}}$	$6.371 \times {10^6}$
$h/{\text{m}}$	$4 \times {10^5}$
$\mu /({{\text{m}}^3} \cdot {{\text{s}}^{ - 2}}{\text{)}}$	$3.986 \times {10^{14}}$
$n/({\text{rad}} \cdot {{\text{s}}^{ - 1}}{\text{)}}$	$1.132 \times {10^{ - 3}}$
$a/{\text{m}}$	$1\;000$
$b/{\text{m}}$	$500$

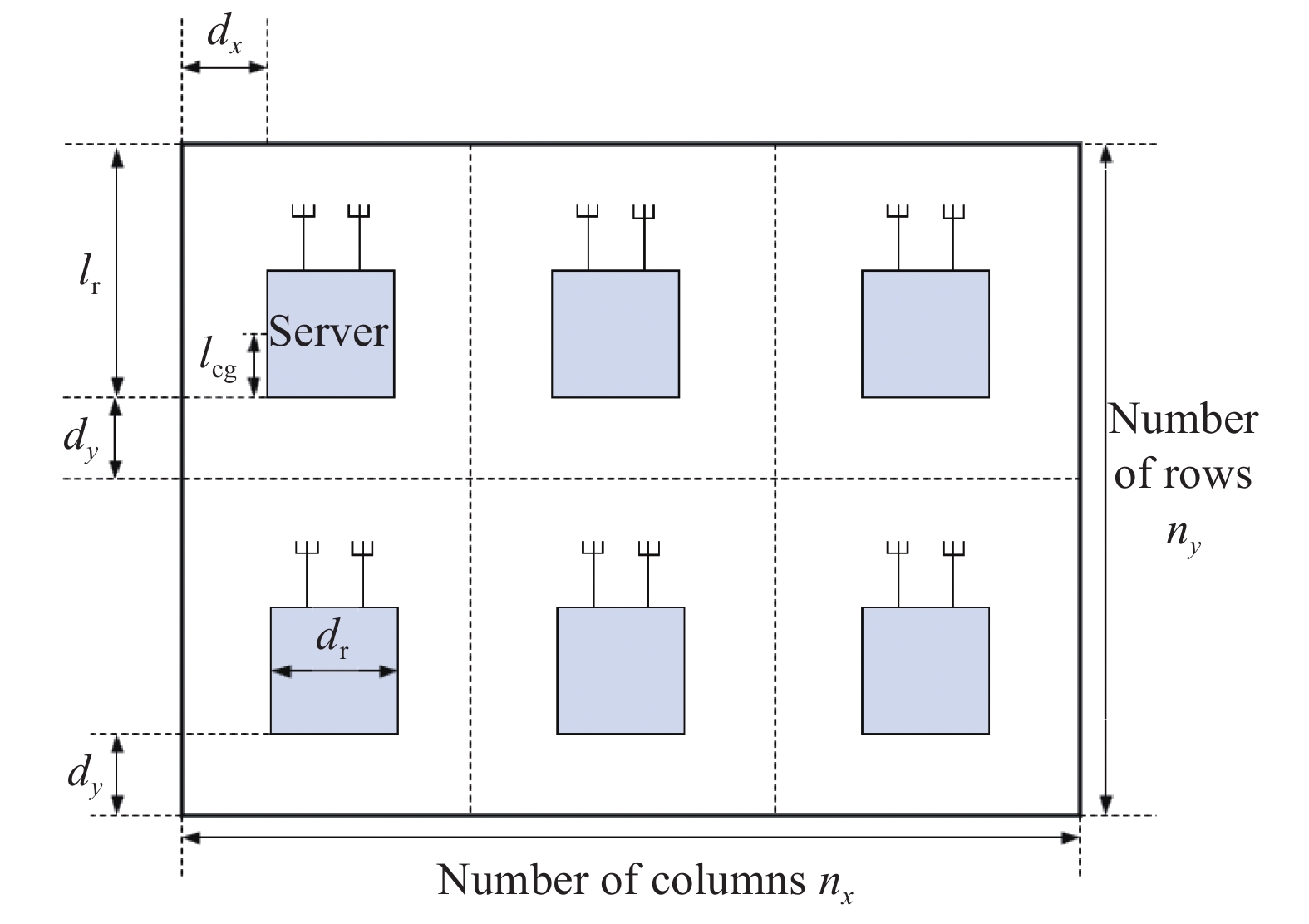

${n_{{x}}}$	$3$
${n_{{y}}}$	$2$
${l_{\text{r}}}/{\text{m}}$	$1.2$
${l_{{\text{cg}}}}/{\text{m}}$	$0.6$
${d_{\text{r}}}/{\text{m}}$	$0.3$
${d_{{x}}}/{\text{m}}$	$0.05$
${d_{{y}}}/{\text{m}}$	$0.1$
${m_{\text{p}}}/{\text{kg}}$	$900$
$ {J}_{\text{p}}/(\text{kg}\cdot {m}^{2}) $	$615$
${m_{\text{r}}}/{\text{kg}}$	$300$
$ {J}_{\text{r}}/(\text{kg}\cdot {m}^{2}) $	$36$
${F_{{x}}}/{\text{N}}$	$0$
${F_{{y}}}/{\text{N}}$	$0$
$M/({\text{N}} \cdot {\text{m)}}$	$ 0 $
$f/{\text{N}}$	$300$

Parameter	Value
x/m	+0.01

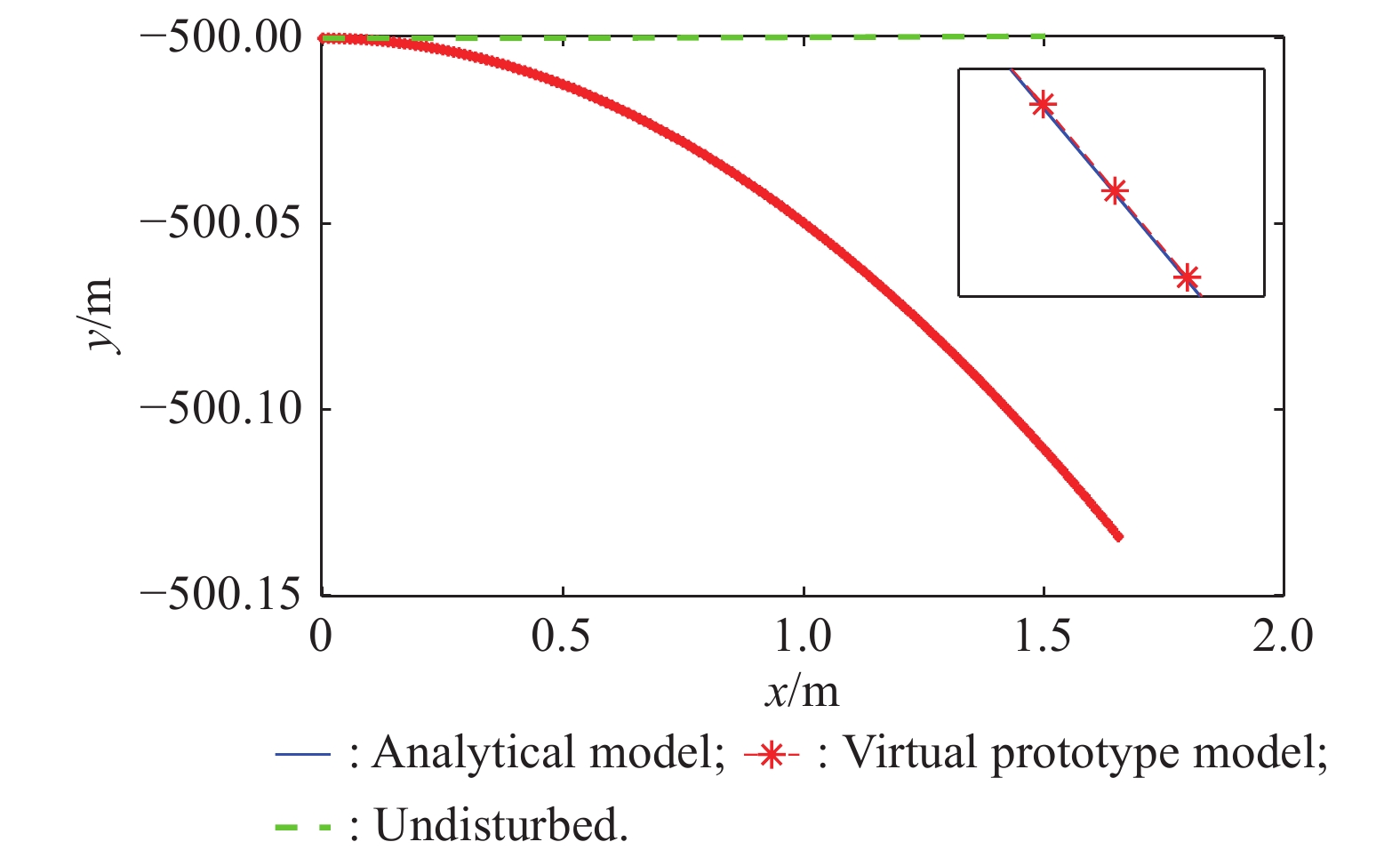

y/m	−0.13

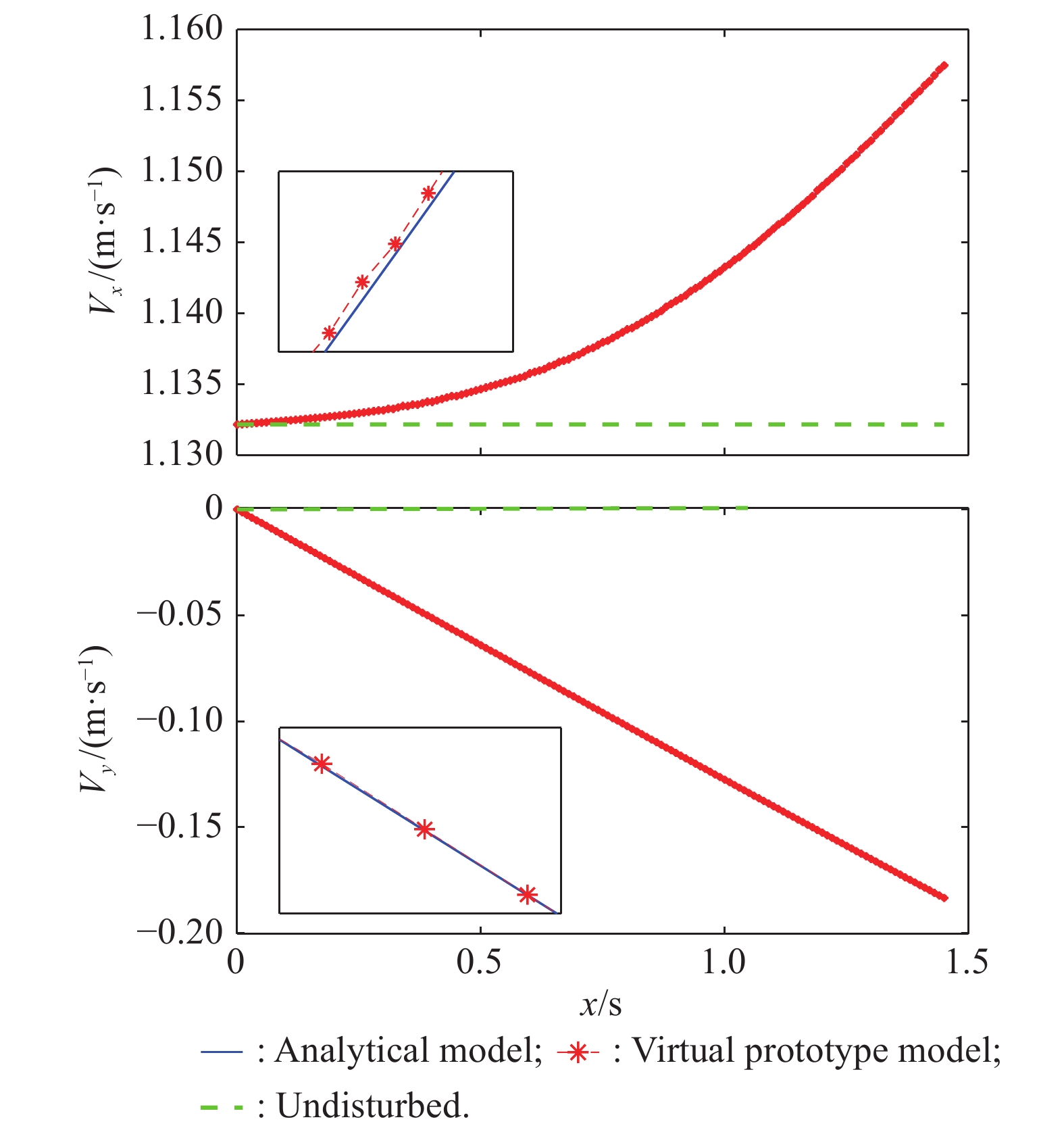

V_x/(m/s)	+0.03
V_y/(m/s)	−0.19

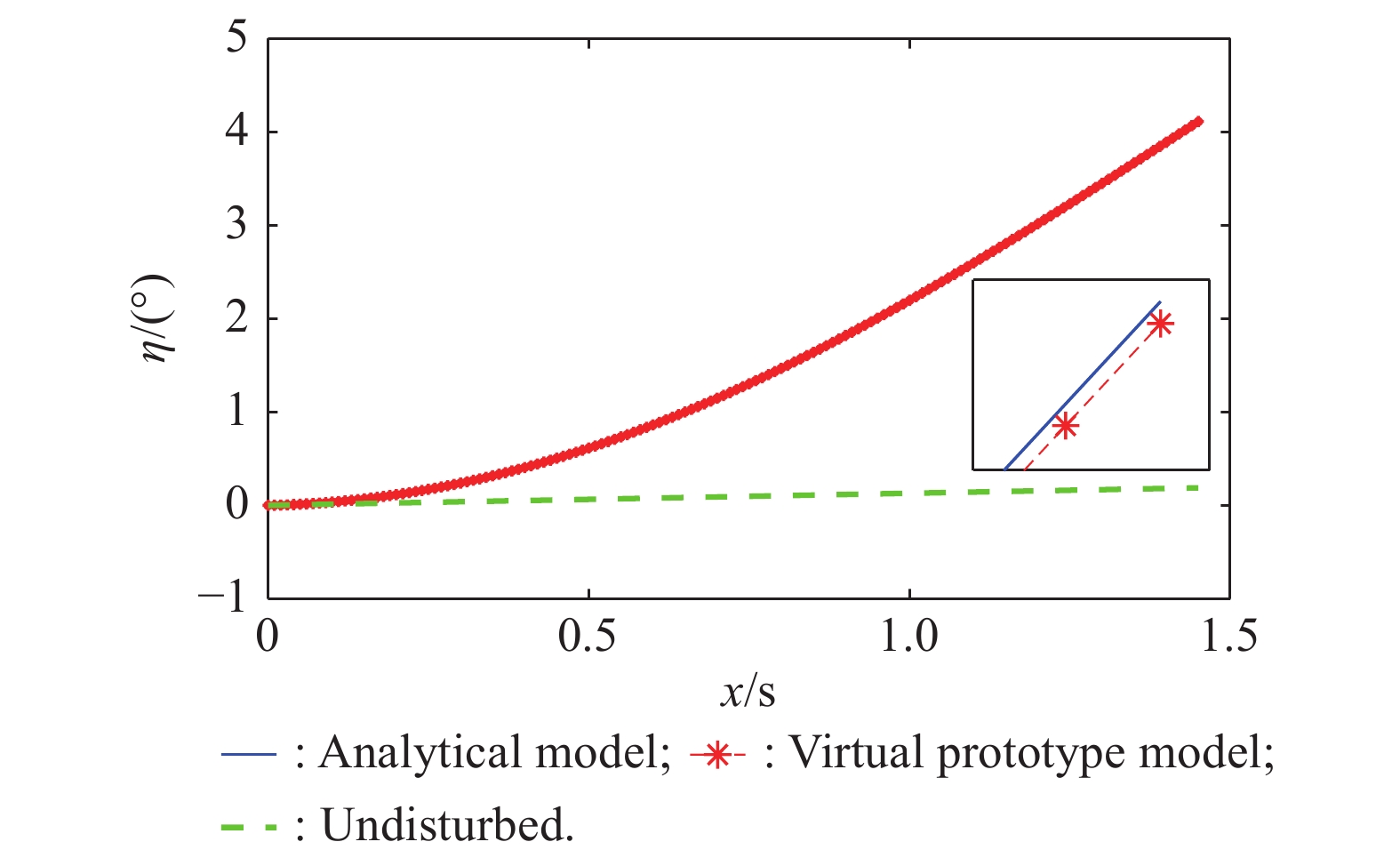

η/(°)	+3.91

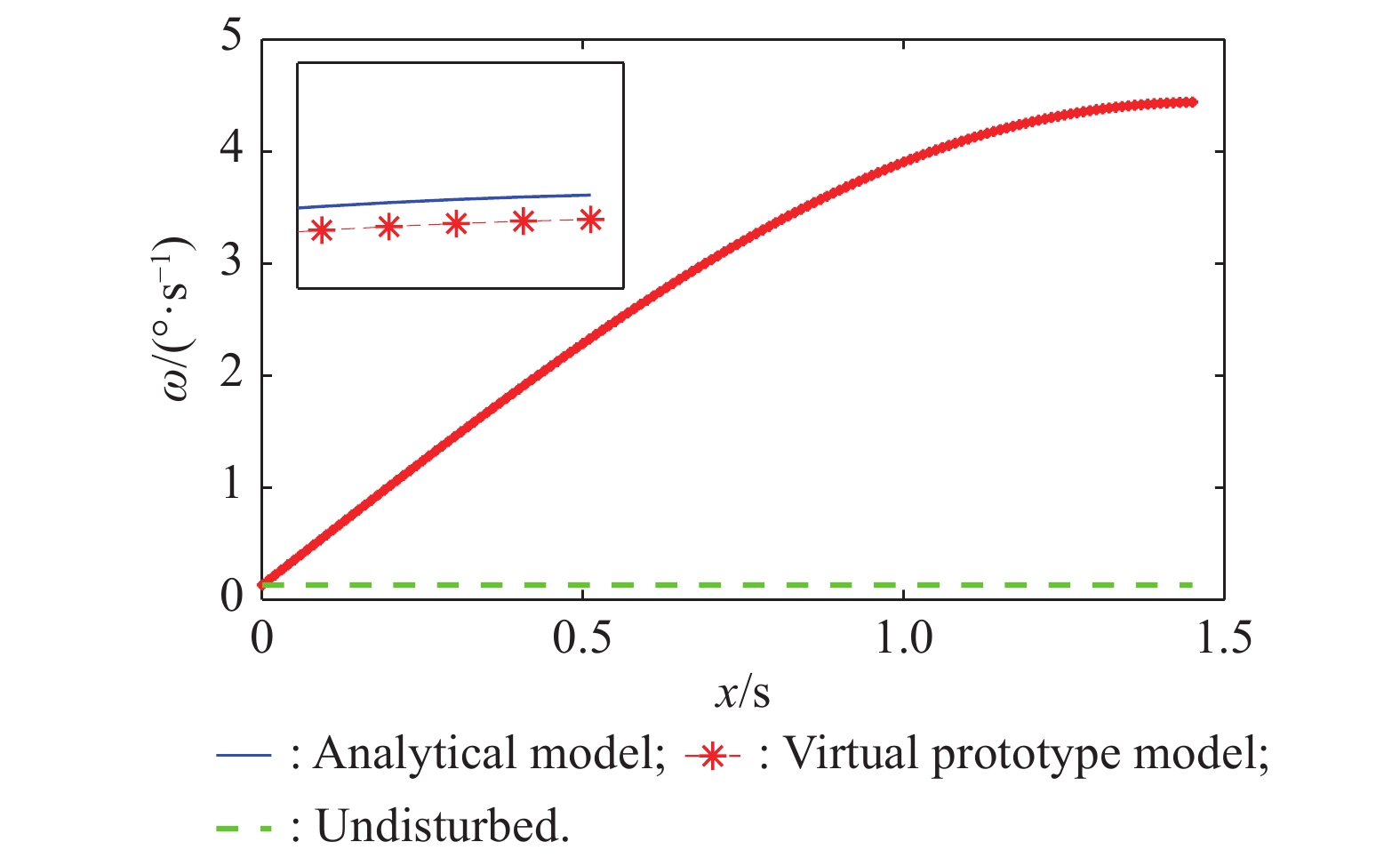

ω/(°/s)	+4.29

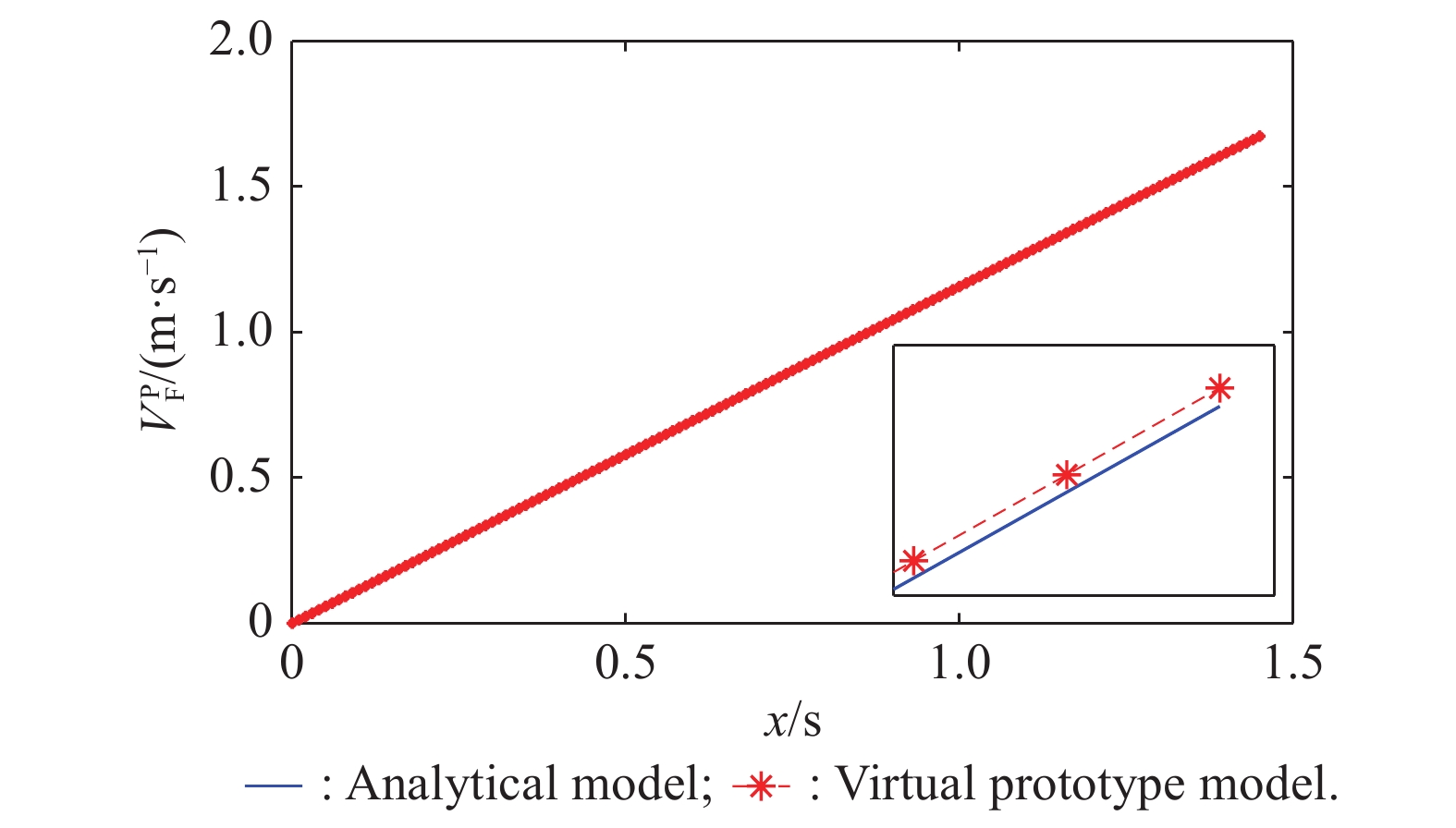

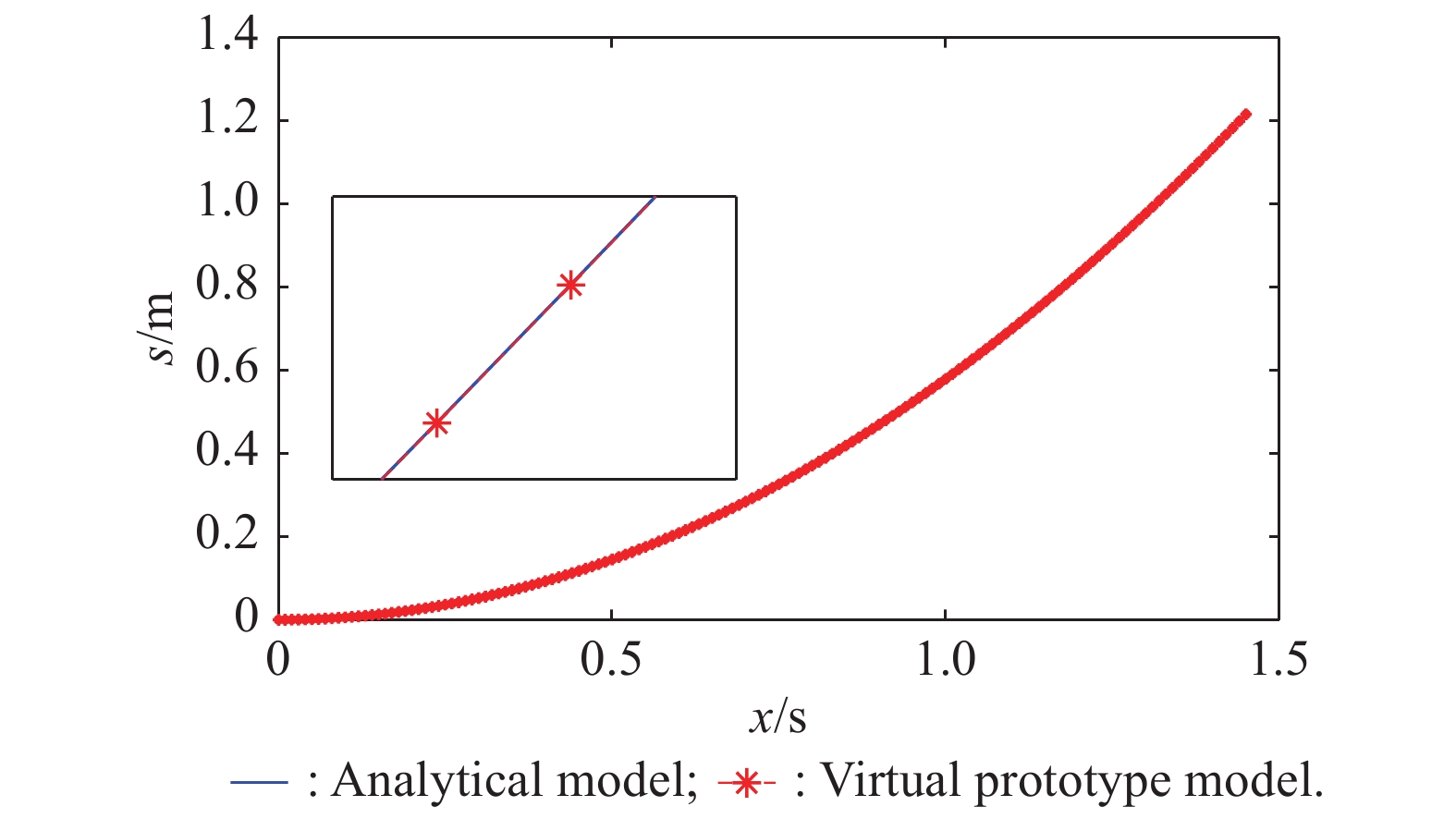

$V_{\text{F}}^{\text{P}}$/(m/s)	+1.67

Object	a/m	e	i/(°)	Ω/(°)	w/(°)	f/(°)
Target	${R_{\text{e}}} + 4 \times {10^5}$	0	45	115	60	0
Chaser	${R_{\text{e}}} + 4 \times {10^5}$	$6.7144 \times {10^{ - 5}}$	45	115	60	0

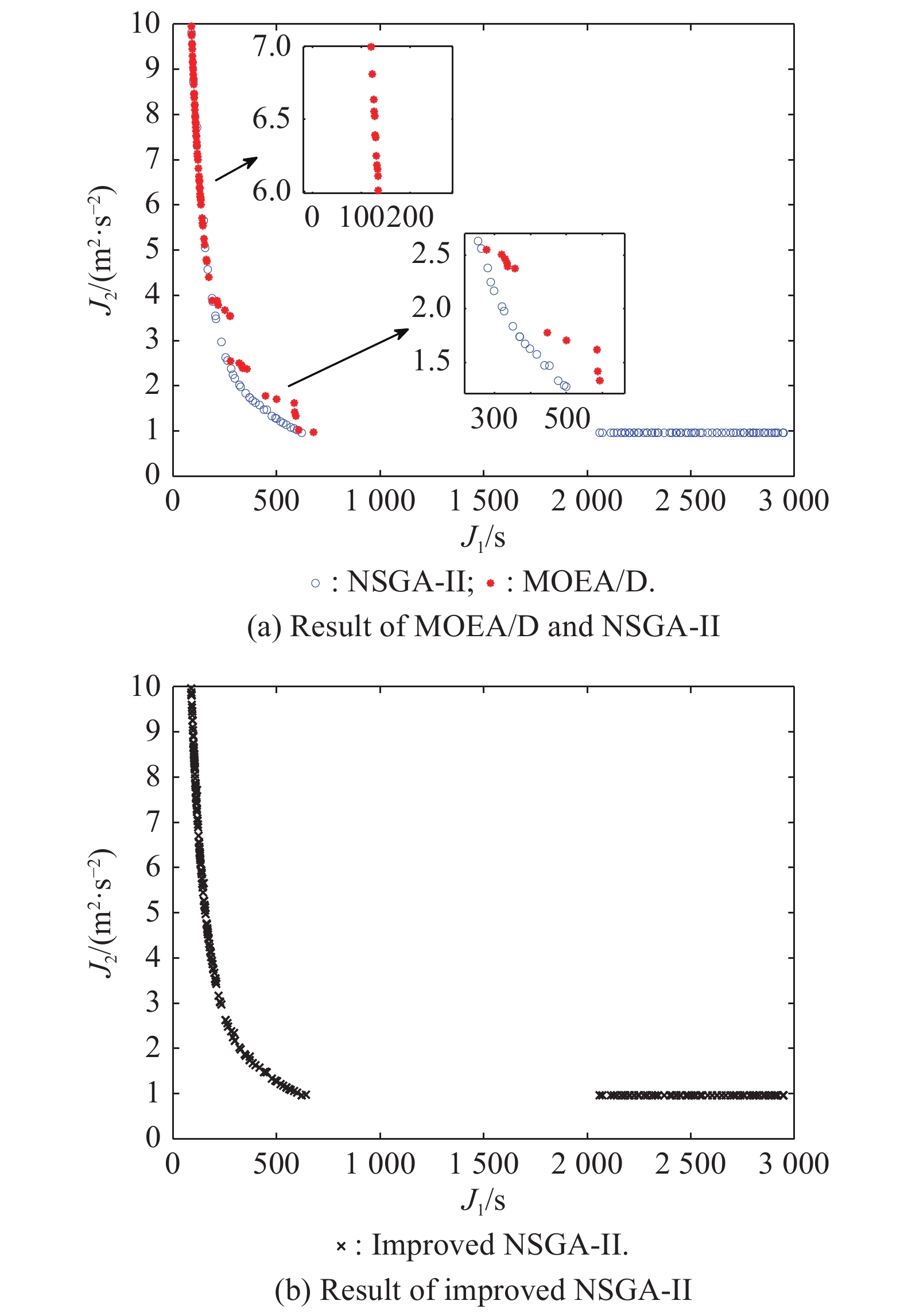

Type	IGD	HV	t/s
MOEA/D	1.25	2.48	0.8
NSGA-II	1.05	2.87	1.3
Improved NSGA-II	0.57	3.64	1.5

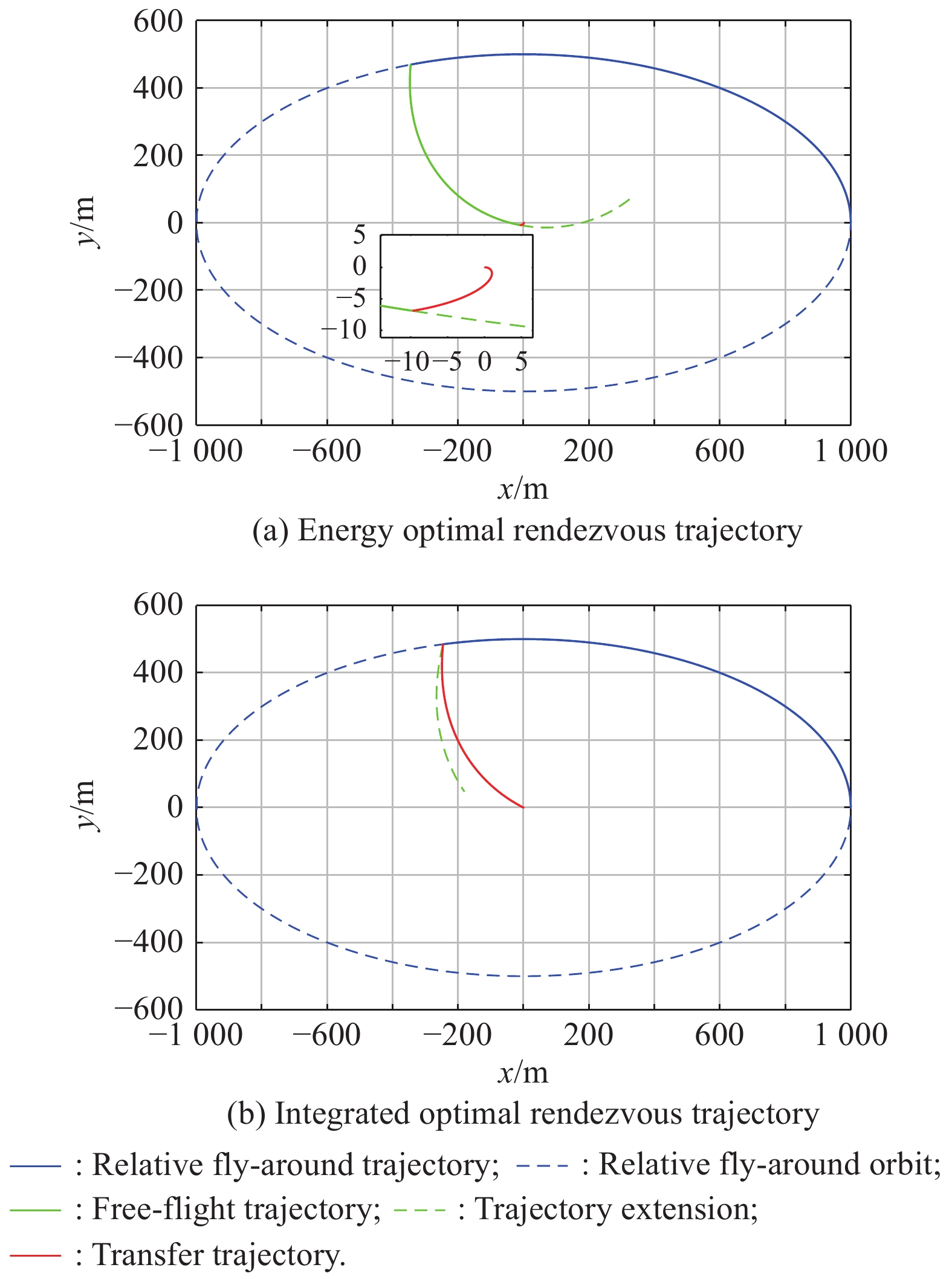

Results	J₁/s	J₂/(m/s)²	θ/(°)	t₁/s	t₂/s	Δv_x1/(m/s)	Δv_y1/(m/s)	Δv_x2/(m/s)	Δv_y2/(m/s)
Energy-optimal	2863	0.9632	126.33	606	2257	0.9448	0.1762	0.0021	0.0002
Integrated optimal	511	1.2639	116.915	10	501	0.2061	0.0023	0.9497	0.4676

On-orbit servicing launch dynamics and multi-objective optimization of impulsive rendezvous

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

Share this article

Figures/Tables 20

References 35

Related Articles 15

Recommended Articles

Metrics

Comments

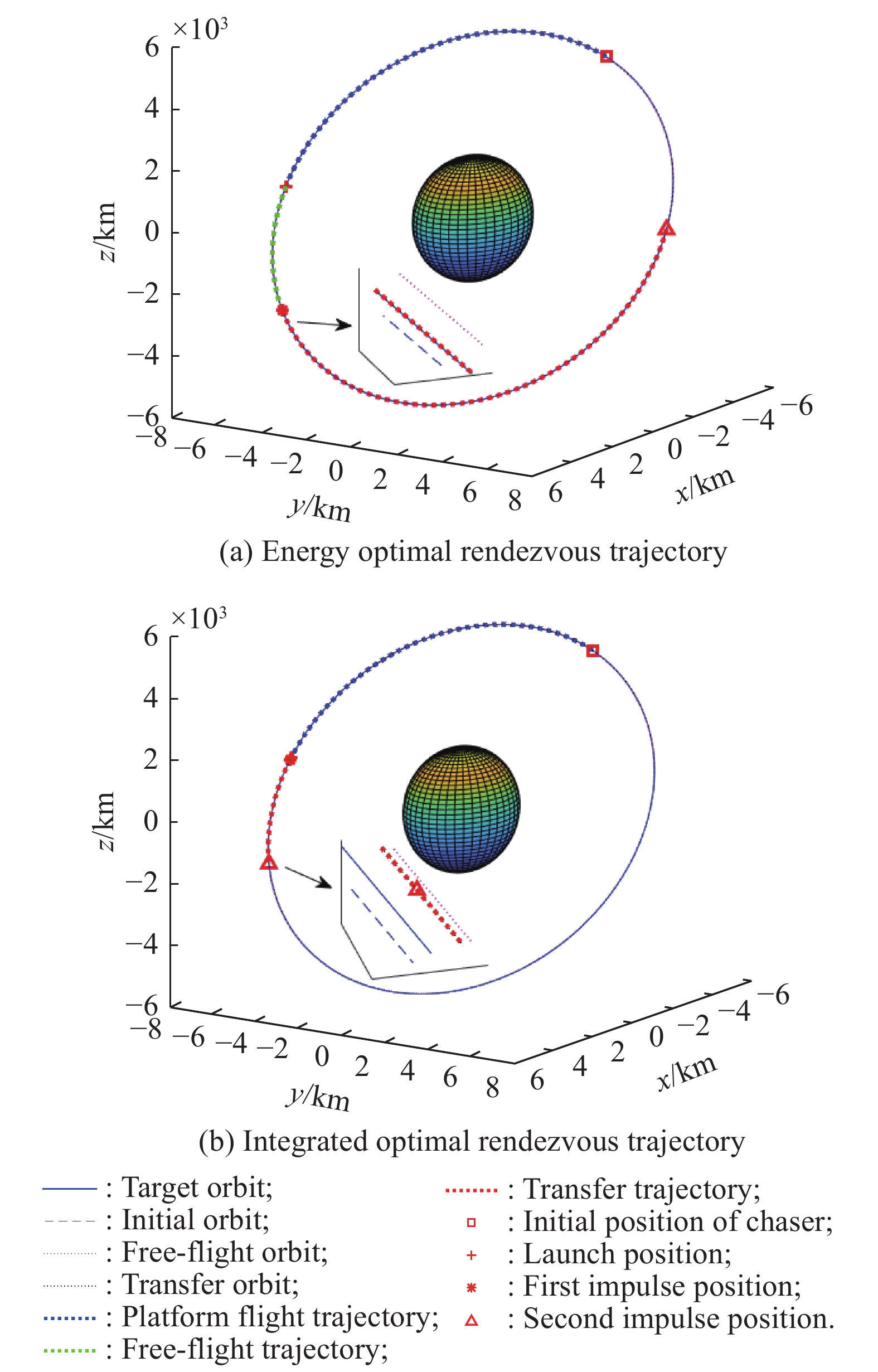

Result	Orbits of different transfer phases	a/m	e	i/(°)	Ω/(°)	w/(°)	f/(°)
Energy-optimal	Free-flying orbit	$ 6.76 \times {10^6} $	$4.09 \times {10^{ - 4}}$	45	115	4.51	166.09
Energy-optimal	Impulsive flight orbit	$ 6.76 \times {10^6} $	$4.09 \times {10^{ - 6}}$	45	115	58.12	151.93
Integrated optimal	Free-flying orbit	$ 6.76 \times {10^6} $	$4.09 \times {10^{ - 4}}$	45	115	357.20	167.42
Integrated optimal	Impulsive flight orbit	$ 6.76 \times {10^6} $	$4.09 \times {10^{ - 4}}$	45	115	1.79	163.47
