Online midcourse guidance method for intercepting high-speed gliding target

doi:10.23919/JSEE.2025.000133

Journal of Systems Engineering and Electronics ›› 2025, Vol. 36 ›› Issue (5): 1374-1388.doi: 10.23919/JSEE.2025.000133

• CONTROL THEORY AND APPLICATION • Previous Articles

Online midcourse guidance method for intercepting high-speed gliding target

Jinlin ZHANG¹^,*(), Jiong LI²(), Jikun YE²(), Humin LEI²(), Wanli LI¹(), Yangchao HE¹()

¹ Graduate School, Air Force Engineering University, Xi’an 710051, China
² Air Defense and Antimissile School, Air Force Engineering University, Xi’an 710051, China

Received:2023-11-27 Online:2025-10-18 Published:2025-10-24
Contact: Jinlin ZHANG E-mail:jlzhangnet@163.com;gracefuloo1@126.com;jikunbo@sina.com;hmleinet@126.com;liwl170@163.com;heyangchao0913@163.com
About author:
ZHANG Jinlin was born in 1997. He received his M.S. degree in control science and engineering from Air Force Engineering University in 2022. He is now a doctor student in control science and engineering at the Graduate School, Air Force Engineering University, Xi’an, China. His research interests include terminal guidance law and its capture space, trajectory optimization, and correction and regeneration of midcourse guidance. E-mail: jlzhangnet@163.com

LI Jiong was born in 1979. He received his M.S and Ph.D. degrees in control science and engineering from Air Force Engineering University. He is now an associate professor and a supervisor for doctors at the Air Defense and Antimissile School, Air Force Engineering University, Xi’an, China. His research interests include the advanced guidance law design, hypersonic interception, and missile automatic controller design. E-mail: gracefuloo1@126.com

YE Jikun was born in 1984. He received his M.S. and Ph.D. degrees in control science and engineering from the Air Defense and Antimissile School, Air Force Engineering University, in 2007 and 2012, respectively. He is currently an associate professor with the Department of Missile Engineering, Air Defense and Antimissile School, Air Force Engineering University. His research interests include nonlinear guidance and control. E-mail: jikunbo@sina.com

LEI Humin was born in 1960. He received his M.S. and Ph.D. degrees in navigation, guidance and control from Northwestern Polytechnical University, in 1989 and 1999, respectively. He is a professor and a supervisor for doctors in the Air Defense and Antimissile School, Air Force Engineering University, Xi’an, China. His current research interests are advanced guidance law design, hypersonic vehicle controller design, and hypersonic interception strategy. E-mail: hmleinet@126.com

LI Wanli was born in 1997. He received his M.S. degree in control science and engineering from Air Force Engineering University in 2021. He is now a doctor student in control science and engineering at the Graduate School, Air Force Engineering University, Xi’an, China. His research interests focus on the mid-guided missile trajectory optimization, correction, and regeneration. E-mail: liwl170@163.com

HE Yangchao was born in 1999. He received his B.S. degree in control science and engineering from Air Force Engineering University in 2021. He is now a doctor student in control science and engineering at the Graduate School, Air Force Engineering University, Xi’an, China. His research interests include trajectory generation, and tracking and prediction algorithms of reentry gliding vehicle. E-mail: heyangchao0913@163.com

Abstract

Abstract:

In this paper, an online midcourse guidance method for intercepting high-speed maneuvering targets is proposed. Firstly, the affine system is used to build a dynamic model and analyze the state constraints. The midcourse guidance problem is transformed into a continuous time optimization problem. Secondly, the problem is transformed into a discrete convex programming problem by affine control variable relaxation, Gaussian pseudospectral discretization and constraints linearization. Then, the off-line midcourse guidance trajectory is generated before midcourse guidance. It is used as the initial reference trajectory for online correction of midcourse guidance. An online guidance framework is used to eliminate the error caused by calculation of guidance instruction time. And the design of discrete points decreases with flight time to improve the solving efficiency. In addition, it is proposed that the terminal guidance capture is used innovatively space to judge the success of midcourse guidance. Numerical simulation shows the feasibility and effectiveness of the proposed method.

Key words: convex programming, capture space, online midcourse guidance, interception

Jinlin ZHANG, Jiong LI, Jikun YE, Humin LEI, Wanli LI, Yangchao HE. Online midcourse guidance method for intercepting high-speed gliding target[J]. Journal of Systems Engineering and Electronics, 2025, 36(5): 1374-1388.

Figures/Tables 9

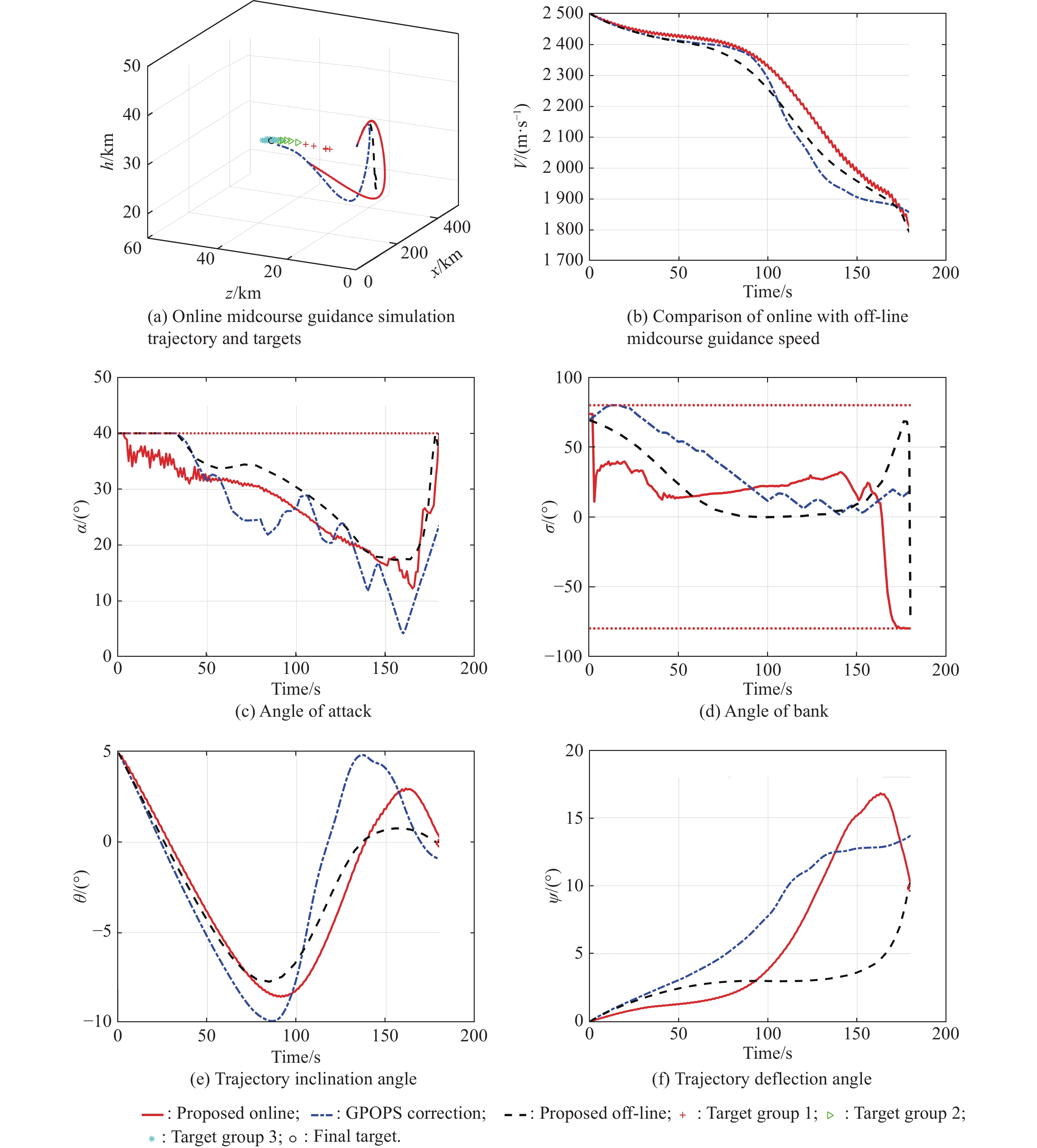

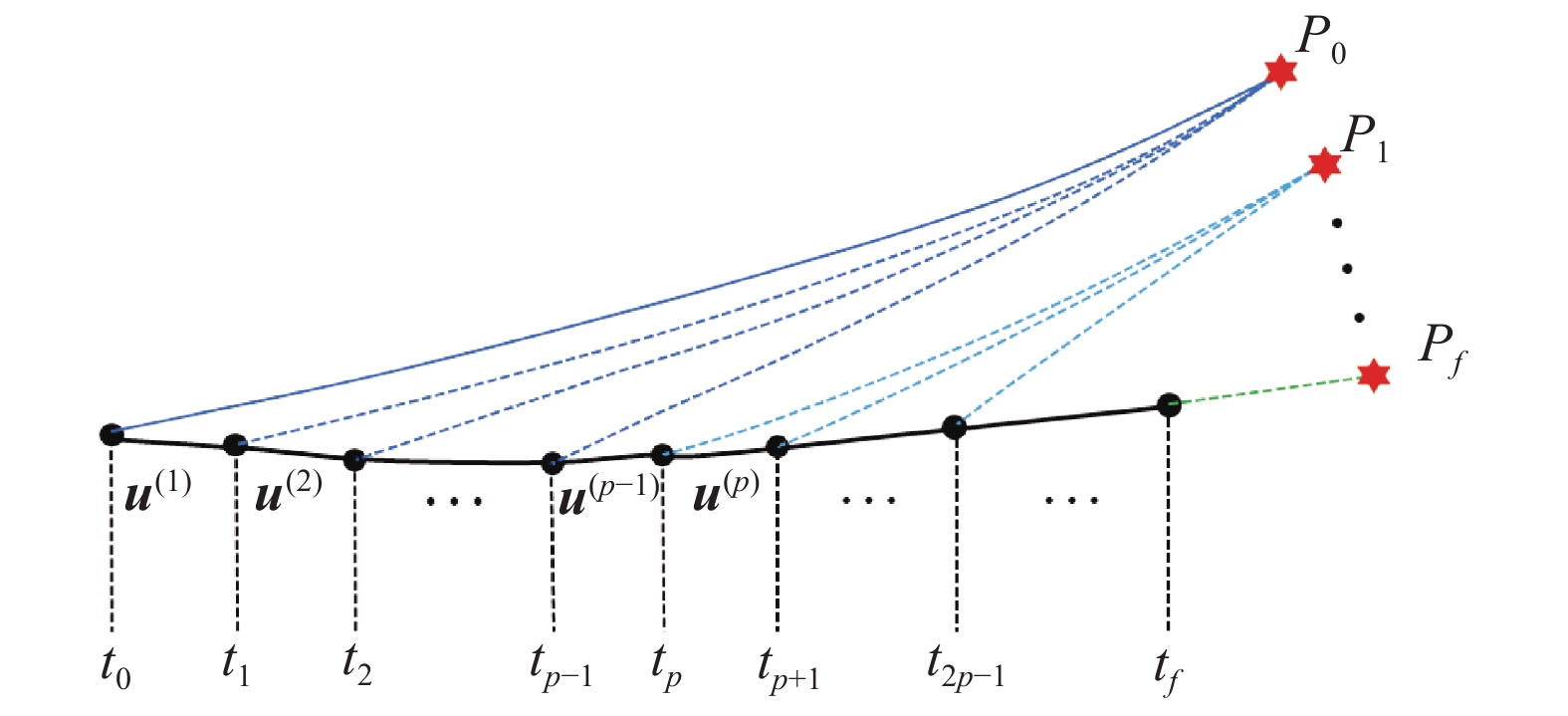

Fig 1

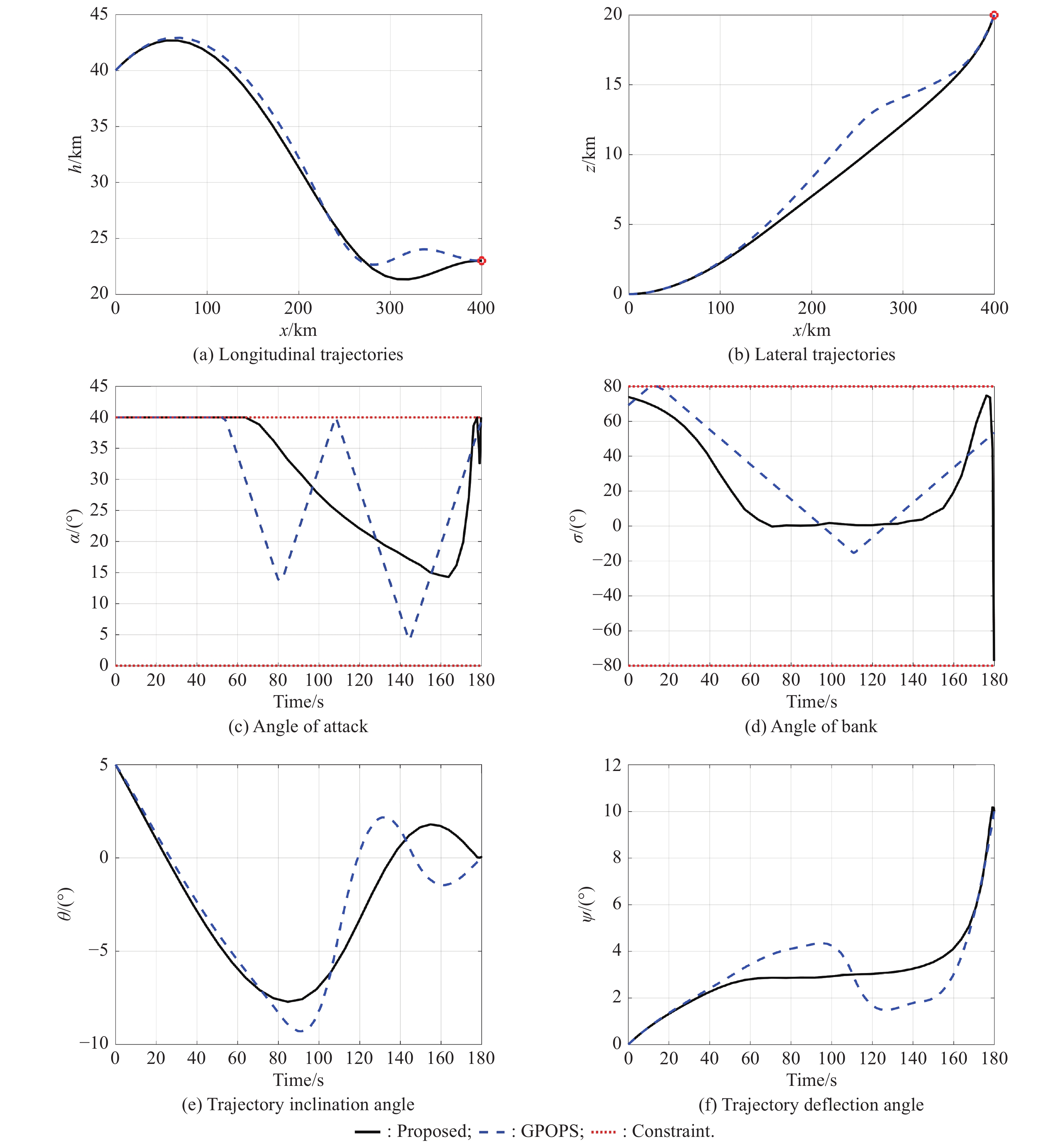

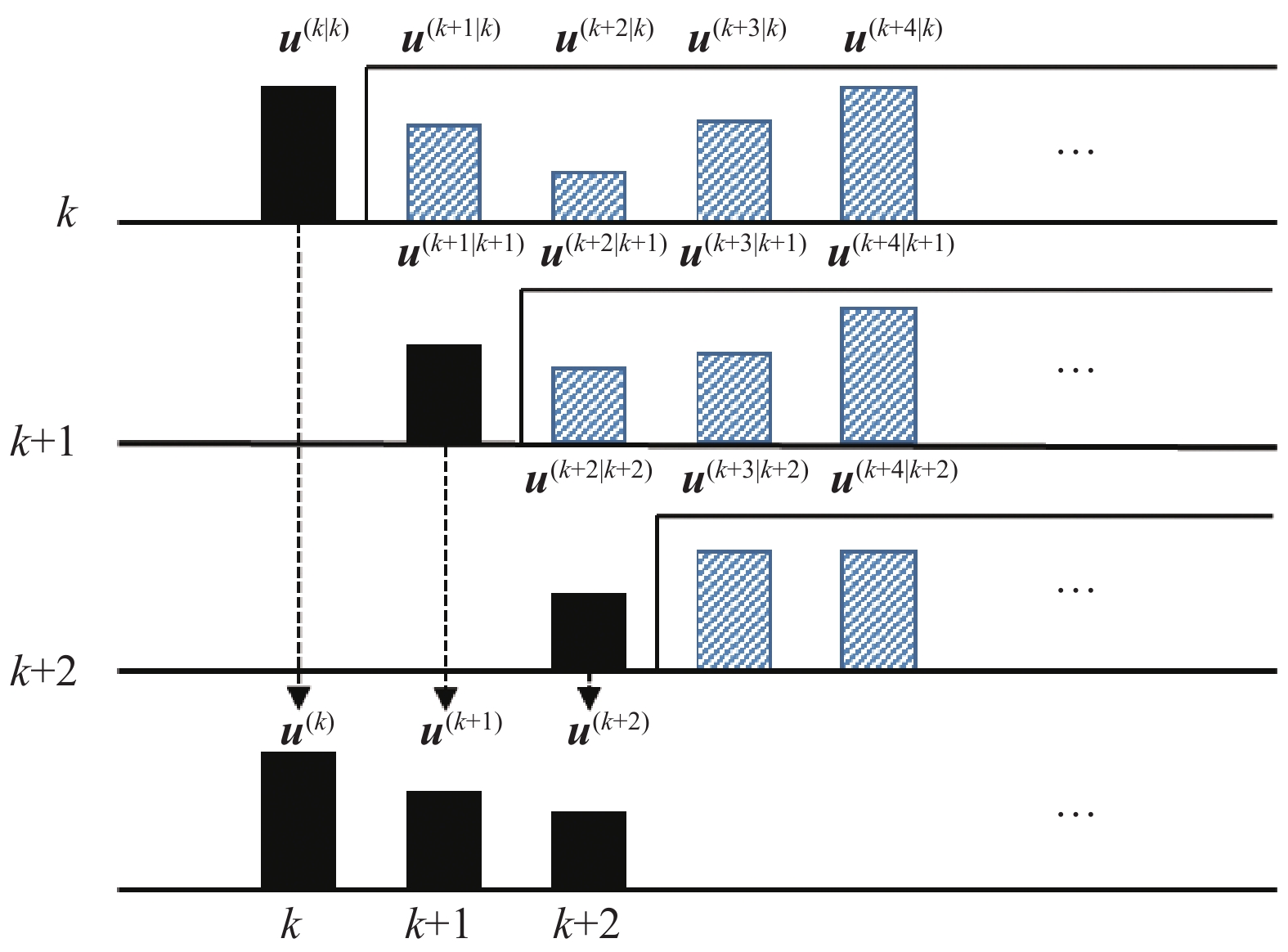

Fig 2

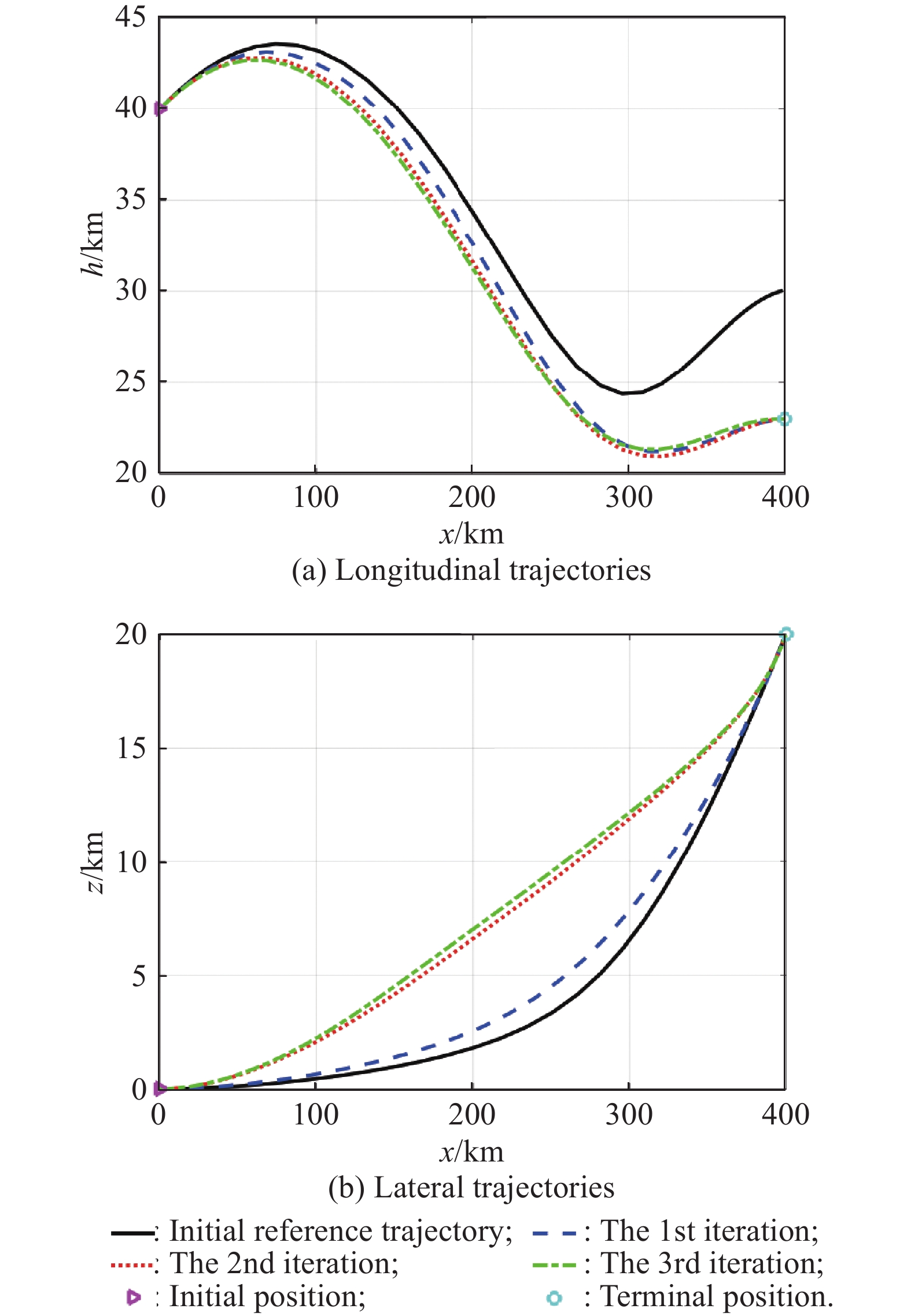

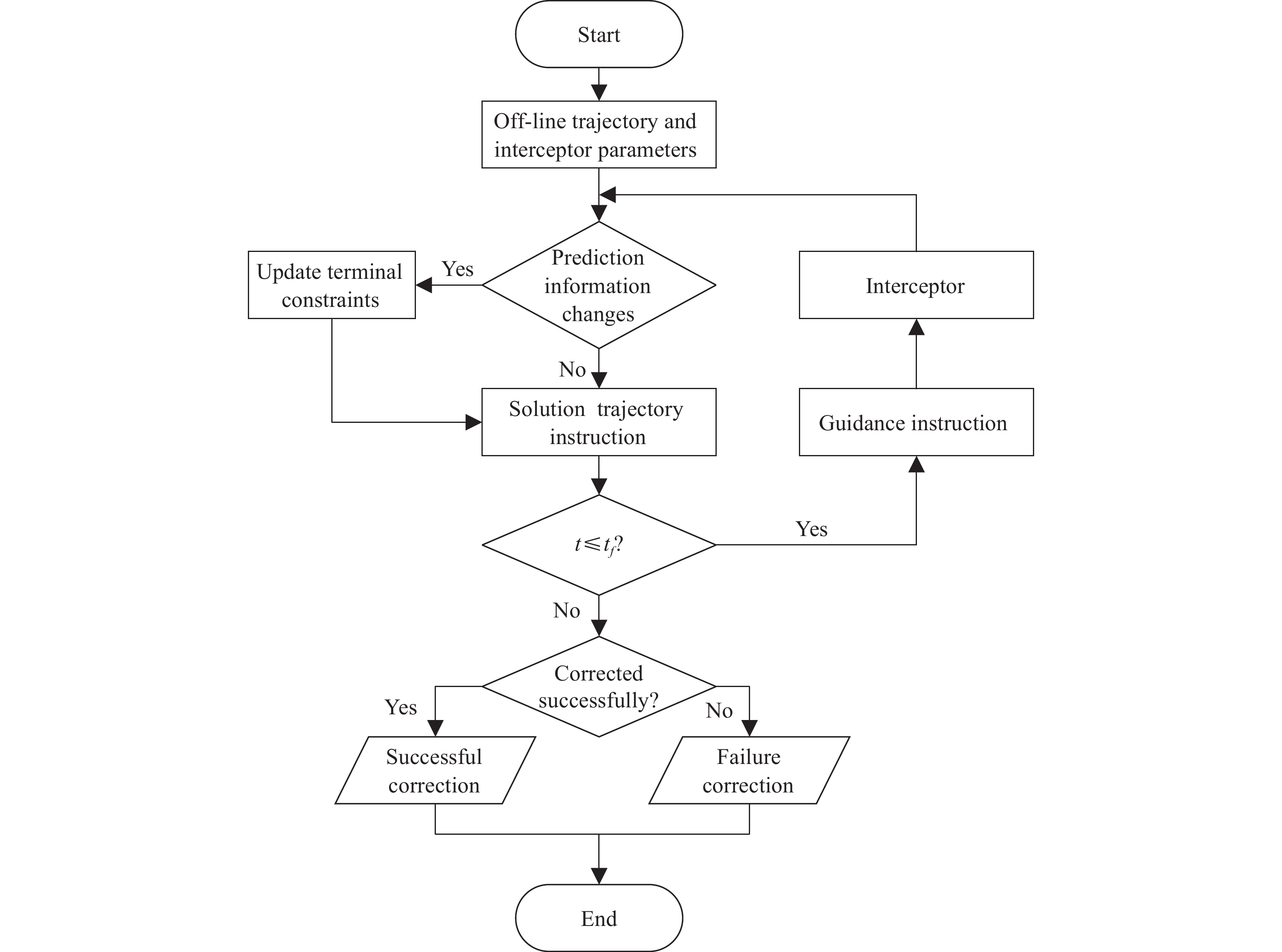

Fig 3

Table 1

Table 2

Fig 4

Fig 5

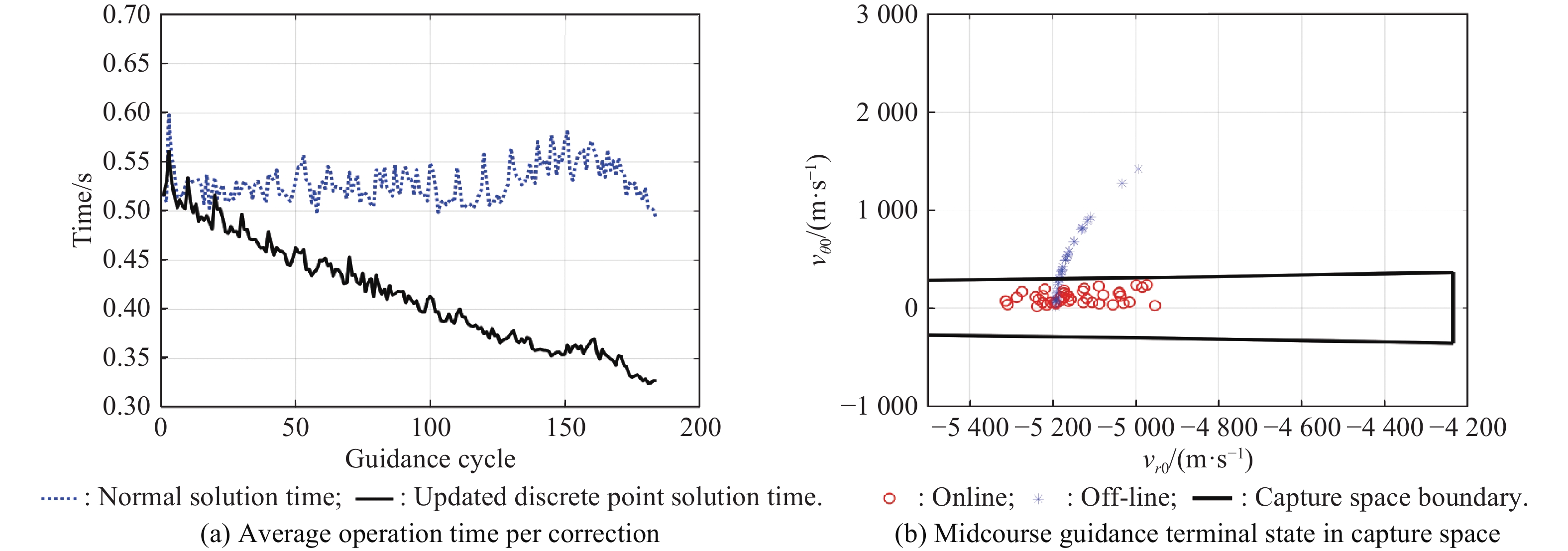

Fig 6

Fig 7

References 41
