Heterogeneous multi-core task scheduling based on adaptive simulated annealing

doi:10.23919/JSEE.2026.000042

Abstract

Abstract:

To address the energy consumption issues caused by task lengths in task scheduling on heterogeneous multi-core systems, this paper proposes an adaptive parameterized improved simulated annealing algorithm based on the directed acyclic graph task model. The algorithm employs feedback from acceptance rates to dynamically adjust the temperature and neighborhood size of the simulated annealing process. Additionally, it introduces a security mechanism to enhance convergence speed and global search capabilities. Compared against classical simulated annealing and standard heuristic algorithms, the proposed algorithm achieves reductions exceeding 54% in convergence generations, 50% in task slots, and 10% in scheduling time, providing a direction for low-power task scheduling.

Key words: heterogeneous multi-core, task scheduling, schedule length, simulated annealing

Guoliang ZHU, Jinjian ZHANG, Xuan LIU, Guojun WANG, Xiaodong ZHANG, Kaiyu CHEN, Yu WANG. Heterogeneous multi-core task scheduling based on adaptive simulated annealing[J]. Journal of Systems Engineering and Electronics, 2026, 37(3): 897-903.

Figures/Tables 8

Fig 1

Fig 2

Fig 3

Fig 4

Table 1

Table 2

Fig 5

Table 3

References 27

28	ZHOU S E, LEI H. An improved genetic-annealing algorithm for task scheduling based on precedence task duplication. Microelectronics & Computer, 2006, 23(10): 62–64.
29	CHENG X H, LIU T C Heterogeneous multi-core task scheduling based on crazy adaptive bottle ascidians group algorithm. Computer & Digital Engineering, 2024, 52 (10): 2886- 2889, 2919.
30	FENG S, JIANG B, XU H Task Scheduling for heterogeneous multi-core processors based on evolutionary adaptive bat algorithm. Computer Engineering, 2025, 51 (5): 249- 256.
31	YAN T, LI W, LI Y C. QoS guided task scheduling heuristic in computational grid environments. Microelectronics & Computer, 2006, 23(10): 107–110. (in Chinese)
1	XIE X Y, REN X, ZHU Y, et al A resource-adaptive tensor decomposition method for convolutional neural networks. High Technology Letters, 2025, 31 (4): 355- 364.
2	FANG J, LIN S, YANG H J, et al A perceptual and predictive batch-processing memory scheduling strategy for a CPU-GPU heterogeneous system. Frontiers of Information Technology & Electronic Engineering, 2023, 24 (7): 994- 1007. doi: 10.1631/FITEE.2200449
3	SONG Y, DAI H, JIANG J, et al. Multikernel: operating system solution to generalized functional safety. Security and Safety, 2023, 2(2): 30−43.
4	YAN J, TANG F F, ZHANG Z G, et al Low-power design for heterogeneous multi-core AI SoC chip. Aerospace Control, 2020, 38 (2): 6268. doi: 10.16804/j.cnki.issn1006-3242.2020.02.013
5	LI B, ZHOU Q L, SI X M, et al Design method of big data high-efficiency platform based on mimic computing. Application Research of Computers, 2019, 36 (7): 2059- 2064. doi: 10.19734/j.issn.1001-3695.2018.02.0084
6	JIA G Y, HAN G J, JIANG J F, et al Dynamic resource partitioning for heterogeneous multi-core-based cloud computing in smart cities. IEEE Access, 2016, 4, 108- 118. doi: 10.1109/ACCESS.2015.2507576
7	QIU T, ZHAO A Y, MA R X, et al A task-efficient sink node based on embedded multi-core SoC for Internet of Things. Future Generation Computer Systems, 2018, 82, 656- 666. doi: 10.1016/j.future.2016.12.024
8	NING J H, YANG T T, ZHENG C, et al. DeAOff: dependence-aware offloading of decoder-based generative models for edge computing. China Communications, 2025, 22(7): 14−29.
9	KIM Y G, KIM M, CHUNG S W Enhancing energy efficiency of multimedia applications in heterogeneous mobile multi-core processors. IEEE Trans. on Computers, 2017, 66 (11): 1878- 1889. doi: 10.1109/TC.2017.2710317
10	ZHANG S B, GAO H Y, SU Y M, et al Physical-layer secure hybrid task scheduling and resource management for fog computing IoT networks. Journal of Systems Engineering and Electronics, 2025, 36 (5): 1146- 1160. doi: 10.1007/s11390-010-9318-0
11	ZHOU Z, LI F M, ZHU H X, et al An improved genetic algorithm using greedy strategy toward task scheduling optimization in cloud environments. Neural Computing and Applications, 2020, 32, 1531- 1541. doi: 10.1007/s00521-019-04119-7
12	ZHOU Y H, ZENG W, ZHENG Q F, et al. A survey on task scheduling of CPU-GPU heterogeneous cluster. ZTE Communications, 2024, 22(3): 83−90. (in Chinese)
13	MADNI S H H, ABD LATIFF M S, ABDULLAHI M, et al Performance comparison of heuristic algorithms for task scheduling in IaaS cloud computing environment. PloS One, 2017, 12 (5): e0176321. doi: 10.1371/journal.pone.0176321
14	XIE G Q, XIAO X R, PENG H, et al A survey of low-energy parallel scheduling algorithms. IEEE Trans. on Sustainable Computing, 2021, 7 (1): 27- 46.
15	WU J, CHEN Y N, HE Y M, et al. Survey on autonomous task scheduling technology for Earth observation satellites. Journal of Systems Engineering and Electronics, 2022, 33(6): 1176–1189.
16	YANG T T, ZHANG Y Q, YUE F L, et al. D-scheduler: a scheduler in time-triggered distributed system through decoupling dependencies between tasks and messages. Science China (Technological Sciences), 2024, 67(1): 183−196. (in Chinese)
17	LIU W, JIN Y F, ZHANG L, et al. Dynamic access task scheduling of LEO constellation based on space-based distributed computing. Journal of Systems Engineering and Electronics, 2024, 35(4): 842–854.
18	YANG M, WANG Y, WANG J, et al. Optimal scheduling of integrated energy systems in low-carbon communities considering flexibility of resources and segmental control of solid oxide fuel cells. Journal of Modern Power Systems and Clean Energy, 2025, 13(3): 915−927.
19	LI K L, TANG X Y, LI K Q Energy-efficient stochastic task scheduling on heterogeneous computing systems. IEEE Trans. on Parallel and Distributed Systems, 2013, 25 (11): 2867- 2876. doi: 10.1109/TPDS.2013.270
20	HAO P T, XIAO F, HUANG S J, et al The multi-type DAG task scheduling method based on communication overhead. Microelectronics & Computer, 2024, 41 (5): 67- 75. doi: 10.19304/J.ISSN1000-7180.2023.0135
21	QUAN Z, WANG Z J, YE T, et al Task scheduling for energy consumption constrained parallel applications on heterogeneous computing systems. IEEE Trans. on Parallel and Distributed Systems, 2019, 31 (5): 1165- 1182. doi: 10.1109/TPDS.2019.2959533
22	YANG P, HOU J W, YU L, et al. Edge-coordinated energy-efficient video analytics for digital twin in 6G. China Communications, 2023, 20(2): 14−25.
23	LONG T Y, MA Y, WU L, et al. A novel fault-tolerant scheduling approach for collaborative workflows in an edge-IoT environment. Digital Communications and Networks, 2022, 8(6): 911−922.
24	LI W M, HAN D, GAO L, et al. Integrated production and transportation scheduling method in hybrid flow shop. Chinese Journal of Mechanical Engineering, 2022, 35(1): 123−142. (in Chinese)
25	XIE G Q, XIAO X R, LI R F, et al Schedule length minimization of parallel applications with energy consumption constraints using heuristics on heterogeneous distributed systems. Concurrency and Computation: Practice and Experience, 2017, 29 (16): e4024. doi: 10.1002/cpe.4024
26	ZHANG L X, LI K L, LI C Y, et al Bi-objective workflow scheduling of the energy consumption and reliability in heterogeneous computing systems. Information Sciences, 2017, 379, 241- 256. doi: 10.1016/j.ins.2016.08.003
27	FAN X M, LI X H, DING Y M, et al Demand response scheduling algorithm for smart residential communities considering heterogeneous energy consumption. Energy and Buildings, 2023, 279, 112691. doi: 10.1016/j.enbuild.2022.112691

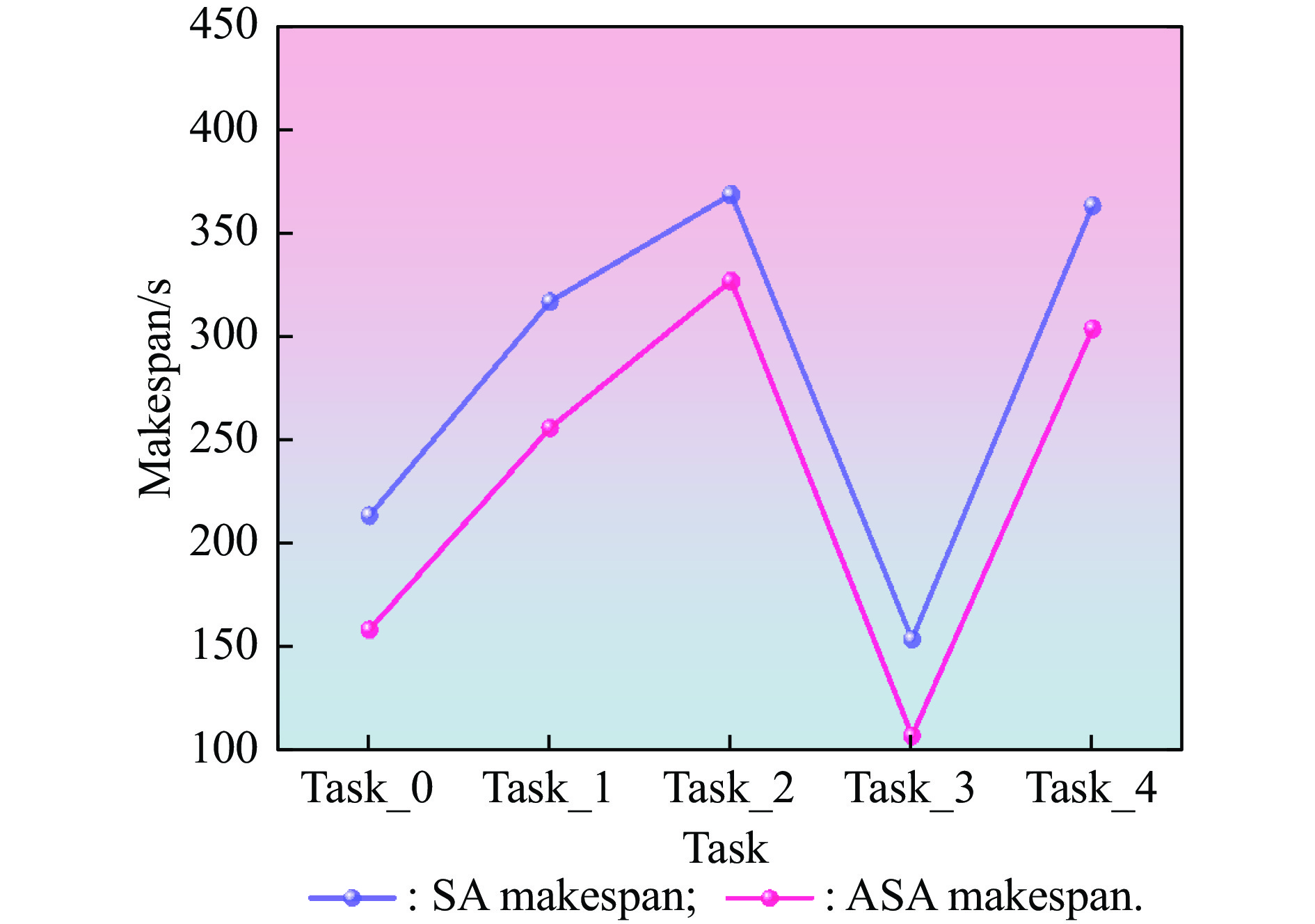

Algorithm	0	1	2	3	4
SA	213.5	317.3	369.2	153.4	363.8
ASA	158.1	255.9	327.3	106.6	304.1
