An integrated PHM framework for radar systems through system structural decomposition

doi:10.23919/JSEE.2024.000087

Abstract

Abstract:

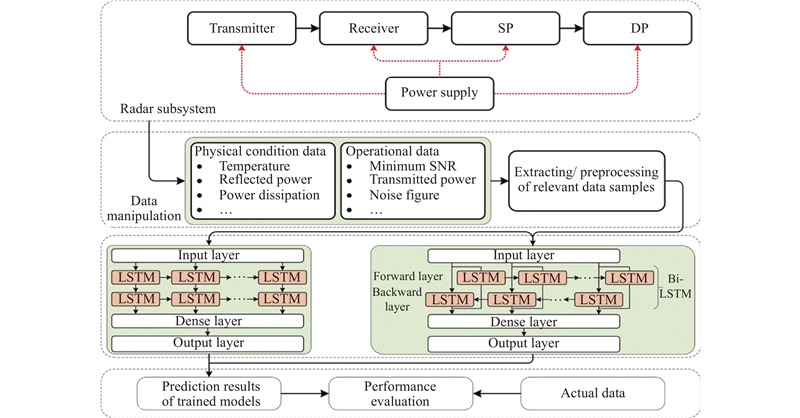

Implementing an efficient real-time prognostics and health management (PHM) framework improves safety and reduces maintenance costs in complex engineering systems. However, research on PHM framework development for radar systems is limited. Furthermore, typical PHM approaches are centralized, do not scale well, and are challenging to implement. This paper proposes an integrated PHM framework for radar systems based on system structural decomposition to enhance reliability and support maintenance actions. The complexity challenge associated with implementing PHM at the system level is addressed by dividing the radar system into subsystems. Subsequently, optimal measurement point selection and sensor placement algorithms are formulated for effective data acquisition. Local modules are developed for each subsystem health assessment, fault diagnosis, and fault prediction without a centralized controller. Maintenance decisions are based on each local module’s fault diagnosis and prediction results. To further improve the effectiveness of the prognostics stage, the feasibility of integrating deep learning (DL) models is also investigated. Several experiments with different degradation patterns are performed to evaluate the effectiveness of the framework’s DL-based prognostics model. The proposed framework facilitates transitioning from traditional reactive maintenance practices to a predictive maintenance approach, thereby reducing downtime and improving the overall availability of radar systems.

Key words: deep learning, prognostics and health management (PHM), radar systems, remaining useful life (RUL)

Hong WANG, Delanyo Kwame Bensah KULEVOME, Zi’an ZHAO. An integrated PHM framework for radar systems through system structural decomposition[J]. Journal of Systems Engineering and Electronics, 2025, 36(1): 95-107.

Figures/Tables 8

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

Table 1

Table 2

References 30

1	ZIO E Prognostics and health management (PHM): where are we and where do we (need to) go in theory and practice. Reliability Engineering & System Safety, 2022, 218, 108119.
2	WANDJI C, REJEB H B, ZWOLINSKI P Characterization of the state of health of a complex system at the end of use. Proc. of the CIRP Design Conference, 2022, 105, 49- 54.
3	WANG F F, TANG S J, LI L, et al Remaining useful life prediction of aero-engines based on random-coefficient regression model considering random failure threshold. Journal of Systems Engineering and Electronics, 2023, 34 (2): 530- 542.
4	WANG F F, TANG S J, SUN X Y, et al Remaining useful life prediction based on nonlinear random coefficient regression model with fusing failure time data. Journal of Systems Engineering and Electronics, 2023, 34 (1): 247- 258.
5	KULEVOME D K B, WANG H, WANG X G, et al Phased array antenna diagnosis from amplitude-only data using parallel deep learning models. Journal of Applied Remote Sensing, 2023, 17 (1): 017502.
6	RANASINGHE K, SABATINI R, GARDI A, et al Advances in integrated system health management for mission-essential and safety-critical aerospace applications. Progress in Aerospace Sciences, 2022, 128, 100758. doi: 10.1016/j.paerosci.2021.100758
7	FU S, AVDELIDIS N P Prognostic and health management of critical aircraft systems and components: an overview. Sensors, 2023, 23 (19): 8124. doi: 10.3390/s23198124
8	SKOLNIK M I. Radar handbook. New York: McGraw-Hill Education, 2008.
9	EL-DALAHMEH M, AL-GREER M, EL-DALAHMEH M, et al Physics-based model informed smooth particle filter for remaining useful life prediction of lithium-ion battery. Measurement, 2023, 214, 112838. doi: 10.1016/j.measurement.2023.112838
10	NI Q, JI J C, FENG K Data-driven prognostic scheme for bearings based on a novel health indicator and gated recurrent unit network. IEEE Trans. on Industrial Informatics, 2022, 19 (2): 1301- 1311.
11	ROSYIDI M, BISMANTOKO S, HARYONO A, et al Predictive maintenance with pca approach for multi automated railroad crossing system (ARCS) in the framework of prognostic and health management (PHM) planning. Journal of Physics: Conference Series, 2022, 012090. doi: 10.1088/1742-6596/2322/1/012090
12	WANG R X. Intelligent operation and maintenance system of Marine equipment based on PHM. Proc. of the 4th International Conference on Artificial Intelligence in Electronics Engineering, 2023: 36–45.
13	LIU Y Q, LI W, NIU W Research on application of data driven PHM technology in aviation electromechanical system. Proc. of the International Conference on Mechanisms and Robotics, 2022, 243- 248.
14	SOUALHI A, LAMRAOUI M, ELYOUSFI B, et al PHM survey: implementation of prognostic methods for monitoring industrial systems. Energies, 2022, 15, 6909. doi: 10.3390/en15196909
15	MOSALLAM A, MEDJAHER K, ZERHOUNI N. Component based data-driven prognostics for complex systems: methodology and applications. Proc. of the International Conference on Reliability Systems Engineering, 2015. DOI: 10.1109/ICRSE.2015.7366504.
16	ATAMURADOV V, MEDJAHER K, DERSIN P, et al Prognostics and health management for maintenance practitioners-review, implementation and tools evaluation. International Journal of Prognostics and Health Management, 2017, 8 (3): 1- 31.
17	ZHAI Y T, FANG S J A degradation fault prognostic method of radar transmitter combining multivariate long short-term memory network and multivariate Gaussian distribution. IEEE Access, 2020, 8, 199781- 199791. doi: 10.1109/ACCESS.2020.3035622
18	CHEN C, SHI J T. Application of sparse deep belief network optimized by adaptive sine cosine algorithm in fault diagnosis of radar transceivers. Proc. of the CAA Symposium on Fault Detection, Supervision and Safety for Technical Processes, 2023. DOI: 10.1109/SAFEROCESS58597.2023.10295594.
19	GONG W J, BIN S, ZHENG Y Z. Fault prognosis of transmit-receive modules for active phased array radar. Proc. of the Global Reliability Prognostics Health Management, 2021. DOI: 10.1109/PHM-Nanjing52125.2021.9612938.
20	CURRY G R. Radar system performance modeling. Norwood: Artech House, 2004.
21	KULEVOME D K B, WANG H, WANG X G, et al. System diagnosis framework for sustaining the operational fidelity of a radar system. Proc. of the IEEE 18th International Computer Conference on Wavelet Active Media Technology and Information Processing, 2021: 640–644.
22	YU L T, REN J G, LU X, et al NBTI and HCI aging prediction and reliability screening during production test. IEEE Trans. on Computer-Aided Design of Integrated Circuits and Systems, 2020, 39 (10): 3000- 3011. doi: 10.1109/TCAD.2019.2961329
23	MAAS S, REISINGER H, AICHINGER T, et al. Influence of high-voltage gate-oxide pulses on the BTI behavior of SiC MOSFETs. Proc. of the IEEE International Reliability Physics Symposium, 2020. DOI: 10.1109/IRPS45951.2020.9129232.
24	MAHATO S, GIELEN G. Impact of transistor aging on RF low noise amplifier performance of 28nm technology: reliability assessment. Proc. of the IEEE 20th International Conference on Electronics, Circuits, and Systems, 2013: 413–416.
25	YUAN J S, XU Y, YEN S D, et al Hot carrier injection stress effect on a 65 nm LNA at 70 GHz. IEEE Trans. on Device and Materials Reliability, 2014, 14 (3): 931- 934. doi: 10.1109/TDMR.2014.2328496
26	CAO H R, SHAO H D, ZHONG X, et al Unsupervised domain-share cnn for machine fault transfer diagnosis from steady speeds to time-varying speeds. Journal of Manufacturing Systems, 2022, 62, 186- 198. doi: 10.1016/j.jmsy.2021.11.016
27	KULEVOME D K B, WANG H, WANG X G A bidirectional lstm-based prognostication of electrolytic capacitor. Progress in Electromagnetics Research C, 2021, 109, 139- 152. doi: 10.2528/PIERC20120201
28	QIAN J C, SONG Z H, YAO Y, et al A review on autoencoder based representation learning for fault detection and diagnosis in industrial processes. Chemometrics and Intelligent Laboratory Systems, 2022, 231, 104711. doi: 10.1016/j.chemolab.2022.104711
29	JIA X D, ZHAO M, DI Y, et al Assessment of data suitability for machine prognosis using maximum mean discrepancy. IEEE Trans. on Industrial Electronics, 2018, 65 (7): 5872- 5881. doi: 10.1109/TIE.2017.2777383
30	PECHT M G. Prognostics and health management of electronics. Hoboken: John Wiley and Sons Ltd., 2018.

Data	t_p	Actual RUL	Predicted RUL	Error	R²	RMSE	MAPE
Sensor 1	600	254	251	3	0.9992	0.00615	0.6703
Sensor 1	750	104	102	2	0.9982	0.00555	0.5723
Sensor 2	600	323	306	17	0.9931	0.02301	2.4821
Sensor 2	750	173	169	4	0.9953	0.01014	1.2915
Sensor 3	600	233	236	3	0.9973	0.00342	2.7553
Sensor 3	750	83	81	2	0.9979	0.00293	2.5715
Sensor 4	600	386	394	8	0.9939	0.02223	2.7007
Sensor 4	750	236	239	3	0.9978	0.01250	2.1559

Data	t_p	Actual RUL	Predicted RUL	Error	R²	RMSE	MAPE
Sensor 1	600	254	248	6	0.9080	0.05347	3.80328
Sensor 1	750	104	106	2	0.9959	0.00723	0.69395
Sensor 2	600	323	315	8	0.9942	0.01356	1.90885
Sensor 2	750	173	170	3	0.9956	0.00935	0.88095
Sensor 3	600	233	229	4	0.9944	0.00850	1.1645
Sensor 3	750	83	83	0	0.9957	0.00317	0.3049
Sensor 4	600	386	381	5	0.9957	0.01881	1.6104
Sensor 4	750	236	234	2	0.9967	0.00680	0.5897
