Long time hybrid integration of radar rotating target

doi:10.23919/JSEE.2024.000123

Abstract

Abstract:

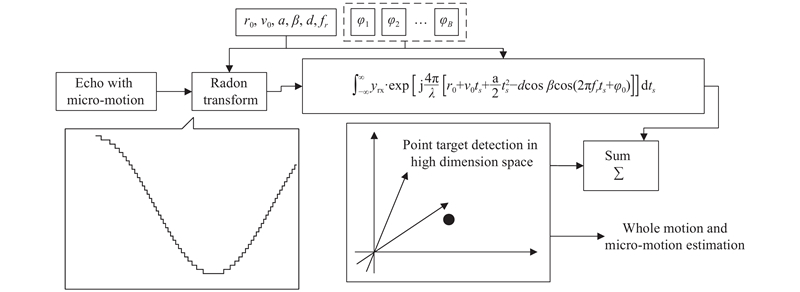

In the traditional radar unmanned aerial vehicle (UAV) detection process, coherent integration and micro-Doppler (m-D) parameter estimation are carried out separately. The target discrimination process needs to obtain the position information of the target, which will lose energy. In this paper, a long time integration method of radar signal based on rotating target radon Fourier transform (RTRFT) is proposed. This method modifies the distance and frequency terms in the traditional generalized radon Fourier transform (GRFT), and adds the frequency sinusoidal modulation term. Then, based on the cardinality balanced multi-target multi-Bernoulli (CBMeMBer) filter, the position of the target is detected in the high-dimensional space obtained by RTRFT. This method can combine coherent integration and micro-motion parameter estimation. Simulation experiments show that the proposed method can estimate the main translational parameters and rotational micro-motion parameters of the target while detecting the target, and the target detection performance is improved.

Key words: long time coherent integration (LTCI), cardinality balanced multi-agent multi-Bernoulli filter, signal detection, unmanned aerial vehicle (UAV), generalized radon Fourier transform (GRFT)

Zhiyong SONG, Yuntao XU. Long time hybrid integration of radar rotating target[J]. Journal of Systems Engineering and Electronics, 2025, 36(6): 1477-1487.

Figures/Tables 14

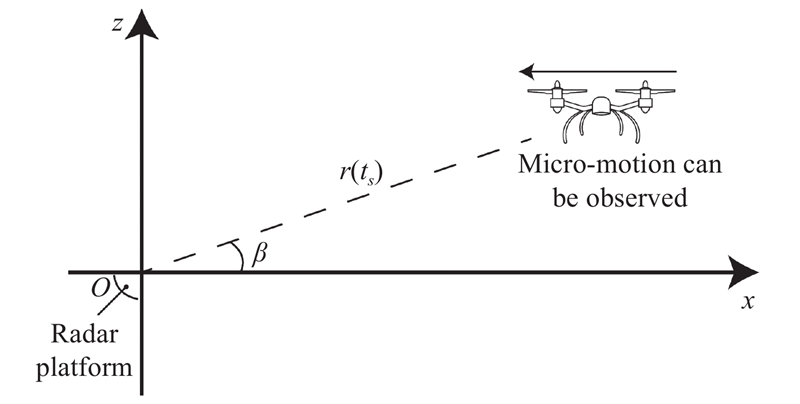

Fig 1

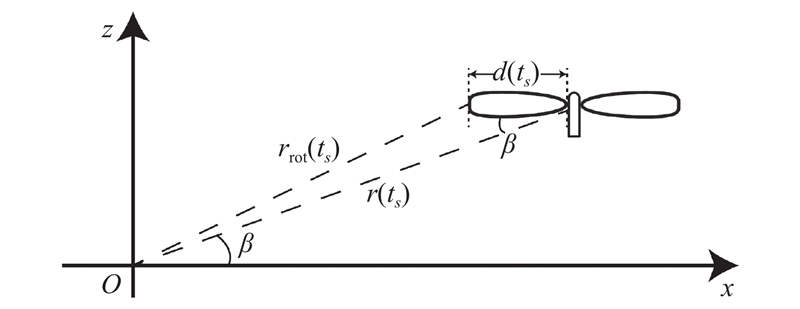

Fig 2

Fig 3

Fig 4

Table 1

Table 2

Fig 5

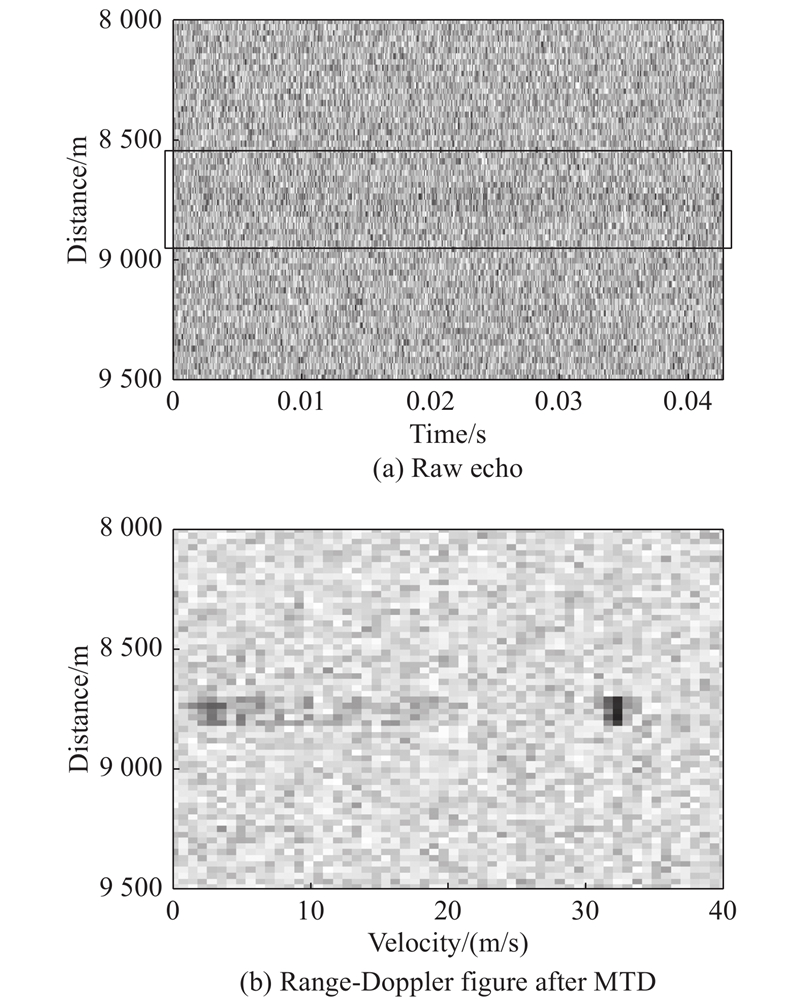

Fig 6

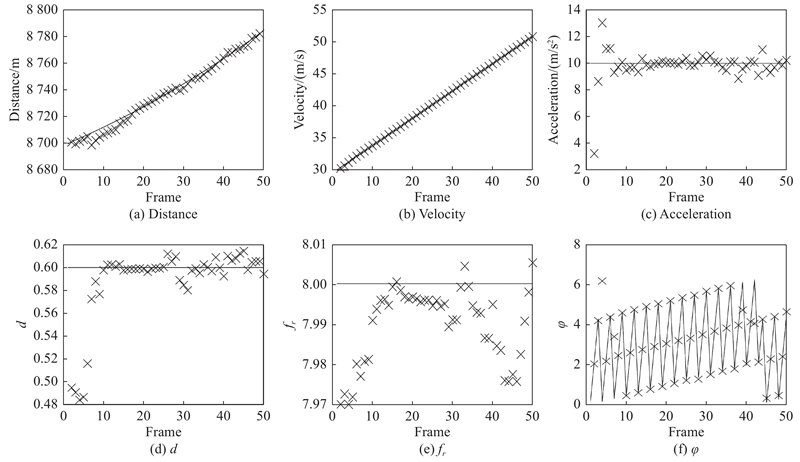

Fig 7

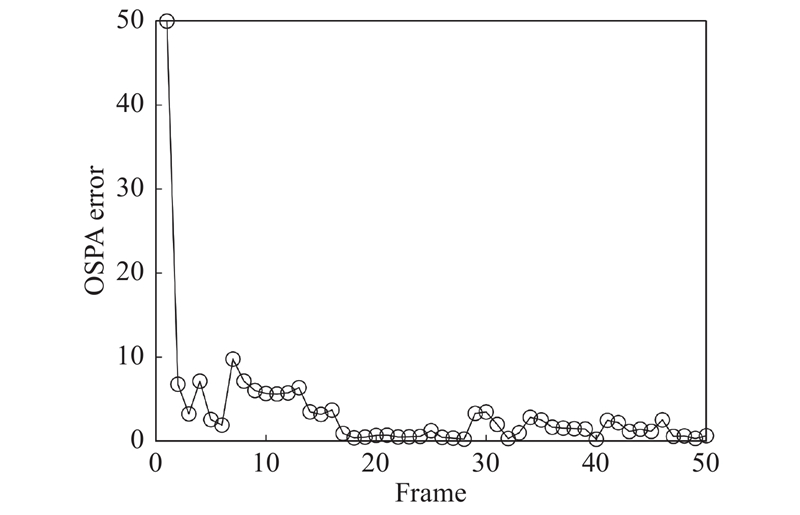

Fig 8

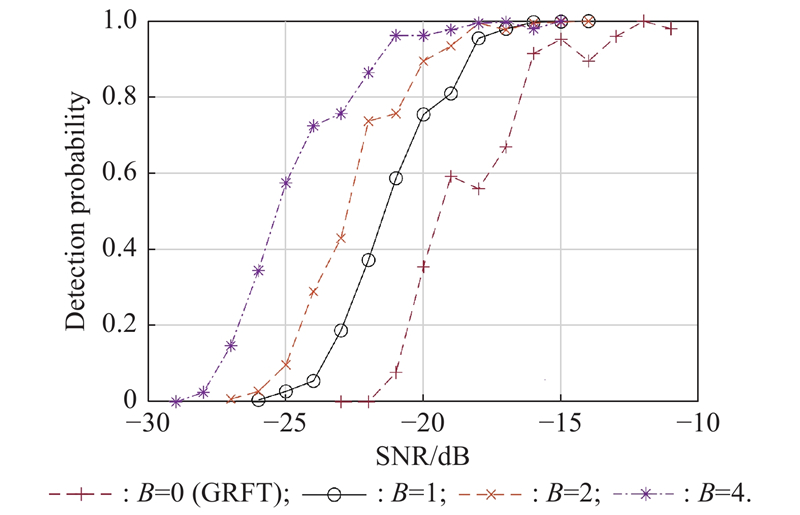

Fig 9

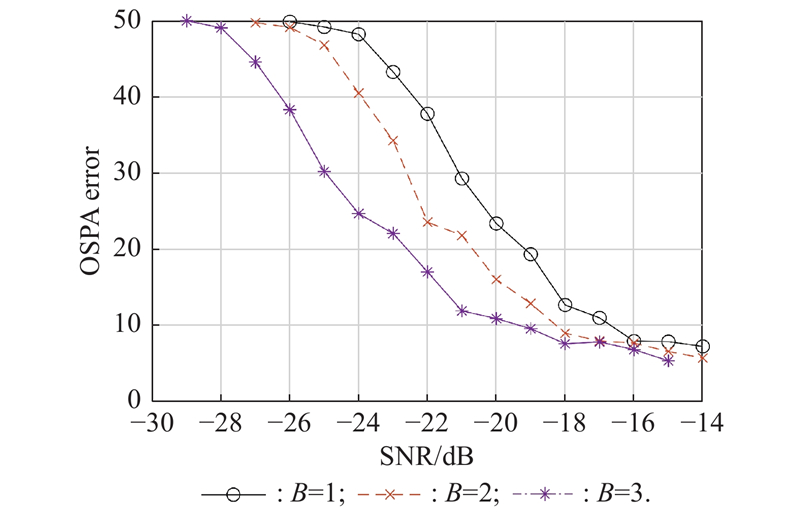

Fig 10

Table 3

Fig 11

References 31

1	YANG Y, YANG B Y Overview of radar detection methods for low altitude targets in marine environments. Journal of Systems Engineering and Electronics, 2024, 35 (1): 1- 13.
2	WANG P F, HU J F, HU W, et al Anti-swarm UAV radar system based on detection data fusion. Journal of Systems Engineering and Electronics, 2024, 35 (5): 1167- 1176. doi: 10.23919/JSEE.2023.000077
3	CHEN V C. Analysis of radar micro-Doppler with time-frequency transform. Proc. of the 10th IEEE Workshop on Statistical Signal and Array Processing, 2000: 463−466.
4	CHEN V C. The micro-Doppler effect in radar. 2nd ed. Norwood: Artech House, 2013.
5	QIN X Y, DENG B, DONG J, et al Micro-motion characteristics of helicopter blades based on THz radar. Journal of Terahertz Science and Electronic Information Technology, 2023, 21 (3): 317- 324.
6	JIAN M, LU Z, CHEN V C. Experimental study on radar micro-Doppler signatures of unmanned aerial vehicles. Proc. of the IEEE Radar Conference, 2017: 854−857.
7	ZHANG W P, LI X, LIU Y X Research on representation, estimation and recognition for radar targets with micro-motion. Science China Information Sciences, 2023, 53 (8): 1469- 1489.
8	HE W K, SUN J B, ZHANG X Y, et al Micro-Doppler feature extraction of micro-rotor UAV under the background of low SNR. Journal of Systems Engineering and Electronics, 2022, 33 (6): 1127- 1139.
9	HE M, FANG X, HUANG D R, et al. A hybrid integration method for low-observable micro-UAV trajectory tracking by 2D MIMO radar. Proc. of the 38th Youth Academic Annual Conference of Chinese Association of Automation, 2023: 809−813.
10	YANG Y P, YANG F, SUN L G, et al Echoformer: transformer architecture based on radar echo characteristics for UAV detection. IEEE Sensors Journal, 2023, 23 (8): 8639- 8653. doi: 10.1109/JSEN.2023.3254525
11	WU J, AI X F, ZHENG Y Q, et al Micro-Doppler curve extraction based on reassociation viterbi algorithm. IEEE Trans. on Aerospace and Electronic Systems, 2024, 60 (4): 4295- 4309. doi: 10.1109/TAES.2024.3373719
12	COSTA H C A, MYINT S J, ANDRICH C, et al. Bistatic reflectivity and micro-Doppler signatures of drones for integrated communication and sensing. Proc. of the International Radar Symposium, 2024: 194−199.
13	COSTA H C A, MYINT S J, ANDRICH C, et al. Modelling micro-Doppler signature of drone propellers in distributed ISAC. Proc. of the IEEE Radar Conference, 2024. DOI: 10.1109/RadarConf2458775.2024.10548468.
14	MANDAL P, ROY L P, DAS S K Flying objects classification based on micro-Doppler signature data from UAV borne radar. IEEE Geoscience and Remote Sensing Letters, 2024, 21, 3501605.
15	WANG L, SU Q, WEI G, et al. Micro-Doppler feature extraction algorithm for space coning target based on synchro-extracting transform and ridge detection. Systems Engineering and Electronics, 2024, 46(11): 3684−3689. (in Chinese)
16	REN X Y, LIN R Q, DENG Y K, et al. Slow weak target detection method of ground-based radar based on mode decomposition. Systems Engineering and Electronics, 2024. https://link.cnki.net/urlid/11.2422.tn.20240613.1413.002. (in Chinese)
17	LU J, ZHANG W P, LIU Y X, et al Non-sinusoidal micro-Doppler estimation based on dual-branch network. Remote Sensing, 2022, 14 (19): 4764. doi: 10.3390/rs14194764
18	SONG Q, PENG X Y, HUANG S L, et al Classification of UAVs and birds using sequential feature extraction. Journal of Signal Processing, 2024, 40 (5): 839- 852.
19	AL-LQUBAYDHI N, ALENEZI A, ALANAZI T, et al Deep learning for unmanned aerial vehicles detection: a review. Computer Science Review, 2024, 51, 100614. doi: 10.1016/j.cosrev.2023.100614
20	CHEN X, MA C, ZHAO C, et al UAV classification based on deep learning fusion of multidimensional UAV micro-Doppler image features. IEEE Geoscience and Remote Sensing Letters, 2024, 21, 3503205.
21	PARK J, PARK J S Classification of small drones using low-uncertainty micro-Doppler signature images and ultra-lightweight convolutional neural network. IEEE Trans. on Image Processing, 2024, 33, 2979- 2994. doi: 10.1109/TIP.2024.3388895
22	ZUO L, LI M, LIU Z, et al A high-resolution time-frequency rate representation and the cross-term suppression. IEEE Trans. on Signal Processing, 2016, 64 (10): 2463- 2474. doi: 10.1109/TSP.2016.2526968
23	ZHANG H L, ZHANG W P, LIU Y X, et al Scatterer-level time-frequency-frequency rate representation for micro-motion identification. Remote Sensing, 2023, 15 (20): 4917. doi: 10.3390/rs15204917
24	XU J, YU J, PENG Y N, et al Radon-Fourier transform for radar target detection, I: generalized Doppler filter bank. IEEE Trans. on Aerospace and Electronic Systems, 2011, 47 (2): 1186- 1202. doi: 10.1109/TAES.2011.5751251
25	XU J, YU J, PENG Y N, et al Radon-Fourier transform for radar target detection (II): blind speed sidelobe suppression. IEEE Trans. on Aerospace and Electronic Systems, 2011, 47 (4): 2473- 2489. doi: 10.1109/TAES.2011.6034645
26	YU J, XU J, PENG Y N, et al Radon-Fourier transform for radar target detection (III): optimality and fast implementations. IEEE Trans. on Aerospace and Electronic Systems, 2012, 48 (2): 991- 1004. doi: 10.1109/TAES.2012.6178044
27	VO B T, VO B N, CANTONI A The cardinality balanced multi-target multi-Bernoulli filter and its implementations. IEEE Trans. on Signal Processing, 2009, 57 (2): 409- 423. doi: 10.1109/TSP.2008.2007924
28	CHAI L, KONG L J, LI S Q, et al The multiple model multi-Bernoulli filter based track-before-detect using a likelihood based adaptive birth distribution. Signal Processing, 2020, 171, 107501. doi: 10.1016/j.sigpro.2020.107501
29	VO B N, VO B T, PHAM N T, et al Joint detection and estimation of multiple objects from image observations. IEEE Trans. on Signal Processing, 2010, 58 (10): 5129- 5141. doi: 10.1109/TSP.2010.2050482
30	MAHLER R P S. Statistical multisource-multitarget information fusion. Boston: Artech House, 2007.
31	MAHLER R P S. Advances in statistical multisource-multitarget information fusion. Boston: Artech House, 2014.

Parameter	Value
Carrier frequency/GHz	${f_c} = 5$
Pulse repetition frequency/kHz	${f_p} = 12$
Coherent accumulation pulse number	$ {N_p} = 512 $
Coherent accumulation time/s	${T_{{\text{CPI}}}} = 0.042\;7$
In-pulse sampling frequency/MHz	${f_s} = 6.144$
Transmit waveform width/ms	$\tau = 0.813\;8$
Equivalent noise temperature/K	$T = 290$

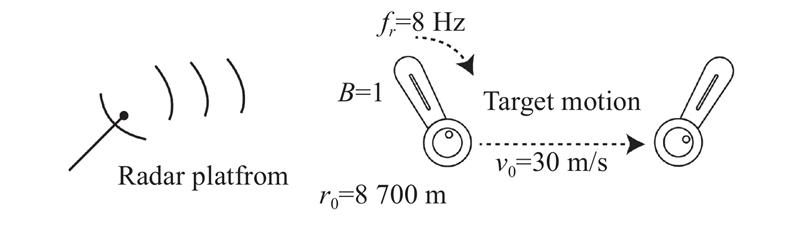

Parameter	Value
Initial position/m	$ {r_0} = 8\;700 $
Initial relative velocity/(m/s)	${v_0} = 30$
Relative acceleration/(m/s²)	$a = 10$
Radar line-of-sight angle/rad	$\beta = 0$
Number of leaves	$B = 1$
Rotation speed/Hz	${f_r} = 8$
Leaf length/m	$d = 0.6$

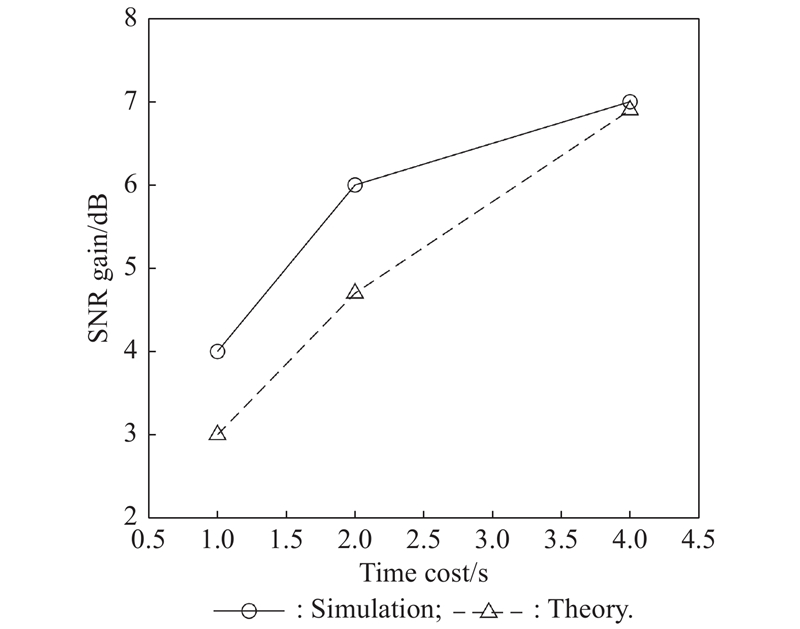

Number of blades	Detection sensitivity/dB	Calculation time/s
0	−12	0.937 0
1	−16	1.990 8
2	−18	2.904 4
4	−19	4.502 1
